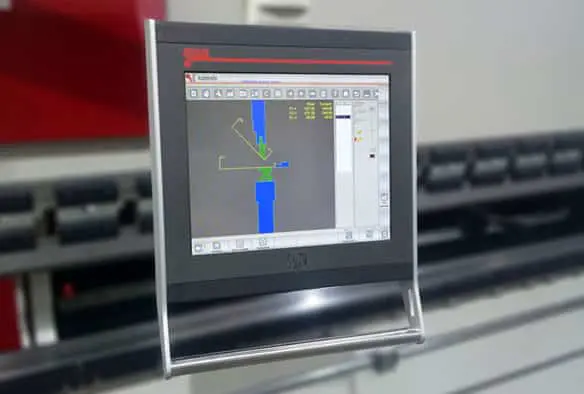

ESA 660 Touch Controller

Main view Esa-660-Touch-Control-Panel

If you’re looking for high precision and accuracy in more sophisticated folding programmes then this is controller for you. This 19” touch screen controller has very clear graphics and is very simple to use. The 600 can manage up to 10 axes in any combination. The ESA 660 controller can also be purchased with the optional 3D software which has the capacity to directly import and manage tools and even accepts CAD Drawings. This means that you don’t have to input them manually. The controller is favoured by our in-house engineers, dye to its ability to manage sophisticated work pieces with ease. It controls a variety of pressbrakes including conventional mechanical and hydraulic press-brakes, synchro hydraulic press-brakes, servo controlled hydraulic single cylinder press-brakes, electrically driven press-brakes, tandem press-brakes and more.

Main view Esa-660-Touch-Control-Panel
Main view Esa-660-Touch-Control-Panel
ESA 660 Touch Control Panel (Optional)
Main view Esa-660-Touch-Control-Panel
ESA-660 Touch 3D ControllerESA-660 Touch 3D Controller

Features

  • 19” 4:3 high-resolution touch screen (resolution SXGA 1280 x 1024)
  • CPU PC: AMD Embedded GX 420 CA 2GHz, with 4Gb of RAM
  • CPU CNC: Amd LX-LX800 500MHz, with 128Mb of RAM
  • FPGA integrated logics, surface mounting, fiber optic
  • 24Vdc 100W max power supply
  • Capacitive Touch Screen with multi-touch functionality
  • Ergonomic aluminium housing, with a panel suitable for machine operational selector-switches and push-buttons
  • 2.5” Hard disk drive 20GB or more
  • Preset for standard pc keyboard and mouse (ps2 standard connectors)
  • 1 serial ports rs-232, 3 usB ports, 2 ethernet port on the pc
  • 2 serial ports rs-232, 2 USB, 1 ethernet port, 1 can open port on cnc
  • Fiber optic interface

Options
