The Meyer Precision Lathes range from 360mm to 660mm swing capacities and from 1000mm to 3000mm distance between centres. From tough reliability to peerless precision engineering, the range is superbly engineered to deliver.

Meyer Euroline Precision Lathes offer swing capacities of 325mm to 1410mm and centre distances of 500mm to 9000mm, with robust reliability and exceptional precision engineering.

Meyer Precision Lathes can be demonstrated at any of our three branches and as part of our first class after-sales service, our trained engineers are on hand to provide technical advice and can rapidly respond to any issues that may arise. For more technical applications and training on the machine controls and handling is available from our trained engineers.

High-Precision Lathes

Euroline Precision Lathes

SB and SM Precision Lathes

The sturdy SB and SM industrial lathes are ideal for the tool room and for jobbing operations. All Meyer industrial lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.

Swing Over Bed - 360mm
Swing Over Gap - 491mm
Distance Between Centres - 1,000mm
Spindle Bore - 38mm
Spindle Taper - MT5
Quill Taper - MT3

Swing Over Bed - 410mm
Swing Over Gap - 580mm
Distance Between Centres - 1,000mm
Spindle Bore - 52mm
Spindle Taper - MT6
Quill Taper - MT4

SG Precision Lathes

The heavy duty SG machines are available in eight different sizes and have the added benefit of 2-axis DRO and the super quick tool change system fitted as standard.

All Meyer industrial lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.

Swing Over Bed - 410mm
Swing Over Gap - 640mm
Distance Between Centres - 1,000mm
Spindle Bore - 58mm
Spindle Taper - MT6
Quill Taper - MT4

Swing Over Bed - 410mm
Swing Over Gap - 640mm
Distance Between Centres - 1,500mm
Spindle Bore - 58mm
Spindle Taper - MT6
Quill Taper - MT4

Swing Over Bed - 460mm
Swing Over Gap - 690mm
Distance Between Centres - 1,000mm
Spindle Bore - 58mm
Spindle Taper - MT6
Quill Taper - MT4

Swing Over Bed - 460mm
Swing Over Gap - 690mm
Distance Between Centres - 1,500mm
Spindle Bore - 58mm
Spindle Taper - MT6
Quill Taper - MT4

Swing Over Bed - 560mm
Swing Over Gap - 788m
Distance Between Centres - 1,000mm
Spindle Bore - 80mm
Spindle Taper - MT7
Quill Taper - MT5

Swing Over Bed - 560mm
Swing Over Gap - 788m
Distance Between Centres - 1,500mm
Spindle Bore - 80mm
Spindle Taper - MT7
Quill Taper - MT5

Swing Over Bed - 560mm
Swing Over Gap - 788m
Distance Between Centres - 2,000mm
Spindle Bore - 80mm
Spindle Taper - MT7
Quill Taper - MT5

Swing Over Bed - 560mm
Swing Over Gap - 788m
Distance Between Centres - 3,000mm
Spindle Bore - 80mm
Spindle Taper - MT7
Quill Taper - MT5

ST Precision Lathes

The ST range are large capacity industrial lathes with a 660mm swing with the distances between centres available up to 3000mm. Power traverse is fitted as standard equipment to all ST models which are operator friendly for the longer length machines.

All Meyer industrial lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.

Swing Over Bed - 660mm
Swing Over Gap - 900mm
Distance Between Centres - 1,500mm
Spindle Bore - 105mm
Spindle Taper - MT5
Quill Taper - MT5

Swing Over Bed - 660mm
Swing Over Gap - 900mm
Distance Between Centres - 2,000mm
Spindle Bore - 105mm
Spindle Taper - MT5
Quill Taper - MT5

Swing Over Bed - 660mm
Swing Over Gap - 900mm
Distance Between Centres - 3,000mm
Spindle Bore - 105mm
Spindle Taper - MT5
Quill Taper - MT5

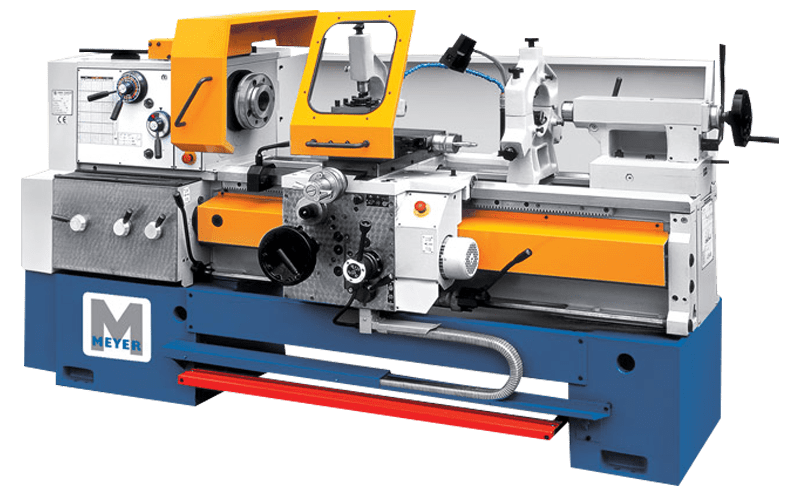

Euroline ER Precision Lathes

The Meyer Euro Line range of precision centre lathes are of robust construction and are designed and manufactured in Europe using high-quality materials and with stringent quality control procedures.

The ER and ES models span a range from a small tool room lathe with a 325mm swing over bed and 500mm between centres, up to a 600mm swing over bed with 5 metres between centres.

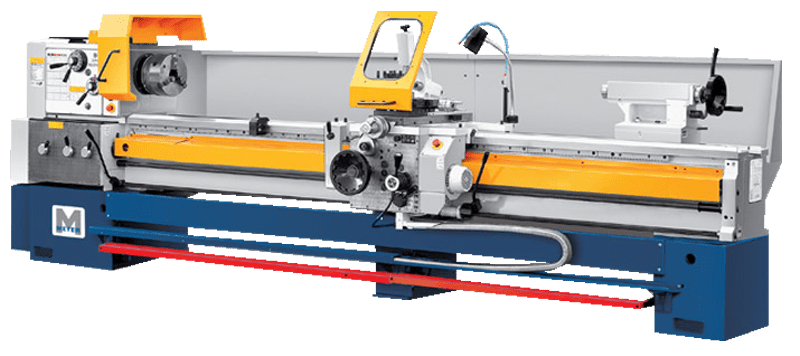

Euroline ES Precision Lathes

The Meyer Euro Line range of precision centre lathes are of robust construction and are designed and manufactured in Europe using high-quality materials and with stringent quality control procedures.

The ER and ES models span a range from a small tool room lathe with a 325mm swing over bed and 500mm between centres, up to a 600mm swing over bed with 5 metres between centres.

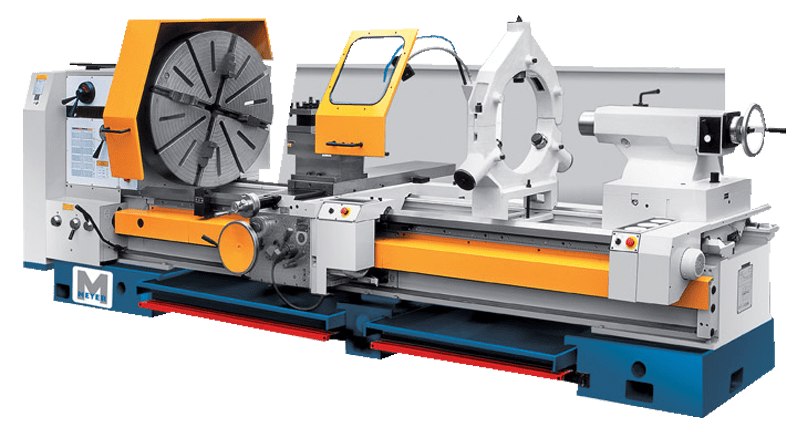

Euroline EX Precision Lathes

The Meyer Euro Line metal lathes include high-capacity EV, EX, and EC models with wider beds and powerful motors. The EX 1410 model has a 1410mm swing over bed and, on request, up to 9000mm between centres. EC models feature a large bore through the headstock and optional free-standing steadies for longer materials.

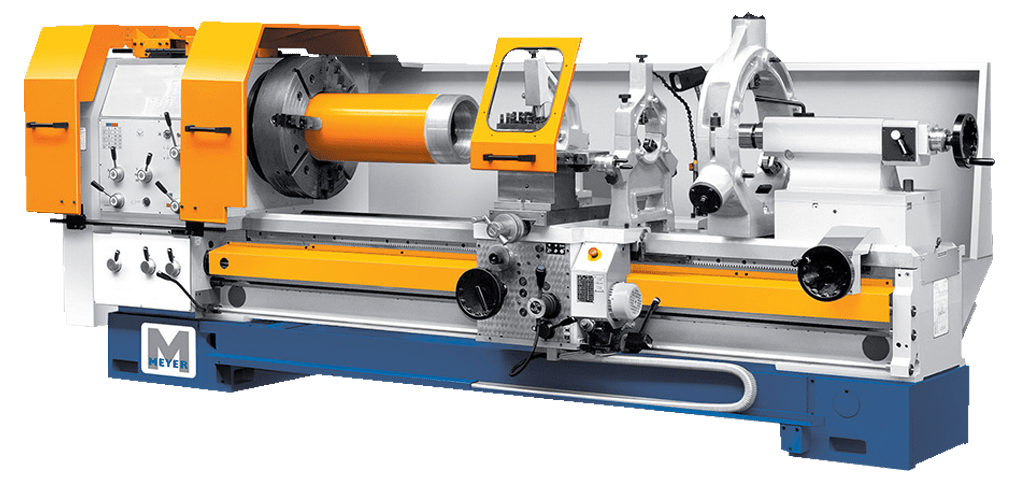

Euroline EC Precision Lathes

The Meyer Euro Line range of metal lathes continues with the high capacity EV, EX, and EC models, featuring wider bed designs and high-powered motors. The EX range includes the EX 1410 model, with a 1410mm swing over bed and, by special request, up to 9000mm distance between centres.
