Sterling SVR Vertical Bandsaws

Sterling offer a wide range of sawing solutions including circular saws, horizontal bandsaws, twin column bandsaws and the SVR range of vertical bandsaws. The SVR range consists of four models of varying throat capacities. They are all equipped with blade shear, blade welder and grinder as standard equipment.

The blade can be set as narrow as 3mm, which is ideal for producing curved shapes and extends to 16mm. Together with the adjustable fence, this is perfect for straight cutting. With additional guards, the blades can extend up to a 27mm. Our range of vertical bandsaws are capable of cutting a variety of materials. These include: Iron, Steel, Plastic, Wood, Resin and paper. Constructed from fabricated steel, they are rigid, robust and made to last.

Vertical bandsaws are ideal for cutting angles, mitres and curved shapes. Vertical bandsaws are ideal for intricate work, where you need more finesse. Also, the blades are more flexible, and the machines themselves tend to be more economical than their horizontal bandsaw equivalents. They also take up less workshop space, ideal for small workshops where space is a premium.

We also supply bandsaw blades too, these can be purchased directly off our tooling website.

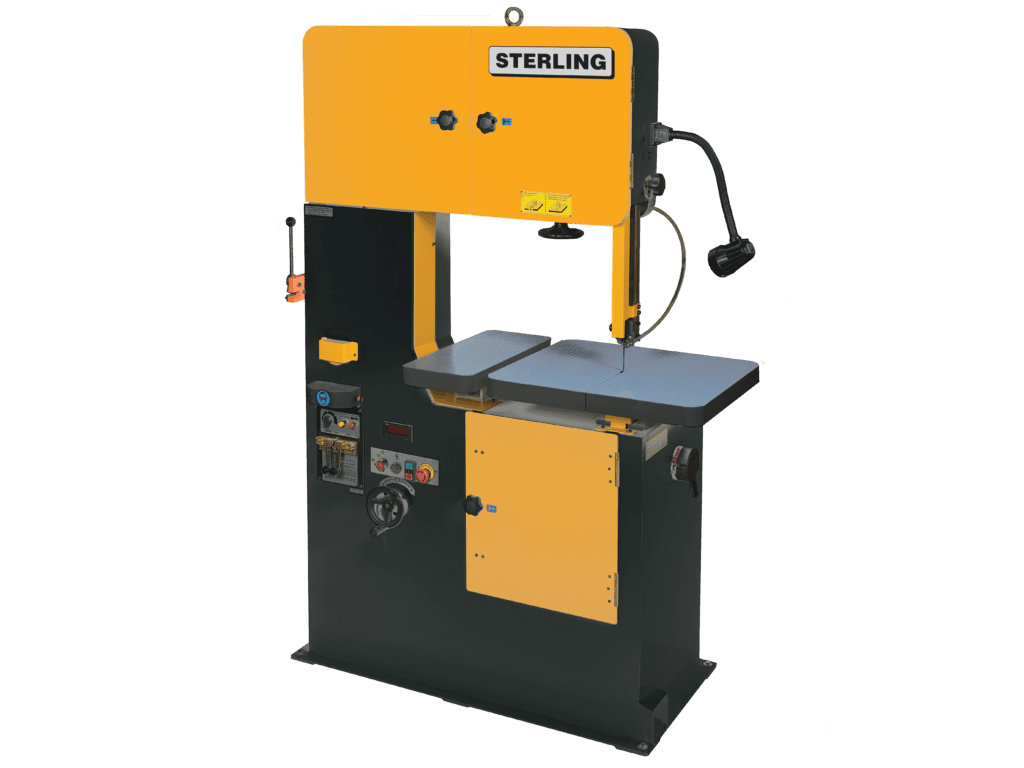

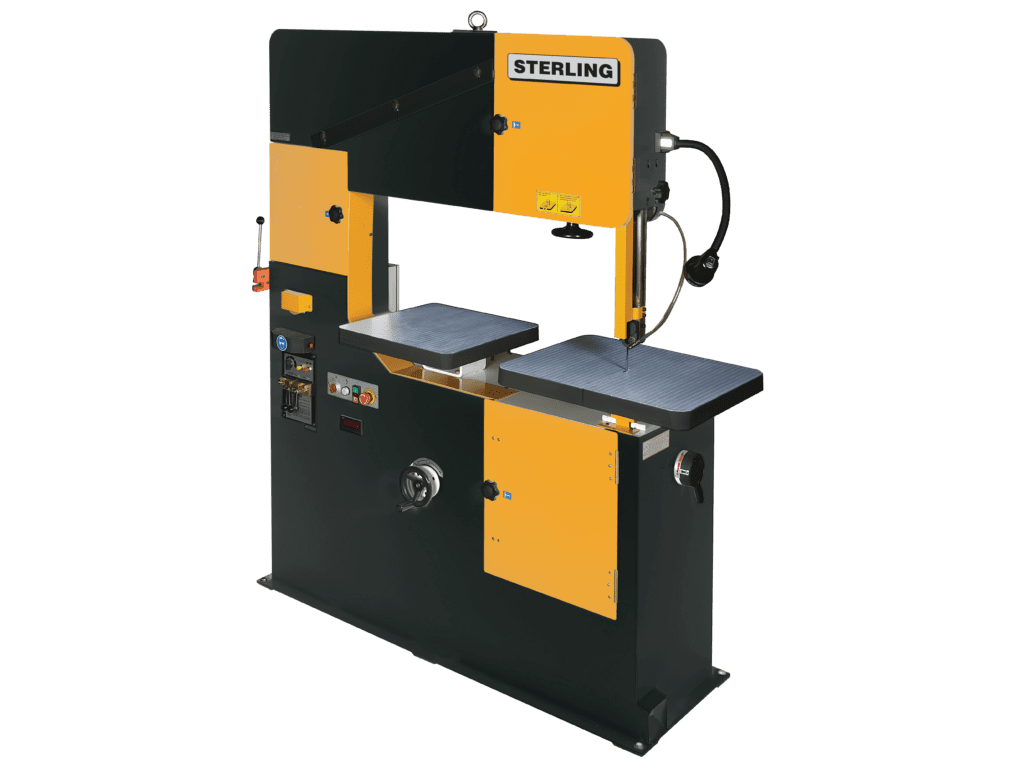

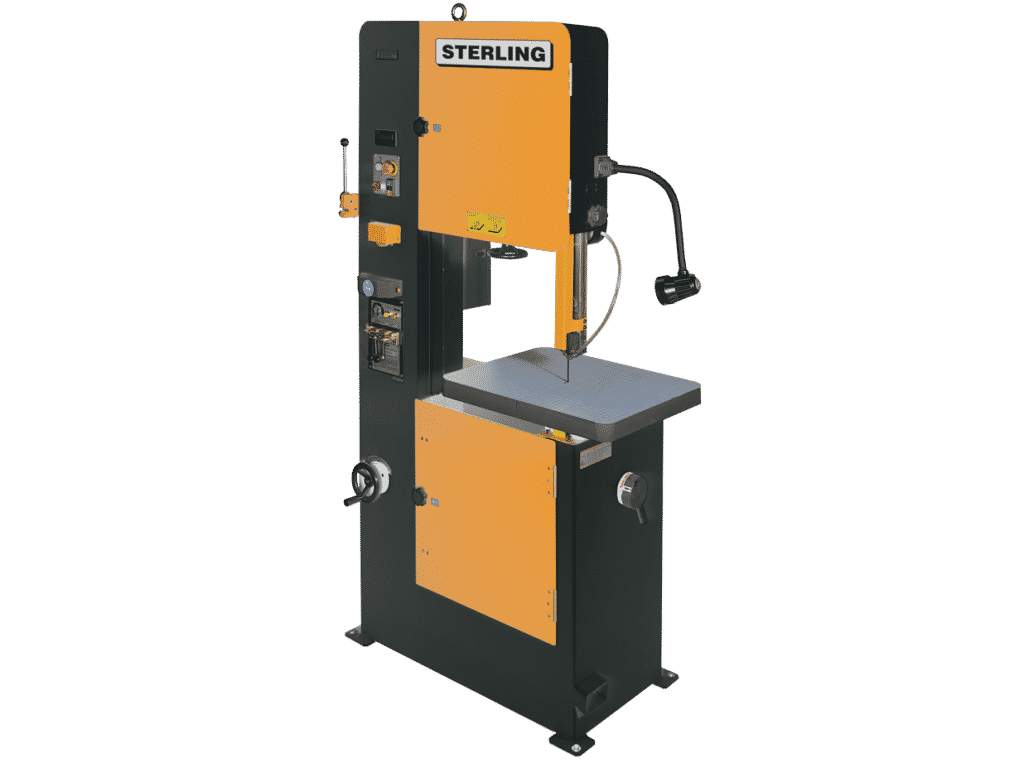

Sterling SVR Vertical Bandsaws
Sterling SVR Vertical BandsawsSterling SVR Vertical Bandsaws
Sterling SVR Vertical Bandsaws on an angleSterling SVR Vertical Bandsaws on an angle
Sterling SVR Vertical Bandsaws Front ViewSterling SVR Vertical Bandsaws Front View

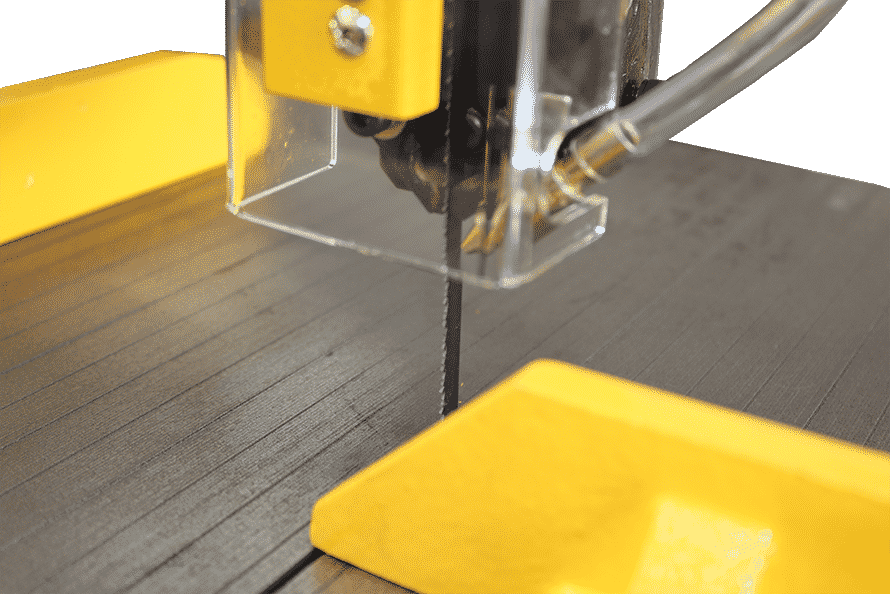

Sterling SVR Blade Close Up
Sterling SVR Blade
Sterling SVR Blade Close Up

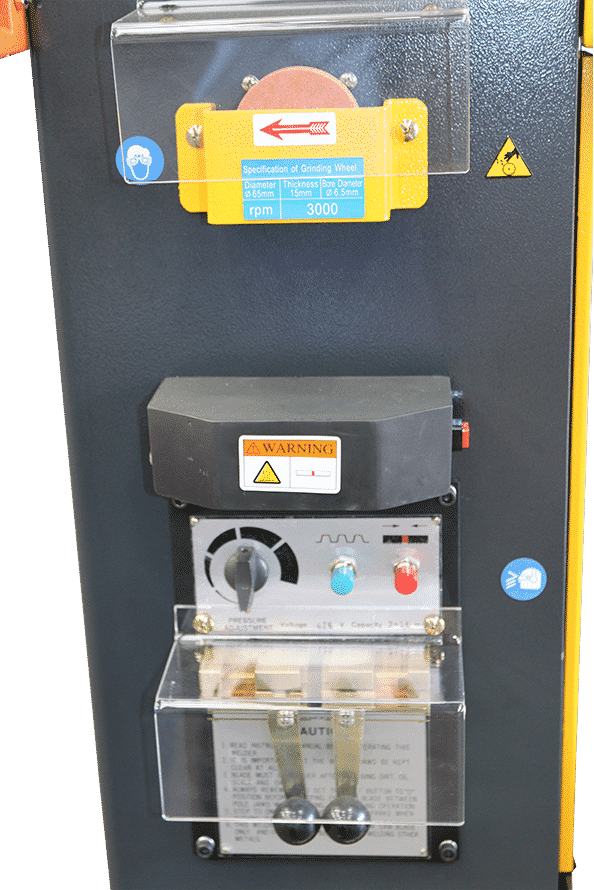

SVR Blade Welding Equipment
Blade Welding Equipment on the SVR Range
SVR Blade Welding Equipment

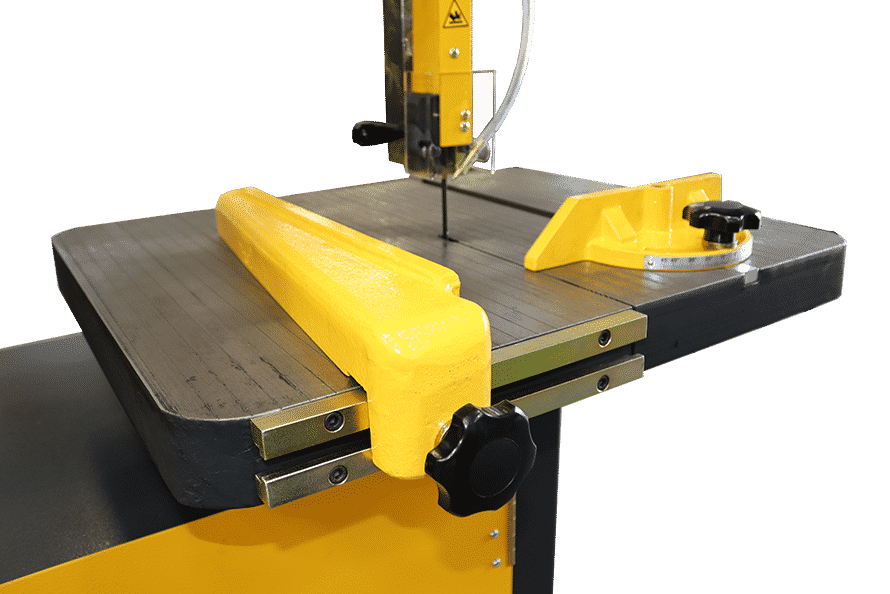

Sterling SVR Cutting Guides
SVR adjustable cutting guides
Sterling SVR Cutting Guides



Cutting heightCutting depthTable sizeCutting speedBlade lengthBlade widthMotorLengthWidthHeightWeight
MODELSTOCK CODEmmmmmmm/minmmmmkwmmmmmmkg
SVR40015456300410600 x 50020 – 50033503.0 – 16 (Welded)

3.0 – 27 (Unwelded)

1.512007602100440
SVR50015457310520600 x 50020 – 50038801.513007602140500
SVR60015458340610600 x 50020 – 50039701.514207602140700
SVR1000154593401010Front: 600 x 500
Rear: 450 x 500
20 – 50045401.517707602140800

Features

SVR400, SVR500 & SVR600

  • Wide range of blade widths
  • Swarf brush
  • Low voltage work light
  • Adjustable fence for straight cutting
  • Variable protractor fence for angle cutting
  • Inclinable table – 5 degrees left and 15 degrees right
  • Variable 2 speed motor

SVR1000

  • Accepts blade widths from 3 to 16mm
  • Variable cutting speed
  • Swarf removal brush
  • Integrated blade welder and grinder
  • Low voltage working light

Options

SVR1000 only

  • Rip fence
  • Mitre fence
