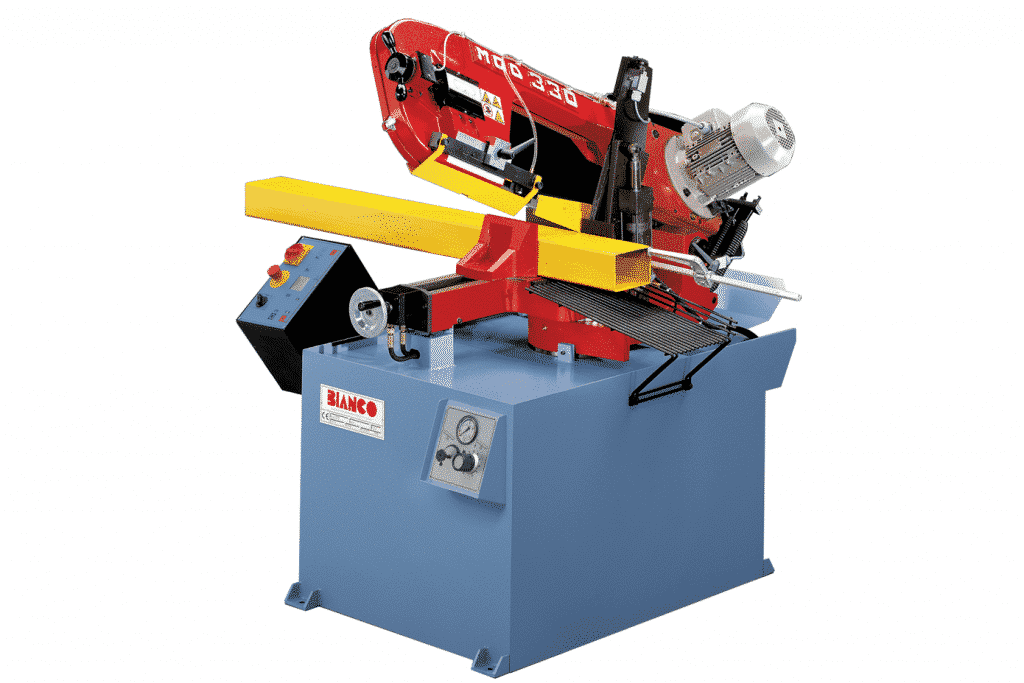

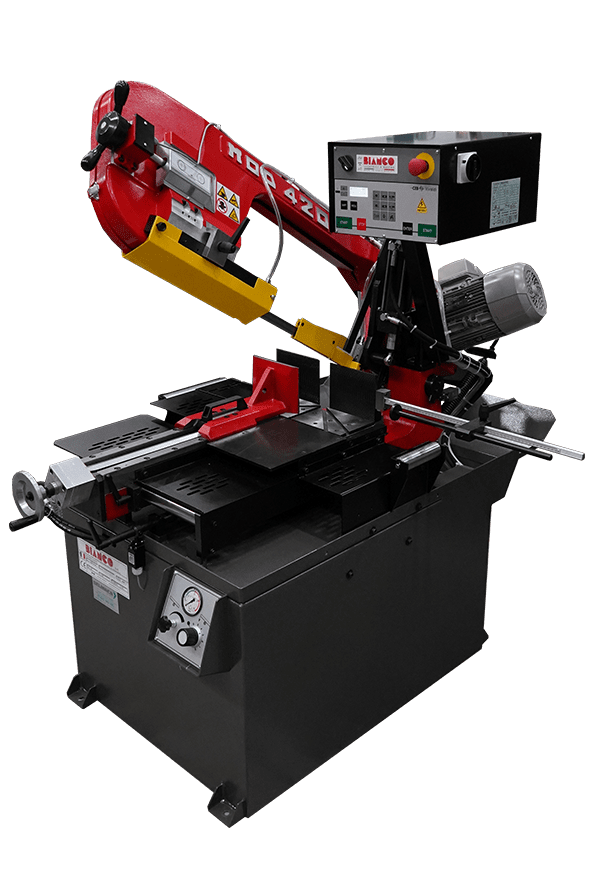

Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v
The Bianco SA DS MS Semi Automatic Single Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.
Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.
Variable Speed Motor
Mechanical Bundling (Optional)

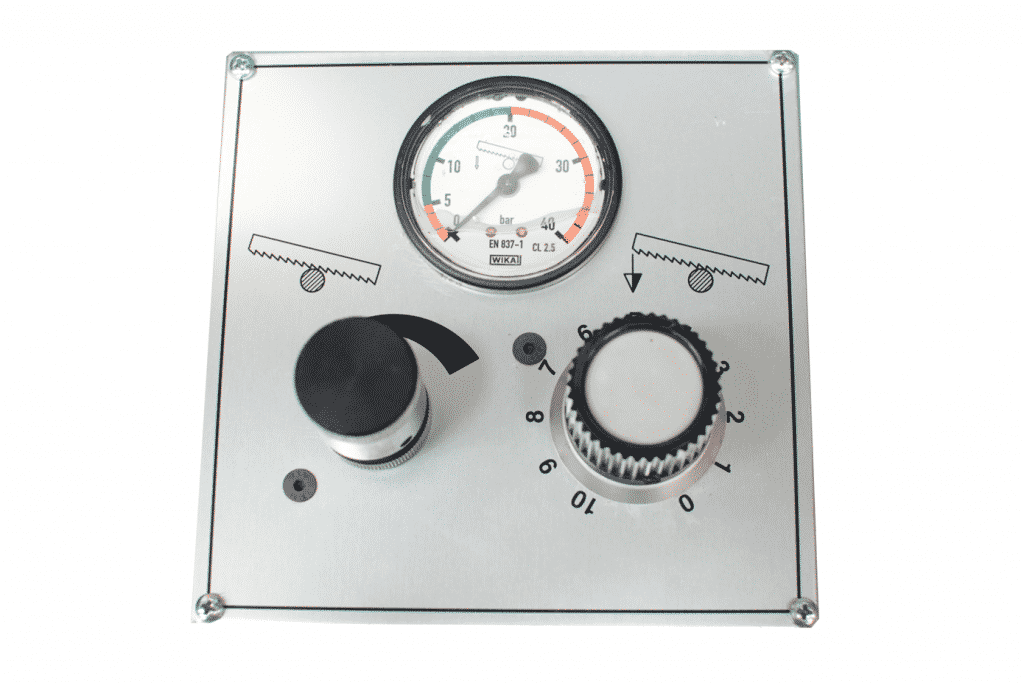

Hydraulic Bundling (Optional)
Dry Cooling (Optional)
Frequency Inverter (Optional)
Adjustable Vice Pressure (Optional)
High Controller
Low Controller
| MODEL | 330SA DS MS | 370SA DS MS | 420SA DS MS | ||||||||||||||||
| Capacity | 90° | 45°L | 45°R | 60°R | 90° | 45°L | 45°R | 60°R | 90° | 45°L | 45°R | 60°R | |||||||
| ◯ Tube | mm | 260 | 130 | 150 | 120 | 280 | 200 | 230 | 140 | 280 | 200 | 260 | 170 | ||||||
| ▢ Box Section | mm | 220 | 110 | 150 | 110 | 240 | 170 | 200 | 140 | 240 | 180 | 240 | 160 | ||||||
| ▭ Widest Cut | mm | 330 x 120 | 190 x 150 | 190 x 150 | 120 x 120 | 350 x 140 | 220 x 110 | 230 x 130 | 140 x 140 | 420 x 200 | 250 x 100 | 260 x 200 | 160 x 160 | ||||||
| Bed Height | mm | 830 | 830 | 830 | |||||||||||||||
| Blade Size | mm | 3010 x 27 x 0.9 | 3120 x 27 x 0.9 | 3270 x 27 x 0.9 | |||||||||||||||
| Cutting Speed | m/min | 35 / 70 | 35 / 70 | 35 / 70 | |||||||||||||||
| Motor | Kw | 0.9 / 1.5 | 0.9 / 1.5 | 0.9 / 1.5 | |||||||||||||||
| Length | mm | 1500 | 1550 | 1600 | |||||||||||||||
| Width | mm | 1600 | 1600 | 1600 | |||||||||||||||
| Height | mm | 1700 | 1750 | 1800 | |||||||||||||||
| Weight | Kg | 465 | 470 | 488 | |||||||||||||||
| Operation | Semi-Automatic | Semi-Automatic | Semi-Automatic | ||||||||||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic |
Features
- Hydraulic cutting with variable pressure and variable speed (Semi-Automatic)
- Sliding Hydraulic vice
- Fast approach with auto bow height return setting
- Quick mitring swivel head up to 60°
- Cutting Angle Display (Digital Read Out)
- Cast bow construction
- Swarf brush
- Carbide blade guides for high accuracy
- 2 speed motor
- Heavy duty & fast cutting
- Coolant System
- Blade tension indicator
- Safety interlock switch fitted to band wheel cover
- Material length stop
- Low controller position
Options
- High controller position
- Blade speed variation
- Spray mist cooling system
- Powered swarf brush
- Roller track and measuring systems
