Sterling STC CS NC Twin-Column Automatic Bandsaw

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The new CS series is designed to maximize our customers’ production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding system. This a fully automatic machine in a two – column design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting.

The Omron CNC touch screen controller on this saw enables the user to set-up to 30 different programmes, each with 50 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you. This allows you to save and store regular jobs for quick reference and use, speeding up production time-scales.

Sterling STC CS NC Twin-Column Automatic Bandsaw imageSterling STC CS NC Twin-Column Automatic Bandsaw image
Sterling STC CS NC Twin-Column Automatic Bandsaw image 2
Rear View
Sterling STC CS NC Twin-Column Automatic Bandsaw image 2
Sterling STC CS NC Twin-Column Automatic Bandsaw image 3
Hydraulic Vice
Sterling STC CS NC Twin-Column Automatic Bandsaw image 3
Sterling STC CS NC Twin-Column Automatic Bandsaw image 4
Control Panel
Sterling STC CS NC Twin-Column Automatic Bandsaw image 4
Sterling STC CS NC Twin-Column Automatic Bandsaw image 5
Omron Touchscreen Controller - 30 Programme, 50 Steps
Sterling STC CS NC Twin-Column Automatic Bandsaw image 5
Sterling STC CS NC Twin-Column Automatic Bandsaw image 6
Sensitive Pressure
Sterling STC CS NC Twin-Column Automatic Bandsaw image 6
Sterling STC CS NC Twin-Column Automatic Bandsaw image 7
Chip Conveyor
Sterling STC CS NC Twin-Column Automatic Bandsaw image 7
Sterling STC CS NC Twin-Column Automatic Bandsaw image 8

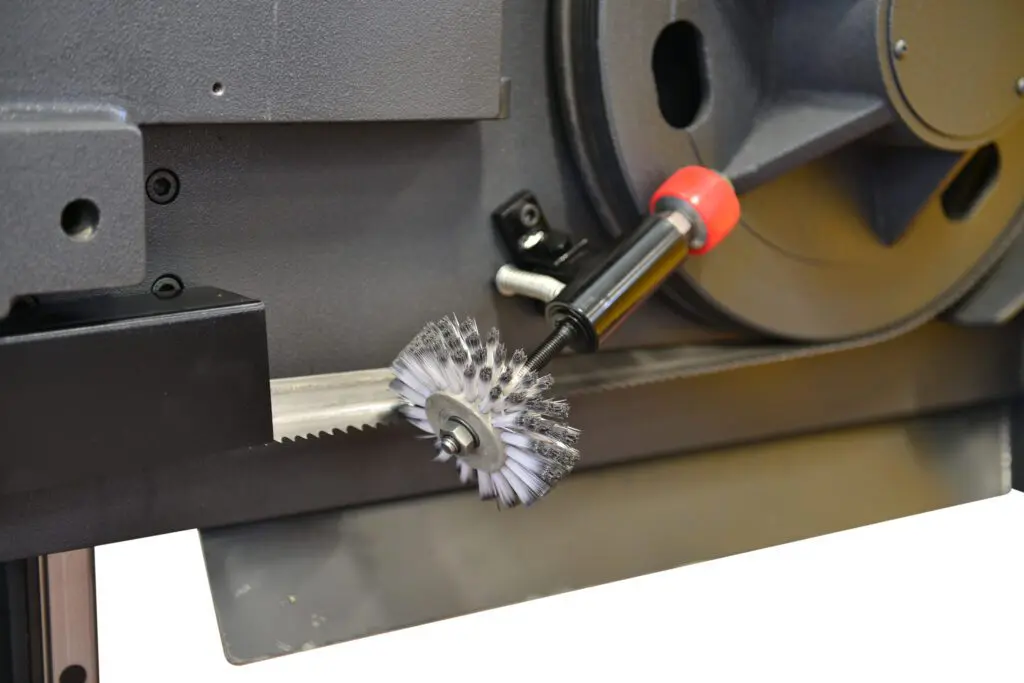

Swarf Wheel
Sterling STC CS NC Twin-Column Automatic Bandsaw image 8
Sterling STC CS NC Twin-Column Automatic Bandsaw image 9
Optical Height Adjustment
Sterling STC CS NC Twin-Column Automatic Bandsaw image 9
Sterling STC CS NC Twin-Column Automatic Bandsaw image 10
Spray Mist Coolant (Optional)
Sterling STC CS NC Twin-Column Automatic Bandsaw image 10
Sterling STC CS NC Twin-Column Automatic Bandsaw image 11
Hexagonal Vice (Optional)
Sterling STC CS NC Twin-Column Automatic Bandsaw image 11
MODEL STC 330CS NC STC 360CS NC STC 460CS NC STC 570CS NC STC 650CS NC STC 820CS NC
Capacity
◯ Round mm 330  360 460 570 650 820
□ Flat mm 330  360 460 570 650 820
▭ Square mm 330 x 330 400x 360 550 x 460 600 x 570 1050 x 650 800 x 850
Bed Height 847 820 826 809 824 630
Main Drive Motor kW 3 3 4 7.5 7.5 7.5
Cutting Speeds m/min. 20 – 100
Blade Dimensions mm 5000 x 34 x 1.1 4800 x 34 x 1.1 5200 x 41 x 1.3 7400 x 54 x 1.6 8400 x 54 x 1.6 8200 x 54 x 1.6
Tolerances mm 0.1
CNC Controller Omron Touchscreen
Program 30 Programmes – 50 Steps
Stroke Length mm 700
Max. Feed mm 9999
Length mm 2670 2500 3250 5900 6580 6250
Width mm 1935 2850 3000 3500 4250 4070
Height mm 1855 2000 2100 2000 1950 4710
Weight kg 2670 1890 2100 2700 2600 2560
Operation Automatic
Vice Hydraulic
Vice Feed Servo

Features

  • Twin column rigidity
  • Fully automatic NC
  • Hydromechanical Blade Tension
  • Inverter drive providing infinitely variable blade speed
  • Automatic bow return
  • Hydraulic vice
  • Servo feeding with 700mm stroke
  • User-friendly Omron touch screen CNC Controller
  • Highly efficient gearbox
  • Sensitive cutting pressure regulation
  • Swarf brush
  • Chip Conveyor
  • Carbide blade guides
  • Flood Coolant system
  • Save up to 30 different cut lengths in 50 different programmes

Options

  • Hydraulic blade tension
  • Hydraulic top clamps
  • Spray mist lubrication
  • Hexagonal Vice for bundle cutting
  • Roller track and measuring systems

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The new CS series is designed to maximize our customers’ production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding system. This a fully automatic machine in a two – column design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting.

The Omron CNC touch screen controller on this saw enables the user to set-up to 30 different programmes, each with 50 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you. This allows you to save and store regular jobs for quick reference and use, speeding up production time-scales.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC CS NC Twin-Column Automatic Bandsaw are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
