Morgan Rushworth XL Fibre Laser Cutting Machines

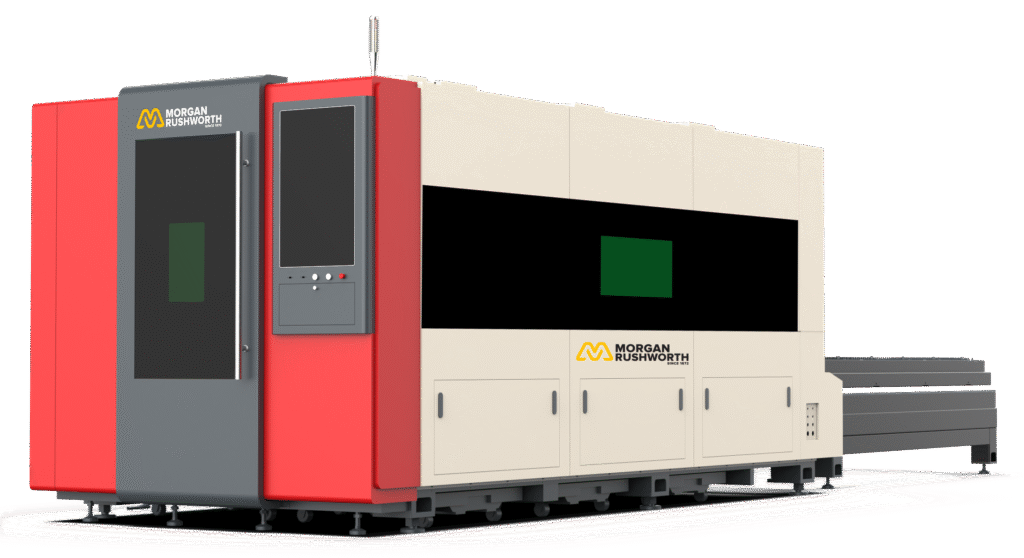

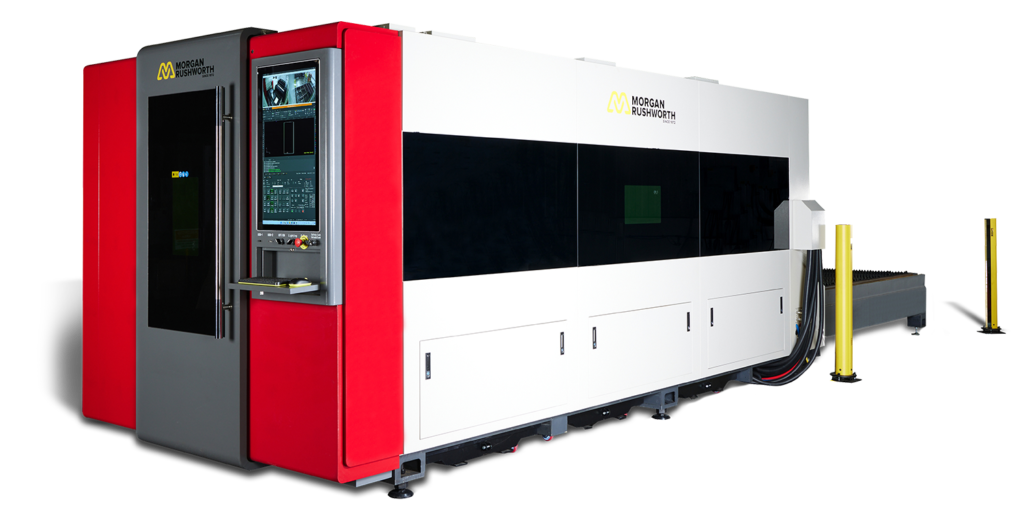

Morgan Rushworth XL 3015 a

The Morgan Rushworth XL range of fibre lasers features a range of cutting size areas, with an automatic shuttle table and dual pallet changer, allowing safe loading and unloading during cutting.

Class-leading components ensure excellent cut quality, high reliability, and minimal downtime. Ranging up to 20kW, these are highly capable machines.

Morgan Rushworth XL 3015 a
Morgan Rushworth XL 3015 aMorgan Rushworth XL 3015 a

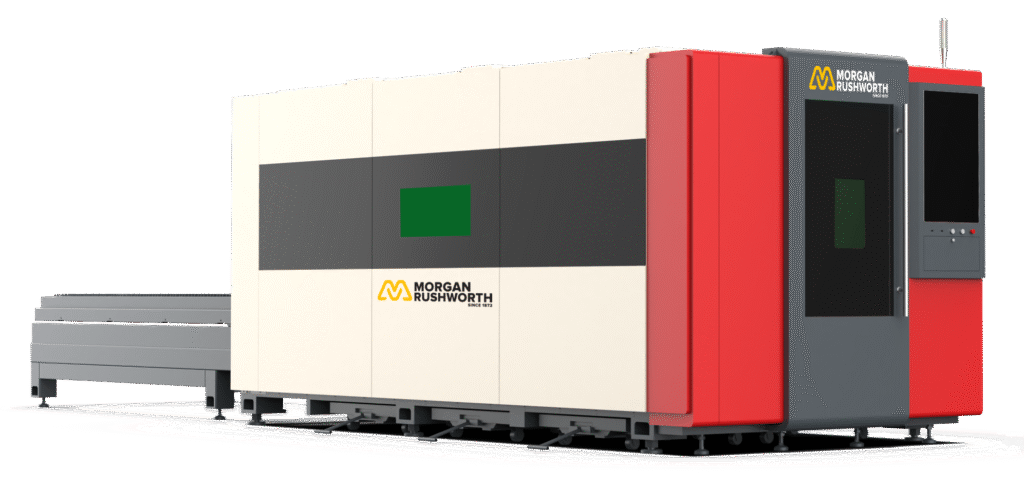

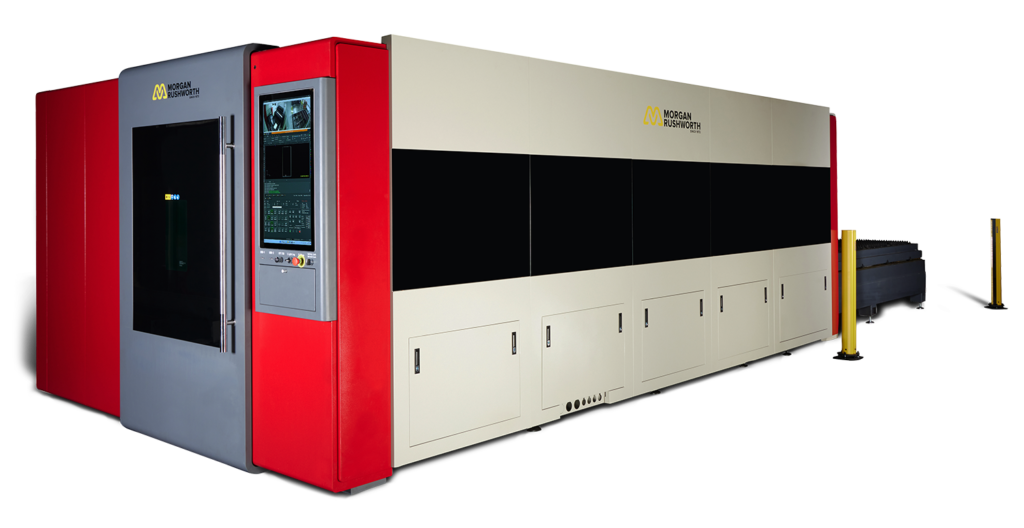

Morgan Rushworth XL 4020 3
Morgan Rushworth XL 4020
Morgan Rushworth XL 4020 3

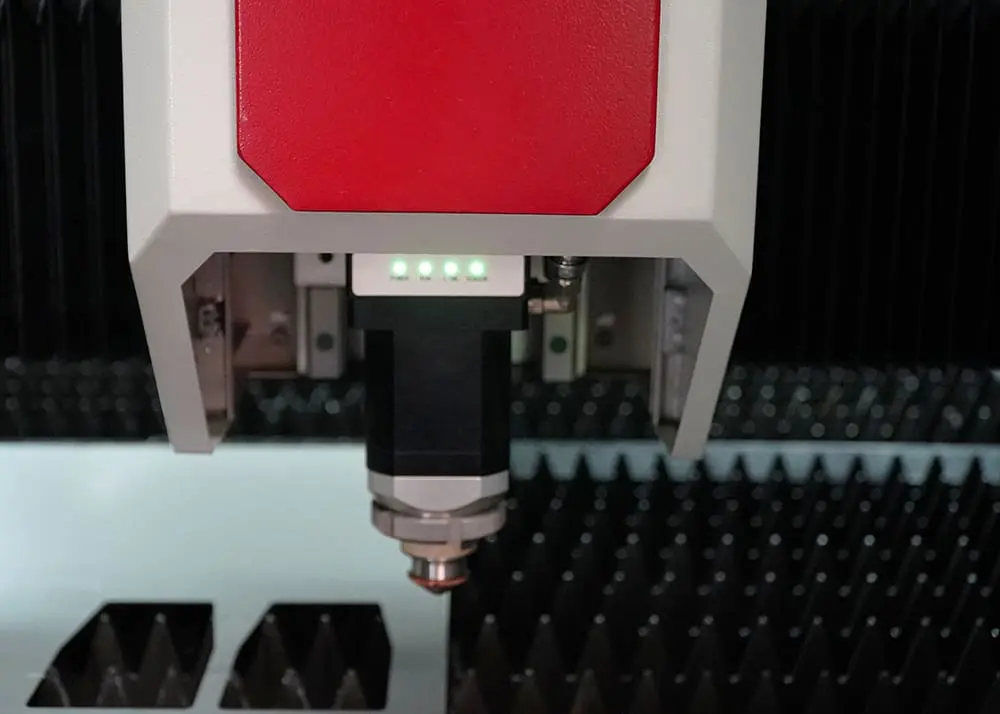

Morgan Rushworth Fibre Laser XL HeadMorgan Rushworth Fibre Laser XL Head

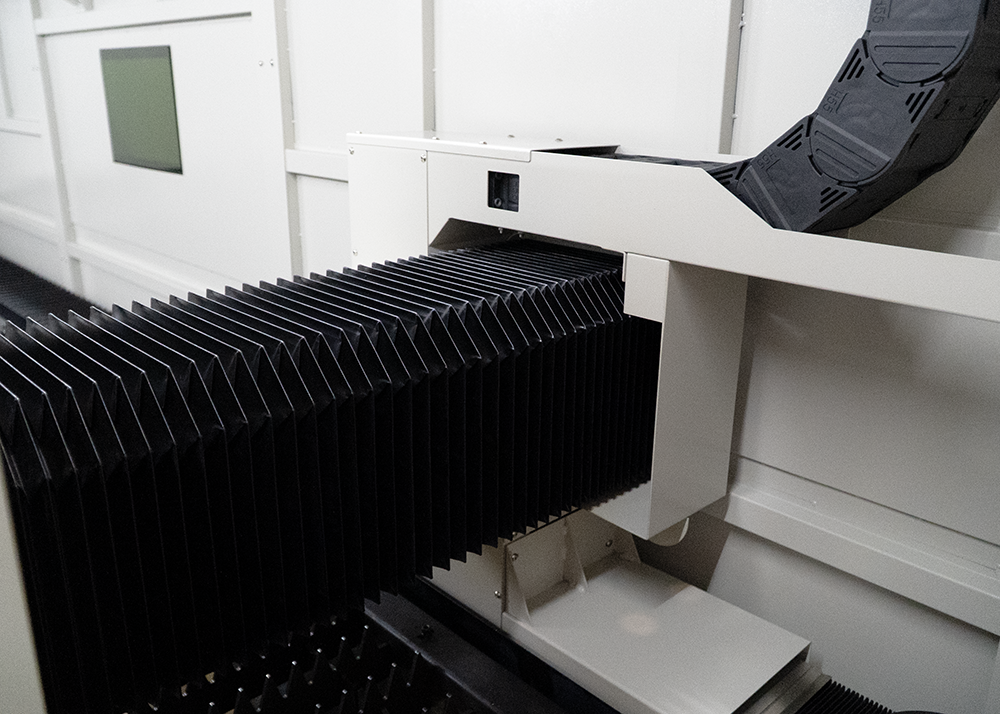

Morgan Rushworth Fibre Laser XL InteriorMorgan Rushworth Fibre Laser XL Interior

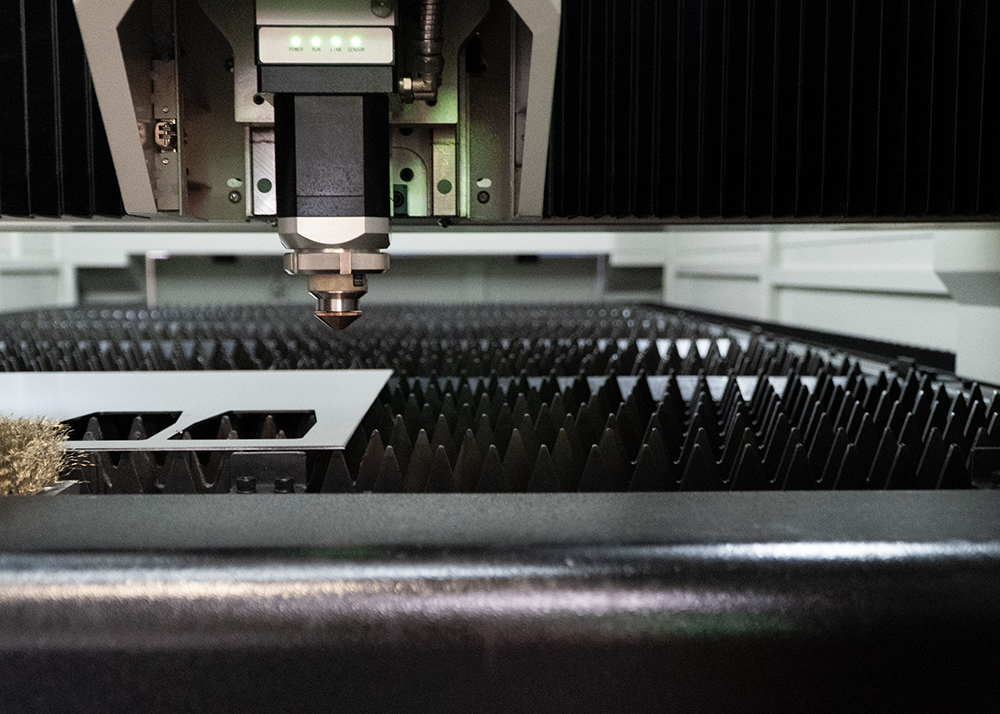

Morgan Rushworth Fibre Laser XL Laser HeadMorgan Rushworth Fibre Laser XL Laser Head

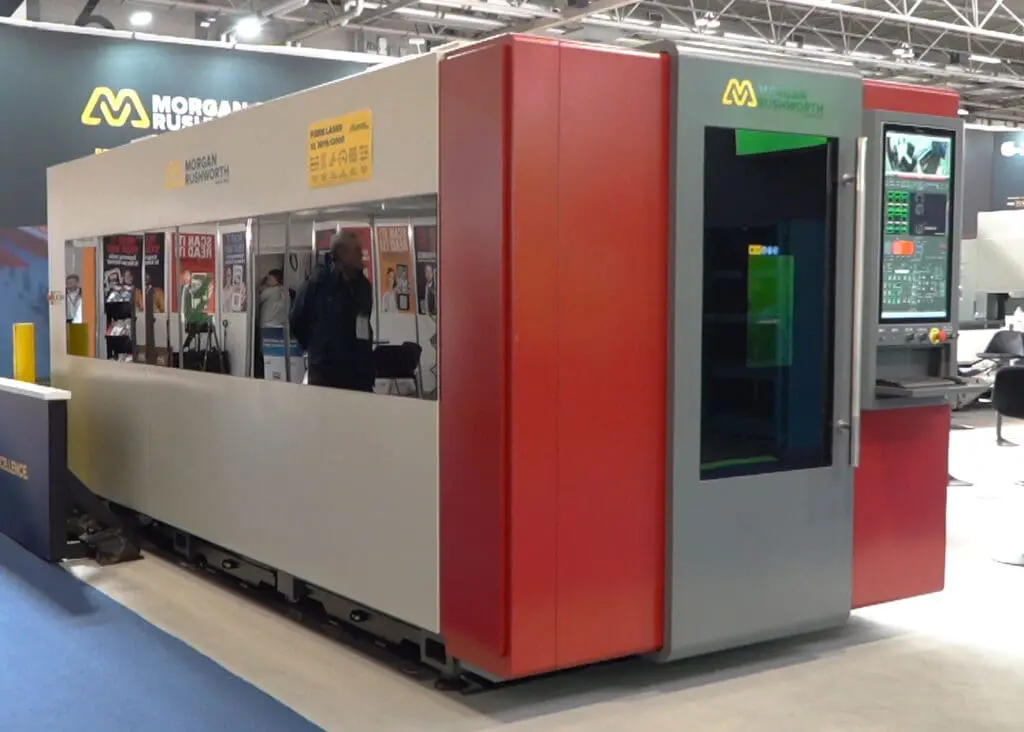

Morgan Rushworth Fibre Laser XL Main ViewMorgan Rushworth Fibre Laser XL Main View

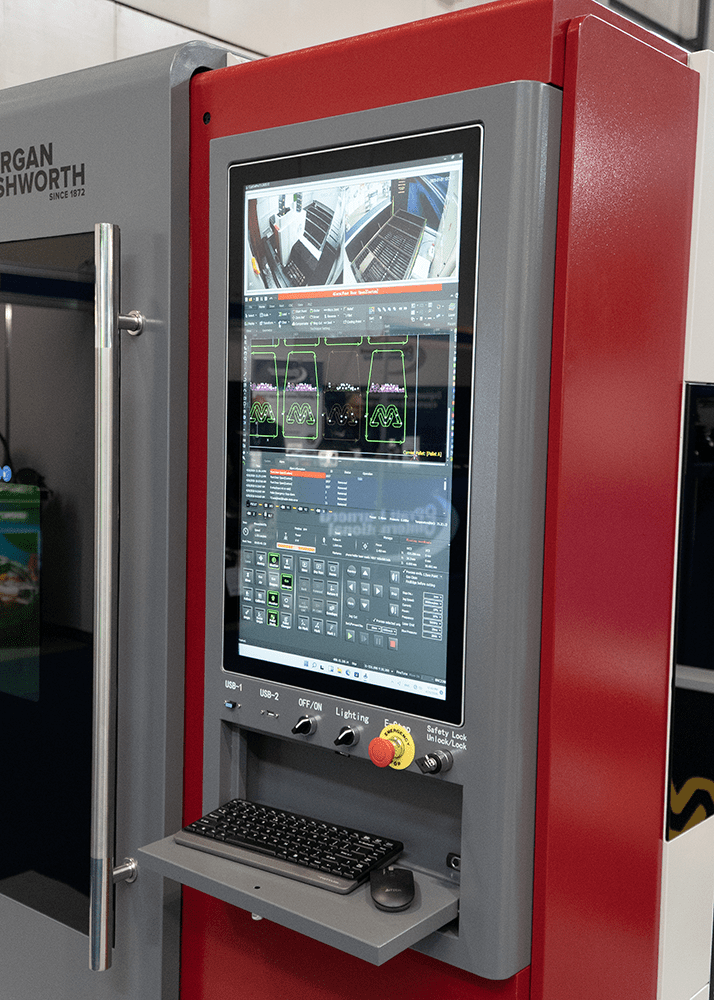

Morgan Rushworth Fibre Laser XL ScreenMorgan Rushworth Fibre Laser XL Screen

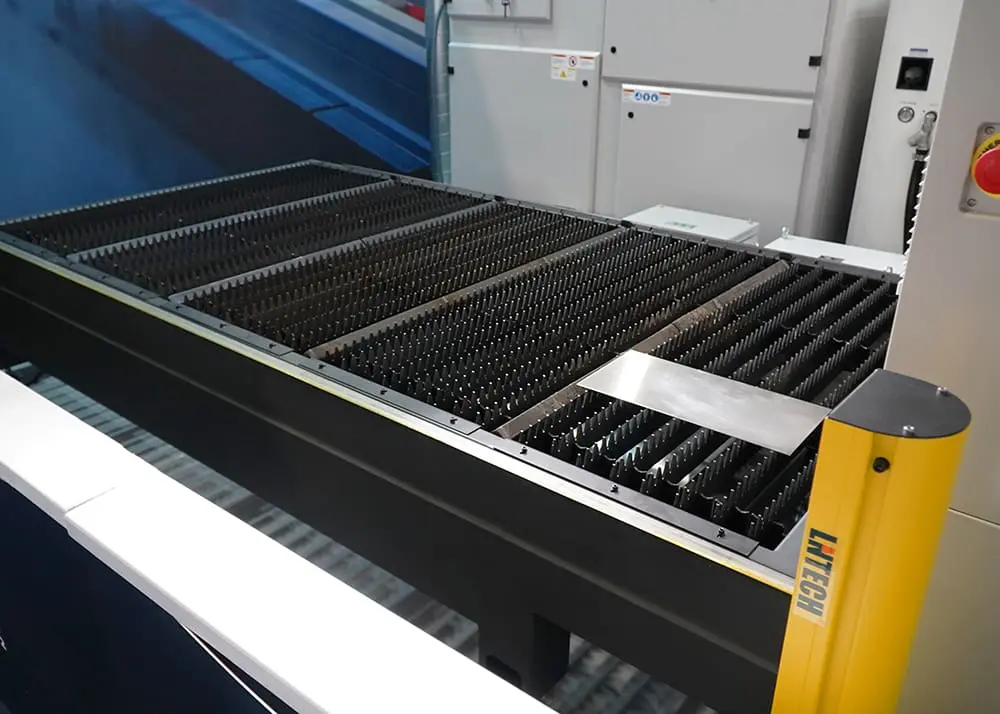

Morgan Rushworth Fibre Laser XL TableMorgan Rushworth Fibre Laser XL Table



Material Gas Capacity 3 kW 6 kW 8 kW 12 kW 20 kW
Carbon Steel O₂ mm 22 25 30 40 60
Stainless Steel N₂ mm 12 20 25 35 50
Aluminium Air mm 10 16 24 35 50
Brass N₂ mm 8 14 16 20 20
Copper O₂ mm 6 10 14 15 15
Galvanised N₂ mm 8 14 20 25 25



Specification Unit XL 3015 XL 4020 XL 6020 XL 6525
Laser Source kW 3 or 6 / 8, 12 or 20 3 or 6 / 8, 12 or 20 3 or 6 / 8, 12 or 20 3 or 6 / 8, 12 or 20
X Axis Travel mm 3,050 4,050 6,050 6,550
Y Axis Travel mm 1,530 2,030 2,030 2,530
Z Axis Travel mm 315 375 375 375
Processing Size mm 3,050 × 1,530 4,050 × 2,030 6,050 × 2,030 6,550 × 2,530
Acceleration G 1.5
CNC Control Unit BOCHU CNC Controller
Cutting Head Boci
Max. Traverse Speed m/min 120
Max. Table Capacity kg 915 / 1,835 1,300 / 3,200 1,950 / 4,750 2,550 / 6,380
Absolute Positioning Accuracy mm ± 0.03
Repeatability (X & Y Axis) mm ± 0.02
Length mm 8,350 11,400 15,300 17,300
Width mm 2,270 3,430 3,430 3,930
Height mm 2,600 2,350 2,700 2,700
Weight kg 5,370 / 6,420 9,100 / 11,000 12,125 / 14,385 16,170 / 18,185

Features

  • High performance Max Photonics Fibre Laser Source
  • Cypcut Software
  • Bochu Controller
  • Fibre optic beam delivery system
  • Boci Laser Cutting Head
  • Dual Shuttle Exchange Table
  • S & A Chiller
  • High strength, rigid gantry design to ensure high accuracy and allow high acceleration
  • CE compliant complete machine enclosure and light barrier system

Options

  • Fume extractor with filters
  • Air compressor and dryer

Morgan Rushworth XL Fibre Laser Cutting Machines

The Morgan Rushworth XL Fibre Laser Cutting Machines are designed to deliver precision, efficiency, and flexibility, making them a top choice for businesses seeking high-performance laser cutting solutions. With a host of advanced features, this range caters to various cutting needs while maintaining a compact and user-friendly design.

Generous Cutting Area with Advanced Automation

The XL Fibre Laser Cutting Machines feature a 3m x 1.5m cutting area, providing ample space for processing a wide range of materials. The machines are equipped with an automatic shuttle table and a dual pallet changer, which allow for safe and efficient loading and unloading during cutting operations. This automation significantly reduces downtime, ensuring continuous productivity.

Compact Design for Smaller Workshops

Despite its generous cutting capabilities, the XL range boasts a compact design that integrates the fibre laser source and chiller into a single unit. This streamlined setup makes it ideal for smaller workshops or businesses with limited space. Additionally, the machines offer quick start-up times, enabling rapid transitions from delivery to full production.

High-Quality Components for Superior Performance

Morgan Rushworth’s XL range incorporates class-leading components to ensure exceptional performance and reliability. Key features include:

  • High-performance rack and pinion system: Used for the X and Y axes, delivering precise and smooth movements.
  • Rigid gantry and frame: Provides stability for fast acceleration and precise positioning.
  • Integrated fibre laser source: Ensures consistent cutting quality across various materials.

These components work together to deliver excellent cut quality, high reliability, and minimal downtime, making the XL range a dependable solution for demanding applications.

Versatile Power Options

The XL machines are available with power outputs ranging from 3kW to 12kW, offering flexibility to meet diverse cutting needs. Whether you’re working with thin sheet metal or thicker materials, the XL range can handle the job efficiently. The higher power models enable faster cutting speeds and increased productivity, making them suitable for high-volume operations.

User-Friendly CNC Control

The XL range is equipped with an intuitive touch screen CNC control system, which simplifies operation and enhances productivity. Features include:

  • On-screen programming: Allows operators to create cutting paths directly on the machine.
  • PC integration: Enables the import of cutting programs for seamless workflow integration.
  • Flexible operation: Supports a variety of file formats, making it adaptable to different software systems.

This user-friendly interface reduces operator training time and ensures efficient use of the machine, even in busy production environments.

Automation Upgrades for Enhanced Productivity

To further enhance efficiency, the XL range offers optional upgrades, including:

  • Compact tower system: Provides additional automation for material handling, improving workflow and reducing manual intervention.
  • Full-size tower system: Ideal for larger operations, enabling continuous cutting with minimal downtime.

These upgrades make the XL range a scalable solution that can grow with your business needs.

Applications Across Industries

The versatility of the XL Fibre Laser Cutting Machines makes them suitable for a wide range of industries, including:

  • Fabrication workshops: For creating custom components and assemblies.
  • Automotive industry: Producing precision parts and prototypes.
  • Signage manufacturing: Cutting intricate designs in various materials.
  • Construction: Processing structural components for building projects.

The XL range’s adaptability ensures it can handle both standard and specialised cutting tasks with ease.

Cost Efficiency and Reliability

The XL Fibre Laser Cutting Machines offer significant cost-saving benefits, including:

  • Reduced energy consumption: Fibre lasers are more energy-efficient than traditional CO2 lasers, lowering operating costs.
  • Minimal maintenance requirements: With fewer moving parts, these machines are built for long-term reliability.
  • Increased throughput: High-speed cutting capabilities enable faster project completion.

These advantages make the XL range an excellent investment for businesses looking to enhance productivity and reduce operational expenses.

Superior Cut Quality Across Materials

The XL range delivers outstanding cut quality across a variety of materials, including:

  • Mild steel
  • Stainless steel
  • Aluminium
  • Brass
  • Copper

With precise cutting and minimal burrs, these machines reduce the need for post-processing, saving time and resources.

Conclusion

The Morgan Rushworth XL Fibre Laser Cutting Machines combine advanced technology, user-friendly operation, and superior performance to meet the needs of modern manufacturing. With features like a large cutting area, automated material handling, and versatile power options, the XL range delivers exceptional value and reliability. Whether you’re running a small workshop or managing a large-scale production facility, these machines provide the flexibility and efficiency required to stay competitive in today’s market.

Invest in the Morgan Rushworth XL Fibre Laser Cutting Machines and experience the perfect blend of precision, productivity, and innovation. From streamlined workflows to outstanding cut quality, the XL range is the ultimate solution for your laser cutting needs.

Visit the knowledge base

Related Case Studies

View all case studies

Frequently Asked Questions

Which sheet formats are available in the current XL range?

The XL range includes 3015, 4020, 6020 and 6525 formats. Their published processing areas are 3,050 x 1,530, 4,050 x 2,030, 6,050 x 2,030 and 6,550 x 2,530 mm respectively. Choose around your stock sheets and largest components, then review the complete installation footprint.

What laser-power choices are listed for the XL?

The current specification lists 3, 6, 8, 12 and 20 kW sources. The appropriate choice depends on material, thickness and production requirements, with availability confirmed against the selected bed size. Compare sample cutting results before paying for capacity that your workload may rarely use.

Does the XL have an exchange table?

Yes. The XL uses a dual-pallet shuttle arrangement so the loading pallet can be prepared away from the cutting area. The table exchange is not the same as automatic sheet loading or finished-part sorting. Include any additional handling requirements in the initial discussion.

Which control and software are used on the current XL?

The current XL specification lists FSCUT CNC control with CypCut software, a MAX Photonics source and a BOCI cutting head. Use the specification on your quotation rather than descriptions of earlier XL generations. Confirm file import, nesting and any software options needed for your design workflow.

Is the XL worth considering when bringing outsourced laser work in-house?

Compare the volume and variety of outsourced parts against the machine size, cutting hours, programming effort and handling needed in your workshop. Include extraction, gas, consumables and operator training in the assessment. A representative set of drawings gives a better comparison than one unusually simple sample part.

Can an XL be specified to suit different materials and edge finishes?

The source, cutting parameters and assist gas should be matched to the material and finish required. Provide the actual grades and any requirements for subsequent welding, coating or assembly. This helps establish a useful production specification rather than relying on a headline maximum-thickness figure.

What should be checked before choosing one of the larger XL formats?

Check the largest stock sheet, component weight, loading equipment and space needed around the shuttle area. Include access for extraction and maintenance, not just the machine footprint. A larger cutting bed should be considered alongside the handling and downstream processes it will feed.

Can I arrange servicing and a Service Plan for the XL?

Yes. Selmach provides servicing and offers optional Service Plans for the XL. Ask us to quote a plan around your machine and production hours. Servicing frequency, support and call-out provision depend on the selected cover and agreed terms; a Service Plan is separate from the machine purchase unless expressly included.
