Morgan Rushworth XR Compact Fibre Laser Cutting Machines

The Morgan Rushworth XR Compact is a range of compact fibre lasers equipped with a front-loading pull out table. It’s small footprint makes it perfect for tight workshops and restricted work spaces, while still allowing 1.5m x 1.5m cutting capacity.

Class leading components ensure superior cut quality, high reliability and reduced down time.

Morgan Rushworth XR Compact Fibre Laser Cutting Machines imageMorgan Rushworth XR Compact Fibre Laser Cutting Machines image
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 2

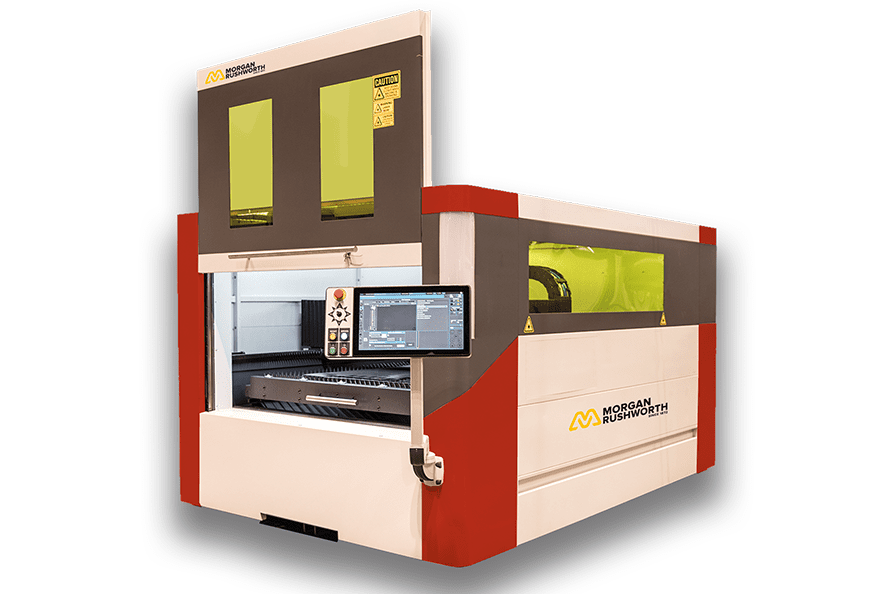

BLE Compact (Front Open)
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 2
Close up image of the Raytool cutting head cutting metal on a Fibre Laser
Close up of the Raytool cutting head cutting metal on a Fibre Laser
Close up image of the Raytool cutting head cutting metal on a Fibre Laser
Detail of the RayTool Laser Cutting Head
Detail of the RayTool Laser Cutting Head
Detail of the RayTool Laser Cutting Head
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 5
Beckhoff CNC Controller
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 5
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 6
Full Controller
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 6
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 7
Stabilised Gantry
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 7
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 8
Electro-Magnetic Lock
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 8
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 9
Safety Glass
Morgan Rushworth XR Compact Fibre Laser Cutting Machines image 9
Bed Size XRC 1515
Laser Source  kW 1, 2 or 3
X Axis Travel mm 1524
Y Axis Travel mm 1524
Z Axis Travel mm 100
Rapid Traverse (X and Y Axis) m/min 90
Vector Speed m/min 125
Acceleration m/s2 1.2G
Maximum Sheet Size mm 1524 x 1524
Feed Rate m/min Programmable up to 90m/min
Maximum Table Capacity kg 1000
Positioning Accuracy mm ± 0.08
Repeatability mm ± 0.03
Automatic Nozzle Cleaning and Calibration Standard
Table Front Pull-Out Table
Fume Extractor m3/hour 2,500 (Optional)

Features

  • High performance IPG YLG Fibre Laser Source (1, 2 or 3kW)
  • Fibre optic beam delivery system
  • Automatic Focus Laser Cutting Head
  • High strength, rigid gantry design to ensure high accuracy and allow high acceleration
  • Yaskawa Servo Motors
  • Wittenstein Rack & Pinion
  • CNC 19” TFT Controller Screen
  • Lantek Nesting Software
  • Chiller
  • Lens protective glass
  • Parts / Scrap collector drawer
  • Front Pull-Out Table
  • Automatic Nozzle Cleaning and Calibration
  • CE compliant complete machine enclosure

Options

  • High Efficiency Extraction / Filtration System
  • Fume extractor with filters
  • Air compressor and dryer

Morgan Rushworth XR Compact Fibre Laser Cutting Machines

The Morgan Rushworth XR Compact Fibre Laser Cutting Machines offer a versatile and efficient solution for businesses seeking high-performance laser cutting in a compact form. Designed to maximise productivity while minimising floor space requirements, the XR Compact range combines advanced technology with user-friendly features to deliver superior results in various cutting applications.

Compact Design for Space Efficiency

One of the standout features of the XR Compact range is its space-saving design. With a small footprint, these machines are ideal for workshops with limited space or those looking to optimise their existing floor plan. Despite its compact size, the XR Compact offers an impressive 1.5m x 1.5m cutting capacity, making it suitable for a wide range of materials and projects. The front-loading pull-out table further enhances accessibility, allowing for easy loading and unloading of materials.

Advanced Fibre Laser Technology

At the heart of the XR Compact machines is cutting-edge fibre laser technology that ensures:

  • Superior cut quality: Clean, precise edges with minimal burrs.
  • High reliability: Robust components and advanced systems reduce the risk of downtime.
  • Energy efficiency: Fibre lasers use less power compared to traditional CO2 lasers, lowering operational costs.
  • Minimal maintenance: With fewer moving parts, fibre lasers require less upkeep, ensuring consistent performance over time.

These features make the XR Compact a cost-effective and reliable choice for businesses across various industries.

Class-Leading Components

The XR Compact range is equipped with class-leading components to ensure optimal performance and durability. Key elements include:

  • High-quality laser sources: Deliver precise and consistent power output for accurate cutting.
  • Precision motion systems: Enable smooth and accurate movements for intricate designs.
  • Advanced cooling systems: Maintain optimal operating temperatures, ensuring long-term reliability.

By using premium components, the XR Compact machines guarantee exceptional results and long-lasting performance.

User-Friendly Operation

Ease of use is a core focus of the XR Compact design. These machines feature:

  • Intuitive control systems: Simplify operation, reducing training requirements for operators.
  • Touchscreen interfaces: Provide easy access to machine settings and cutting parameters.
  • Quick setup times: Minimise downtime and allow for faster project completion.

These user-friendly features ensure that businesses can quickly integrate the XR Compact into their operations, boosting efficiency and productivity.

Versatility in Material Cutting

The XR Compact range is designed to handle a variety of materials, including:

  • Mild steel
  • Stainless steel
  • Aluminium
  • Brass
  • Copper

This versatility makes it suitable for a wide range of industries, from manufacturing and fabrication to signage and automotive applications.

Applications Across Industries

The compact design and advanced capabilities of the XR Compact machines make them ideal for various industrial and commercial uses, such as:

  • Fabrication workshops: For producing components with high precision.
  • Signage companies: Cutting intricate designs in various materials.
  • Automotive industry: Fabricating parts and prototypes.
  • Engineering firms: Creating detailed and accurate components.

By catering to such a wide array of applications, the XR Compact range offers businesses the flexibility to expand their capabilities and take on diverse projects.

Cost Efficiency and Productivity

The XR Compact range not only delivers high-quality results but also enhances productivity and cost efficiency. Key advantages include:

  • Reduced operational costs: Energy-efficient fibre laser technology lowers electricity usage.
  • Minimal material waste: Precise cutting ensures maximum material utilisation.
  • Increased throughput: High-speed cutting capabilities enable faster project turnaround times.

These benefits contribute to a strong return on investment, making the XR Compact range an excellent choice for cost-conscious businesses.

Customisation Options

To meet the specific needs of different operations, the XR Compact range offers various customisation options, including:

  • Power upgrades: For enhanced cutting capabilities.
  • Integrated dust extraction systems: Maintain a clean and safe working environment.
  • Software enhancements: Enable advanced cutting features and optimise workflow.

These customisation options ensure that the XR Compact machines can be tailored to suit the unique requirements of any business.

Conclusion

The Morgan Rushworth XR Compact Fibre Laser Cutting Machines provide an exceptional solution for businesses seeking precise and efficient laser cutting in a compact design. With advanced technology, class-leading components, and user-friendly features, these machines deliver unmatched performance and reliability. Their versatility, cost efficiency, and ease of use make them an invaluable asset for businesses across a wide range of industries.

Invest in the XR Compact range today to experience the perfect combination of precision, productivity, and space efficiency. Whether you’re looking to enhance your workshop’s capabilities or expand into new markets, the XR Compact is the ideal choice for high-performance fibre laser cutting.
