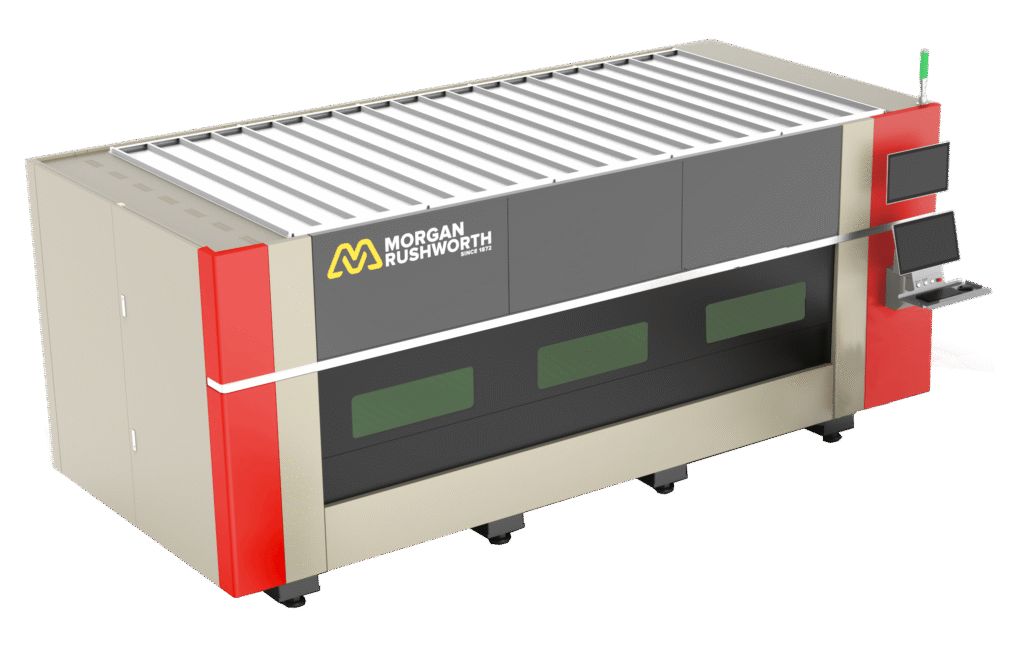

Morgan Rushworth XE Fibre Laser Cutting Machines
The Morgan Rushworth XE compact fibre laser features a 1.5 x 3m electric powered table cutting area. Material can be easily loaded and unloaded outside of the machine enclosure, giving the option to load material by crane as well as manually.
Available with up to 6kW Laser Sources, these are highly capable, yet compact machines for any workshop.
| Material | Gas | Capacity | 3 kW | 6 kW |
| Carbon Steel | O₂ | mm | 20 | 25 |
| Stainless Steel | N₂ | mm | 10 | 20 |
| Aluminium | Air | mm | 8 | 16 |
| Brass | N₂ | mm | 5 | 12 |
| Copper | O₂ | mm | 5 | 8 |
| Galvanised | N₂ | mm | 8 | 14 |
| Specification | Unit | XE 3015 |
| Laser Source | kW | 3 or 6 |
| X Axis Travel | mm | 3,060 |
| Y Axis Travel | mm | 1,530 |
| Z Axis Travel | mm | 100 |
| Processing Size | mm | 3,060 × 1,530 |
| Acceleration | G | 0.8 |
| CNC Control Unit | MRT CNC Controller | |
| Cutting Head | mCut | |
| Max. Traverse Speed | m/min | 115 |
| Max. Table Capacity | kg | 700 |
| Absolute Positioning Accuracy | mm | ± 0.03 |
| Repeatability (X & Y Axis) | mm | ± 0.02 |
| Length | mm | 5,120 |
| Width | mm | 2,280 |
| Height | mm | 2,600 |
| Weight | kg | 4,920 |
Features
- High performance mLase Fibre Laser Source
- mNest Software
- MRT Controller
- Fibre optic beam delivery system
- mCut Laser Cutting Head
- Powered, Single Pull-Out Table
- S & A Chiller
- High strength, rigid gantry design to ensure high accuracy and allow high acceleration
- CE compliant complete machine enclosure
Options
- Fume extractor with filters
- Air compressor and dryer
Morgan Rushworth XE Fibre Laser Cutting Machine
The Morgan Rushworth XE Fibre Laser is a compact, high-performance fibre laser cutting machine designed for precision, efficiency and accessibility. With a cutting area of 1.5 x 3 metres and a powered pull-out table, it offers excellent ease of loading and unloading — whether by crane or manually — making it an ideal choice for workshops where space and productivity matter.
Available with 3kW – 6kW laser sources, the XE range delivers exceptional cutting performance across a wide variety of materials, including mild steel, stainless steel, aluminium, brass, copper and galvanised steel. Combining a compact footprint with industrial-grade cutting capabilities, this machine is the perfect entry point into fibre laser technology or an efficient addition to an existing production line.
Key Features
-
High-performance mLase fibre laser source for consistent power delivery and low running costs.
-
mCut laser cutting head with anti-collision torch technology, ensuring stable operation and reduced downtime.
-
MRT CNC controller providing intuitive operation and accurate control of all cutting parameters.
-
mNest software for advanced nesting and material optimisation.
-
High-strength, rigid gantry design for precision cutting and long-term stability.
-
Powered, single pull-out cutting table for fast material changeover.
-
CE-compliant fully enclosed machine body with integrated safety features.
-
S&A chiller system maintaining optimal laser and component cooling.
Optional Equipment
-
Fume extraction system with integrated filters.
-
Air compressor and dryer package for clean, dry cutting air.
Technical Highlights
-
Laser Power: 3kW / 6kW
-
Cutting Area: 3,060 × 1,530 mm
-
Acceleration: 0.8 G
-
Maximum Traverse Speed: 115 m/min
-
Positioning Accuracy: ±0.03 mm
-
Repeatability: ±0.02 mm
-
Table Capacity: 700 kg
-
Machine Dimensions: 5,120 × 2,280 × 2,600 mm
-
Weight: 4,920 kg
Compact Power and Precision
The XE Series has been engineered for workshops that demand high performance without sacrificing floor space. Its combination of fast acceleration, rigid mechanical structure, and efficient fibre laser technology ensures outstanding cut quality with minimal maintenance requirements. Operators benefit from reduced setup times and consistent results, making it suitable for both low-volume prototyping and high-volume production.
Applications
Perfect for fabrication shops, general engineering, signage production, and subcontract manufacturers, the Morgan Rushworth XE Fibre Laser delivers the speed, accuracy and reliability that modern metalworking demands.
From Fibre Laser to Press Brake Removing the Next Production Bottleneck
13th October 2026
Designing Fibre Laser Nests for Automated Production
13th October 2026
Planning a Fibre Laser Automation Layout
13th October 2026
Can Automation Be Added to an Existing Fibre Laser
13th October 2026
How to Measure Fibre Laser Productivity
13th October 2026
Automatic Fibre Laser Part Sorting Explained
13th October 2026
Understanding the Cost of Running a Fibre Laser
6th October 2026
Choosing Nitrogen Oxygen or Compressed Air for Fibre Laser Cutting
6th October 2026
Choosing Between More Laser Power and More Automation
6th October 2026
Preparing a Fibre Laser for Unattended Cutting
6th October 2026
Calculating Payback for Automated Laser Loading and Unloading
6th October 2026
Choosing a Compact Tower or Full Tower for Fibre Laser Cutting
6th October 2026
Benefits of a Fibre Laser Stacking System
6th October 2026
CNC turret punch vs fibre laser for sheet metal fabrication
1st October 2026
CNC Machine Running Costs: What to Include in the Comparison
30th September 2026
CNC Automation: Match the Machine to Batch Size and Flow
30th September 2026
Before a CNC Machine Arrives: CAD/CAM and Training Checklist
30th September 2026
What Tube or Section Laser Do I Need?
5th December 2025
The Benefits of a Compact Tube Laser for Fabricators
5th December 2025
Tube Laser vs Tube Plasma: Which Process Is Right for You?
5th December 2025
How can a Tube Laser speed up my processes?
4th December 2025
Why You Should Regularly Replace, Clean, or Maintain Fibre Laser Cutting Machine Slats
12th August 2025
Plasma and Laser Consumables Selection Guide
12th November 2024
Related Case Studies
MSB Group – Time is Money
28th August 2026
We spoke to Daryl Nicholls, a Draughtsman based out of MSB's new Newent location, about their recent acquisition of a Morgan Rushworth XR 6kW Fibre Laser with Compact Stacker... More
Mogul Mechanical Engineering – One-Stop Shop
11th June 2025
Mogul Mechanical Engineering Ltd is a fabrication business, based in Cwmbran. They prove a variety of steel erection services, fabricating guarding, platforms, ladders etc, as well as more complicated fabrications... More
MMK Engineering – Bringing Profiling In-House
13th October 2023
MMK Engineering Ltd, based in Devon, work across the full spectrum of engineering, from designing small components to assembling entire end-use products and machinery. We spoke to Rob Jeffrey, Design.. More
Clarus save on outsourcing costs with the RVD fibre laser
16th February 2020
Based in London and Fort Worth in the US, Clarus produces glassboards for many well-known brands, corporations, and commercial interior and furniture firms, to healthcare providers and education institutions. We.. More
Medfab Ltd. saves with the RVD Fibre Laser
29th January 2020
Up until recently Medfab Ltd. outsourced all their cutting needs. They didn’t realise the savings they could make on buying their own machine until Selmach stepped in. Now they are.. More
Bluecoat Engineering gets smart with the RVD Fibre Laser
4th December 2019
Bluecoat Engineering recently purchased the RVD Smart Fibre Laser, which they use for cutting sheet metal – we spoke to Graham Ladbrook about their experience with the new, high-tech laser.. More
Frequently Asked Questions
How does the XE table arrangement work?
The XE uses a powered single pull-out table. The table can be brought out for loading and unloading rather than exchanging with a second pallet. This is a different workflow from a dual-shuttle laser, so compare the handling sequence as well as the purchase specification.
What sheet size can the XE process?
The XE is intended for nominal 3,000 x 1,500 mm sheets, with a published processing area of 3,060 x 1,530 mm. Check unusually sized material and the weight of a fully loaded table before purchase. The quoted machine configuration should define the usable working limits.
Should I select a 3 kW or 6 kW XE?
The XE is available with either source. Compare results on your normal material mix and thicknesses, including edge quality and the time needed to clear the single table. The better choice is the one that suits the full production cycle, not simply the highest available power.
Can the XE be loaded using lifting equipment?
The pull-out arrangement provides access for an appropriate sheet-handling method. The lifting equipment, sheet dimensions and safe access still need to be planned together. Show Selmach your proposed crane or handling arrangement so it can be considered in the installation layout.
Does a compact XE installation only need space for the enclosure?
No. Allow space for the table in its loading position, the sheet-handling route and operator access, as well as extraction and other services. Check a complete layout drawing rather than relying on the closed-machine dimensions when deciding where it will fit.
What control and programming package is listed for the XE?
The XE specification identifies MRT CNC control and mNest software, together with an mLase source and mCut head. Confirm the supplied software functions and licence in your quotation. A demonstration using a familiar drawing is a useful way to assess programming and job setup.
What should be agreed before an XE is commissioned?
Agree the electrical supply, assist gas, extraction, cooling, delivery access and sheet-handling method. Include operator training and the routine checks required for the chosen configuration. Planning these items together avoids treating a compact laser as a machine that needs no supporting equipment.
Can I arrange servicing and a Service Plan for the XE?
Yes. Selmach provides servicing and offers optional Service Plans for the XE. Ask us to quote a plan around your machine and production hours. Servicing frequency, support and call-out provision depend on the selected cover and agreed terms; a Service Plan is separate from the machine purchase unless expressly included.
