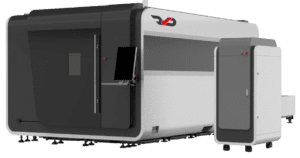

RVD ER SmartFibre Compact Fibre Laser

The RVD ER compact range have a simple and easy to use pull out drawer tray system which enables easy loading and unloading of material but also easy access to the collecting of cut parts.

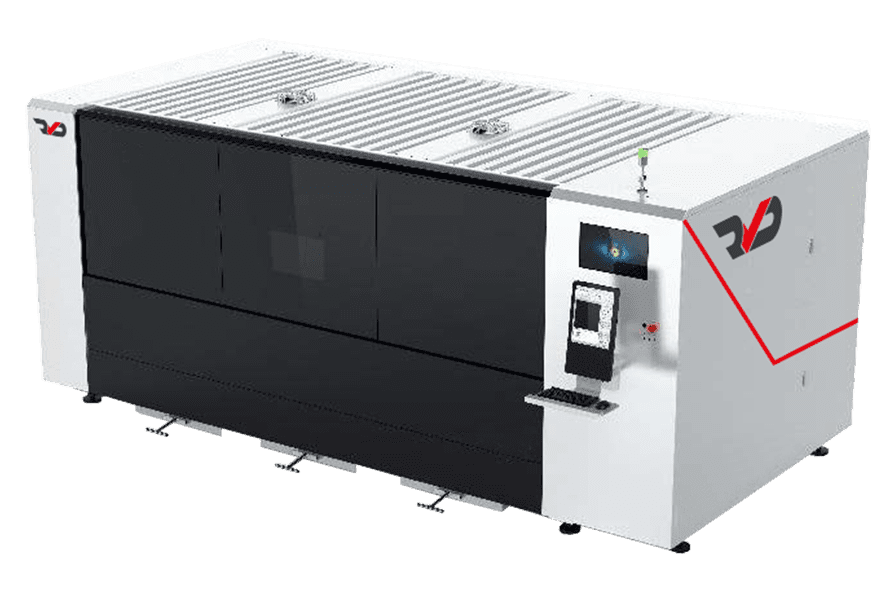

The RVD ER Compact Laser is a great entry-level machine, manufactured using the world’s leading mechanical and electrical components to maximise production but also to minimise downtime due to part failure. The RVD laser has a full enclosure design meeting CE standards resulting in radiation safe production. High precision motors and heavy duty driving systems ensure reliability, cutting accuracy and consistency.

RVD ER SmartFibre Compact Fibre Laser imageRVD ER SmartFibre Compact Fibre Laser image
Video thumbnail showing the RVD ER SmartFibre Compact Fibre Laser
RVD ER SmartFibre Compact Fibre Laser image 3RVD ER SmartFibre Compact Fibre Laser image 3
RVD ER SmartFibre Compact Fibre Laser image 4RVD ER SmartFibre Compact Fibre Laser image 4
RVD ER SmartFibre Compact Fibre Laser image 5RVD ER SmartFibre Compact Fibre Laser image 5
RVD ER SmartFibre Compact Fibre Laser image 6

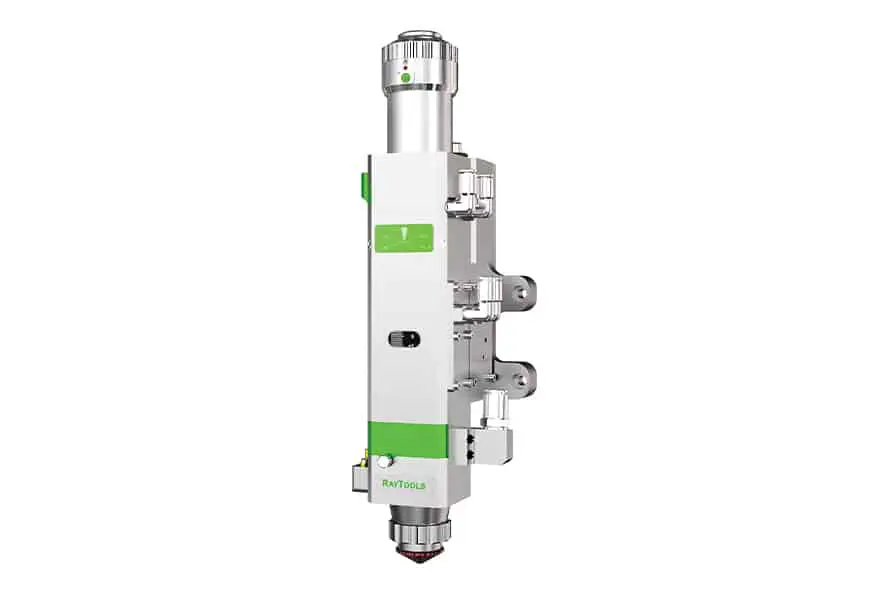

Raytools Cutting Head
RVD ER SmartFibre Compact Fibre Laser image 6
Laser Power kW 1 – 6
Laser Source Max Photonics / IPG YLR
Processing Surface (L x W) mm 1500 x 3000
CNC Control CypCut
Laser Head RayTools
Power Supply V 415 (3 Phase)
Position Accuracy X, Y and Z Axis mm ±0.03
Repeat Position Accuracy X, Y and Z Axis mm ±0.02
Maximum Position Speed of X and Y Axis m/min 100
Maximum Cutting Speed of X and Y Axis m/min 80
Maximum Acceleration G 1.2
Max Load of Table kg 500
Length mm 4,700
Width mm 3,340
Height mm 2,450

Features

  • Compact Size
  • RayTools Auto focusing cutting head
  • Full radiation protection enclosure
  • Gantry system run on heavy duty linear rails with quality servo motor
  • Removable draw system for small part removal and scrap clearing

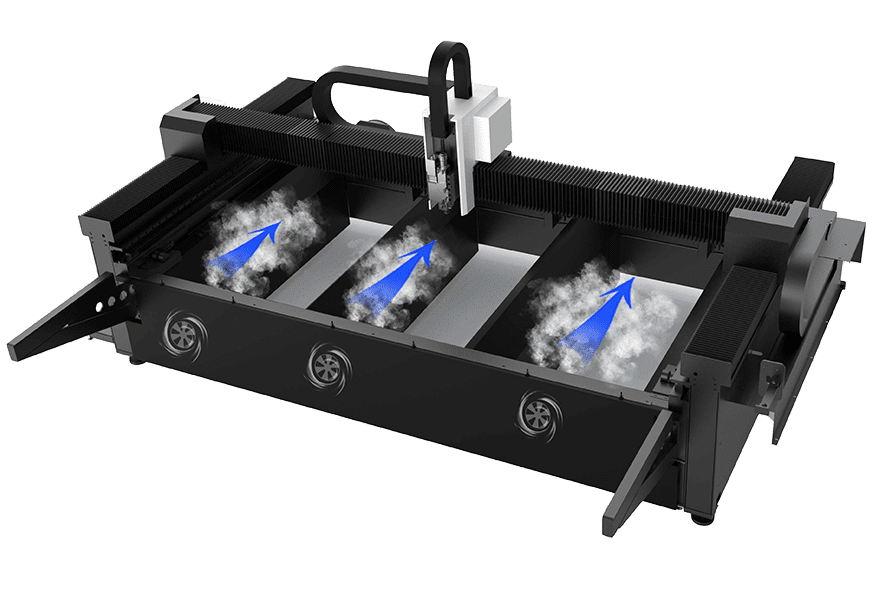

  • Segmented Smoke Extraction
  • Max Photonics Laser Source
  • Cypcut Cutting Software

Options

  • IPG laser source: A world leading brand manufactured in the USA

The RVD ER compact range have a simple and easy to use pull out drawer tray system which enables easy loading and unloading of material but also easy access to the collecting of cut parts.

The RVD ER Compact Laser is a great entry-level machine, manufactured using the world’s leading mechanical and electrical components to maximise production but also to minimise downtime due to part failure. The RVD laser has a full enclosure design meeting CE standards resulting in radiation safe production. High precision motors and heavy duty driving systems ensure reliability, cutting accuracy and consistency.
