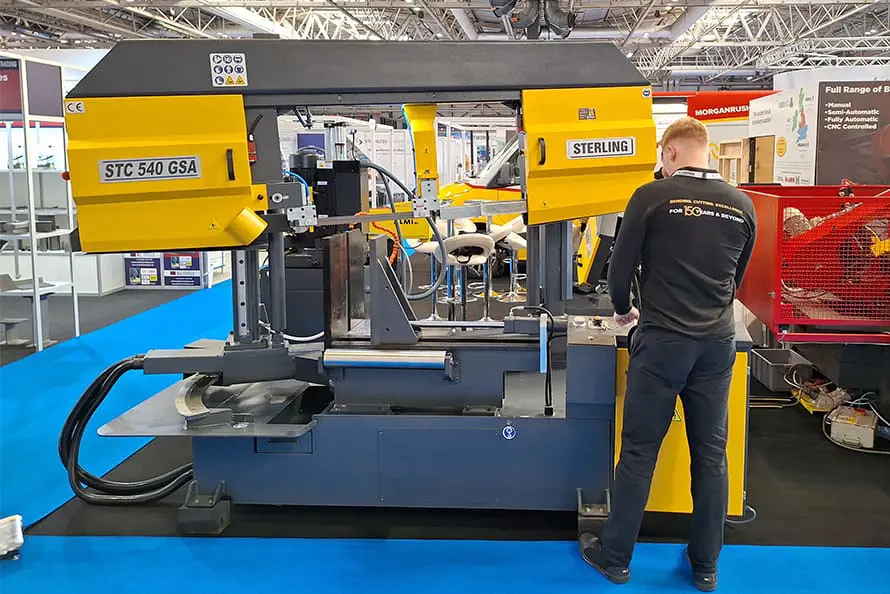

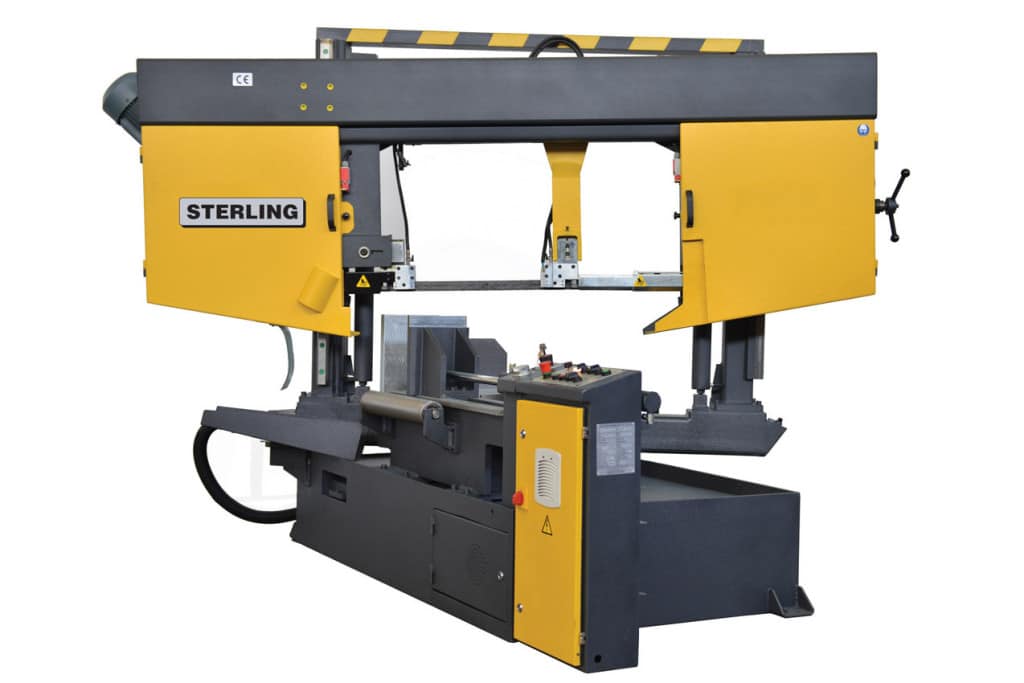

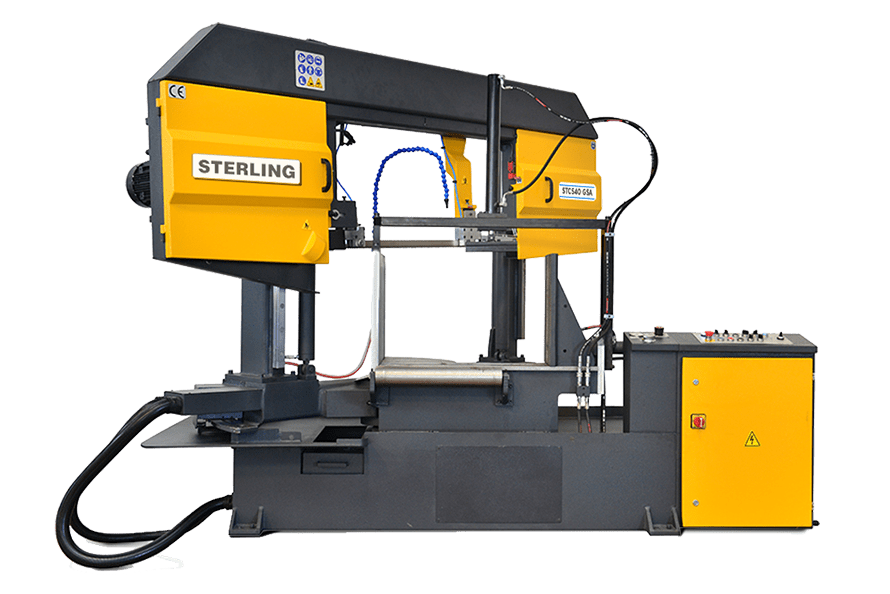

Sterling STC GSA Twin Column Semi-Automatic Bandsaw 415V
The Sterling STC GSA twin column, semi automatic, single mitre bandsaw range comes in a variety of capacities. These twin column saws, mitre head saws offer strong rigidity, for accurate cutting of large material.
Control Panel

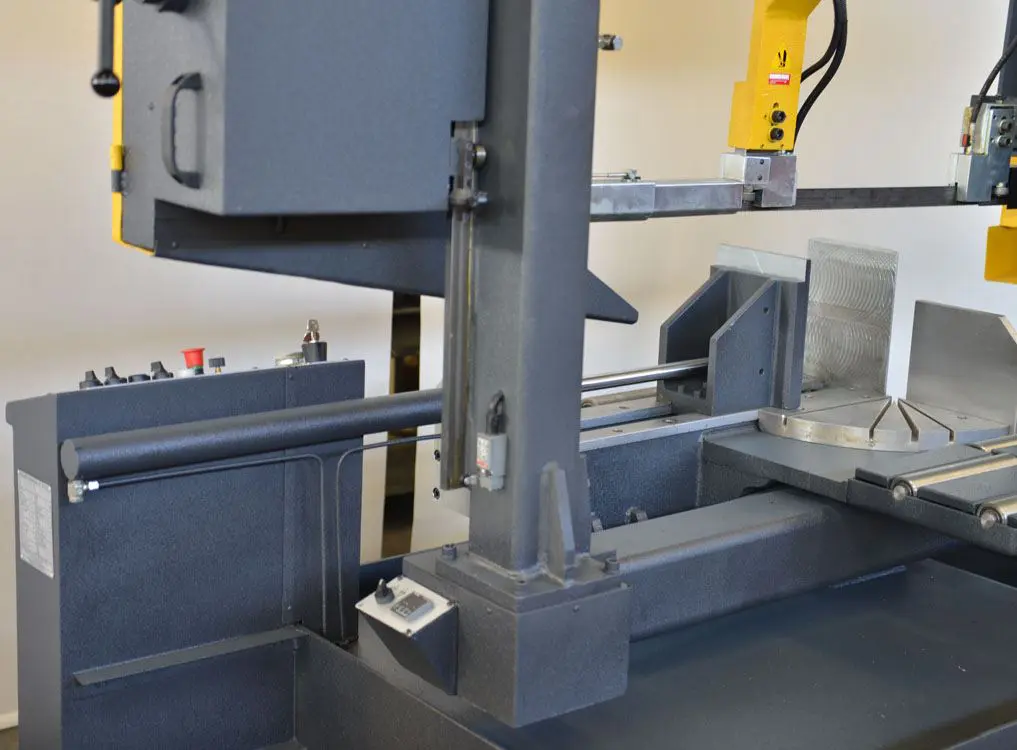

Hydraulic Vice
Heavy Duty Motor
Coolant Pump Reservoir
Chip Conveyor (Optional)
Swarf Brush
| Model | STC325 GSA | STC360 GSA | STC440 GSA | STC540 GSA | STC810 GSA | |||||||||||||||
| Capacity | mm | 90° | 45°R | 60°R | 90° | 45°R | 60°R | 90° | 45°R | 60°R | 90° | 45°R | 60°R | 90° | 45°R | 60°R | ||||
| ◯ Round | mm | 330 | 305 | 190 | 360 | 360 | 325 | 450 | 430 | 320 | 540 | 510 | 270 | 810 | 600 | 360 | ||||
| □ Square | mm | 330 | 270 | 180 | 360 | 360 | 290 | 425 | 425 | 290 | 540 | 450 | 250 | 770 | 600 | 360 | ||||
| ▭ Rectangle | mm | 400 x 320 | 270 x 320 | 180 x 240 | 700 x 360 | 450 x 360 | 280 x 360 | 695 x 425 | 430 x 425 | 260 x 425 | 750 x 540 | 450 x 450 | 250 x 540 | 910 x 750 | 750 x 600 | 750 x 360 | ||||
| Blade Size | mm | 4380 x 34 x 1.1 | 5200 x 34 x 1.1 | 5400 x 41 x 1.3 | 6000 x 41 x 1.3 | 8400 x 41 x 1.3 | ||||||||||||||
| Cutting Speed | m/min | 20-100 | 20-100 | 20-100 | 20-100 | 20-100 | ||||||||||||||
| Motor | kw | 2.2 | 3 | 4 | 4 | 4 | ||||||||||||||
| Length | mm | 2100 | 2850 | 3090 | 3000 | 4020 | ||||||||||||||
| Width | mm | 800 | 1300 | 1200 | 1300 | 1600 | ||||||||||||||
| Height | mm | 1600 | 1800 | 1940 | 2130 | 2450 | ||||||||||||||
| Weight | kg | 1185 | 1460 | 1630 | 2445 | 4050 | ||||||||||||||
| Operation | Semi- Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic | |||||||||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Features
- Strong twin pillar frame with linear guidance bearing
- Mitring swivel head to 60°
- Hydraulic cutting with variable pressure and variable speed
- Hydraulic vice
- Hydraulic bow lock at any angle
- Digital readout for mitre angle
- Variable blade speed 20-100 m/min
- Carbide blade guides
- Blade tension indicator
Options

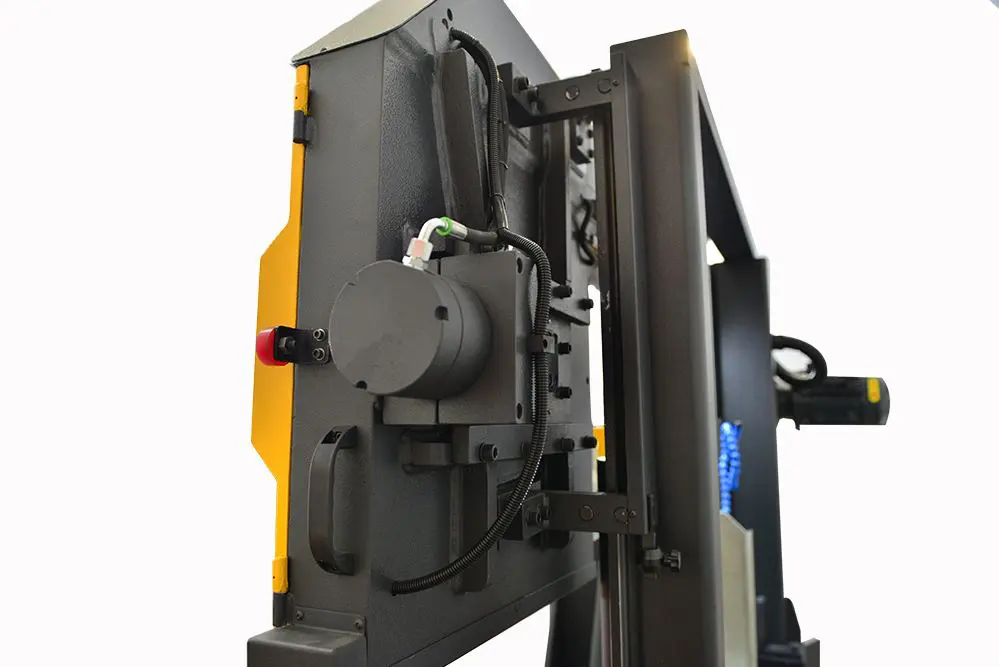

- Hydraulic blade tension
- Hydraulic top clamps
- Chip conveyor
- Spray mist lubrication
- Laser cutting line
- Digital bow return height
- Roller track and measuring systems
