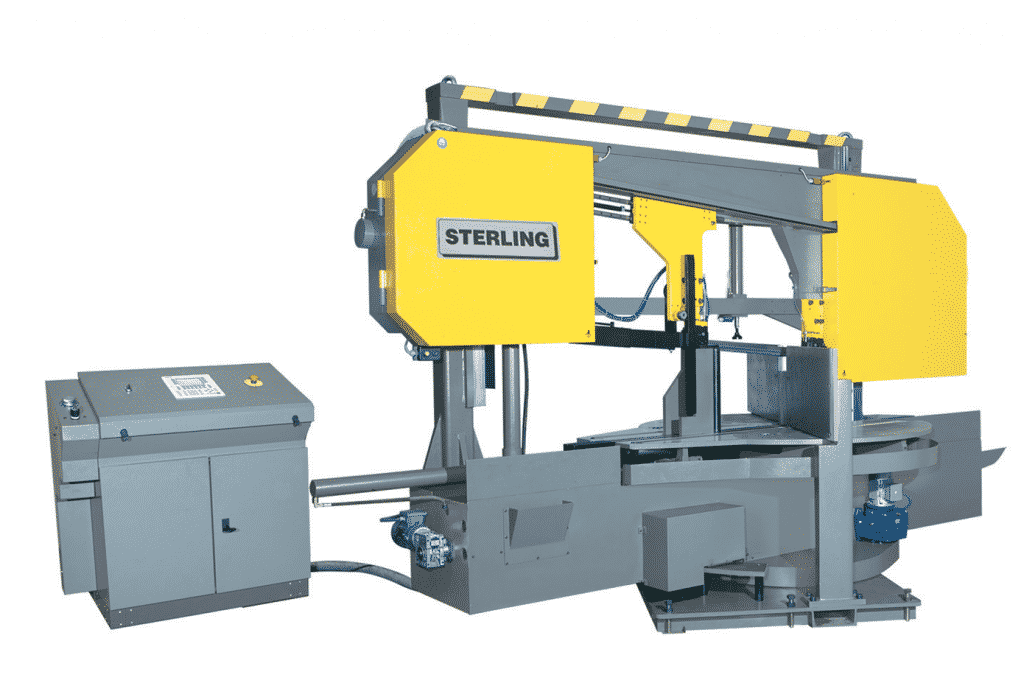

Sterling STC DGSA NC Twin-Column Semi-Automatic Bandsaw 415v
Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The STC DGSA NC range features semi-automatic applications, including a NC PLC Controller, double-mitring and automatic bow descent and rise. The NC Controller allows you to select the mitre angle, for increased accuracy and efficiency.

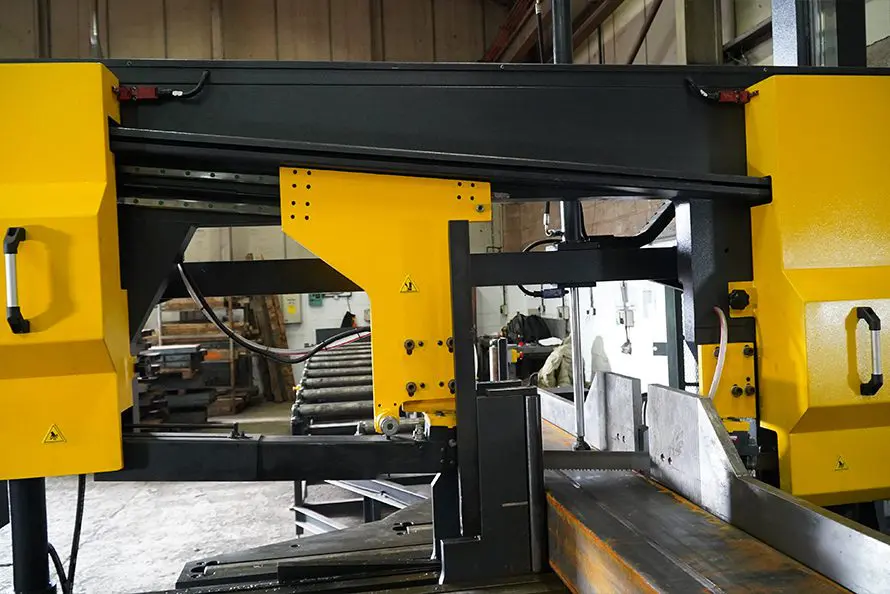

Variable vice pressure and a moveable blade guide arm means the saw can be adjusted to suit a wide variety of material sizes and material wall thickness. Ideally suited for working with structural steel, this saw is recommended to be paired with heavy-duty, motorised roller track for easier material handling and feeding.
| MODEL | STC440 DGSA NC | STC560 DGSA NC | STC650 DGSA NC | STC750 DGSA NC | |||||||||
| ◯ | ▢ | ▭ | ◯ | ▢ | ▭ | ◯ | ▢ | ▭ | ◯ | ▢ | ▭ | ||
| Capacity | Round | Square | Widest Cut | Round | Square | Widest Cut | Round | Square | Widest Cut | Round | Square | Widest Cut | |
| 0° | mm | 440 | 440 | 640 x 440 | 560 | 540 | 820 x 540 | 650 | 600 | 1000 x 600 | 800 | 750 | 1300 x 750 |
| 30° L | mm | 440 | 440 | 510 x 440 | 560 | 540 | 670 x 540 | 650 | 600 | 840 x 600 | 800 | 750 | 1070 x 750 |
| 45° L | mm | 440 | 400 | 400 x 440 | 550 | 520 | 520 x 540 | 650 | 600 | 660 x 600 | 800 | 750 | 850 x 750 |
| 60° L | mm | 250 | 250 | 240 x 440 | 340 | 340 | 340 x 520 | 440 | 440 | 440 x 600 | 570 | 570 | 570 x 750 |
| 30° R | mm | 440 | 440 | 510 x 440 | 560 | 540 | 670 x 540 | 650 | 600 | 840 x 600 | 800 | 750 | 1070 x 750 |
| 45° R | mm | 390 | 390 | 390 x 440 | 520 | 520 | 520 x 540 | 650 | 600 | 660 x 600 | 800 | 750 | 850 x 750 |
| Bed Height | mm | 850 | 880 | 880 | 880 | ||||||||
| Main Motor | kW | 4 | 4 | 7.5 | 7.5 | ||||||||
| Hydraulic Motor | kW | 1.1 | 1.1 | 4 | 4 | ||||||||
| Blade Size | mm | 6000 x 41 x 1.3 | 6800 x 41 x 1.3 | 8400 x 54 x 1.6 | 9600 x 54 x 1.6 | ||||||||
| Cutting Speed | m/min | 20 – 100 | 20 – 100 | 20 – 100 | 20 – 100 | ||||||||
| Length | mm | 3100 | 3800 | 4400 | 5050 | ||||||||
| Width | mm | 1200 | 1750 | 2270 | 2200 | ||||||||
| Height | mm | 1910 | 2350 | 2660 | 2900 | ||||||||
| Weight | Kg | 1780 | 3200 | 6250 | 6700 | ||||||||
| Operation | NC Semi-automatic | NC Semi-automatic | NC Semi-automatic | NC Semi-automatic | |||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Features
- Semi automatic double mitre 60° left and 45° right.
- Heavy duty twin column with linear guidance bearing.
- Powered bow rotation with NC control.
- DRO for cutting angle
- 5° inclined blade.
- Chip conveyor.
- Hydraulic cutting with variable pressure and speed.
- Hydraulic vice.
- Hydraulic bow lock.
- Hydraulic blade tension.
- Motorised swarf brush.
Options
- Spray mist lubrication system.
- Hydraulic top clamp.
- Laser cutting line.
Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The STC DGSA NC range features semi-automatic applications, including a NC PLC Controller, double-mitring and automatic bow descent and rise. The NC Controller allows you to select the mitre angle, for increased accuracy and efficiency.
Variable vice pressure and a moveable blade guide arm means the saw can be adjusted to suit a wide variety of material sizes and material wall thickness. Ideally suited for working with structural steel, this saw is recommended to be paired with heavy-duty, motorised roller track for easier material handling and feeding.
Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC DGSA NC are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
When Does a CNC Saw and Drill Line Make Sense?
30th September 2026
CNC Automation: Match the Machine to Batch Size and Flow
30th September 2026
Bandsaw & Circular Saw Technology Fully Explained
10th April 2025
Setting Up Your Bandsaw for the First Time: A Step-by-Step Guide
12th November 2024
How to use the gravity down feed on a Bianco saw
30th September 2021
Benefits of the Bianco Bandsaw 420MS
21st July 2017
How to fold, coil, unfold and flip a bandsaw blade FAQ
10th March 2017
How to use the Sterling SRA 440 DGSA Control Panel
21st October 2016
How to Recalibrate the SRA440 DGSA Bandsaw Bow Mitre Digital Readout
21st October 2016
Achieve the best results with the Goldcut Bandsaw Blades
21st October 2016
Product Specific Case Studies
Ridgesteel brings profiling in house to boost their capacity and productivity
23rd November 2021
We spoke to Ryan Ridgewell, General Manager of Ridgesteel and the Black Country Engineering Group about the High Definition Ajan.. More
Warwick Steel Structures share their thoughts on our service
7th August 2017
Warwick Steel Structures have purchased several machines from Selmach in the past including bandsaws and guillotines, so when they wanted.. More
Related Case Studies
Coleg Gwent – Machinery for the next generation
14th November 2023
Coleg Gwent is Wales' largest further education and one of the best-performing colleges, delivering a wide range of part-time and full-time academic and vocational courses to over 16,000 students annually... More
Holme Lacy College forges ahead with new machinery
3rd June 2023
The National School of Blacksmithing, based in the Rural Crafts Centre at the Holme Lacy Campus of HLNSC (Herefordshire, Ludlow and North Shropshire College), is a provider of a wide.. More
Pembrokeshire College adds to their collection
26th April 2023
Pembrokeshire College is a provider of a wide range of Post-16 study options in South-West Wales, including an impressive set-up for Engineering based courses with their new Welding and Fabrication.. More
6IX Process Design Ltd uprate their machinery with Selmach
14th September 2022
6IX Process Design Ltd, based in Somerset, are manufactures of stainless steel tanks, vessels and processing systems for the brewing and dairy industries. We spoke to Sam Cabell, Managing Director.. More
MR Industrial Services continued success with the help of Selmach Machinery
6th September 2022
MR Industrial Services, based in Corby, Northamptonshire supply a range of architectural and industrial steelwork to the construction industry. We spoke to Carl Peters, Martyn Nimmo and William Adams to.. More
Ridgesteel brings profiling in house to boost their capacity and productivity
23rd November 2021
We spoke to Ryan Ridgewell, General Manager of Ridgesteel and the Black Country Engineering Group about the High Definition Ajan 260amp CNC Plasma Cutting Machine and Sterling 360 DGSAE Bandsaw.. More
“You can never have enough bandsaws” says Channa Engineering Ltd
13th June 2021
Channa Engineering is a family run business based in Essex. They specialise in all metal works, designing and create custom gates, grills, railings, balustrades & much more. We spoke to.. More
Warwick Steel Structures share their thoughts on our service
7th August 2017
Warwick Steel Structures have purchased several machines from Selmach in the past including bandsaws and guillotines, so when they wanted to replace their cutting machine, they got in touch. We.. More
Frequently Asked Questions
1. What is the Sterling STC DGSA NC Twin Column designed for?
The Sterling STC DGSA NC Twin Column is intended for structural steel fabricators cutting large sections at repeat angles. Its main distinguishing features include 440, 560, 650 and 750 DGSA NC sizes and double mitring with NC angle selection. Selmach can help confirm suitability against your actual material and production requirements.
2. What cutting capacity does the Sterling STC DGSA NC Twin Column offer?
The published product range includes 440, 560, 650 and 750 DGSA NC sizes. Actual capacity depends on the chosen model, material shape and cutting angle. Check the product specification table at the intended mitre angle before ordering.
3. Can the Sterling STC DGSA NC Twin Column cut angles?
Its cutting arrangement provides double mitring with NC angle selection. The available capacity reduces or changes at some angles, so check the relevant round, square or rectangular rating for the chosen machine.
4. How does the semi-automatic cutting cycle work?
This is a semi-automatic bandsaw: the operator positions the stock and initiates the cutting process, while the machine automates part of the cutting cycle. It is not the same as a fully automatic stock-feeding saw. The precise bow-return and clamping sequence should be confirmed for the selected model.
5. How is material held securely during cutting?
The published configuration includes NC PLC control for mitre angle and semi-automatic cutting cycle. Correct clamping and appropriate stock support are important for cut quality, particularly when cutting longer sections or mitred components.
6. Which blades and cutting settings should I use?
The machine offers variable vice pressure and moveable blade guide arm. Blade tooth pitch, blade grade, feed pressure and coolant choice should be matched to material grade, wall thickness and section size. Selmach can advise on suitable blades and consumables.
7. What maintenance does the Sterling STC DGSA NC Twin Column require?
Routine care includes checking blade condition and tension, cleaning swarf, monitoring coolant and inspecting guides, vice operation and hydraulic components where fitted. Follow the manufacturer maintenance schedule and isolate the machine before maintenance.
8. Does Selmach offer service plans for the Sterling STC DGSA NC Twin Column?
Selmach can discuss preventative maintenance and service-plan options for this bandsaw. Plan availability, visits, response arrangements and exclusions should be confirmed in a quotation; servicing is not automatically included with the machine unless stated in the order.
