Morgan Rushworth XRTC Combination Fibre Laser

View Product Downloads / Full Specification Sheet

The Morgan Rushworth XRTC Combination Flat Bed and Tube Fibre lasers are capable of processing up to 6,000mm tubes, and sheet metal cutting tables up to 6,000 x 2,000mm. With a maximum tube part length of 4,000mm, this machine can handle large and small parts with ease.

Featuring either the Raytools or Precitec ProCutter 2.0, the system can handle a multitude of profiles, including Round, Rectangular, Triangular, C, U, L, Elliptical, Obround and Custom Shapes, with diameters minimum of Ø16 up to a maximum of Ø214 mm with wall thicknesses from 0.8 – 12mm.

Optional additions includes additional tube cutting lengths and automated loading systems.

View Product Downloads / Full Specification Sheet

Request A Quote

Gallery & Video

Technical Specs

STOCK CODE			XRTC 3015-61120
Laser Source		kW	1 – 15
Resonator			IPG / nLight / Max Photonics
Cutting Head			Raytools
CNC Control Unit			Beckhoff CNC (18.5” TFT – Windows 10)
Flat Bed Laser Spec	Max. Cutting Area – Width	mm	1,500
Flat Bed Laser Spec	Max. Cutting Area – Length	mm	3,000
Tube Laser Specs	Max. Tube Length	mm	6,100 (8,100 Optional)
	Max. Part Length	mm	3,000
	Min. Auto Loading Length	mm	2,000
	Acceleration of Drive Chuck	°/s²	7,000
	Speed of Driver Chuck	°/s	560
	Types of Profiles		Round, Rectangular, Triangular, H, C, U, L, Elliptical, Obround and Custom Shapes
	Min. Max. Round Diameter	mm	Min Ø16 / Max Ø120
	Min. Max. Square Diameter	mm	Min 16 x 16 / Max 120 x 120
	Length of Last Part	mm	220
	Max. Tube Weight	kg/m	240
	Min. Material Thickness	mm	0.08
Rapid Traverse		m/min	115
Vector Speed		m/min	160
Acceleration		m/s²	2.2G
Absolute Positioning Accuracy		mm	± 0.01
Repeatability (X & Y Axis)		mm/mt	± 0.02
Automatic Loading			Standard
Automatic Unloading			Optional
Feed Rate		m/min	Programmable up to 50 m/min. Actual feed rate depends on material and thickness.

Downloads

Features & Options

Features

High performance Max Photonics Fibre Laser Source
Lantek Flex3d Software
Fibre optic beam delivery system
Ease of processing for Large and Small size tube and profiles
Rapid processing, programmable up to 50m/min
Raytools Laser Cutting Head
High strength, rigid gantry design to ensure high accuracy and allow high acceleration
Shuttle Exchange Flatbed Table
Applicable tube types : Round, Rectangular, Triangular, H, C, U, L, Elliptical, Obround and Custom Shapes
CE compliant complete machine enclosure and light barrier system
High automation level and shorter configuration times
More parts produced per day
Profile Length measuring
Tube centering (Laser Sensors)
Tube Transfer System
Automatic Weld Recognition
Simple and User-Friendly operator interface and cutting database

Options

IPG or nLight Laser Source
Fume extractor with filters
Air compressor and dryer
Automated Loading and unloading systems

Full Description

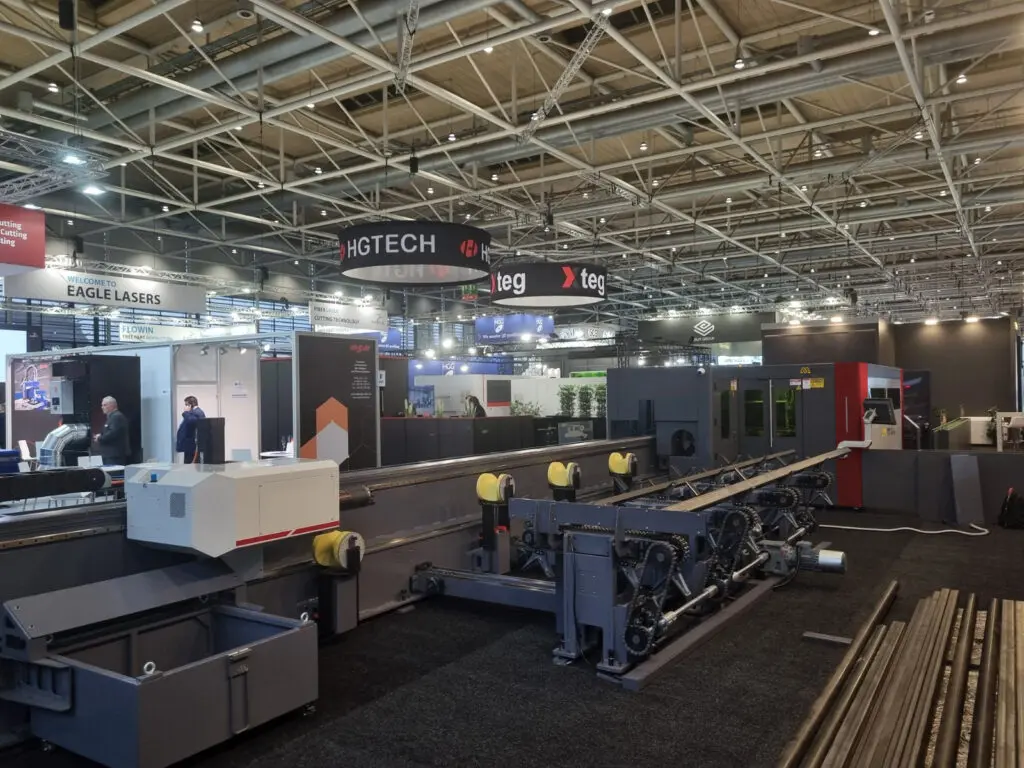

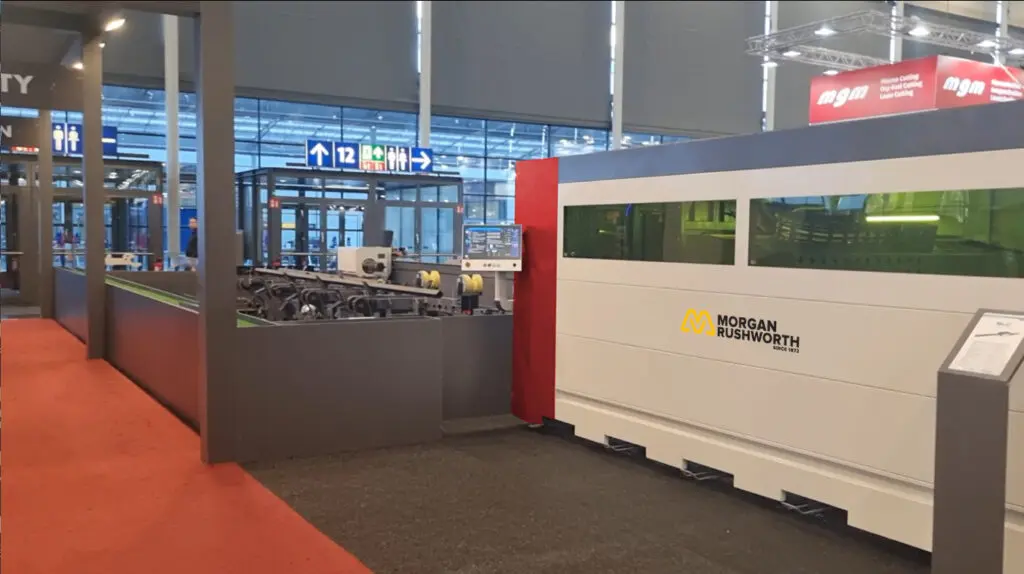

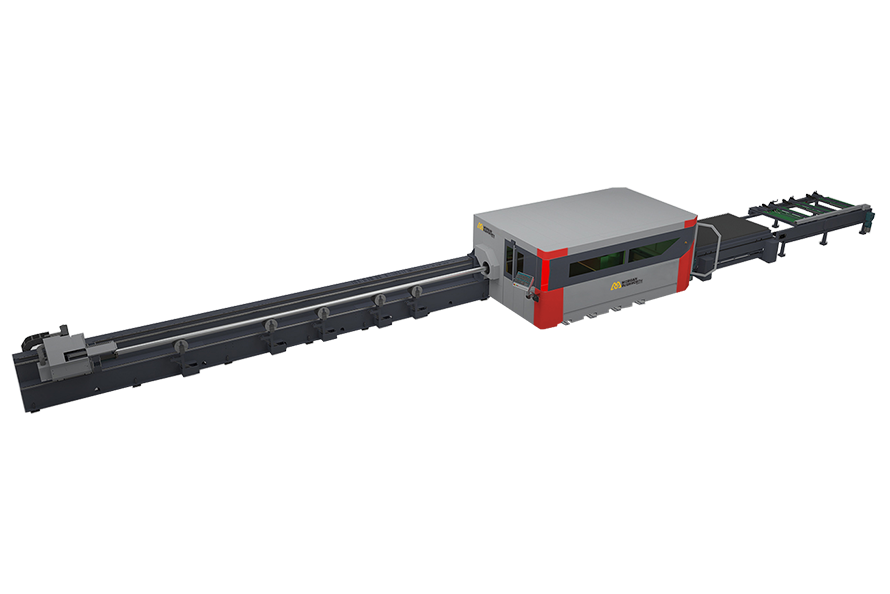

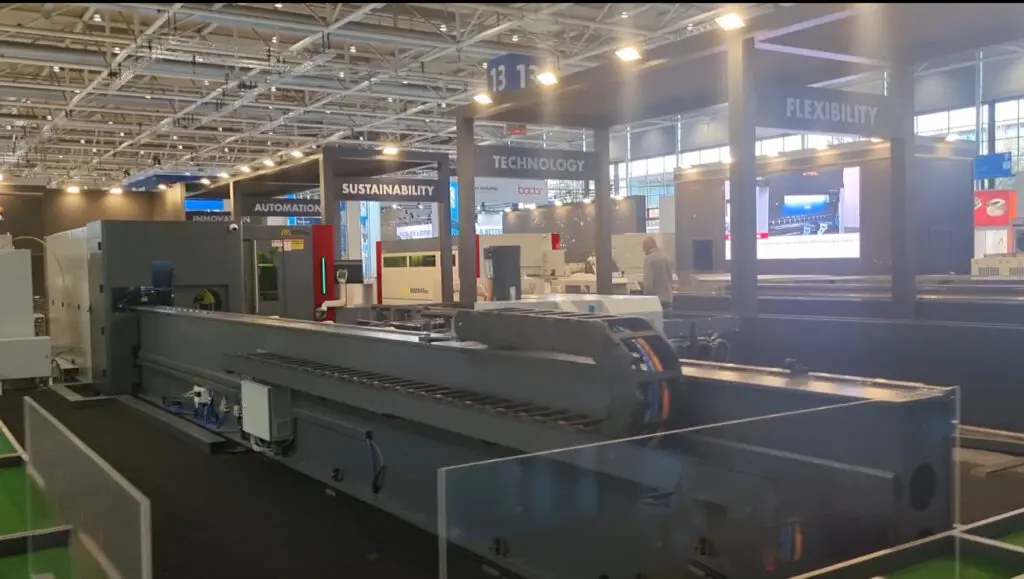

Morgan Rushworth XRTC Combined Sheet and Tube Fibre Laser Cutting Machine

The Morgan Rushworth XRTC 3015-61120 combines flat bed sheet cutting and tube laser cutting in one versatile CNC fibre laser machine. For fabrication businesses producing both sheet metal components and tubular assemblies, it offers the flexibility to process a wider range of work through a single machine.

With a 3,000 x 1,500mm flat bed cutting area and a standard maximum tube length of 6,100mm, the XRTC accommodates sheet and tube work within the same production setup. An optional 8,100mm tube length capacity is available for businesses working with longer stock.

Flexible sheet metal and tube processing

The flat bed provides a practical working area for profiling sheet metal components, while the tube cutting system handles round, square, rectangular and other profile shapes. Supported profiles include triangular, elliptical and obround sections, alongside H, C, U and L profiles and custom shapes, subject to their dimensions and suitability.

Round tube capacity ranges from Ø16mm to Ø120mm, with square section capacity from 16 x 16mm to 120 x 120mm. This gives fabricators flexibility when producing components for frames, furniture, general engineering and other fabricated assemblies.

The tube system has a maximum part length of 3,000mm and a minimum automatic loading length of 2,000mm. These capacities help businesses assess the machine against their stock lengths and finished component requirements.

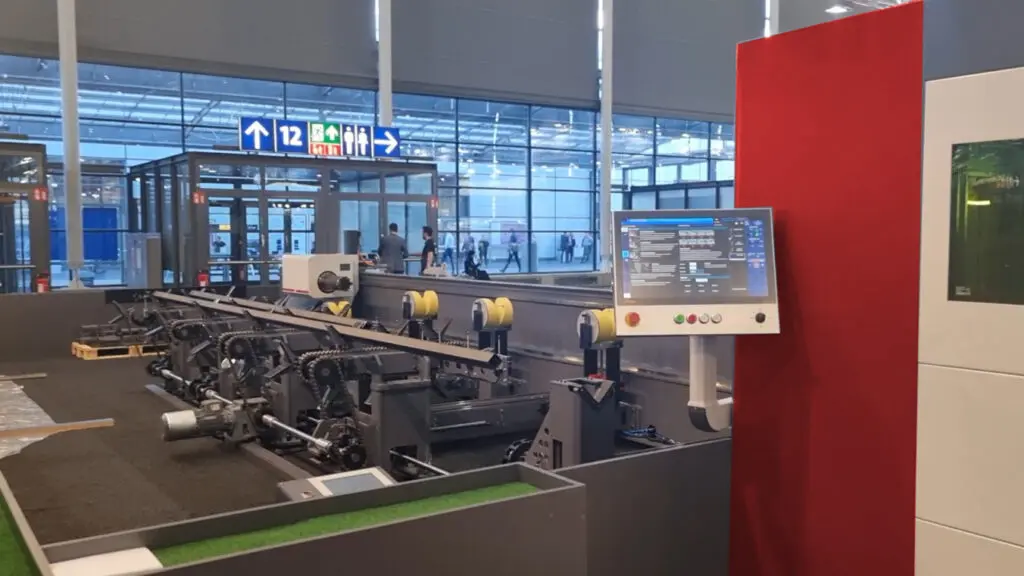

Automatic loading for repeat production

Automatic tube loading is supplied as standard, helping reduce manual handling during repeated production runs. Optional automatic unloading allows the handling arrangement to be tailored further to the workshop’s requirements.

For businesses processing batches of tube components, automated loading can help maintain a more consistent flow of material through the machine and reduce the operator time spent presenting each length for cutting.

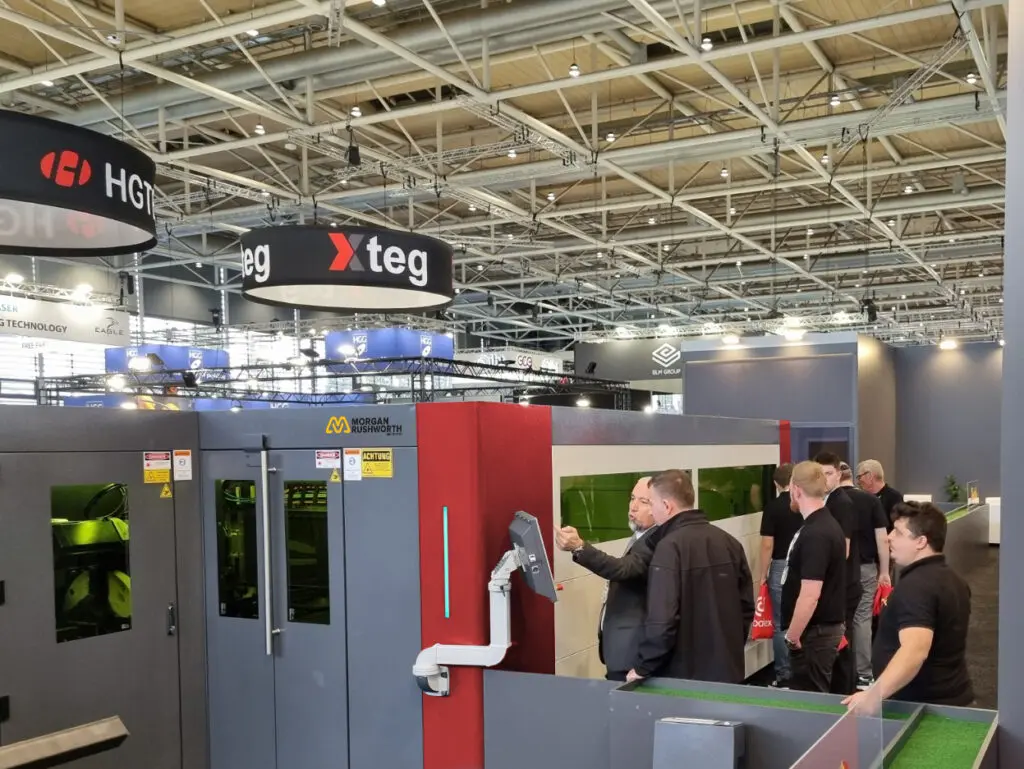

Beckhoff CNC control and Raytools cutting head

The XRTC features a Beckhoff CNC control with an 18.5-inch TFT display and a Raytools cutting head. Laser power options range from 1kW to 15kW, with IPG, nLight or Max Photonics laser source options listed in the specification.

This choice allows the machine configuration to be matched to the intended workload. The appropriate laser power will depend on the materials, thicknesses, cut quality and production output required.

CNC fibre laser cutting for varied fabrication work

A rapid traverse speed of 115m/min and vector speed of 160m/min support efficient positioning between cuts. Cutting feed rates are programmable up to 50m/min, with actual cutting speeds dependent on the material and thickness being processed.

By combining sheet and tube cutting, the Morgan Rushworth XRTC offers a practical option for workshops looking to expand their in-house profiling capabilities. It is particularly relevant where finished assemblies require both flat components and tube or section parts.

Contact Selmach to discuss your materials, component sizes and production requirements, and identify the most suitable Morgan Rushworth XRTC configuration for your workshop.
