Morgan Rushworth XL Fibre Laser Cutting Machines

The Morgan Rushworth XL range of fibre lasers are equipped with a 3m x 1.5m cutting area with automatic shuttle table with dual pallet changer enabling parts to be safely loaded and unloaded whilst the machine is still cutting. The design includes the fibre laser source and chiller inside the body of the machine resulting in a compact footprint, ideal for the smaller workshop, as well as fast start up time from delivery of the machine to production cutting. Class leading components ensure superior cut quality, high reliability and reduced down time.

The range covers from 1kw up to 6kw which with the high performance rack and pinion system for X & Y axis and rigid gantry and frame structure, resulting in fast acceleration, fast positioning speeds and fast cutting times. A user friendly touch screen CNC control allows parts to be programmed on the screen or imported from an office PC, providing flexible modes of operation.

Upgrade the machine with additional automation by adding the compact tower or full size tower system.

Morgan Rushworth XL Fibre Laser Cutting Machines imageMorgan Rushworth XL Fibre Laser Cutting Machines image
Morgan Rushworth XL Fibre Laser Cutting Machines image 2Morgan Rushworth XL Fibre Laser Cutting Machines image 2
Morgan Rushworth XL Fibre Laser Cutting Machines image 3

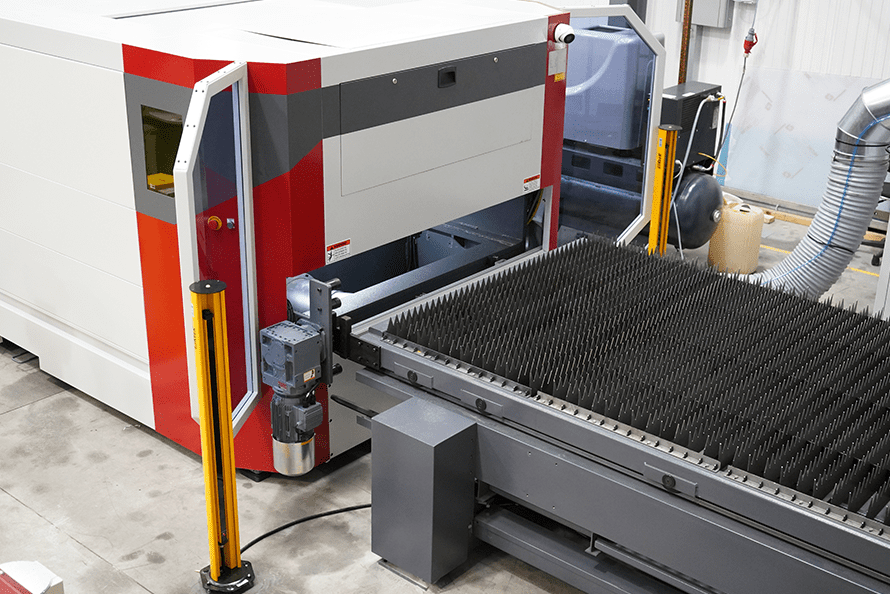

Automatic Exchange Pallet Shuttle Table
Morgan Rushworth XL Fibre Laser Cutting Machines image 3
Morgan Rushworth XL Fibre Laser Cutting Machines image 4
Beckhoff CNC Controller
Morgan Rushworth XL Fibre Laser Cutting Machines image 4
Morgan Rushworth XL Fibre Laser Cutting Machines image 5Morgan Rushworth XL Fibre Laser Cutting Machines image 5
Morgan Rushworth XL Fibre Laser Cutting Machines image 6
Stabilised Gantry
Morgan Rushworth XL Fibre Laser Cutting Machines image 6
Morgan Rushworth XL Fibre Laser Cutting Machines image 7
Electro-Magnetic Lock
Morgan Rushworth XL Fibre Laser Cutting Machines image 7
Morgan Rushworth XL Fibre Laser Cutting Machines image 8
Precitec ProCutter Thunder Cutting Head
Morgan Rushworth XL Fibre Laser Cutting Machines image 8
Stock Code Fibre laser source Maximum cutting capacity X Axis travel Y Axis travel Z Axis travel Maximum sheet size Positioning speed Axis acceleration Shuttle table exchange time Maximum table capacity Positioning accuracy Length Width Height Weight
Mild steel Stainless steel Aluminium Standard Beckhoff Standard Beckhoff
mm mm mm mm mm mm mm m/min m/min G G sec kg mm mm mm mm kg
3015.1000 1.0 kW nLIGHT 10 4 3 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.1500 1.5 kW nLIGHT 12 6 5 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.2000 2.0 kW nLIGHT 15 8 6 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.3000 3.0 kW nLIGHT 18 10 8 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.4000 4.0 kW nLIGHT 20 12 12 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.6000 6.0 kW nLight 25 20 20 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.1000 1.0 kW IPG YLR 10 4 3 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.2000 2.0kW IPG YLR 15 8 6 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.3000 3.0kW IPG YLR 18 10 8 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.4000 4.0kW IPG YLR 20 12 12 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.6000 6.0kW IPG YLR 25 20 20 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.1000 1.0kW IPG YLS 10 4 3 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.2000 2.0kW IPG YLS 15 8 6 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.3000 3.0kW IPG YLS 18 10 8 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.4000 4.0kW IPG YLS 20 12 12 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000
3015.6000 6.0kW IPG YLS 25 20 20 3000 1500 100 3000 x 1500 90 110 1.5 2 38 1000 0.05 9045 2280 2000 12000

Features

  • Max Photonics fibre laser source available from 1Kw – 6Kw
  • Precitec Procutter Thunder cutting head with auto focus and anti-collision functionality
  • Yaskawa servo motors and drives
  • Wittenstein rack and pinion system with automatic lubrication
  • SMC automatic gas selection system
  • 19” touch screen controller with part graphic view and extensive cutting parameter data base
  • Beckhoff CNC controller, servo motors and drives – increases acceleration and positioning speed
  • Automatic sheet edge detection with skew allowance
  • Automatic nozzle cleaning and calibration
  • Class leading Lantek Expert software
  • Fast shuttle table change time
  • Large window viewing area with laser protective material
  • Light guard protection for shuttle table

Options

  • CCTV view of cutting action
  • Fume extractor with filters
  • Air compressor and dryer
