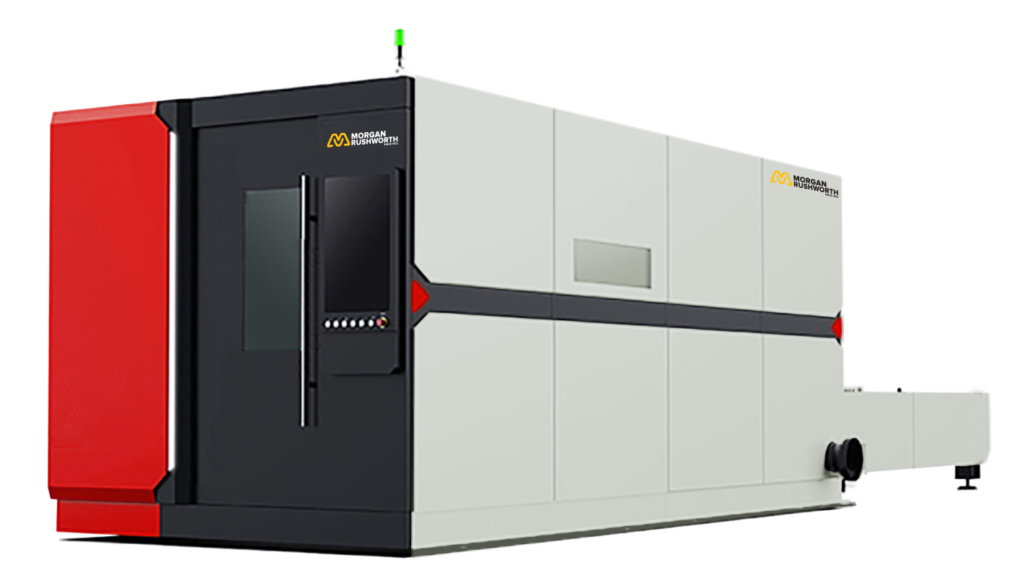

Morgan Rushworth XP Fibre Laser
The Morgan Rushworth XP CNC fibre laser cutting machine is available in a compact footprint, with a bed size of 1.5m x 3m, with laser power sources ranging from 3kW through to 12kW.
All XP models are supplied with an automatic shuttle transfer table, allowing the operator to easily load and unload the material while cutting continues.
An uprated specification of this model features an even sturdier frame, uprated mechanisms to support up to 2G Acceleration, and the option of an automatic loading and unloading system.
| Material | Gas | Capacity | 3 kW | 6 kW | 12 kW |
| Carbon Steel | O₂ | mm | 22 | 25 | 40 |
| Stainless Steel | N₂ | mm | 12 | 20 | 35 |
| Aluminium | Air | mm | 10 | 16 | 35 |
| Brass | N₂ | mm | 8 | 14 | 20 |
| Copper | O₂ | mm | 6 | 10 | 15 |
| Galvanised | N₂ | mm | 8 | 14 | 25 |
| Laser Power | kW | 3, 6 or 12 |
| Laser Source | Max Photonics | |
| Processing Surface (L x W) | mm | 1500 x 3000 |
| CNC Control | CypCut | |
| Laser Head | BOCI BLT 4 | |
| Position Accuracy X, Y and Z Axis | mm | ±0.03 |
| Repeat Position Accuracy X, Y and Z Axis | mm | ±0.02 |
| Maximum Position Speed of X and Y Axis | mm/min | 80 |
| File Formats Supported | AI, BMP, PLT, DXF, DTS etc | |
| Max Load of Shuttle Table | kg | 800 |
| X Axis Travel | mm | 3,050 |
| Y Axis Travel | mm | 1,520 |
| Z Axis Travel | mm | 200 |
| Length | mm | 8,771 |
| Width | mm | 2,226 |
| Height | mm | 2,460 |
| Weight | kg | 7,500 |
Specifications for the Optional Loading System
| Specification | Unit | Value |
| Loading & Unloading Plate Thickness | mm | 1 – 12 |
| Maximum Plate Loading Size | mm | 3,000 x 1,500 |
| Minimum Plate Loading Size | mm | 1,250 x 1,250 |
| Maximum Plate Weight | kg | 600 |
| Maximum Horizontal Movement Speed (X-axis) | m/min | 30 |
| Maximum Vertical Movement Speed (Z-axis) | m/min | 15 |
| Maximum Load Capacity of Raw Material / Finished Product Trolley | kg | 3,000 |
| Raw Material / Finished Product Trolley Placement Height | mm | ≤ 200 (Including Tray) |
| Gas Supply Pressure | MPa | 0.55 |
| Length | mm | 6,500 |
| Width | mm | 4,500 |
| Height | mm | 4,600 |
Features
- High performance Fibre Laser Source
- CypCut Software
- CNC Controller
- Fibre optic beam delivery system
- Boci Laser Cutting Head
- Dual Shuttle Exchange Table
- S & A Chiller
- High strength, rigid gantry design to ensure high accuracy and consequently allow high acceleration
- Ultra high precision class alpha rack and pinion drive motion system
- Vertical drag chain for an even more efficient footprint
- Drawers fitted underneath the cutting table for the removal of small parts and scrap
- High speed dual pallet mechanical transfer table allowing cutting during loading and unloading
- CE compliant complete machine enclosure and light barrier system
Options
- Uprated frame and systems for 2G Acceleration

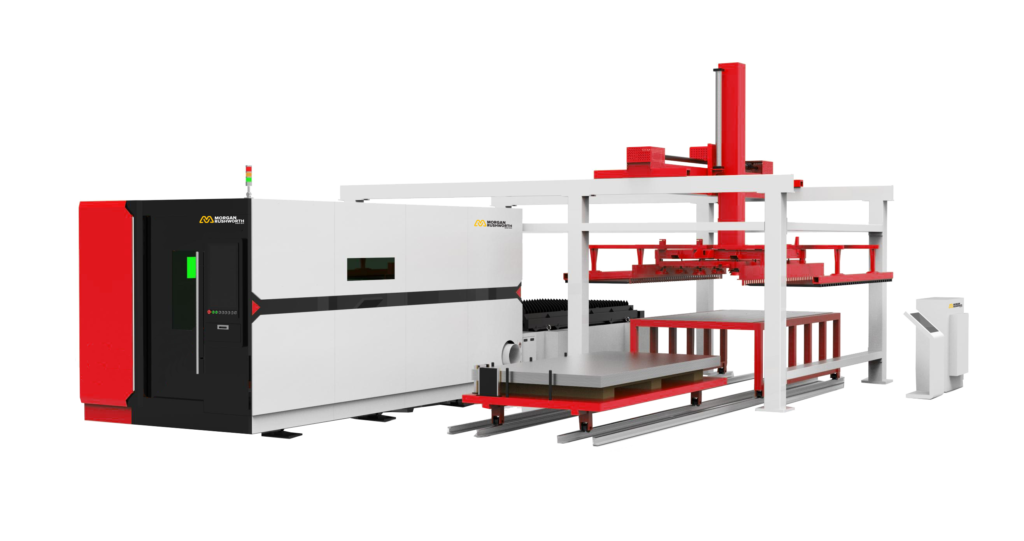

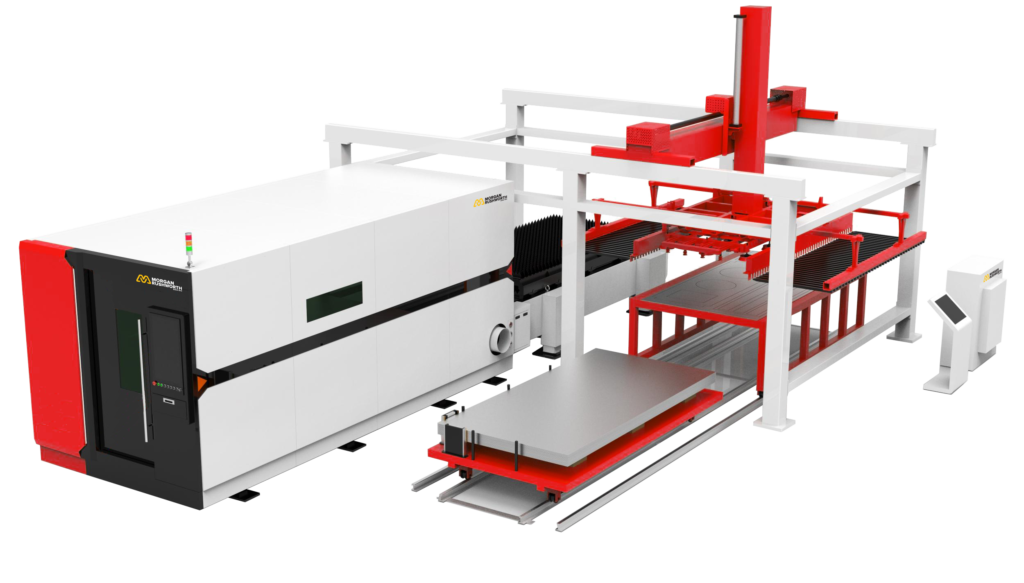

- Automatic Loading System
- Fume extractor with filters
- Air compressor and dryer
Morgan Rushworth XP Fibre Laser Cutting Machine
High-Performance Fibre Laser Cutting for Modern Manufacturing
The Morgan Rushworth XP Fibre Laser is a powerful and versatile sheet metal laser cutting system designed to deliver exceptional cutting quality, productivity, and reliability. Available with 3kW, 6kW or 12kW fibre laser sources, the XP range provides manufacturers with a scalable solution capable of handling everything from precision sheet metal fabrication to demanding high-volume production environments.
Combining advanced fibre laser technology, intelligent automation features, and robust machine construction, the Morgan Rushworth XP Fibre Laser offers outstanding performance across a wide range of materials and applications.
Overview of the Morgan Rushworth XP Fibre Laser
Designed for manufacturers seeking maximum productivity and cutting precision, the Morgan Rushworth XP Fibre Laser delivers fast processing speeds, excellent edge quality, and low operating costs. Suitable for processing mild steel, stainless steel, aluminium, brass, copper and other metals, the XP range provides a flexible and future-proof cutting solution for workshops of all sizes.
Whether producing one-off components, prototype parts, or large production batches, the XP Fibre Laser offers the accuracy, consistency and efficiency required in today’s competitive manufacturing sector.
Key Features
Available in 3kW, 6kW and 12kW Configurations
The XP Fibre Laser is available with a choice of laser power outputs to suit different production requirements:
- 3kW – Ideal for general fabrication and day-to-day sheet metal processing.
- 6kW – Increased cutting speeds and greater material thickness capability.
- 12kW – High-performance cutting for demanding production environments and thicker materials.
This flexibility allows businesses to invest in the power level that best matches their workload while retaining the ability to scale production capabilities.
Advanced Fibre Laser Technology
At the heart of the XP Fibre Laser is a high-efficiency fibre laser source that delivers exceptional beam quality and cutting performance. Fibre laser technology offers numerous advantages over traditional CO₂ systems, including:
- Lower energy consumption
- Faster cutting speeds
- Reduced maintenance requirements
- Superior cutting performance on reflective materials
- Lower operating costs
The result is cleaner cuts, improved productivity, and reduced cost per part.
Intelligent CNC Control System
The XP Fibre Laser features an intuitive CNC control platform designed to simplify operation and maximise efficiency. Operators can quickly import part files, optimise nesting layouts, and manage cutting operations through a user-friendly interface.
Advanced motion control technology ensures precise positioning, smooth cutting paths, and consistent part quality throughout production runs.
Heavy-Duty Machine Construction
Built around a robust welded steel frame, the XP Fibre Laser provides exceptional stability during operation. The rigid machine structure minimises vibration and helps maintain cutting accuracy, even during prolonged periods of high-speed production.
The fully enclosed design enhances operator safety while helping contain fumes, dust and reflected light generated during the cutting process.
High-Speed Productivity
Designed for modern manufacturing environments, the XP Fibre Laser combines rapid axis acceleration with advanced cutting algorithms to maximise throughput. Faster processing times allow manufacturers to increase output, reduce lead times, and improve overall profitability.
Materials and Applications
Wide Range of Material Compatibility
The Morgan Rushworth XP Fibre Laser is capable of processing a broad range of metals, including:
- Mild Steel
- Stainless Steel
- Aluminium
- Brass
- Copper
- Galvanised Steel
Fibre laser technology is particularly effective when cutting reflective materials such as brass and copper, providing excellent cutting quality and process reliability.
Suitable for Diverse Industries
The XP Fibre Laser is ideal for a wide variety of manufacturing sectors, including:
- General Engineering
- Sheet Metal Fabrication
- Automotive Manufacturing
- Aerospace Components
- Agricultural Equipment
- Architectural Metalwork
- Electrical Enclosures
- Subcontract Laser Cutting
From simple production components to highly intricate precision parts, the XP Fibre Laser consistently delivers exceptional results.
Ease of Use and Maintenance
Operator-Friendly Software
The machine’s intuitive control software allows operators to quickly set up jobs and manage production with minimal training. Support for common CAD file formats ensures seamless integration with existing design and manufacturing workflows.
Automated cutting parameter management helps reduce programming time and ensures optimal cutting performance across different materials and thicknesses.
Low Maintenance Design
Fibre laser systems are renowned for their reliability and low maintenance requirements. With no laser mirrors and fewer consumable components than traditional laser technologies, the XP Fibre Laser helps reduce service costs and minimise downtime.
This enables manufacturers to maximise machine availability and focus on production.
Energy Efficiency and Cost Savings
Reduced Operating Costs
The highly efficient fibre laser source consumes significantly less energy than older cutting technologies while delivering higher productivity levels. Lower power consumption contributes directly to reduced operating expenses and improved profitability.
Maximum Material Utilisation
Accurate cutting performance, advanced nesting capabilities, and minimal kerf width help maximise material utilisation and reduce waste. This contributes to lower production costs and improved overall efficiency.
Why Choose the Morgan Rushworth XP Fibre Laser?
Proven Performance and Expert Support
When you invest in a Morgan Rushworth machine, you benefit from over 150 years of engineering heritage combined with modern manufacturing technology. Our experienced team provides:
- Professional installation and commissioning
- Operator training
- Technical support
- Spare parts availability
- Ongoing service and maintenance support
This comprehensive support package ensures your machine continues to perform at its best throughout its working life.
Conclusion
The Morgan Rushworth XP Fibre Laser delivers the perfect combination of cutting performance, reliability, and cost efficiency. Available in 3kW, 6kW and 12kW configurations, it provides a scalable solution capable of meeting the demands of both growing fabrication businesses and high-volume manufacturing operations.
With advanced fibre laser technology, robust construction, intuitive controls, and exceptional support, the Morgan Rushworth XP Fibre Laser is an investment in productivity, precision, and long-term manufacturing success.
