RVD SmartFibre ER Compact Fibre Laser

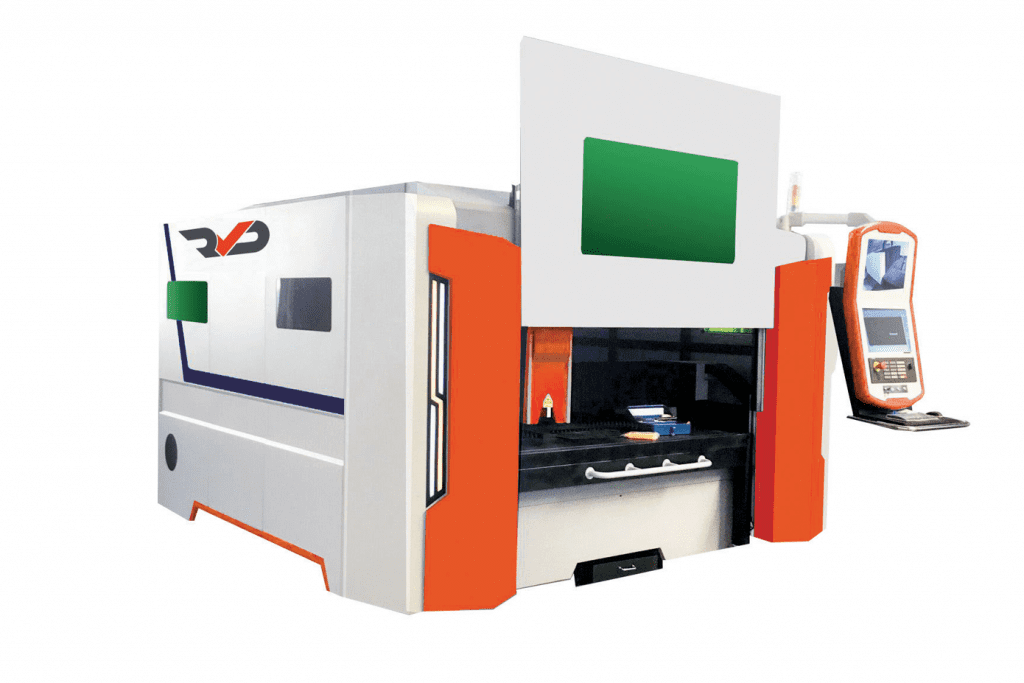

The RVD SmartFibre ER CNC compact fibre laser cutting machine is available with a bed size of 1M x 1.5M with power sources ranging from 1kW through to 4kW.
All RVD ER models are supplied with a manually operated transfer table. This is simply moved in and out of the cutting enclosure allowing the operator to easily load and unload the material. This cost effective design therefore has the advantage of providing an in house, compact laser cutting facility at an affordable budget. The additional benefit is the limited space required resulting in the ideal solution for the smaller workshop.
| Laser Power | 1kw – 4kw |
| Laser Source | USA nLight |
| Processing Surface (L x W) | 1,500 x 1,000mm |
| CNC Control | Standard: Shanghai FISCUT CypCut |
| Optional: Performance Pack: Beckhoff (German) | |
| Laser Head | RayTools Switzerland |
| Servo Motor and Driver | Standard: Yaskav |
| Optional: Italian Motor Power with Performance Pack | |
| Liner Guide | Hiwin |
| Chiller | Tong Fei |
| Power Supply | 415v (3 phase) |
| Position Accuracy X, Y and Z Axis | ±0.03mm |
| Repeat Position Accuracy X, Y and Z Axis | ±0.02mm |
| Maximum Position Speed of X and Y Axis | Standard: 100mm/min |
| Standard Performance Pack: 120mm/min | |
| Acceleration | Standard: 1g |
| Performance Pack: 1.5g | |
| Max Load of Shuttle Table | 1,000kg |
| X Axis Travel | 1,050mm |
| Y Axis Travel | 1,550mm |
| Z Axis Travel | 120mm |
| Length | 3,610mm |
| Width | 3,430mm |
| Height | 2,460mm |
| Weight | 5,000kg |
RVD Laser Cutting Capacity Table
| Laser power | 1000W | 2000W | 3000W | 4000W | |
| cutting limit | cutting limit | cutting limit | cutting limit | ||
| Material | Gas | clean cut | clean cut | clean cut | clean cut |
| 12MM | 16MM | 22MM | 25MM | ||
| Carbon steel | O2 | 10mm | 14mm | 20mm | 20mm |
| 5MM | 8MM | 12MM | 12MM | ||
| Stainless steel | N2 | 4mm | 6mm | 10mm | 10mm |
| 4MM | 6MM | 10MM | 12MM | ||
| Aluminium | Air | 3mm | 5mm | 8mm | 10mm |
| 4MM | 6MM | 8MM | 12MM | ||
| Brass | N2 | 3mm | 5mm | 8mm | 10mm |
| 3MM | 4MM | 6MM | 6MM | ||
| Copper | O2 | 2mm | 3mm | 5mm | 5mm |
| 3MM | 6MM | 8MM | 10MM | ||
| Galvanized | N2 | 2mm | 5mm | 6mm | 8mm |
RVD Laser Cutting Speed Chart
| Material | Gas | Thickness | Fibre Laser | CO2 | ||||
| (mm) | (m/min) | Laser | ||||||
| (m/min) | ||||||||
| 1000w | 2000w | 3000w | 4000w | 4000w | ||||
| Air | 1 | 14 | 31 | 34 | 43 | 18.3 | ||
| Mild Steel | Oxygen | 1 | 10 | 12 | 14 | 15 | 7.1 | |
| 2 | 4.6 | 5.9 | 7.3 | 8 | 4.3 | |||
| 3 | 2.6 | 4.6 | 5.6 | 6.2 | 3 | |||
| 4 | 1.7 | 3.4 | 4.4 | 4.8 | 2.9 | |||
| 5 | 1.3 | 3.1 | 3.8 | 4.5 | 2.7 | |||
| 6 | 1.1 | 2.8 | 3.2 | 4.3 | 2.5 | |||
| 8 | 0.8 | 2.1 | 2.3 | 2.7 | 2.2 | |||
| 10 | 0.7 | 1.5 | 2 | 2.4 | 1.8 | |||
| 12 | – | 1.1 | 1.6 | 1.9 | 1.4 | |||
| 14 | – | 0.9 | 1.2 | 1.3 | 1.2 | |||
| 16 | – | 0.7 | 1 | 1.1 | 1 | |||
| 18 | – | – | 1 | 1.1 | 0.9 | |||
| 20 | – | – | 0.9 | 1 | 0.8 | |||
| 22 | – | – | 0.7 | 0.9 | – | |||
| 25 | – | – | 0.6 | 0.7 | – | |||
| Stainless Steel | Nitrogen | 1 | 18 | 34 | 38 | 46 | 10.2 | |
| 2 | 5.9 | 13 | 18 | 21 | 5.8 | |||
| 3 | 3.9 | 7.6 | 12 | 14 | 4.1 | |||
| 4 | 1.2 | 4.6 | 6 | 6.6 | 3.1 | |||
| 5 | – | 2.4 | 4.2 | 5.2 | 2.5 | |||
| 6 | – | 1.1 | 3.1 | 3.4 | 1.9 | |||
| 8 | – | 0.8 | 1.8 | 2 | 1.3 | |||
| 10 | – | – | 0.8 | 0.9 | 0.6 | |||
| 12 | – | – | – | 0.7 | 0.5 | |||
| 14 | – | – | – | – | 0.4 | |||
| 16 | – | – | – | – | 0.3 | |||
| 18 | – | – | – | – | – | |||
| 20 | – | – | – | – | – | |||
| Aluminium | Air | 1 | 13 | 21 | 46 | 50 | 11.7 | |
| 2 | 2.7 | 11 | 21 | 24 | 5.3 | |||
| 3 | 1.3 | 4.5 | 10 | 11 | – | |||
| 4 | 0.9 | 2.7 | 4.7 | 5 | – | |||
| 5 | – | 1.3 | 2 | 2.2 | – | |||
| 6 | – | 0.8 | 1.4 | 1.5 | – | |||
| 8 | – | – | 0.9 | 1 | – | |||
| 10 | – | – | 0.5 | 0.7 | – | |||
| 12 | – | – | – | 0.5 | – | |||
| 14 | – | – | – | – | – | |||
| 16 | – | – | – | – | – | |||
| Brass | Nitrogen | 1 | 6 | 13.5 | 26 | 30 | – | |
| 2 | 3.9 | 7 | 14 | 15 | – | |||
| 3 | 1.4 | 4.4 | 7.3 | 8.3 | – | |||
| 4 | 0.7 | 2.9 | 4.6 | 5.5 | – | |||
| 5 | – | 1 | 3 | 3.5 | – | |||
| 6 | – | – | 1.7 | 1.8 | – | |||
| 8 | – | – | 0.7 | 0.8 | – | |||
| 10 | – | – | – | 0.6 | – | |||
| 12 | – | – | – | – | – | |||
| 14 | – | – | – | – | – |
Features
- High performance nLIGHT fibre laser technology
- Raytools high performance torch with crash protection system
- Rigid gantry system ensuring fast accurate positioning to X and Y axis
- Automatic height sensor to ensure optimum cutting efficiency
- Class leading brand components
– nLight laser source – US
– Raytools cutting head – Switzerland
– Cypcut CNC controller – China
– Cypdraw CAD/CAM software – China
– Schneider electrics – France
– Alpha Gear rack and pinion – Germany
– Hiwin linear guides – Taiwan
– Yaskawa servo motor and driver – Japan
Options
- Performance Pack Features (Highly Recommended)
- Increases cutting speed and axis acceleration by 25%
- Includes the Beckhoff Control (German) (Beckhoff has a UK Service Centre)
- Includes Motor Power speed motors (Italian)
- Sigmaest Software
- Auto focus cutting head
- Extraction System
The RVD SmartFibre ER CNC compact fibre laser cutting machine is available with a bed size of 1M x 1.5M with power sources ranging from 1kW through to 4kW.
All RVD ER models are supplied with a manually operated transfer table. This is simply moved in and out of the cutting enclosure allowing the operator to easily load and unload the material. This cost effective design therefore has the advantage of providing an in house, compact laser cutting facility at an affordable budget. The additional benefit is the limited space required resulting in the ideal solution for the smaller workshop.
CCTV with one camera is fitted as standard, as a result the operator can safely view the cutting action. Furthermore, class leading components have been carefully selected to ensure longevity and reduced downtime.
