RVD PR Fibre Laser

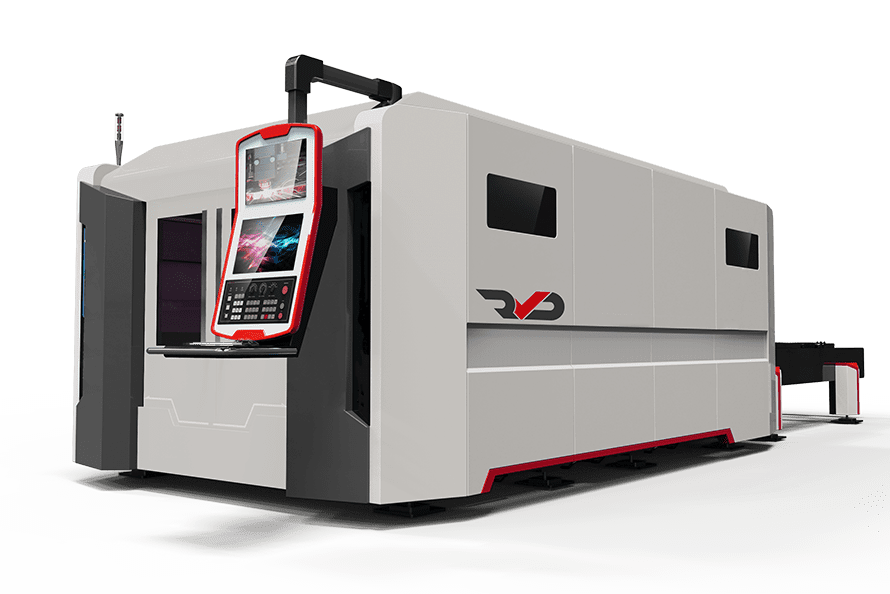

Main view RVD-PRO-Fibre-Laser-Front-view

Request a Quote







    Your Name *

    Email *

    Postcode *

    Company Name *

    Telephone No. *

    Your Message

    Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



    Your information will be held according to our privacy policy.

    UK Flag
    Alternatively call +44 (0)1432 346 580 for sales and support

    The RVD precision laser cutting machine include both compact models in small bed sizes as well as fully automated models with shuttle tables for production cutting.

    The RVD laser is a heavy duty work horse manufactured using the world’s leading mechanical and electrical components to maximise production but also to minimise downtime due to part failure. The RVD laser has a full enclosure design meeting CE standards resulting in radiation safe production. High precision servo motors and heavy duty ball screw driving systems ensure reliability, cutting accuracy and consistency.

    The compact range have a simple and easy to use pull out drawer tray system which enables easy loading and unloading of material but also easy access to the collecting of cut parts. All RVD PR models are supplied with a fast automatic hydraulic shuttle table with dual pallet changer to increase cutting time. Class leading components have been carefully selected resulting in a fast and reliable machine for production cutting. CCTV is fitted as standard equipment allowing the operator to safely view the cutting action. The optional tube cutting attachment can process round, square and oval tube up to 160mm.

    The nLight laser source is available in various power ratings from 500W and upwards. Additional features include a cutting head supplied by RayTools of Switzerland and high quality linear motion system with servo drives. Standard bedsizes range from 1500×1000 to 2000x6000mm.

    Main view RVD-PRO-Fibre-Laser-Front-view

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Main view RVD-PRO-Fibre-Laser-Front-viewMain view RVD-PRO-Fibre-Laser-Front-view
      Video thumbnail showing the RVD PR Fibre Laser

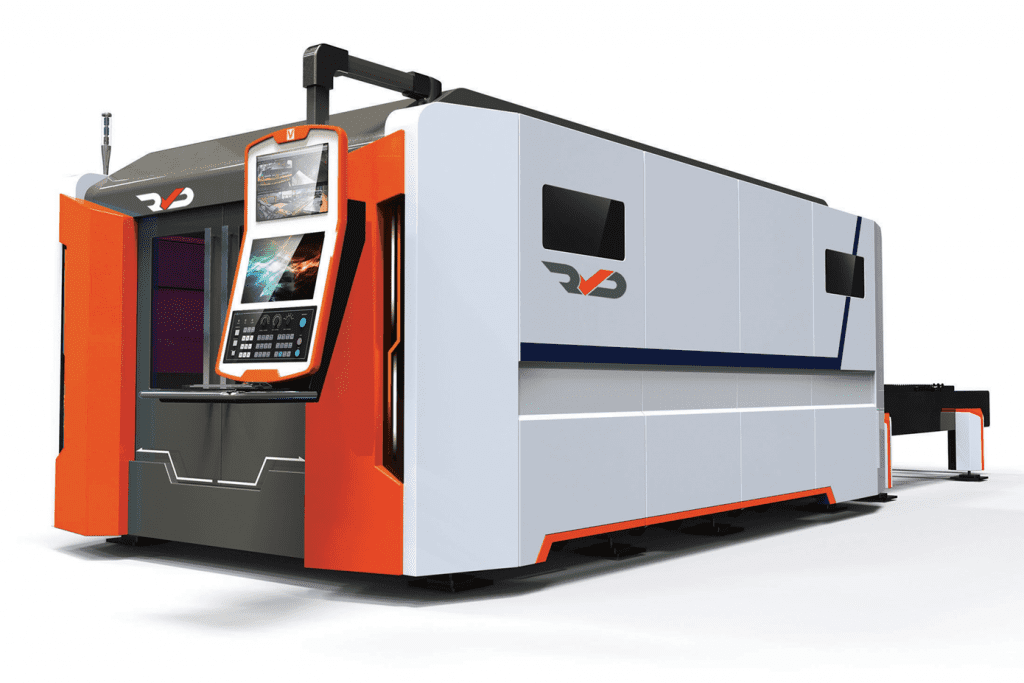

      Side view of the RVD PRO Fibre LaserSide view of the RVD PRO Fibre Laser
      Side view of the RVD PRO Fibre Laser TableSide view of the RVD PRO Fibre Laser Table
      Door detail of the RVD PRO Fibre LaserDoor detail of the RVD PRO Fibre Laser
      Detail of the RayTool Laser Cutting HeadDetail of the RayTool Laser Cutting Head
      Laser Power700w – 1.2kw – 1.5kw – 2.5kw – 3kw
      Laser SourceUSA nLight
      Processing Surface (L x W)1500 x 1000mm – 1500 x 1500mm – 3000 x 1500mm – 4000 x 2000mm – 6000 x 2000mm
      CNC ControlStandard: Shanghai FISCUT CypCut
      Optional: Performance Pack: Beckhoff (German)
      Laser HeadRayTools Switzerland
      Servo Motor and DriverStandard: Yaskav
      Optional: Italian Motor Power with Performance Pack
      Liner GuideHiwin
      Ball ScrewAbba
      Gas Proportional ValveSMC
      ChillerTong Fei
      Power Supply415v (3 phase)
      Position Accuracy X, Y and Z Axis±0.03mm
      Repeat Position Accuracy X, Y and Z Axis±0.02mm
      Maximum Position Speed of X and Y AxisStandard: 100mm/min
      Standard Performance Pack: 120mm/min
      AccelerationStandard: 1g
      Performance Pack: 1.5g
      Max Load of Shuttle Table1000kg
      Shuttle Table Exchange Time20s



      RVD Laser Cutting Capacity Table

      Laser power500W700W1000W1200W1500W2000W2500W3000W4000W6000W
      cutting limitcutting limitcutting limitcutting limitcutting limitcutting limitcutting limitcutting limitcutting limitcutting limit
      MaterialGasclean cutclean cutclean cutclean cutclean cutclean cutclean cutclean cutclean cutclean cut
      8MM10MM12MM14MM14MM16MM20MM22MM25MM25MM
      Carbon steelO26mm8mm10mm12mm12mm14mm18mm20mm20mm22mm
      3MM4MM5MM6MM6MM8MM10MM12MM12MM20MM
      Stainless steelN22mm3mm4mm5mm5mm6mm8mm10mm10mm16mm
      2MM3MM4MM5MM5MM6MM8MM10MM12MM16MM
      AluminiumAir1mm2mm3mm3mm4mm5mm6mm8mm10mm12mm
      2MM3MM4MM4MM5MM6MM8MM8MM12MM14MM
      BrassN21mm2mm3mm3mm4mm5mm6mm8mm10mm12mm
      0.8MM2MM3MM3MM4MM4MM6MM6MM6MM10MM
      CopperO20.5mm1mm2mm2mm3mm3mm4mm5mm5mm8mm
      2MM3MM3MM4MM5MM6MM6MM8MM10MM14MM
      GalvanizedN21mm2mm2mm3mm4mm5mm5mm6mm8mm12mm

      RVD Laser Cutting Speed Chart

      MaterialGasThicknessFibre LaserCO2
      (mm)(m/min)Laser
      (m/min)
      500w700w1000w1200w1500w2000w2500w3000w4000w6000w4000w
      Air11013141825313334434918.3
      Mild SteelOxygen1781091112131415167.1
      23.33.94.65.35.65.96.67.38104.3
      31.92.32.644.54.64.95.66.27.43
      41.31.41.72.63.23.444.44.85.52.9
      511.11.32.12.83.13.43.84.552.7
      60.80.91.11.52.32.83.13.24.34.82.5
      80.50.70.81.21.32.12.22.32.73.12.2
      100.50.70.81.21.51.822.42.81.8
      120.70.81.11.31.61.92.21.4
      141.20.91.11.21.31.41.2
      160.70.911.11.21
      180.811.11.20.9
      200.70.911.10.8
      220.60.70.91
      250.60.70.8
      Stainless SteelNitrogen11315181927343538465710.2
      23.33.75.96.71013171821285.8
      31.11.43.94.667.6111214204.1
      41.11.21.83.74.65.366.6123.1
      511.72.44.14.25.282.5
      611.12.73.13.451.9
      80.70.81.61.822.51.3
      100.70.80.91.20.6
      120.70.80.5
      140.80.4
      160.70.3
      180.6
      200.4
      AluminiumAir1710131517213846506411.7
      21.122.771011202124305.3
      31.11.334.14.59101115
      40.80.90.72.42.73.54.756
      50.60.81.31.722.22.6
      60.811.41.51.8
      80.80.911.2
      100.50.70.8
      120.50.7
      140.5
      160.4
      BrassNitrogen13.64.1671013.520263039
      20.81.53.93.34.8710141520
      30.71.42.33.24.46.27.38.311
      40.71.222.93.24.65.57
      50.812.433.54.1
      62.41.71.82.1
      80.50.70.80.9
      100.60.7
      120.6
      140.4

      Features

      • CCTV cameras to watch cutting progress from the control panel
      • RayTools auto focusing cutting head
      • Voltage stabiliser
      • Starter consumable kit
      • Full radiation protection enclosure
      • Twin shuttle table – 20 second shuttle table exchange (PR models)
      • Gantry system run on heavy duty linear rails with quality servo motors
      • High quality branded components nLight laser source: A world leading brand manufactured in the USA

      Performance Pack Features (Highly Recommended)

      • Increases cutting speed and axis acceleration by 25%
      • Includes the Beckhoff Control (German) (Beckhoff has a UK Service Centre)
      • Includes Motor Power speed motors (Italian)
      • Sigmaest Software

      Options
