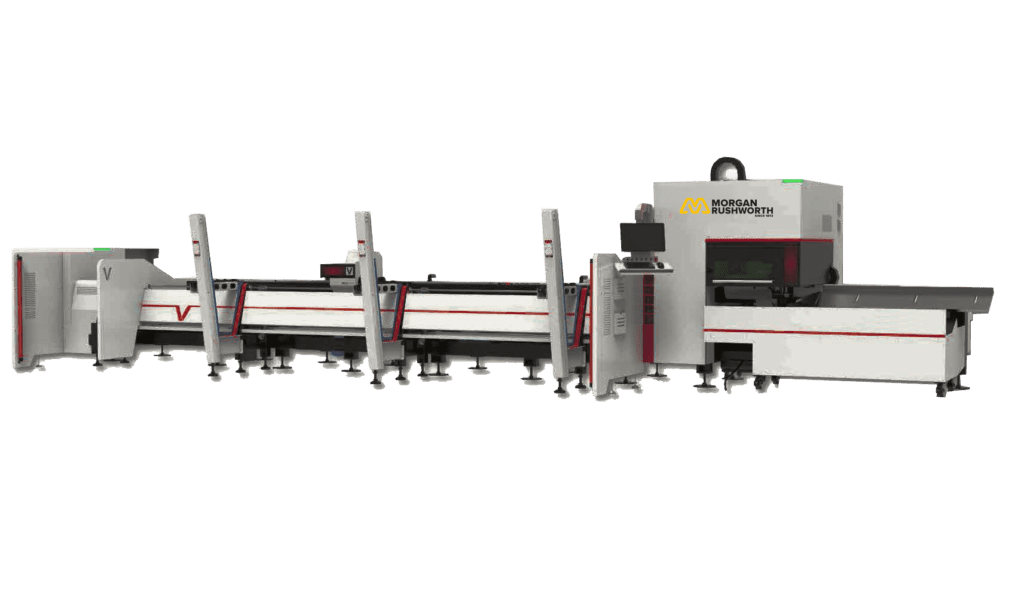

Morgan Rushworth XTC Compact Tube Fibre Laser
The Morgan Rushworth XTC Compact Tube Fibre Laser Cutting Machine combines intelligent automation, modular design, and high-speed tube processing. With ultra-fast automatic loading and the flexibility to switch between fully automatic and semi-automatic operation, the XTC range is available in three capacities to process round tubes from 8-120mm, 10-160mm, or 12-250mm diameter. The machine achieves three major breakthroughs: “zero scrap waste, multi-scenario compatibility, and high-precision ultra-fast production,” redefining the standards for ultra-mini-tube cutting.
It adopts a side-mounted machine bed structure, with the front chuck featuring a retractable function. When combined with a composite dual-function chuck, it enables zero scrap cutting, thereby minimising material waste. Additionally, it is equipped with a high-speed pneumatic chuck specially customised for small tubes. A full-servo floating support system is utilised at both the loading and unloading ends, working in tandem to enhance cutting accuracy and processing efficiency.
| Model Number | XTC 6012.3000 | XTC 6012.6000 | XTC 7512.3000 | XTC 7512.6000 | XTC 6016.3000 | XTC 6016.6000 | XTC 7516.3000 | XTC 7516.6000 | XTC 6023.3000 | XTC 6023.6000 | XTC 7523.3000 | XTC 7523.6000 | XTC 7523.12000 | |
| Stock Code | M7800 | M7801 | M7802 | M7803 | M7804 | M7805 | M7806 | M7807 | M7808 | M7809 | M7810 | M7811 | M7812 | |
| Laser Source | kW | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 12 |
| Max. Tube Length | mm | 6,000 | 7,500 | 6,000 | 7,500 | 6,000 | 7,500 | |||||||
| Tube Diameter Range (semi-auto loader) |
Ø mm | 20 – 80 | 12 – 200 | |||||||||||
| Box Section Diameter Range (semi-auto loader) |
mm | 20 x 20 – 80 x 80 | 12 x 12 – 200 x 200 | |||||||||||
| Tube Diameter Range (auto loader) |
Ø mm | 8 – 120 | 10 – 160 | 12 – 250 | ||||||||||
| Box Section Diameter Range (auto loader) |
mm | 8 x 8 – 120 x 120 | 10 x 10 – 160 x 160 | 12 x 12 – 250 x 250 | ||||||||||
| Axis Acceleration | G | 2.0 | 2.0 | 2.0 | 2.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Max. Single Tube Weight | kg | 80 | 80 | 80 | 80 | 110 | 110 | 110 | 110 | 300 | 300 | 300 | 300 | 300 |
| Max. Bundle / Semi-Auto Loading Weight | kg | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 |
| Type of Infeed Supports | Servo Controlled | |||||||||||||
| Type of Outfeed Supports | Servo Controlled | |||||||||||||
| Chuck Speed | rpm | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 150 | 120 | 120 | 120 | 120 | 210 |
| Feed Speed | m/min | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Absolute Positioning Accuracy | mm | ± 0.05 | ||||||||||||
| Repeatability (X & Y Axis) | mm | ± 0.03 | ||||||||||||
| Cycle Time | s | 10 | ||||||||||||
| LASER SOURCE | |||||
| Material | Gas | Capacity | 3kW | 6kW | 12kW |
| Carbon Steel | O2 | mm | 16 | 20 | 30 |
| Stainless Steel | N2 | mm | 10 | 15 | 30 |
| Aluminium | Air | mm | 6 | 15 | 30 |
| Brass | N2 | mm | 5 | 10 | 15 |
| Copper | O2 | mm | 3 | 8 | 14 |
Features
- Fibre optic beam delivery system
- BOCI Autofocus Laser Cutting Head
- Applicable tube types : Round tube, square tube, rectangular tube, oval tube, D-shaped steel, T-shaped steel, H-shaped steel, channel steel, angle steel, etc.
- Material Receiving and Collecting System
- CE compliant complete machine enclosure and light barrier system
- FSCUT3000DE Control System
- BOCHU TubePro Tube Cutting Software
- TubesT-Tube Nesting Software
- Combi Loader Semi-Automatic Loading System
- Zero scrap cutting with pneumatic clamping system to avoid final parts being stuck in the chuck.
- 2 Chuck Machine
- Scrap collection draw
- 2m Outfeed
Options
- Bevel Head
- Weld Seam Detection
- PA Controller & Lantek Software (See the XTE Model)
- 4m / 6m Outfeed
- Head Scanning
- IPG Laser Source
- Filtration & Extraction
Morgan Rushworth XTC Compact Tube Fibre Laser Cutting Machine
Intelligent, High-Speed, Zero-Scrap Tube Processing
Discover a new standard in precision tube cutting with the Morgan Rushworth XTC Compact Tube Fibre Laser Cutting Machine — engineered for efficiency, flexibility, and zero material waste. With advanced automation, high-speed performance, and intelligent control systems, the XTC redefines what’s possible in small tube processing.
Precision Tube Cutting with Zero Scrap Waste
The Morgan Rushworth XTC sets a new benchmark with its innovative zero-scrap design, made possible by a side-mounted machine bed and a retractable front chuck. Combined with a composite dual-function clamping system, this allows complete cutting of each tube — eliminating up to 220mm of typical scrap waste.
Its automatic avoidance program ensures seamless head movement between chucks, completing final cuts without interference. The result? Zero offcuts, higher material yield, and precise cutting right to the tube’s end.
Full Automation Meets Intelligent Flexibility
With support for fully automatic and semi-automatic modes, the XTC enables high-speed processing for a wide range of materials and profiles:
-
Tube diameters from Ø8mm to 120mm, Ø10mm to 160mm and Ø12mm to 250mm
-
Materials: Mild Steel, Stainless Steel, Aluminium, Brass, Copper, Galvanised Steel
-
Shapes: Round, Square, Rectangular, Oval, D-Shape, T-Shape, Channel, I-Beam, and more
The full-servo floating support system ensures smooth material handling and cutting precision at both the loading and unloading ends — ideal for delicate, thin-walled tubes.
High-Speed Performance That Delivers
Engineered for efficiency, the Morgan Rushworth XTC offers unmatched speed and control:
-
2.0G Maximum Acceleration
-
120m/min Positioning Speed
-
200rpm Chuck Rotation Speed
-
0.03mm Repeat Positioning Accuracy
These capabilities significantly reduce non-cutting time and improve productivity in demanding production environments.
Advanced Laser Cutting Technology
Featuring industry-leading components for reliability and performance:
-
Raycus Fibre Laser Source (3, 6 and 12kW options)
-
BOCI BLT 310T Autofocus Cutting Head
-
BOCHU FSCUT3000DE Controller with TubePro Software
-
LEITESEN Rack & Pinion Drive
-
High-rigidity gantry structure for smooth, stable operation
The system is fully CE compliant, with a complete enclosure and safety light barriers for operator protection.
Dual Loading System for Seamless Tube Handling
Handle various batch sizes with the dual-mode loading system, combining:
-
Fully Automatic Bundle Loading
-
Semi-Automatic Single Tube Loading
This smart hybrid design allows continuous, unattended processing or operator-assisted control as needed — ideal for varying production volumes.
Intelligent Material Receiving and Discharge
Maximise throughput with a fully integrated discharging system:
-
Adaptive supports for variable-length tubes
-
Smooth, inclined slide for gentle unloading
-
Efficient storage and batch collection area
-
Reduced manual handling and increased automation
Every detail is designed to streamline your workflow and minimise downtime.
Built to Last – Durable, Dust-Sealed Chuck System
The TFC’s fully enclosed pneumatic chuck system offers:
-
High clamping force with visual adjustment
-
Anti-dust design to prevent jamming and wear
-
Wear-resistant components for extended life
This ensures optimal clamping stability and minimal maintenance — even in high-volume production environments.
Optional Upgrades
Enhance your system to meet specific application needs:
-
Up to 12kW laser source
-
Outfeed lengths up to 6m
-
Optional bevel cutting head
-
Weld Seam Detection
-
PA Controller & Lantek Software
-
IPG Laser Source
-
Filters and Extraction
Tube process consolidation — cutting, bevel, drilling and tapping
29th October 2026
Tube Laser Unloading and Finished Part Collection Explained
13th October 2026
Tube Laser Cutting for Faster Welding and Assembly
13th October 2026
Tube Laser Remnants and Material Yield Explained
13th October 2026
Can a Tube Laser Process Open and Structural Sections
13th October 2026
Planning Tube Laser Infeed and Outfeed Lengths
6th October 2026
How Automatic Bundle Loading Works on a Tube Laser
6th October 2026
Choosing Manual, Semi Automatic or Fully Automatic Tube Loading
6th October 2026
Tube Laser Automation Explained
6th October 2026
CNC Machine Running Costs: What to Include in the Comparison
30th September 2026
When Does a CNC Saw and Drill Line Make Sense?
30th September 2026
What Tube or Section Laser Do I Need?
5th December 2025
The Benefits of a Compact Tube Laser for Fabricators
5th December 2025
Tube Laser vs Tube Plasma: Which Process Is Right for You?
5th December 2025
How can a Tube Laser speed up my processes?
4th December 2025
Frequently Asked Questions
What makes the XTC a compact tube-laser option?
The XTC uses a two-chuck arrangement aimed at smaller tube-processing applications. It combines cutting with controlled stock support and a choice of loading arrangements. Check the complete infeed and outfeed layout: compact describes the design, not a guarantee that long-stock handling will fit every workshop.
What tube diameters can the XTC handle?
The automatic-loading specifications list ranges of 8-120 mm, 10-160 mm and 12-250 mm across the relevant variants. Limits differ with the loading arrangement and profile shape. Provide the smallest as well as the largest sections you use so the exact machine and loader can be matched.
Does the XTC zero-tail design mean there is no material waste?
No. The clamping arrangement is designed to reduce the unusable tail at the end of a stock length. Cutting kerf, spacing between parts, end preparation and the nest still affect material yield. Ask for a representative nesting assessment rather than assuming every tube will be fully converted into saleable parts.
How do XTC stock length and finished-part length differ?
The range includes 6-metre and 7.5-metre raw-stock configurations. The page lists a 2-metre standard outfeed, with 4-metre and 6-metre options. Choose infeed around purchased stock and outfeed around the longest finished components, including how those components will be supported and collected.
Can every XTC be specified with a 12 kW source?
No. The published table lists 12 kW for the larger XTC 7523.12000 configuration, while other listed variants use 3 kW or 6 kW. Source availability, tube size and loading requirements should be checked together rather than assuming every power is available on every machine size.
Is the XTC supplied with fully automatic bundle loading?
Loading arrangements vary, and the page describes both semi-automatic and automatic configurations. State the required stock presentation and desired operator involvement in the quotation. A demonstration with your normal tube mix is the best way to assess changeovers and loading reliability.
Can the XTC be equipped for bevels or weld-seam recognition?
Bevel equipment and weld-seam detection are listed options. They solve different requirements: an angled cut may prepare a joint, while seam recognition helps orient welded stock. Confirm the exact head, software and material suitability for your drawings rather than assuming either function is included.
Can I arrange servicing and a Service Plan for the XTC?
Yes. Selmach provides servicing and offers optional Service Plans for the XTC. Ask us to quote a plan around your machine and production hours. Servicing frequency, support and call-out provision depend on the selected cover and agreed terms; a Service Plan is separate from the machine purchase unless expressly included.
