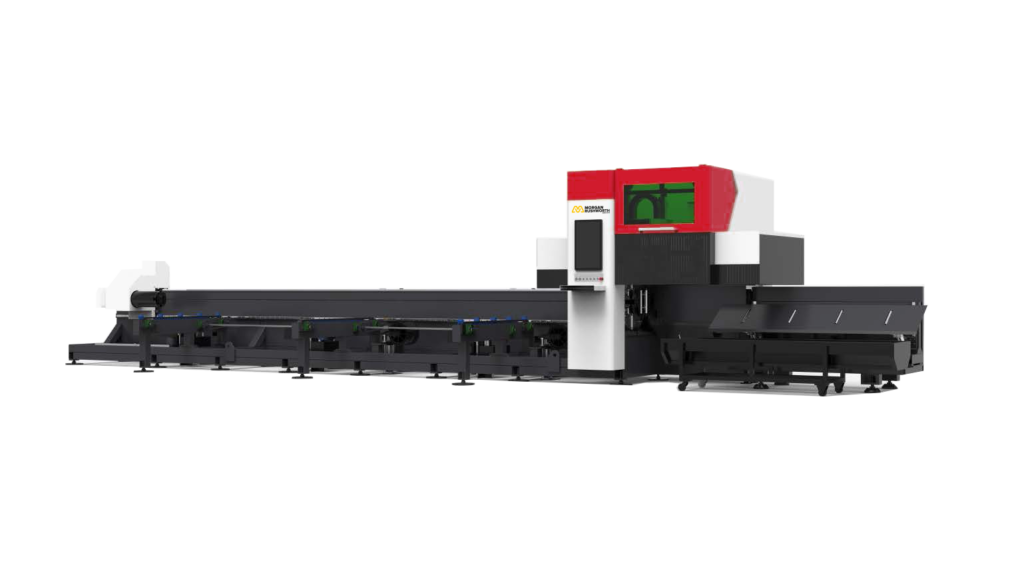

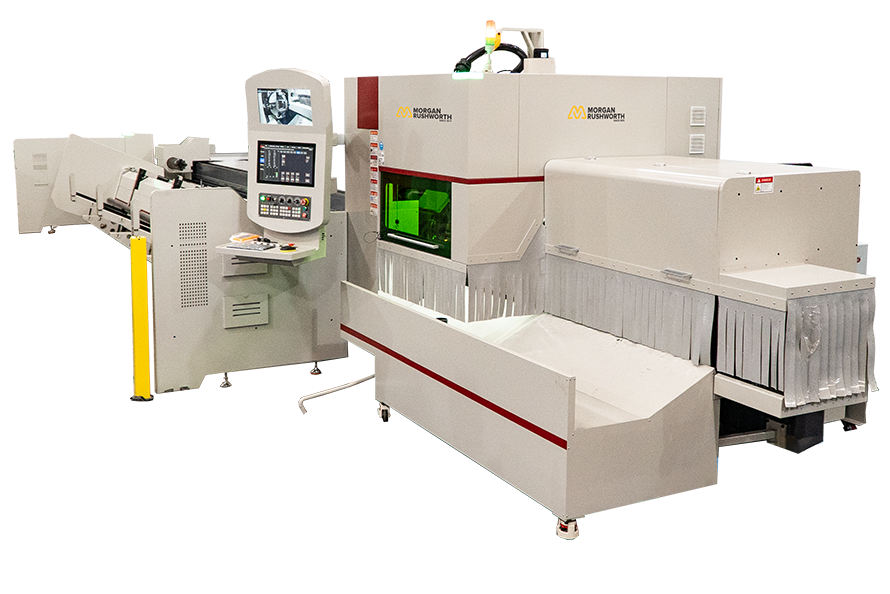

Morgan Rushworth XTE (2 Chuck) Compact Tube Fibre Laser
The Morgan Rushworth XTE Compact Tube Fibre Laser Cutting Machine combines intelligent automation, modular design, and high-speed tube processing. With ultra-fast automatic loading and the flexibility to switch between fully automatic and semi-automatic operation, the XTE range is available in three capacities to process round tubes from 8-120mm, 10-160mm, or 12-250mm diameter.
It adopts a side-mounted machine bed structure, with the front chuck featuring a retractable function. When combined with a composite dual-function chuck, it enables zero scrap cutting, thereby minimising material waste. Equipped with the PA Controller, and Lantek or Sigmanest software, the XTE is a highly capable machine for processing small tubes and box section.
| MODEL NUMBER | XTE 6012.3000 | XTE 6012.6000 | XTE 7512.3000 | XTE 7512.6000 | XTE 6016.3000 | XTE 6016.6000 | XTE 7516.3000 | XTE 7516.6000 | XTE 6023.3000 | XTE 6023.6000 | XTE 7523.3000 | XTE 7523.6000 | |
| STOCK CODE | M7820 | M7821 | M7822 | M7823 | M7824 | M7825 | M7826 | M7827 | M7828 | M7829 | M7830 | M7831 | |
| Laser Source | kW | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 |
| Max. Tube Length | mm | 6,000 | 7,500 | 6,000 | 7,500 | 6,000 | 7,500 | ||||||
| Tube Diameter Range (semi-auto loader) |
Ø mm | 12 – 110 | 12 – 150 | 12 – 200 | |||||||||
| Box Section Diameter Range (semi-auto loader) | mm | 12 x 12 – 110 x 110 | 12 x 12 – 150 x 150 | 12 x 12 – 200 x 200 | |||||||||
| Tube Diameter Range (auto loader) |
Ø mm | 8 – 120 | 10 – 160 | 12 – 250 | |||||||||
| Box Section Diameter Range (auto loader) | mm | 8 x 8 – 120 x 120 | 10 x 10 – 160 x 160 | 12 x 12 – 250 x 250 | |||||||||
| Axis Acceleration | G | 2.0 | 2.0 | 2.0 | 2.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.0 | 1.0 | 1.0 | 1.0 |
| Max. Single Tube Weight | kg | 80 | 80 | 80 | 80 | 110 | 110 | 110 | 110 | 300 | 300 | 300 | 300 |
| Max. Bundle / Semi-Auto Loading Weight | kg | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 2,000 | 2,000 | 2,000 | 2,000 |

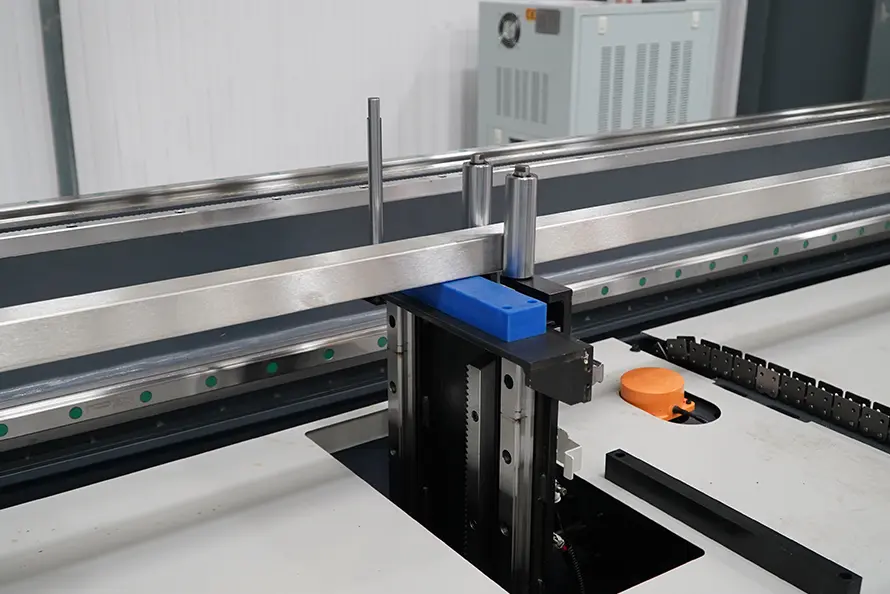

| Type of Infeed Supports | Servo Controlled | ||||||||||||

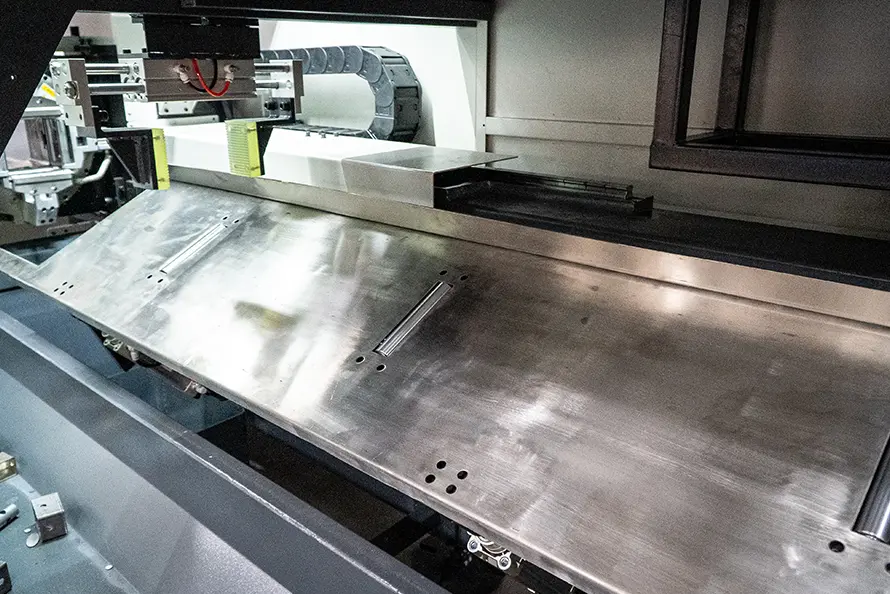

| Type of Outfeed Supports | Servo Controlled | ||||||||||||
| Chuck Speed | rpm | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 150 | 120 | 120 | 120 | 120 |
| Feed Speed | m/min | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Absolute Positioning Accuracy | mm | ± 0.05 | |||||||||||
| Repeatability (X & Y Axis) | mm | ± 0.03 | |||||||||||
| Cycle Time | s | 10 | |||||||||||
| LASER SOURCE | ||||
| Material | Gas | Capacity | 3kW | 6kW |
| Carbon Steel | O2 | mm | 16 | 20 |
| Stainless Steel | N2 | mm | 10 | 15 |
| Aluminium | Air | mm | 6 | 15 |
| Brass | N2 | mm | 5 | 10 |
| Copper | O2 | mm | 3 | 8 |
Features
- Fibre optic beam delivery system
- Raytools Laser Cutting Head
- Applicable tube types : Round tube, square tube, rectangular tube, oval tube, D-shaped steel, T-shaped steel, H-shaped steel, channel steel,

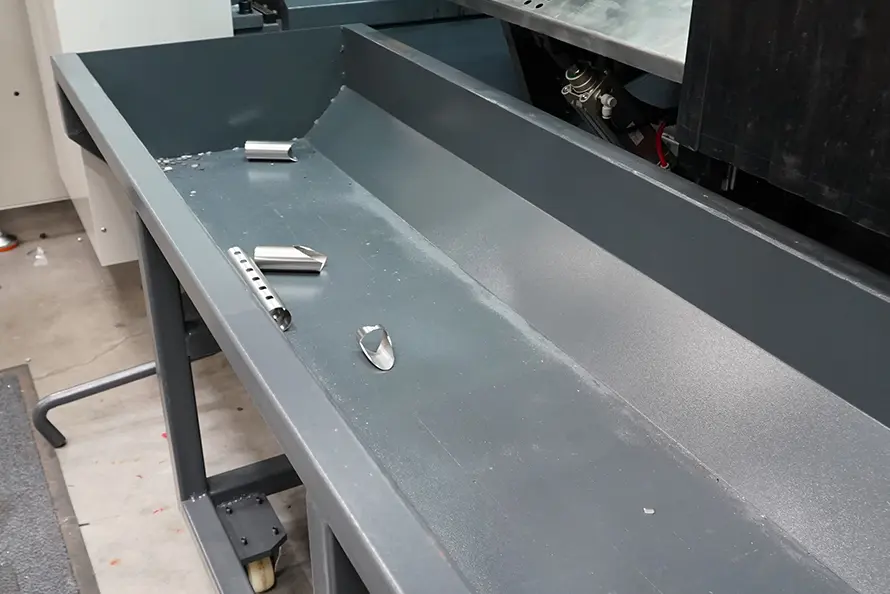

angle steel, etc. - Material Receiving and Collecting System
- CE compliant complete machine enclosure and light barrier system

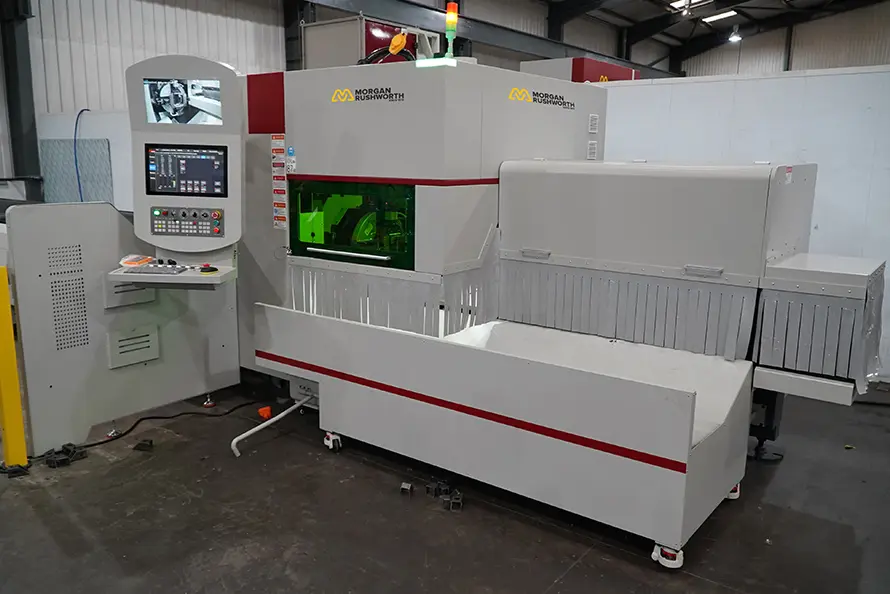

- PA Control System
- Lantek / Sigmanest Software

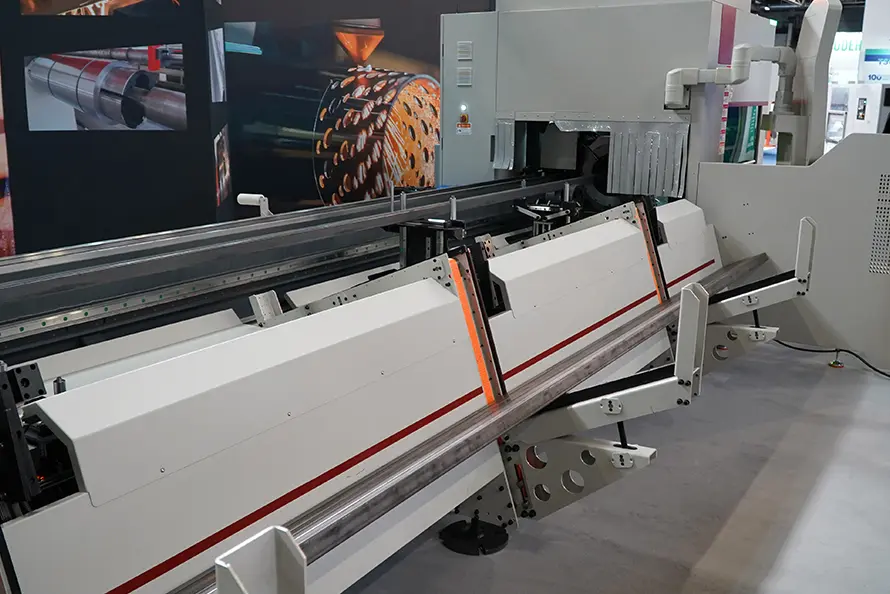

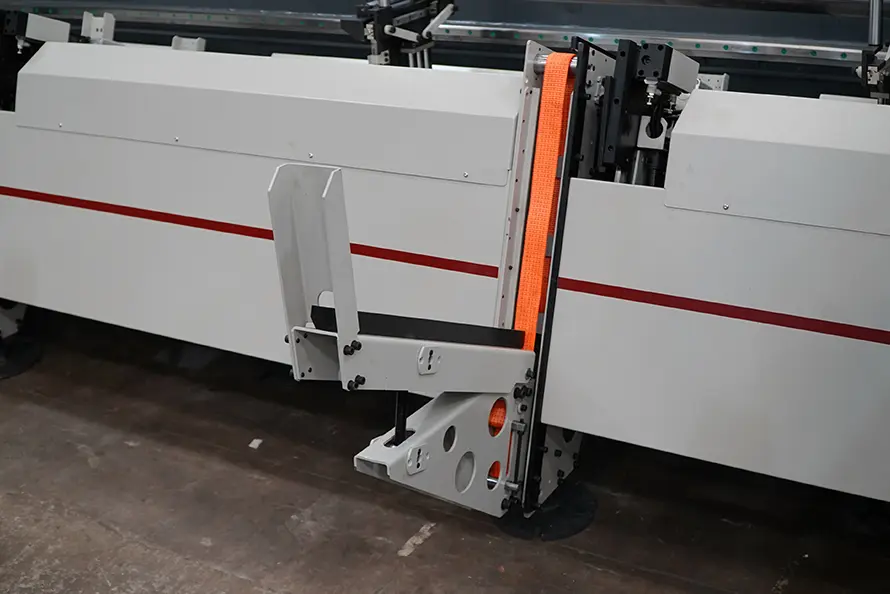

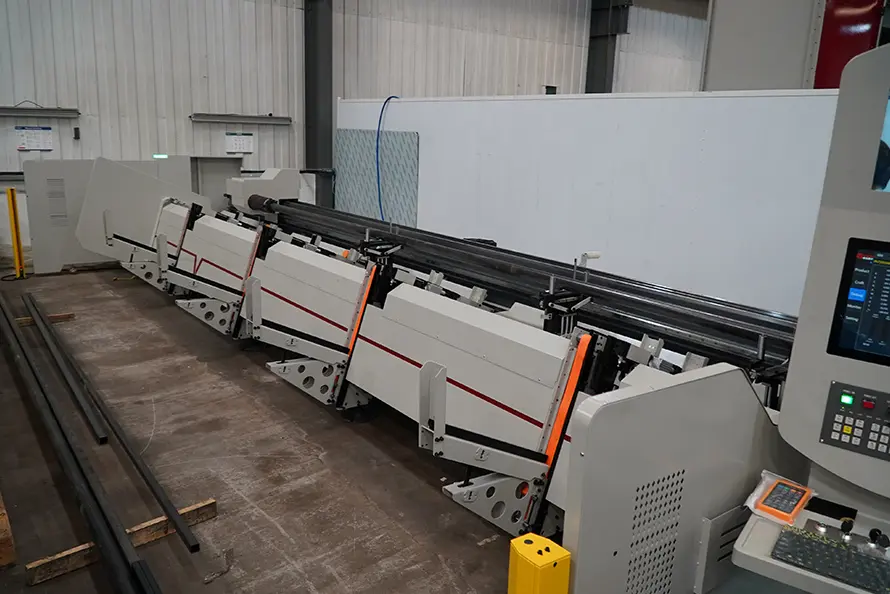

- Bundle Step Loader Semi-Automatic
- Loading System

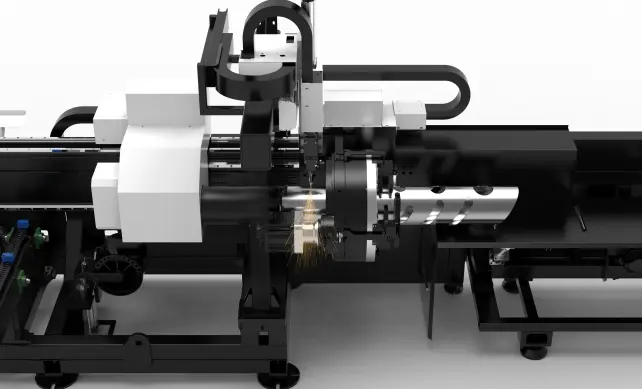

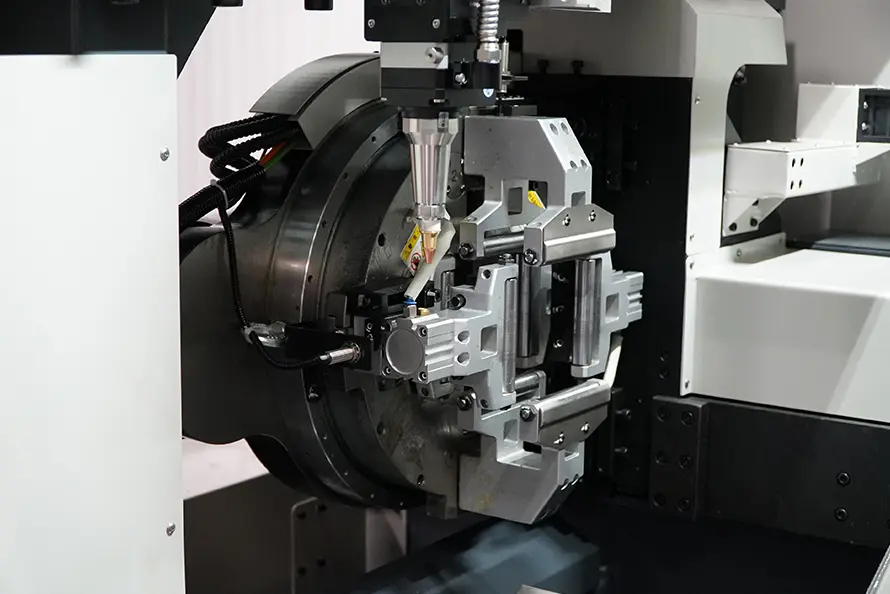

- Zero scrap cutting with pneumatic clamping system to avoid final parts being stuck in the chuck.

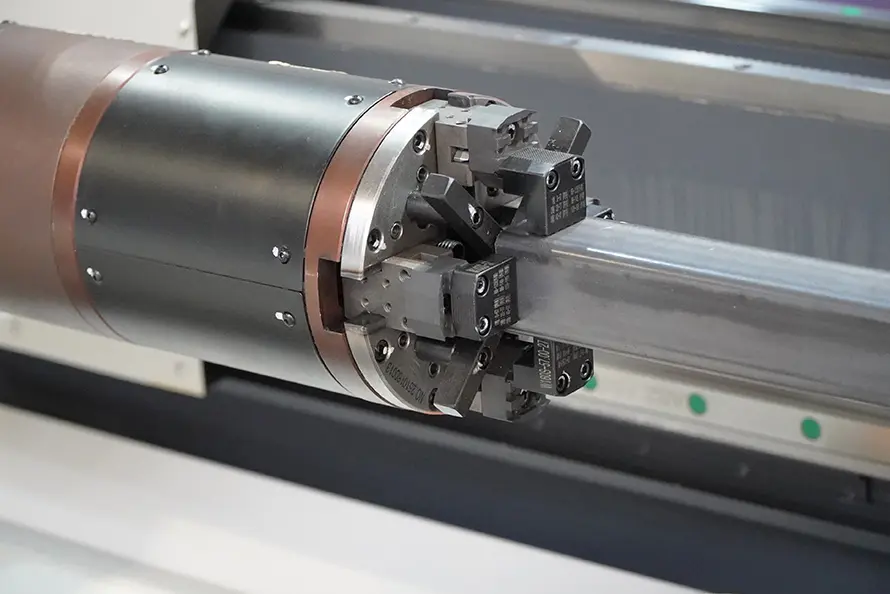

- 2 Chuck Machine

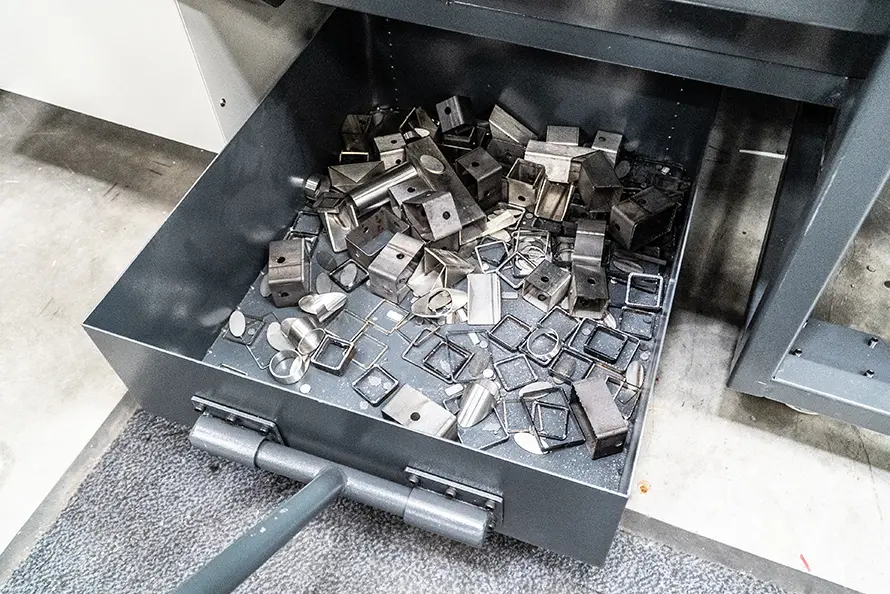

- Scrap collection draw

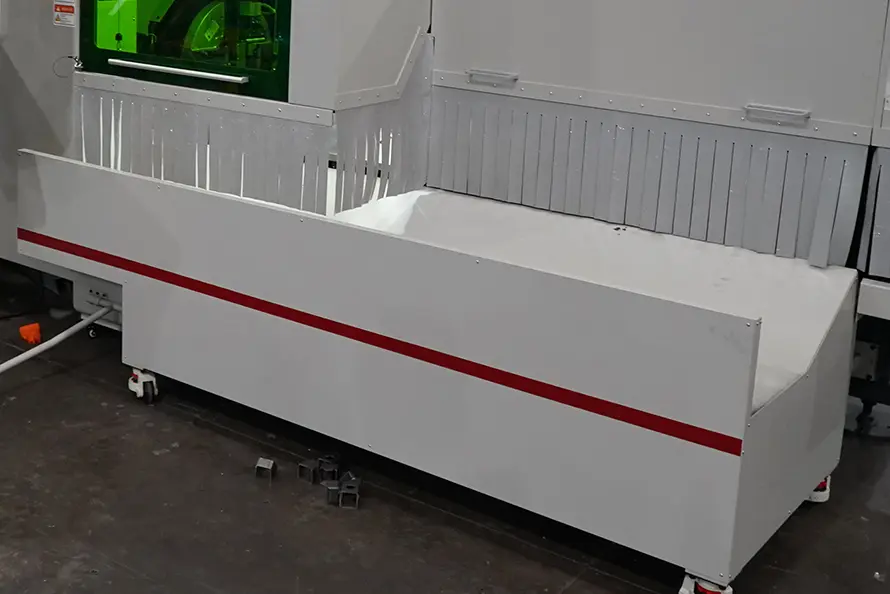

- 2m Outfeed
Options
- Bevel Head – Ospri / LT Ultra
- Weld Seam Detection
- 4m / 6m Outfeed
- Head Scanning
- IPG Laser Source
- Chain Loader
- Filtration & Extraction
Tube Laser Unloading and Finished Part Collection Explained
13th October 2026
Tube Laser Cutting for Faster Welding and Assembly
13th October 2026
Tube Laser Remnants and Material Yield Explained
13th October 2026
Can a Tube Laser Process Open and Structural Sections
13th October 2026
Planning Tube Laser Infeed and Outfeed Lengths
6th October 2026
How Automatic Bundle Loading Works on a Tube Laser
6th October 2026
Choosing Manual, Semi Automatic or Fully Automatic Tube Loading
6th October 2026
Tube Laser Automation Explained
6th October 2026
CNC Machine Running Costs: What to Include in the Comparison
30th September 2026
When Does a CNC Saw and Drill Line Make Sense?
30th September 2026
What Tube or Section Laser Do I Need?
5th December 2025
The Benefits of a Compact Tube Laser for Fabricators
5th December 2025
Tube Laser vs Tube Plasma: Which Process Is Right for You?
5th December 2025
How can a Tube Laser speed up my processes?
4th December 2025
Frequently Asked Questions
What type of tube work should I consider the XTE for?
The XTE is a compact two-chuck tube laser with 3 kW and 6 kW choices. It is worth assessing for repeat tube and profile components where cutting several features in one setup could simplify fabrication. Use your actual sections and finished-part drawings to check suitability.
Why do XTE diameter limits change with the loader?
The published table gives different ranges for automatic and semi-automatic loading. For example, the larger variant lists 12-250 mm with automatic loading but 12-200 mm with semi-automatic loading. Confirm the complete machine-and-loader combination, not just the largest diameter shown anywhere on the page.
What is the difference between the XTE loading options?
A semi-automatic bundle step loader is listed, with a chain-loading option also available. The right choice depends on the stock shapes, batch sizes and changeovers in your workload. Specify how material will arrive at the machine and how much operator involvement is acceptable.
How much remnant does the XTE leave?
The XTE uses a clamping arrangement intended to minimise the end remnant, but actual yield depends on section, part lengths and the cutting plan. A zero-tail description should not be read as a promise of zero total scrap. Review a nest using your usual purchased stock lengths.
Can the XTE produce long finished components?
The range includes 6-metre and 7.5-metre raw-stock capacities. A 2-metre outfeed is listed as standard, with 4-metre and 6-metre alternatives. The outfeed and collection arrangement must suit the finished component; selecting a long infeed alone does not resolve this.
Which programming system is listed for the XTE?
The specification identifies a PA control with Lantek or SigmaNEST software arrangements. Confirm the actual package, licence and CAD import workflow in your quotation; the listing should not be interpreted as two complete software licences being included. Test representative tube and profile drawings during the review.
Can an XTE be specified for bevel cutting?
Bevel-head options are listed, alongside options such as weld-seam detection and head scanning. Check the required joint angle, material and profile access against the proposed equipment. A standard straight-cutting configuration should not be assumed to perform the same work.
Can I arrange servicing and a Service Plan for the XTE?
Yes. Selmach provides servicing and offers optional Service Plans for the XTE. Ask us to quote a plan around your machine and production hours. Servicing frequency, support and call-out provision depend on the selected cover and agreed terms; a Service Plan is separate from the machine purchase unless expressly included.
