Morgan Rushworth XTR Tube Fibre Laser

The Morgan Rushworth XTR Tube Fibre lasers are capable of processing up to 12,000mm tubes. With a maximum part length of 8,000mm, this machine can handle large and small parts with ease.

Featuring the Precitec Light Cutter 3D, the system can handle a multitude of profiles, including Round, Rectangular, Triangular, C, U, L, Elliptical, Obround and Custom Shapes, with diameters minimum of Ø16 up to a maximum of Ø214 mm.

Optional additions includes bevel cutting and automated loading and unloading systems.

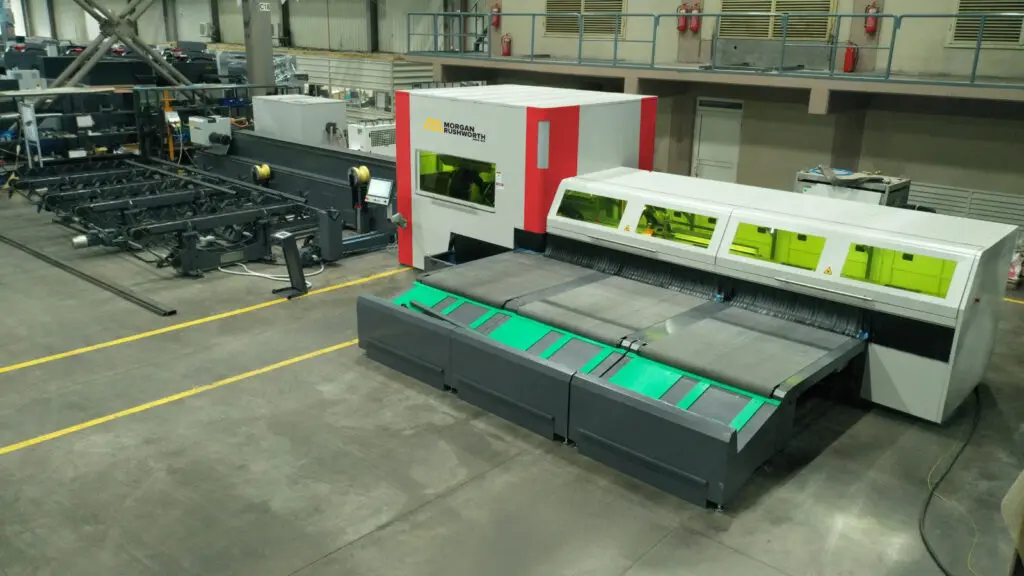

Morgan Rushworth XTR Tube Fibre Laser imageMorgan Rushworth XTR Tube Fibre Laser image
Morgan Rushworth XTR Tube Fibre Laser image 2Morgan Rushworth XTR Tube Fibre Laser image 2
Morgan Rushworth XTR Tube Fibre Laser image 3

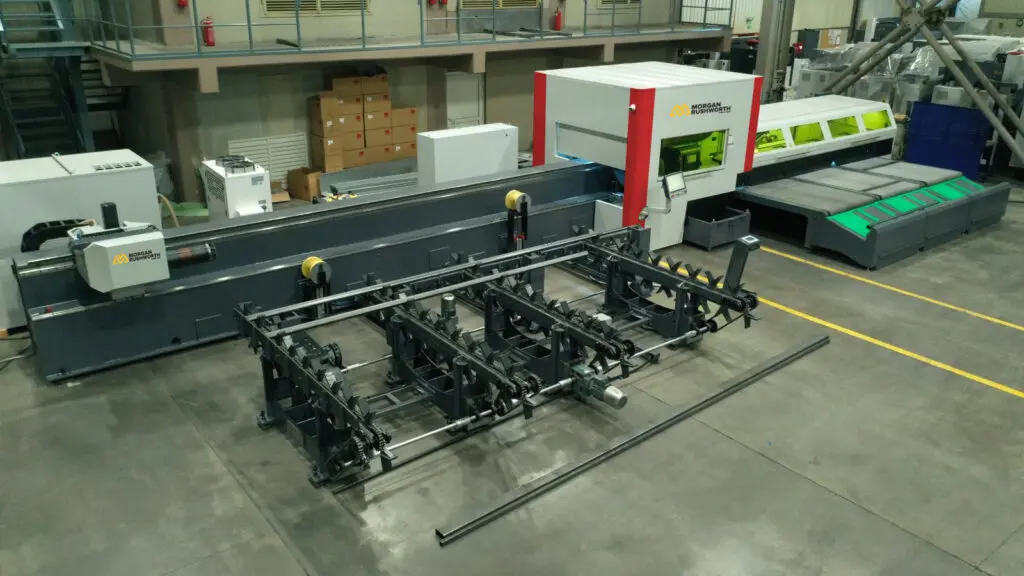

Loading System
Morgan Rushworth XTR Tube Fibre Laser image 3
Morgan Rushworth XTR Tube Fibre Laser image 4

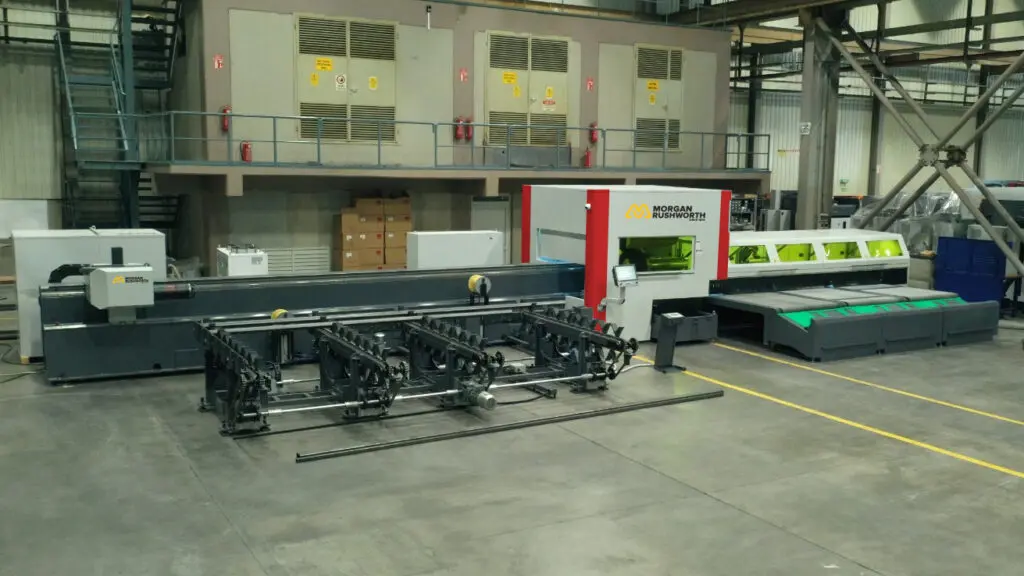

Outfeed
Morgan Rushworth XTR Tube Fibre Laser image 4
Morgan Rushworth XTR Tube Fibre Laser image 5

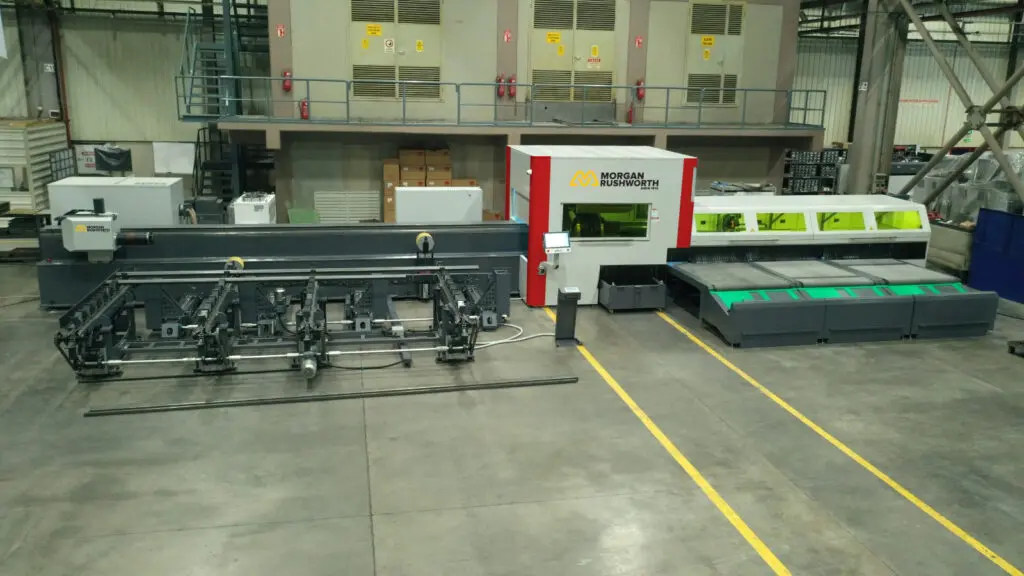

Outfeed
Morgan Rushworth XTR Tube Fibre Laser image 5
Morgan Rushworth XTR Tube Fibre Laser image 6Morgan Rushworth XTR Tube Fibre Laser image 6
Morgan Rushworth XTR Tube Fibre Laser image 7Morgan Rushworth XTR Tube Fibre Laser image 7
Morgan Rushworth XTR Tube Fibre Laser image 8Morgan Rushworth XTR Tube Fibre Laser image 8
Morgan Rushworth XTR Tube Fibre Laser image 9Morgan Rushworth XTR Tube Fibre Laser image 9
Morgan Rushworth XTR Tube Fibre Laser image 10Morgan Rushworth XTR Tube Fibre Laser image 10
Morgan Rushworth XTR Tube Fibre Laser image 11Morgan Rushworth XTR Tube Fibre Laser image 11
Morgan Rushworth XTR Tube Fibre Laser image 12Morgan Rushworth XTR Tube Fibre Laser image 12
Morgan Rushworth XTR Tube Fibre Laser image 13

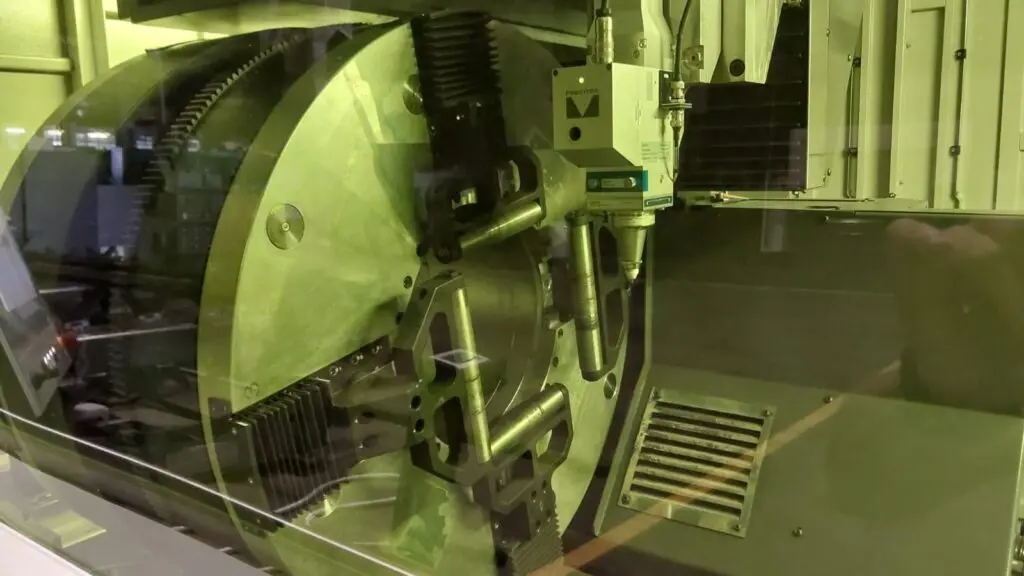

Main Feed Chuck
Morgan Rushworth XTR Tube Fibre Laser image 13
Morgan Rushworth XTR Tube Fibre Laser image 14Morgan Rushworth XTR Tube Fibre Laser image 14
Morgan Rushworth XTR Tube Fibre Laser image 15

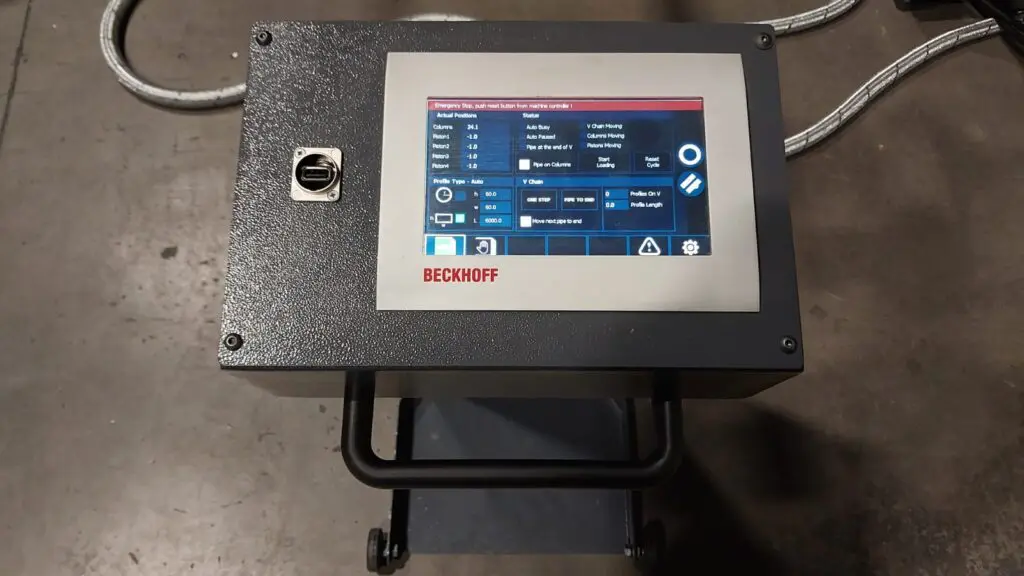

HMI Controller
Morgan Rushworth XTR Tube Fibre Laser image 15
Morgan Rushworth XTR Tube Fibre Laser image 16
Footpedal Control
Morgan Rushworth XTR Tube Fibre Laser image 16
Stock Code XTR 60012
Max. Feeding Length mm 12,000
Profile Cutting Area mm 8,000
Min. Feeding Length mm 2,000 (Automatic Loading*)
Acceleration of Drive Chuck °/s2 7,000
Speed of Driver Chuck °/s 560
Types of Profile Pipe, Square, Rectangular, Triangular, C, U, L
Min. / Max. Round Diameter mm Min Ø16 / Max Ø214
Min. / Max. Square Diameter mm Min 16×16 / Max 214×214
Length of Last Part mm 60
Max. Tube Weight kg/m 40
Min. Material Thickness mm 0.8
X Axis Speed m/min 90
Z Axis Speed m/min 50
Acceleration m/s2 1.0G
Absolute Positioning Accuracy mm ± 0.01
Repeatability (X & Y Axis) mm/mt ± 0.02
Bevel Cutting (± 45º) Optional
Automatic Loading / Unloading Optional
Feed Rate m/min Programmable up to 45 m/min. Actual feed rate depends on material and thickness.

Features

  • High performance nLight alta™ Fibre
  • Laser Source
  • Lantek Flex3d Software
  • Fibre optic beam delivery system
  • Rapid processing, programmable up to 50m/min
  • Precitec Lightcutter 3D Laser Cutting Head
  • High strength, rigid gantry design to ensure
  • high accuracy and allow high acceleration
  • Applicable tube types : Round, Rectangular, Triangular, C, U, L, Elliptical, Obround and Custom Shapes
  • CE compliant complete machine enclosure and light barrier system

Options

  • Bevel Cutting
  • Fume extractor with filters
  • Air compressor and dryer
  • Loading and unloading systems
