SRA350 GE (Encoder) PLC Automatic Bandsaw

The Sterling SRA350GE (Encoder) PLC builds on the straight cutting models, by adding in manual mitring. This fully-automatic cutting model can cut automatically without a length stop thanks to its PLC controlled encoder. The perfect machine for cutting down billets of material ready for further processing.

This a fully automatic machine in a pivot-action design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting, with a manual single mitre system.

The Siemens PLC controller on this saw enables the user to set-up a programme with 10 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

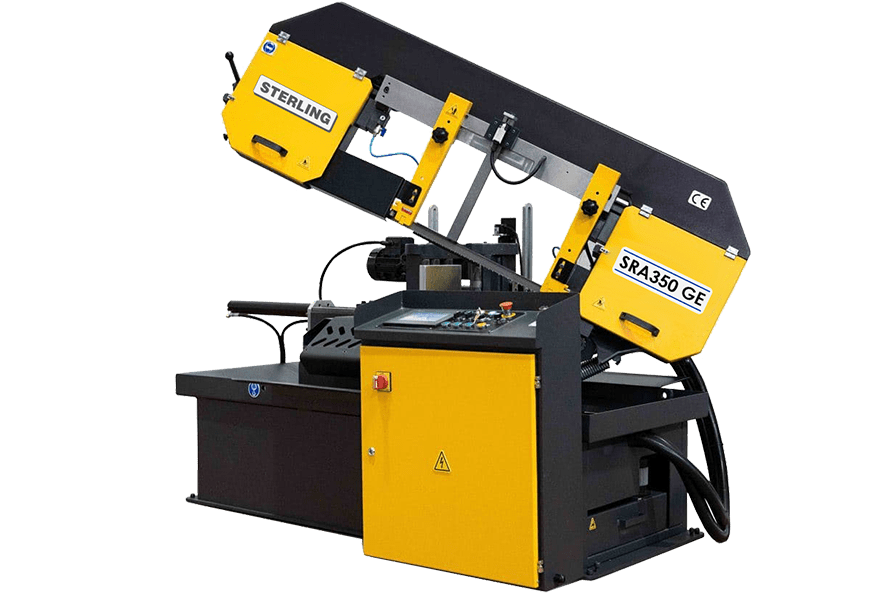

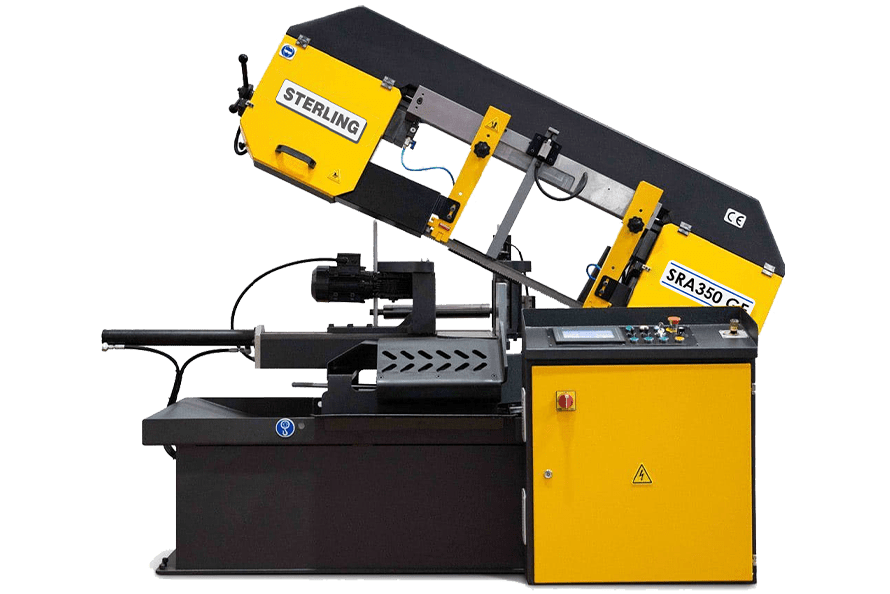

SRA350 GE (Encoder) PLC Automatic Bandsaw imageSRA350 GE (Encoder) PLC Automatic Bandsaw image
Video thumbnail showing the SRA350 GE (Encoder) PLC Automatic Bandsaw
SRA350 GE (Encoder) PLC Automatic Bandsaw image 3SRA350 GE (Encoder) PLC Automatic Bandsaw image 3
SRA350 GE (Encoder) PLC Automatic Bandsaw image 4SRA350 GE (Encoder) PLC Automatic Bandsaw image 4
SRA350 GE (Encoder) PLC Automatic Bandsaw image 5SRA350 GE (Encoder) PLC Automatic Bandsaw image 5
SRA350 GE (Encoder) PLC Automatic Bandsaw image 6SRA350 GE (Encoder) PLC Automatic Bandsaw image 6
SRA350 GE (Encoder) PLC Automatic Bandsaw image 7SRA350 GE (Encoder) PLC Automatic Bandsaw image 7
SRA350 GE (Encoder) PLC Automatic Bandsaw image 8SRA350 GE (Encoder) PLC Automatic Bandsaw image 8
SRA350 GE (Encoder) PLC Automatic Bandsaw image 9SRA350 GE (Encoder) PLC Automatic Bandsaw image 9
SRA350 GE (Encoder) PLC Automatic Bandsaw image 10SRA350 GE (Encoder) PLC Automatic Bandsaw image 10
MODEL SRA350GE (Encoder) PLC
Stock Code 15279-350GE
Capacity 90° 30° 45°
◯ Round mm 350 320 320
□ Flat mm 350 300 300
▭ Square mm 400 x 350 400 x 230 260 x 350
Bed Height 760
Main Drive Motor kW 2.2
Cutting Speeds m/min. 20 – 100
Blade Dimensions mm 4160 x 34 x 1.1
Tolerances mm 0.3
CNC Controller Siemens
Program 1 Program – 10 Steps
Stroke Length mm N/A – Continuous
Remnant Piece mm 220 (Automatic) / 90 (Manual)
Max. Feed mm N/A – Continuous
Length mm 2,450
Width mm 920
Height mm 2,020
Weight kg 1,050
Mitre Single – Manual
Operation Automatic
Vice Hydraulic
Vice Feed Roller Feed

Features

  • Pivot-Action
  • Fully automatic PLC Controller
  • Hydromechanical Blade Tension
  • Inverter drive providing infinitely variable blade speed
  • Automatic bow return
  • Manual Single Mitre Bow
  • Hydraulic vice
  • Siemens PLC control panel (1 Programme – 10 Steps)
  • Swarf brush
  • Carbide blade guides
  • Flood Coolant system
  • 34mm Blade Size

Options

The Sterling SRA350GE (Encoder) PLC builds on the straight cutting models, by adding in manual mitring. This fully-automatic cutting model can cut automatically without a length stop thanks to its PLC controlled encoder. The perfect machine for cutting down billets of material ready for further processing.

This a fully automatic machine in a pivot-action design, ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting.

The Siemens PLC controller on this saw enables the user to set-up a programme with 10 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

Ideal for cutting round, square or rectangular section, bandsaws like these Sterling PLC saws are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
