Sterling STC GA NC Twin Column Automatic Bandsaw 415V

The heavy duty Sterling STC GA NC Twin Column Automatic Bandsaw is well suited for the precision engineering and fabrication markets. They are designed to cut large solid and hollow materials. The twin column rigidity, sensitive cutting pressure and heavy duty blade guides ensures a balance between quality of cut, speed of cut and long blade life. With the single mitring feature in semi automatic mode, results in a very versatile bandsaw.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

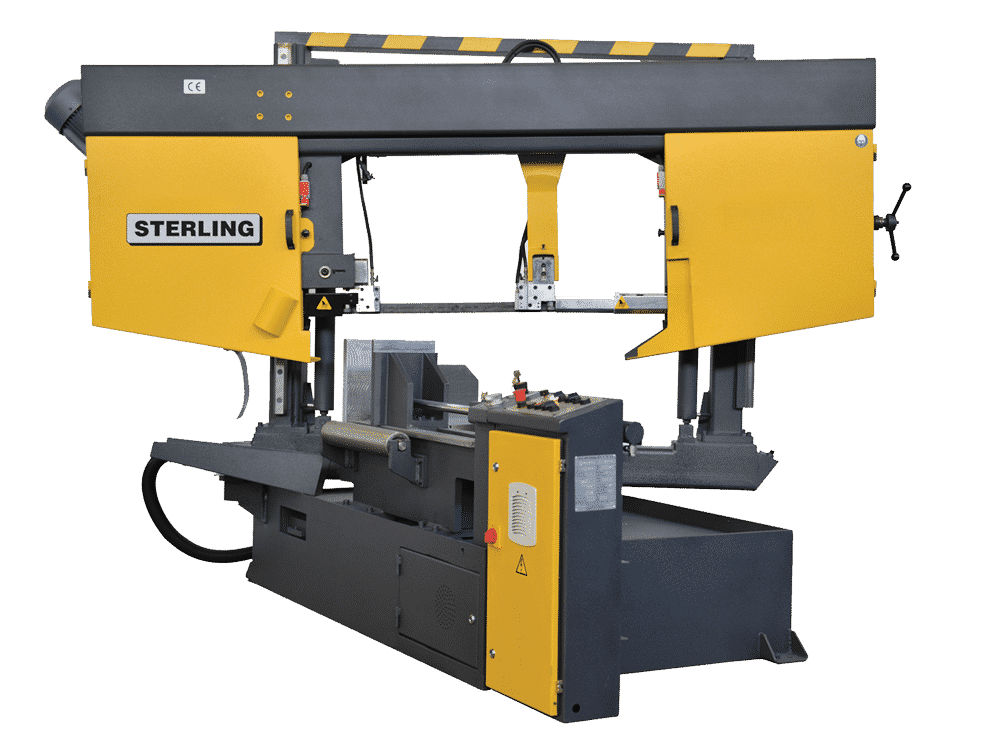

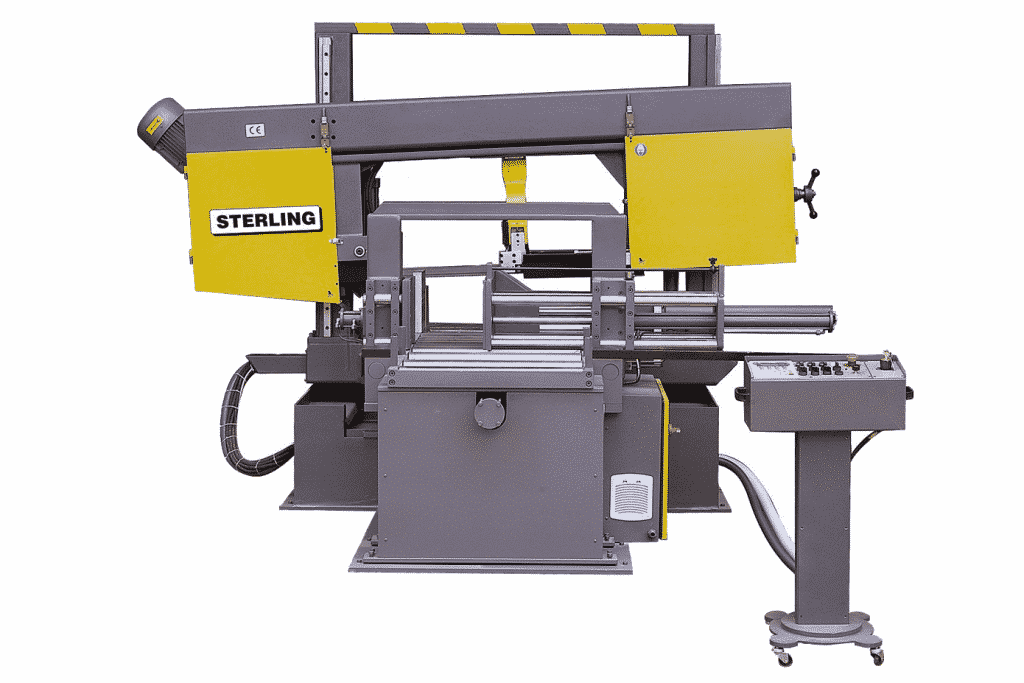

STC360 GA NC Twin Column BandsawSTC360 GA NC Twin Column Bandsaw

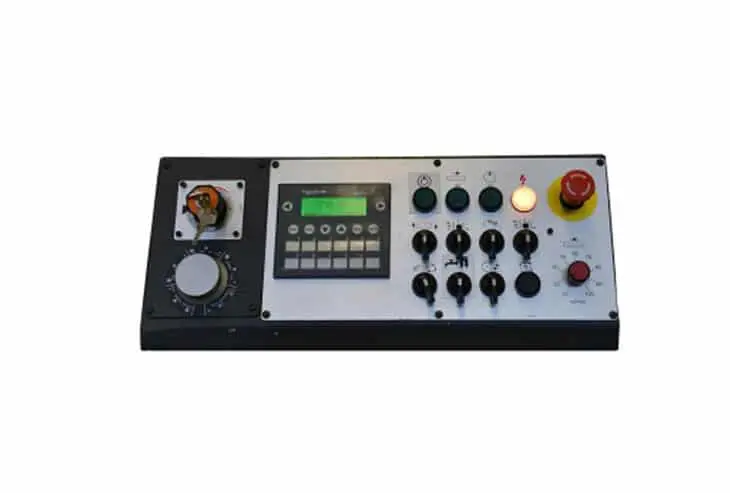

Control PanelControl Panel

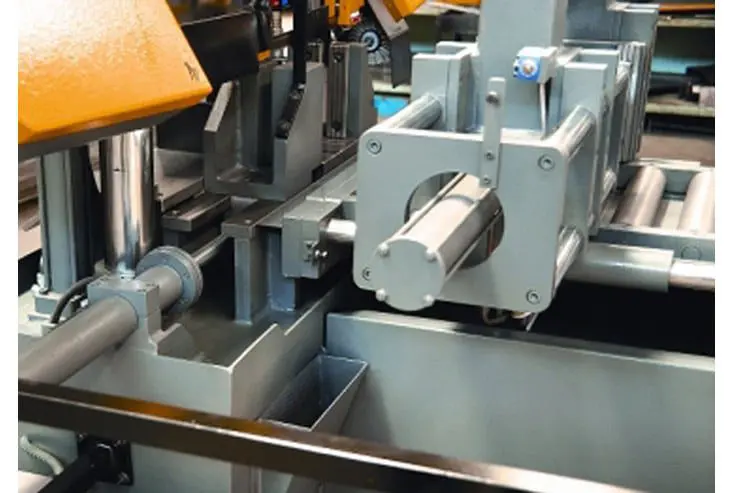

Double Hydraulic ViceDouble Hydraulic Vice

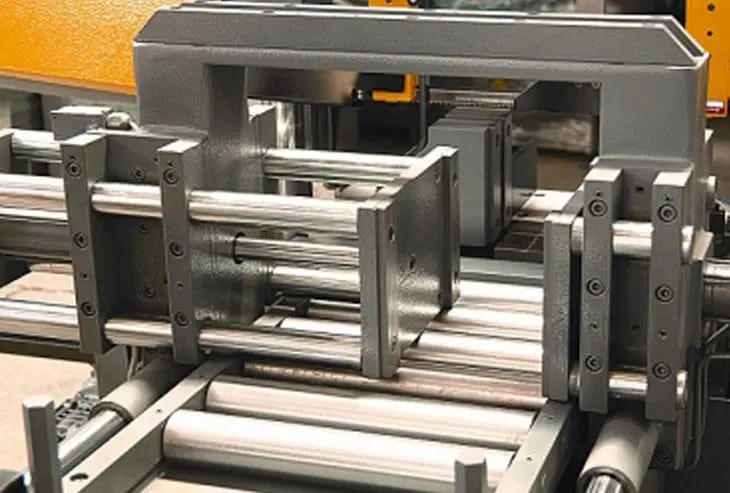

Double Hydraulic ViceDouble Hydraulic Vice

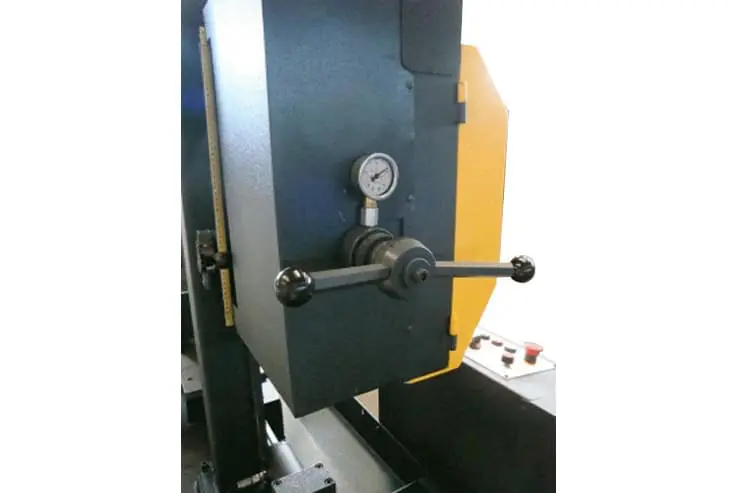

Hydmech Blade Tension AdjustmentHydmech Blade Tension Adjustment
Hydraulic Top ClampHydraulic Top Clamp

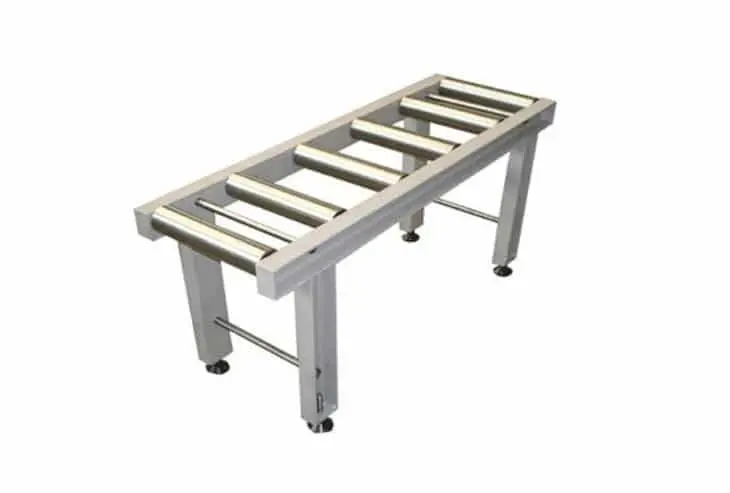

Optional Roller TrackOptional Roller Track

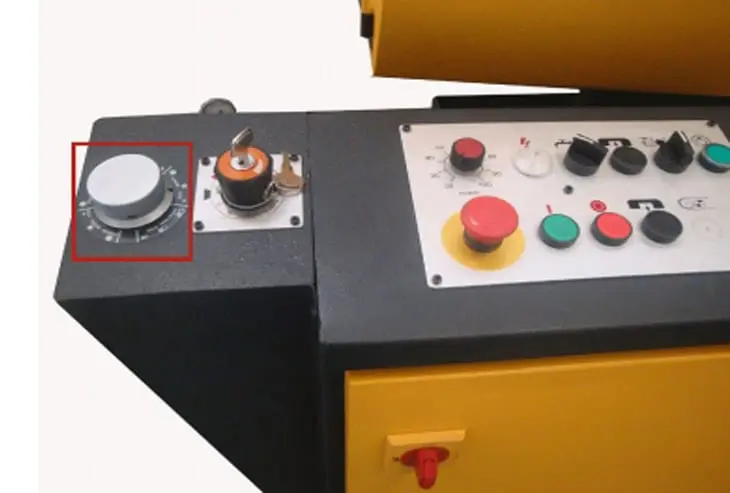

Sensitive Cutting Pressure ControlSensitive Cutting Pressure Control

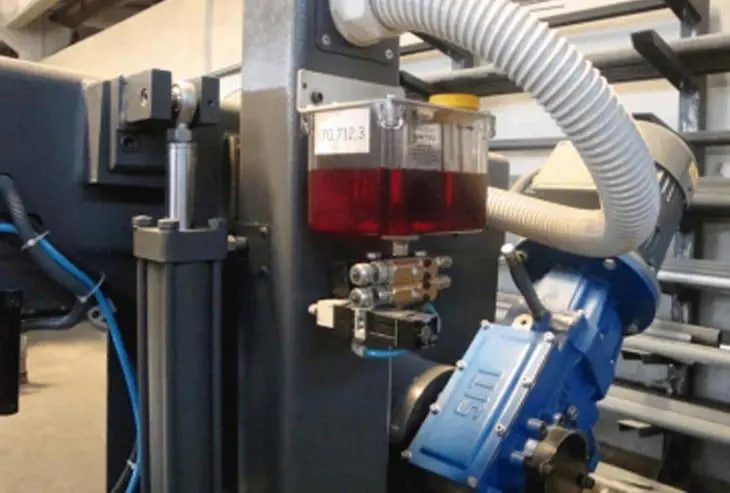

Spray Mist CoolantSpray Mist Coolant
MODEL  STC325 GA CNC   STC360 GA CNC   STC440 GA CNC   STC540 GA CNC
STOCKCODE15197151591516015198
Capacity90°45°60°90°45°60°90°45°60°90°45°60°
mm325300200360360325450430320540510270
mm315300200360360290425425290540450250
mm400 x 315300 x 315200 x 315610 x 360450 x 360280 x 360610 x 4425430 x 425260 x 425670 x 540450 x 450250 x 540
Bed Heightmm655705705710
Blade Sizemm4380 x 34 x 1.15200 x 34 x 1.15400 x 41 x 1.36000 x 41 x 1.3
Cutting Speedm/min20 – 10020 – 10020 – 10020 – 100
MotorKw4344
Lengthmm2130285028503100
Widthmm2150210021002350
Heightmm1650182019502150
WeightKg1860240024803800
OperationCNC AutomaticCNC AutomaticCNC AutomaticCNC Automatic
ViceHydraulicHydraulicHydraulicHydraulic
  • Exceptional heavy construction.
  • Twin column rigidity.
  • High performance.
  • Fully automatic cutting cycle.
  • PLC Controller: Piece length and quantity.
  • Single Mitring to 60 degrees with digital readout.
  • Variable bow height return with light beam.
  • Carbide blade guides for high accuracy.
  • Large capacity.
  • 1m infeed roller track.
  • Coolant system.
  • Vice clamp swivels for angle cuts.
  • Safety control panel situated away from the blade.
  • Blade speed inverter.
  • Blade tension indicator.
  • Hydraulic blade tension.
  • Hydraulic Top Clamp
  • Hexagonal Vice Assembly
  • Micro Spray Coolant System
  • Chip Conveyor
  • Laser Line
