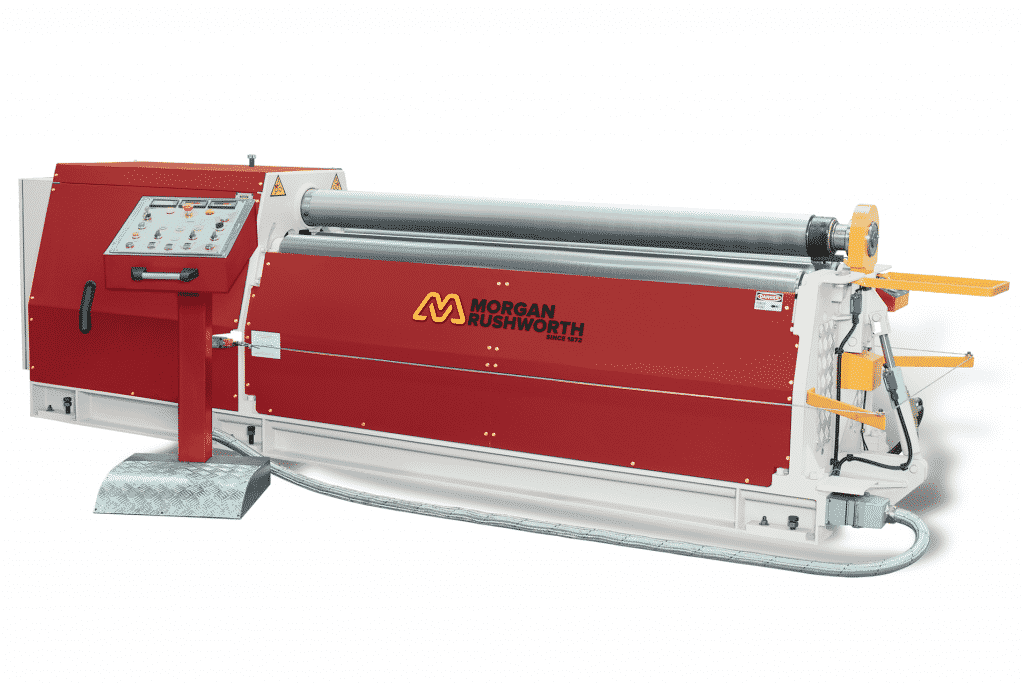

Morgan Rushworth DPBH-4 Hydraulic 4 Roll Plate Bending Rolls

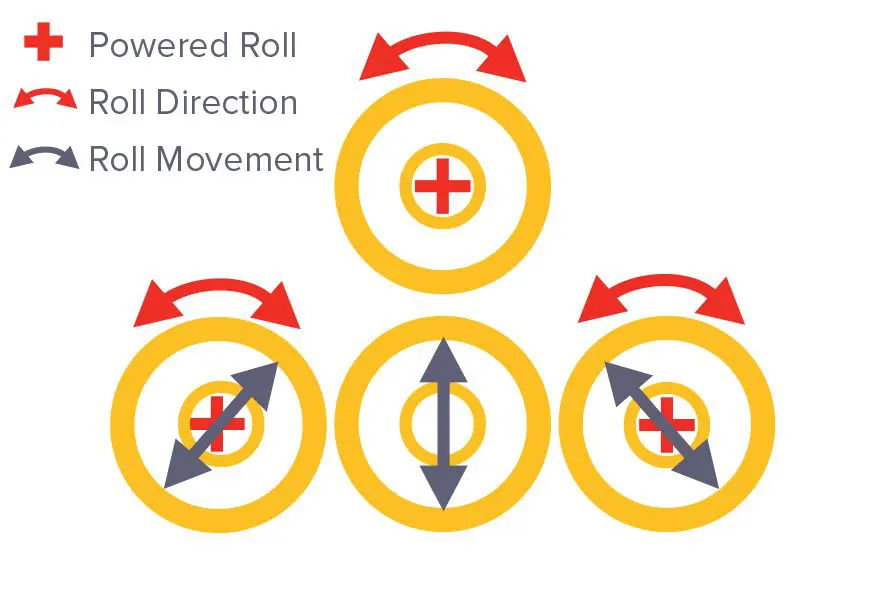

The Morgan Rushworth DPBH-4 hydraulic bending rolls are available with roll diameters ranging from 280mm up to the large 680mm machines. The 4 roll design is extremely powerful, with 3 of the rolls hydraulically driven and the fourth lower roll hydraulically adjusted up and down to pinch the material into position. The feature greatly assists the operator, especially during multiple radius bending as the work piece is always held. All models have hydraulic drop end and are supplied with DRO to all three adjusting rolls to indicate roll position.
| MODEL | STOCK CODE | BENDING LENGTH | PRE BENDING | MAX THICKNESS | TOP/BOTTOM ROLL dia | SIDE ROLLS dia | MOTOR | LENGTH | WIDTH | HEIGHT | WEIGHT |
| mm | mm | mm | mm | mm | kw | mm | mm | mm | kg | ||
| DPBH-4 2050/280 | M3543 | 2050 | 16 | 20 | 280 | 220 | 15 | 4750 | 1650 | 1800 | 8550 |
| DPBH-4 2050/320 | M3544 | 2050 | 20 | 25 | 320 | 240 | 18.5 | 4800 | 1800 | 1900 | 10240 |
| DPBH-4 2050/350 | M3545 | 2050 | 25 | 30 | 350 | 260 | 22 | 5000 | 2200 | 1900 | 1190 |
| DPBH-4 2050/380 | M3546 | 2050 | 30 | 40 | 380 | 300 | 30 | 5100 | 2300 | 2000 | 13200 |
| DPBH-4 2050/400 | M3547 | 2050 | 35 | 45 | 400 | 300 | 38.5 | 5200 | 2350 | 2300 | 14990 |
| DPBH-4 2050/460 | M3548 | 2050 | 40 | 50 | 460 | 380 | 38.5 | 5250 | 2350 | 2600 | 20050 |
| DPBH-4 2050/500 | M3549 | 2050 | 50 | 55 | 500 | 400 | 45 | 5400 | 2490 | 2600 | 31000 |
| DPBH-4 2050/550 | M3550 | 2050 | 50 | 60 | 550 | 450 | 66 | 5500 | 2860 | 2900 | 40150 |
| DPBH-4 2550/280 | M3551 | 2550 | 12 | 16 | 280 | 220 | 15 | 5250 | 1700 | 1800 | 9200 |
| DPBH-4 2550/320 | M3552 | 2550 | 16 | 20 | 320 | 240 | 18.5 | 5300 | 1800 | 1900 | 11300 |
| DPBH-4 2550/350 | M3553 | 2550 | 20 | 25 | 350 | 260 | 22 | 5400 | 2200 | 1900 | 13200 |
| DPBH-4 2550/380 | M3554 | 2550 | 25 | 30 | 380 | 300 | 30 | 5450 | 2290 | 2000 | 16720 |
| DPBH-4 2550/400 | M3555 | 2550 | 30 | 40 | 400 | 300 | 38.5 | 5700 | 2320 | 2300 | 17950 |
| DPBH-4 2550/460 | M3556 | 2550 | 35 | 45 | 460 | 380 | 38.5 | 6000 | 2400 | 2600 | 22450 |
| DPBH-4 2550/500 | M3557 | 2550 | 40 | 50 | 500 | 400 | 45 | 6000 | 2510 | 2600 | 32980 |
| DPBH-4 2550/550 | M3558 | 2550 | 45 | 55 | 550 | 450 | 66 | 6000 | 2860 | 2900 | 43560 |
| DPBH-4 3100/280 | M3559 | 3100 | 10 | 12 | 280 | 220 | 15 | 5800 | 1720 | 1800 | 10040 |
| DPBH-4 3100/320 | M3560 | 3100 | 12 | 16 | 320 | 240 | 18.5 | 5950 | 1810 | 1900 | 12980 |
| DPBH-4 3100/350 | M3561 | 3100 | 16 | 20 | 350 | 260 | 22 | 6100 | 2280 | 1900 | 15090 |
| DPBH-4 3100/380 | M3562 | 3100 | 20 | 25 | 380 | 300 | 30 | 6150 | 2320 | 2000 | 18200 |
| DPBH-4 3100/400 | M3563 | 3100 | 25 | 30 | 400 | 300 | 38.5 | 6250 | 2340 | 2300 | 20060 |
| DPBH-4 3100/460 | M3564 | 3100 | 30 | 40 | 460 | 380 | 38.5 | 6400 | 2390 | 2600 | 24660 |
| DPBH-4 3100/500 | M3565 | 3100 | 35 | 45 | 500 | 400 | 45 | 6550 | 2470 | 2600 | 36070 |
| DPBH-4 3100/550 | M3566 | 3100 | 40 | 50 | 550 | 450 | 66 | 6720 | 2680 | 2900 | 46790 |
| DPBH-4 3100/580 | M3567 | 3100 | 45 | 60 | 580 | 480 | 73 | 7180 | 2920 | 2980 | 55200 |
| DPBH-4 3100/620 | M3568 | 3100 | 60 | 70 | 620 | 520 | 123 | 7300 | 3280 | 3200 | 62100 |
| DPBH-4 3100/680 | M3569 | 3100 | 70 | 85 | 680 | 580 | 150 | 7750 | 3480 | 3550 | 82360 |
| DPBH-4 4100/280 | M3570 | 4100 | 6 | 8 | 280 | 220 | 15 | 6500 | 1740 | 1800 | 13100 |
| DPBH-4 4100/320 | M3571 | 4100 | 8 | 10 | 320 | 240 | 18.5 | 6700 | 1830 | 1900 | 16070 |
| DPBH-4 4100/350 | M3572 | 4100 | 10 | 12 | 350 | 260 | 22 | 6920 | 2290 | 1900 | 18750 |
| DPBH-4 4100/380 | M3573 | 4100 | 12 | 16 | 380 | 300 | 30 | 7040 | 2340 | 2000 | 22350 |
| DPBH-4 4100/400 | M3574 | 4100 | 16 | 20 | 400 | 300 | 38.5 | 7250 | 2390 | 2300 | 25070 |
| DPBH-4 4100/460 | M3575 | 4100 | 20 | 25 | 460 | 380 | 38.5 | 7340 | 2560 | 2600 | 31100 |
| DPBH-4 4100/500 | M3576 | 4100 | 25 | 35 | 500 | 400 | 45 | 7430 | 2600 | 2600 | 41870 |
| DPBH-4 4100/550 | M3577 | 4100 | 30 | 40 | 550 | 450 | 66 | 7650 | 2880 | 2900 | 54310 |
Capacities are given for 250 N/mm² plate yielding strength
Features
- Hydraulic driven rolls
- Hydraulic drop end and top roll tilt
- Hydraulic up and down roll movement
- Hydraulic pinching
- Induction hardened rolls
- DRO for both side rolls
- Double pre-bending to front and rear edge of plate
- Cone bending device
- Welded steel construction
- Safety trip wire around the machine
- Mobile control panel
- Two speed
- Central lubrication system
Options
- Side and central sheet supports
- Ground and polished rolls
- Variable speed
- NC or CNC controller
