Morgan Rushworth ASBR Powered Bending Rolls

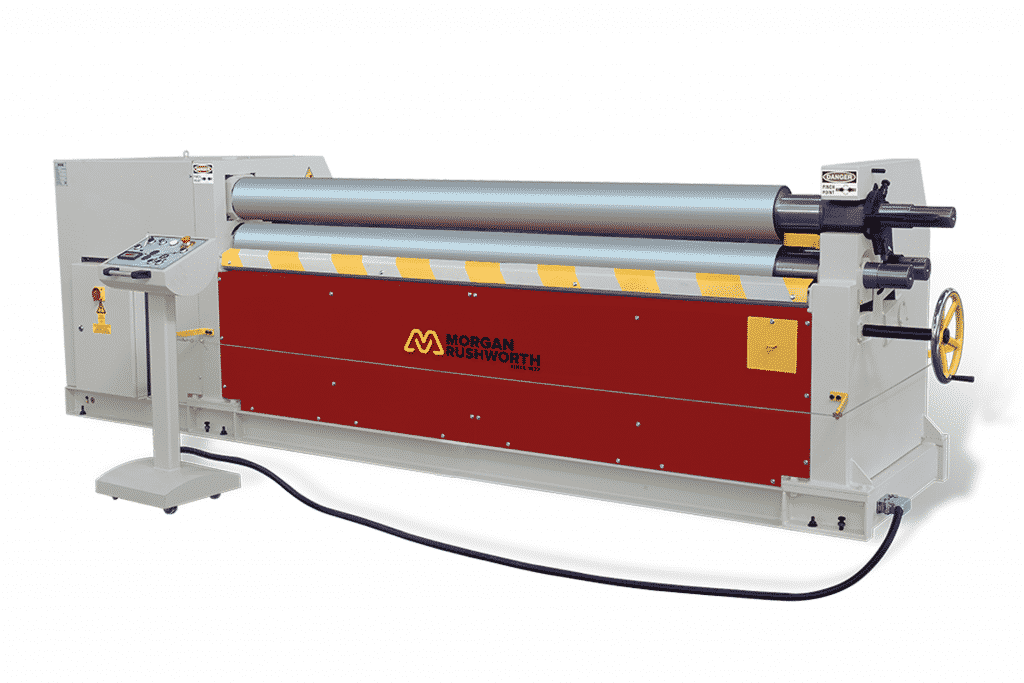

The Morgan Rushworth ASBR Powered Bending Rolls build on the heavy duty design of the smaller SBR models by adding standard features such as powered pre-bending roll adjustment and induction hardened roils as standard. The asymmetric design provides pre-bending capability on the machine and the top slip roll allows quick removal of cylindrical components.
An optional digital read out can be fitted to the pre-bending roll for repeatability.
![Morgan Rushworth ASBR Powered Bending Rolls image](https://selmach.com/wp-content/uploads/2018/11/ASBR-2050-Cut-Out-lighter-1024x683.png)
![Morgan Rushworth ASBR Powered Bending Rolls image](https://selmach.com/wp-content/uploads/2018/11/ASBR-2050-Cut-Out-lighter-150x150.png)
![Morgan Rushworth SBR1050-110 Foot Pedal Controls](https://selmach.com/wp-content/uploads/2018/11/Morgan-Rushworth-SBR1050-110-Foot-Pedal-Controls.jpg)
Foot Pedal Controls
![Morgan Rushworth SBR1050-110 Foot Pedal Controls](https://selmach.com/wp-content/uploads/2018/11/Morgan-Rushworth-SBR1050-110-Foot-Pedal-Controls-150x150.jpg)
![Morgan Rushworth ASBR Powered Bending Rolls image 3](https://selmach.com/wp-content/uploads/2018/11/SEL06195-1024x683.jpg)

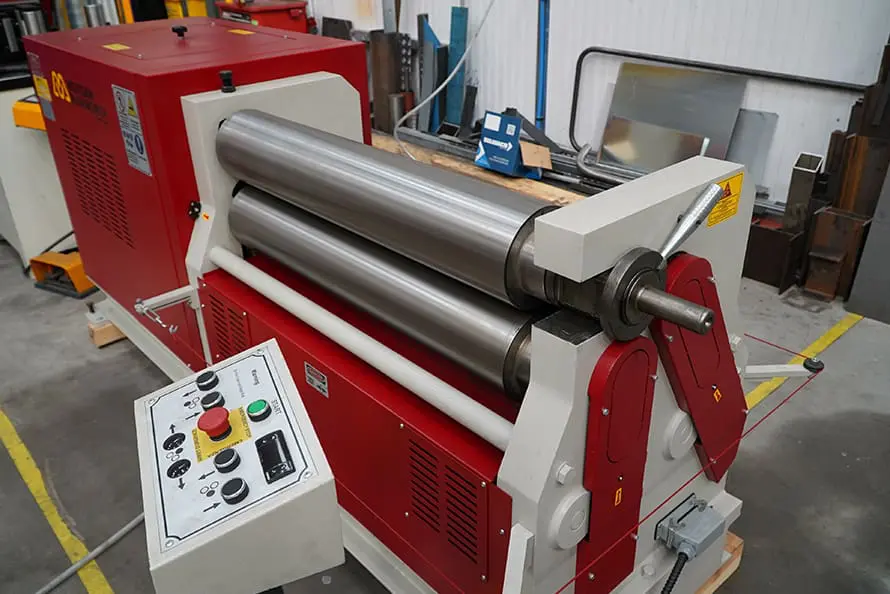

Tripwire Safety System
![Morgan Rushworth ASBR Powered Bending Rolls image 3](https://selmach.com/wp-content/uploads/2018/11/SEL06195-150x150.jpg)
![Morgan Rushworth SBR1050-110 Side Roll Controller](https://selmach.com/wp-content/uploads/2018/11/Morgan-Rushworth-SBR1050-110-Side-Roll-Controller.jpg)
Optional Powered Side Roll Controller with digital readout
![Morgan Rushworth SBR1050-110 Side Roll Controller](https://selmach.com/wp-content/uploads/2018/11/Morgan-Rushworth-SBR1050-110-Side-Roll-Controller-150x150.jpg)
![Morgan Rushworth ASBR Powered Bending Rolls image 5](https://selmach.com/wp-content/uploads/2018/11/Pinch-Roll-Adjustment.jpg)
Pinch Roll Adjustment
![Morgan Rushworth ASBR Powered Bending Rolls image 5](https://selmach.com/wp-content/uploads/2018/11/Pinch-Roll-Adjustment-150x150.jpg)
![Morgan Rushworth ASBR Powered Bending Rolls image 6](https://selmach.com/wp-content/uploads/2018/11/SEL06189-1024x683.jpg)
Cone Rolling Block
![Morgan Rushworth ASBR Powered Bending Rolls image 6](https://selmach.com/wp-content/uploads/2018/11/SEL06189-150x150.jpg)
![Morgan Rushworth ASBR Powered Bending Rolls image 7](https://selmach.com/wp-content/uploads/2018/11/Top-Slip-Roll.jpg)
Top Slip Roll
![Morgan Rushworth ASBR Powered Bending Rolls image 7](https://selmach.com/wp-content/uploads/2018/11/Top-Slip-Roll-150x150.jpg)
![Morgan Rushworth ASBR Powered Bending Rolls image 8](https://selmach.com/wp-content/uploads/2018/11/Crowned-Rolls.jpg)
Crowned Rolls
![Morgan Rushworth ASBR Powered Bending Rolls image 8](https://selmach.com/wp-content/uploads/2018/11/Crowned-Rolls-150x150.jpg)
MODEL | STOCK CODE | BENDING LENGTH | PRE BENDING | MAX THICKNESS | TOP ROLL DIA. | MIN BEND DIA. | MOTOR | BENDING SPEED | LENGTH | HEIGHT | WIDTH | WEIGHT |
mm | mm | mm | mm | mm | kW | m/min | mm | mm | mm | kg | ||
ASBR 1050/130 | 1050 | 5 | 6 | 130 | 195 | 2.2 | 5 | 2750 | 1020 | 650 | 1200 | |
ASBR 1050/150 | M3125 | 1050 | 6 | 7 | 150 | 225 | 3 | 5 | 2750 | 1040 | 800 | 1350 |
ASBR 1050/170 | 1050 | 7 | 8 | 170 | 255 | 4 | 5 | 2850 | 1050 | 720 | 1600 | |
ASBR 1050/190 | M3126 | 1050 | 8 | 9 | 190 | 285 | 4 | 5 | 2850 | 1070 | 890 | 1600 |
ASBR 1550/140 | M3027 | 1600 | 4 | 5 | 140 | 210 | 2.2 | 6 | 2800 | 1060 | 750 | 1450 |
ASBR 1550/170 | M3028 | 1600 | 6 | 7 | 170 | 255 | 4 | 4.5 | 3150 | 1130 | 820 | 1900 |
ASBR 2050/170 | M3029 | 2100 | 4 | 5 | 170 | 255 | 4 | 4.5 | 3650 | 1130 | 820 | 2300 |
ASBR 2050/190 | M3030 | 2100 | 5 | 6 | 190 | 285 | 4 | 5 | 3900 | 1200 | 920 | 3600 |
ASBR 2050/200 | M3031 | 2100 | 6 | 7 | 200 | 300 | 5.5 | 5 | 3900 | 1250 | 950 | 3800 |
ASBR 2550/140 | M3032 | 2600 | 2 | 3 | 140 | 225 | 2.2 | 6 | 3150 | 1130 | 820 | 1900 |
ASBR 2550/170 | M3033 | 2600 | 3 | 4 | 170 | 255 | 4 | 4.5 | 4150 | 1130 | 820 | 2750 |
ASBR 2550/190 | M3034 | 2600 | 4 | 5 | 190 | 285 | 4 | 5 | 4400 | 1200 | 920 | 4200 |
ASBR 2550/200 | M3035 | 2600 | 7 | 6 | 200 | 300 | 5.5 | 5 | 4400 | 1250 | 950 | 4400 |
ASBR 3050/170 | M3036 | 3100 | 2 | 3 | 170 | 255 | 4 | 4.5 | 4650 | 1130 | 820 | 3200 |
ASBR 3050/190 | M3037 | 3100 | 3 | 4 | 190 | 285 | 4 | 5 | 4650 | 1200 | 920 | 4600 |
ASBR 3050/200 | M3038 | 3100 | 4 | 5 | 200 | 300 | 5.5 | 5 | 4650 | 1250 | 950 | 4800 |
Capacities are given for 250 N/mm² plate yielding strength
Features
- Top roll to slip
- Heavy duty strong welded steel construction
- Motorised side roll for up and down translation
- Induction hardened rolls
- Crowned Rolls
- Asymmetric roll configuration
- Cone bending device
- High powered production range
Options
- Powered lower roll up and down movement for pinching
- Parallel Rolls
- Extended rolls for profile bending
- DRO for side roll position
