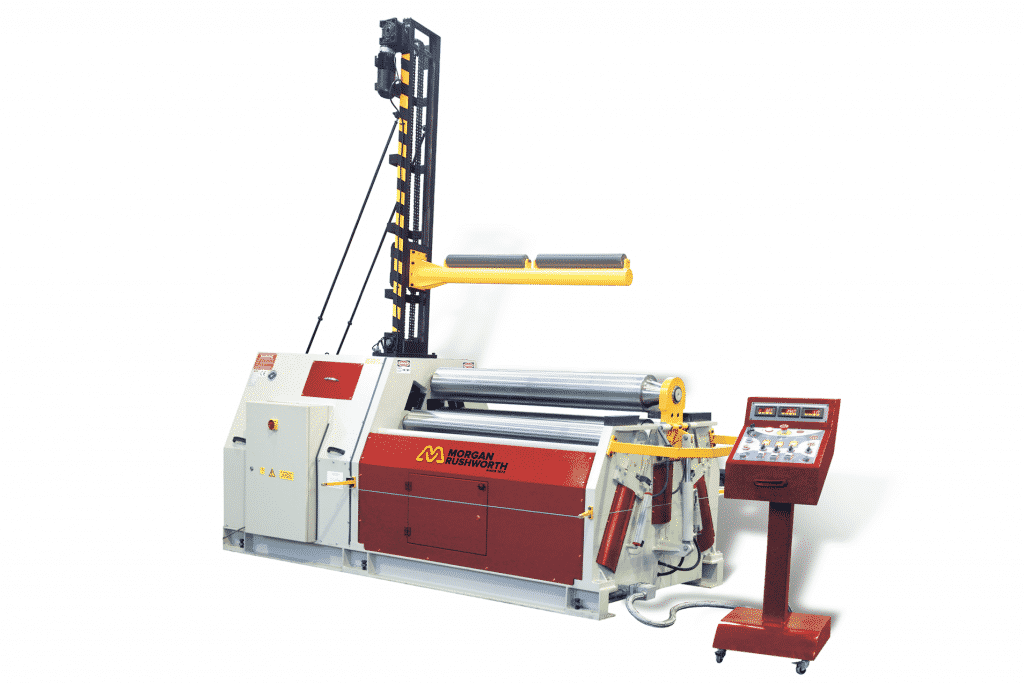

    The Morgan Rushworth DPBM-4 range of rolls have been designed to bend thin sheets and medium size plate material up to a width of 4100mm. The 4 roll design allows for double pre bending with its powerful linear action hydraulic cylinders. The lower roll is hydraulically raised to ‘pinch’ the material which greatly assists the operator for precision bending. Hydraulic drop end ensures effortless removal of tubular components. The standard machines have three digital readouts to indicate position of all the moving rolls, whilst the optional CNC/NC controller can be programmed for accuracy and volume production.

    Main view - Morgan-Rushworth-DPBM-4-Roll-Powered-Bending-Rolls

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Main view - Morgan-Rushworth-DPBM-4-Roll-Powered-Bending-RollsMain view - Morgan-Rushworth-DPBM-4-Roll-Powered-Bending-Rolls
      Video thumbnail showing the Morgan Rushworth DPBM-4 Powered Bending Rolls



      MODELSTOCK CODEBENDING LENGTHPRE BENDINGMAX THICKNESSTOP/BOTTOM ROLL DIA.SIDE ROLLS DIA.MOTORLENGTHWIDTHHEIGHTWEIGHT
      mmmmmmmmmmkwmmmmmmkg
      DPBM-4 1270/80M324412701.5280801.1 + 0.7525709509601250
      DPBM-4 1270/100M3245127023100901.1 + 0.7525709509601350
      DPBM-4 1270/130M32461270451301301.5 + 0.753020115011102150
      DPBM-4 1270/150M32471270571501302.2 + 1.13020115011102155
      DPBM-4 1270/180M324812707.5101801503.0 + 1.13070135012902700
      DPBM-4 1270/200M3249127010122001804.0 + 1.53070135012903000
      DPBM-4 1550/80M3250155011.580801.1 + 0.7528509509601350
      DPBM-4 1550/100M325115501.52100901.1 + 0.7528509509601500
      DPBM-4 1550/130M325215503.54.51301301.5 + 0.753300115011102250
      DPBM-4 1550/150M325315504.56.51501302.2 + 1.13300115011102370
      DPBM-4 1550/180M32541550791801503.0 + 1.13350135012902900
      DPBM-4 1550/200M325515509112001804.0 + 1.53350135012903250
      DPBM-4 1550/220M3256155010122201805.5 + 1.53500150013704250
      DPBM-4 1550/250M3257155012152502007.5 + 1.53500150013704650
      DPBM-4 2050/130M32582050341301301.5 + 0.753800115011102450
      DPBM-4 2050/150M32592050461501302.2 + 1.13800115011102800
      DPBM-4 2050/180M32602050681801503.0 + 1.13850135012903300
      DPBM-4 2050/200M326120508102001804.0 + 1.53850135012903750
      DPBM-4 2050/220M326220509112201805.5 + 1.54000150013704800
      DPBM-4 2050/250M3263205010122502007.5 + 1.54000150013705350
      DPBM-4 2550/150M32642550341501302.2 + 1.14300115011103230
      DPBM-4 2550/180M32652550461801503.0 + 1.14350135012903700
      DPBM-4 2550/200M32662550682001804.0 + 1.54350135012904250
      DPBM-4 2550/220M32672550792201805.5 + 1.54500150013705400
      DPBM-4 2550/250M326825508102502007.5 + 1.54500150013706100
      DPBM-4 3100/180M32693100341801503.0 + 1.14850135012904100
      DPBM-4 3100/200M32703100462001804.0 + 1.54850135012904750
      DPBM-4 3100/220M32713100682201805.5 + 1.55000150013706000
      DPBM-4 3100/250M32723100792502007.5 + 1.55000150013706800

      Features

      • DRO for all three movable rolls
      • Powered lower roll rotation with Cardan joint system and hydraulically raised higher and lower
      • Welded steel construction
      • Induction hardened rolls
      • Safety trip wire around the machine
      • Cone bending device
      • Mobile control panel
      • Hydraulic driven top roll with lower roll driven through planetary gearbox. (275mm & 300mm top roll models)
      • 2 speed rotation

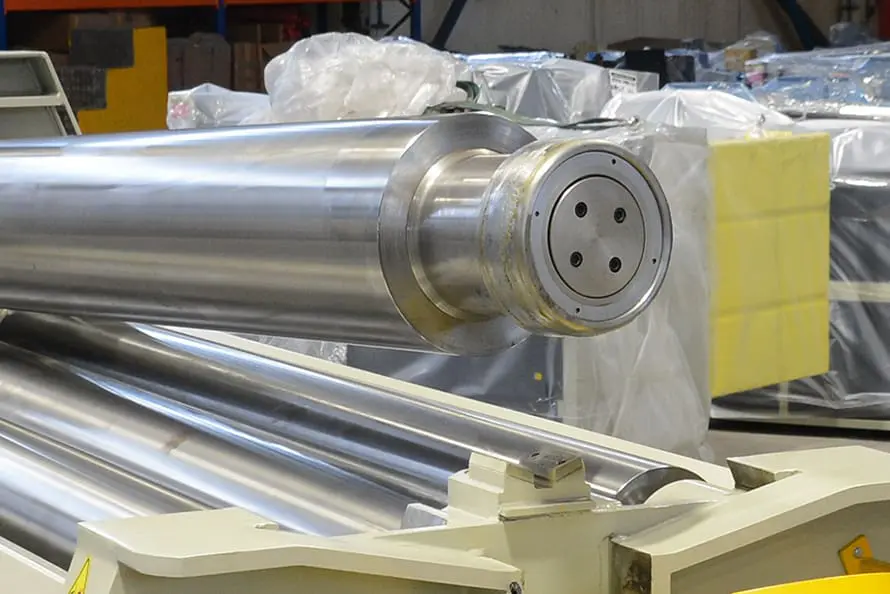

      • Hydraulic drop end with top roll tilt for easy material removal (275mm & 300mm top roll models)

      Options

      • CNC/NC Controller

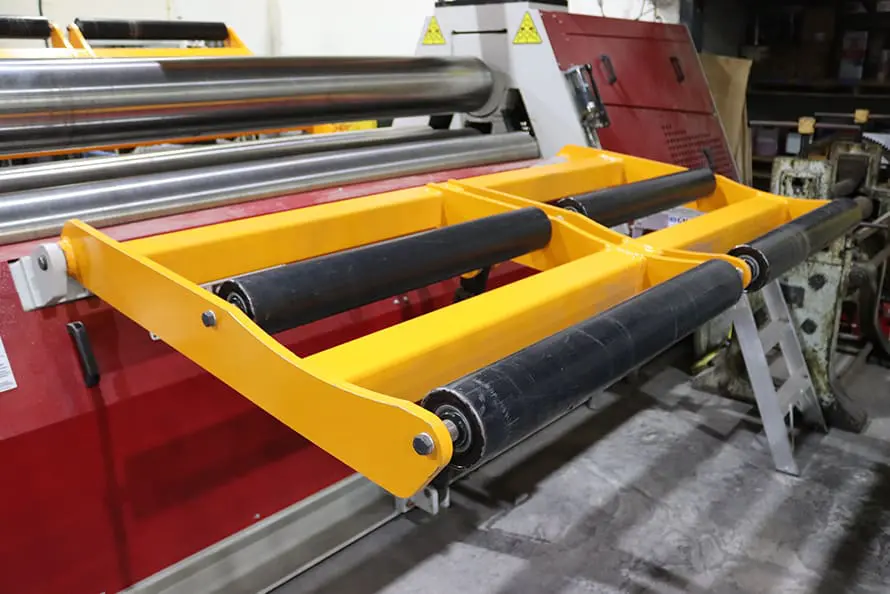

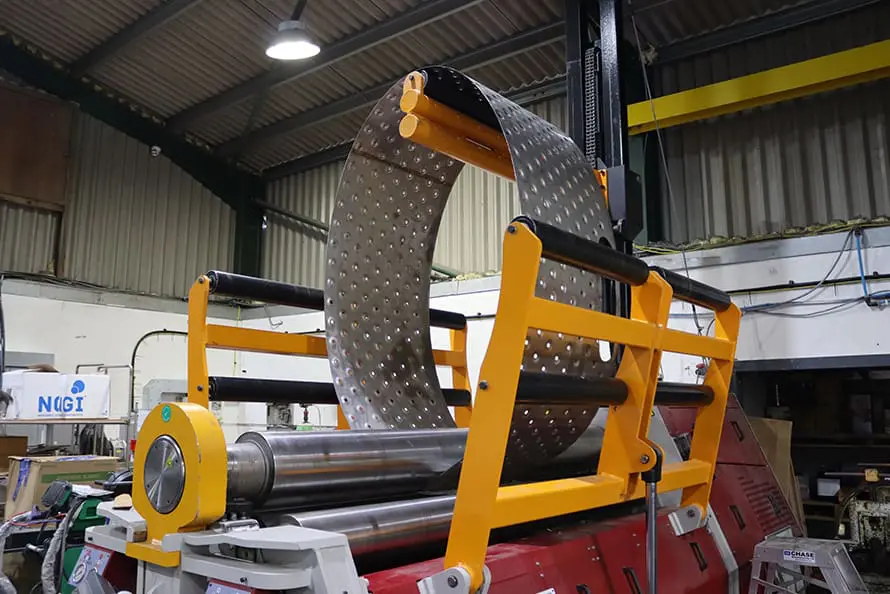

      • Hydraulic side supports
      • Two speed rotation
      • Hydraulic central support
