SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The SRA320 GA PLC series is designed to maximize our customers’ production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic hydraulic feeding system.

This a fully automatic machine in a pivot-action design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting.

The Siemens PLC controller on this saw enables the user to set-up a programme with 10 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw imageSRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image
Video thumbnail showing the SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 3SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 3
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 4
Control Panel
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 4
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 5
Siemens PLC Controller - 1 Programme, 10 Steps
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 5
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 6SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 6
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 7
Inverter
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 7
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 8

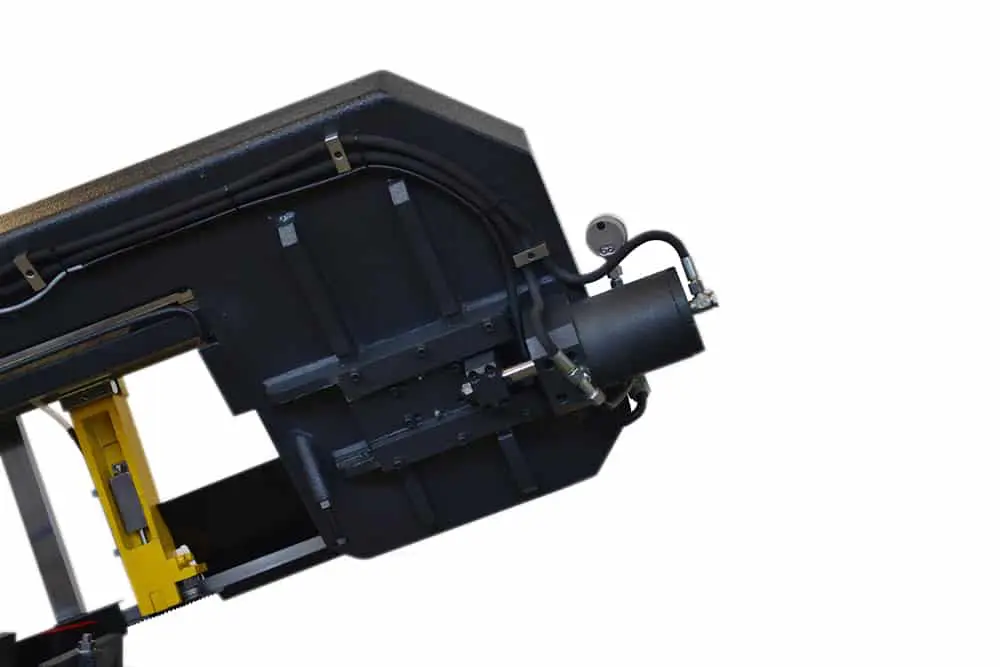

Hydraulic Blade Tension (Optional)
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 8
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 9
Angle Adjustment Indicator
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 9
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 10
Hydraulic Top Clamping (Optional)
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 10
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 11
Hydraulic Vice
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 11
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 12
Hydromechanical Blade Tension
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 12
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 13
Swarf Brush
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 13
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 14
Back Vice
SRA320 GA PLC Hydraulic Vice Feed Automatic Bandsaw image 14
MODEL SRA320 GA PLC Hydraulic Vice Feed
Stock Code 15181
Capacity 90°  30°  45°  60°
◯ Round mm 320 300 260 160
□ Flat mm 320 250 180 150
▭ Square mm 350 x 320 300 x 200 250 x 180 150 x 150
Bed Height 740
Main Drive Motor kW 2.2
Cutting Speeds m/min. 20 – 100
Blade Dimensions mm 3660 x 27 x 0.9
Tolerances mm 0.3
CNC Controller Siemens
Program 1 Program – 10 Steps
Stroke Length mm 500
Remnant Piece mm 275 (Fully Automatic) 65 (Manual)
Max. Feed mm 6000
Length mm 2100
Width mm 2200
Height mm 1500
Weight kg 1660
Operation Automatic
Vice Hydraulic
Vice Feed Hydraulic

Features

  • Pivot-Action
  • Fully automatic NC
  • Hydromechanical Blade Tension
  • Inverter drive providing infinitely variable blade speed
  • Automatic bow return
  • Hydraulic vice (500mm stroke, 6000mm max. feed)
  • Hydraulic feeding vice
  • Hydraulic rear vice
  • Siemens PLC control panel (1 Programme – 10 Steps)
  • Sensitive cutting pressure regulation
  • Swarf brush
  • Carbide blade guides
  • Flood Coolant system

Options

  • Hydraulic blade tension
  • Hydraulic top clamps
  • Spray mist lubrication
  • Hexagonal Vice for bundle cutting
  • Roller track and measuring systems

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The SRA320 GA PLC series is designed to maximize our customers’ production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic hydraulic feeding system.

This a fully automatic machine in a pivot-action design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting.

The Siemens PLC controller on this saw enables the user to set-up a programme with 10 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

Ideal for cutting round, square or rectangular section, bandsaws like this Sterling SRA320 GA PLC are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
