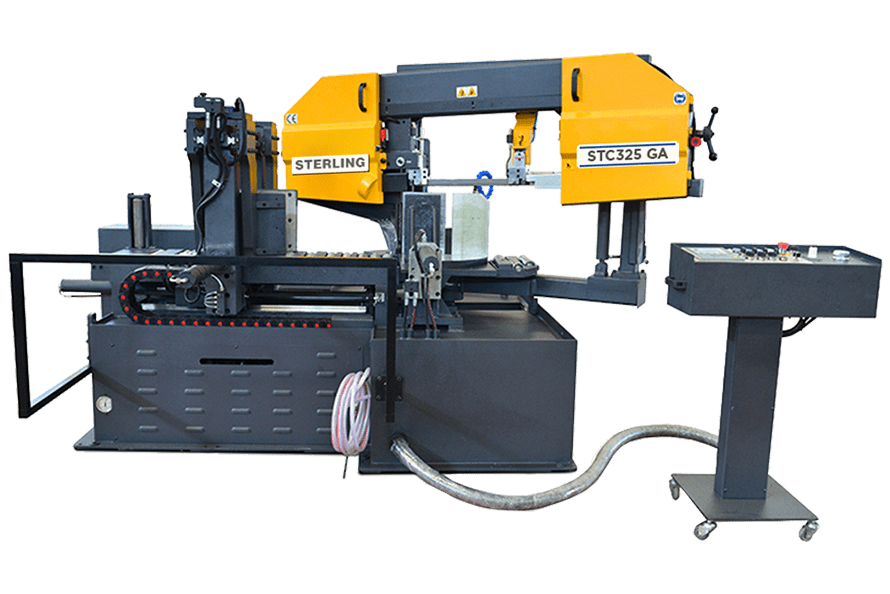

Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The Sterling STC GA CNC twin column, automatic, mitre bandsaw being no exception. This a fully automatic machine in a twin-column design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting, with mitring capacities.

The Siemens PLC controller on this saw enables the user to set-up a programme with 10 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw imageSterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 2

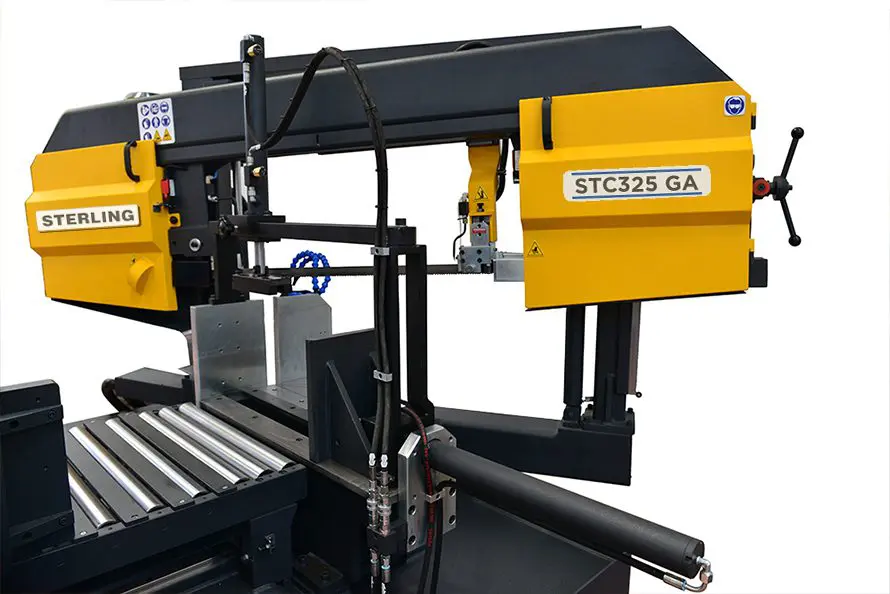

Hydraulic Vice
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 2
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 3

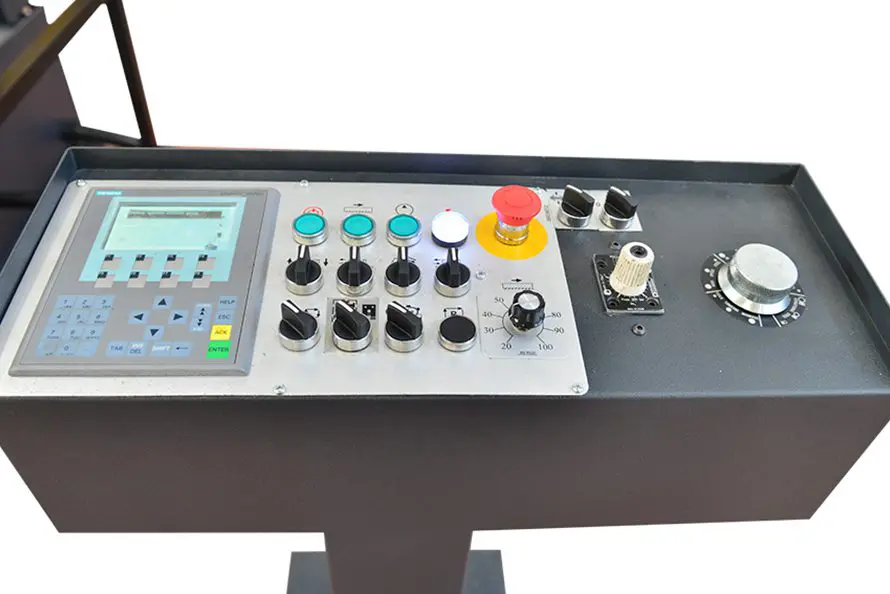

Siemens Control Panel
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 3
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 4
Siemens PLC Controller - 1 Programme, 10 Steps
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 4
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 5
Linear Way
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 5
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 6
Hydromechanical Blade Tension
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 6
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 7
Hydraulic Rear Vice
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 7
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 8
Hydraulic Mitring
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 8
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 9
Heavy Duty Gearbox
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 9
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 10
Coolant Pump
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 10
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 11
Swarf Wheel
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 11
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 12
Proximity Switch for Band Wheel
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 12
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 13
Sensitive Pressure
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 13
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 14
Optical Height Adjustment
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 14
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 15
Chip Conveyor (Optional)
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 15
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 16
Hydraulic Top Clamping (Optional)
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 16
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 17
Spray Mist (Optional)
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 17
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 18
Laser Line Pointer (Optional)
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 18
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 19
Hexagonal Vice (Optional)
Sterling STC GA CNC Twin-Column Automatic Mitre Bandsaw image 19
MODEL STC325 GA CNC STC360 GA CNC STC540 GA CNC
Capacity 30° 45° 60° 30° 45° 60° 30° 45° 60°
◯ Round mm 325 325 300 200 360 360 360 325 540 540 510 270
□ Flat mm 315 315 300 200 360 360 360 290 540 540 450 250
▭ Square mm 400 x 315 380 x 315 300 x 315 200 x 315 610 x 360 590 x 360 450 x 360 280 x 360 670 x 540 600 x 540 450 x 540 250 x 540
Bed Height 655 735 845
Main Drive Motor kW 2.2 3 4
Hydraulic Motor kW 1.1 1.1 2.2
Cutting Speeds m/min. 20 – 100
Band Dimensions mm 5000 x 34 x 1.1 4800 x 34 x 1.1 5200 x 41 x1.3
Tolerances mm 0.3
PLC Controller Siemens
Program 1 Program with 10 Steps
Stroke Length mm 500
Remnant Piece (Scrap Length) mm 255 (Automatic Mode)
50 (Manual Mode)
280 (Automatic Mode)
60 (Manual Mode)
310 (Automatic Mode)
60 (Manual Mode)
Max. Feeding mm 6000
Length mm 2,130 2,850 3,100
Width mm 2,150 2,250 2,350
Height mm 1,650 1,870 2,150
Weight kg 1,860 2,400 3,800
Operation Automatic
Vice Hydraulic
Vice Feed Hydraulic

Features

  • Twin column rigidity
  • Fully automatic NC
  • Up to 60° Mitre
  • Hydraulic clamping of mitre angle
  • Hydromechanical Blade Tension
  • Inverter drive providing infinitely variable blade speed
  • Automatic bow return
  • Hydraulic vice
  • Hydraulic feeding vice
  • Hydraulic rear vice
  • Optical height adjustment
  • Heavy duty gear box
  • PLC control panel
  • Sensitive cutting pressure regulation
  • Swarf brush
  • Carbide blade guides
  • Flood Coolant system

Options

  • Hydraulic blade tension
  • Hydraulic top clamps
  • Chip conveyor
  • Spray mist lubrication
  • Laser cutting line
  • Hexagonal Vice for bundle cutting
  • Roller track and measuring systems
