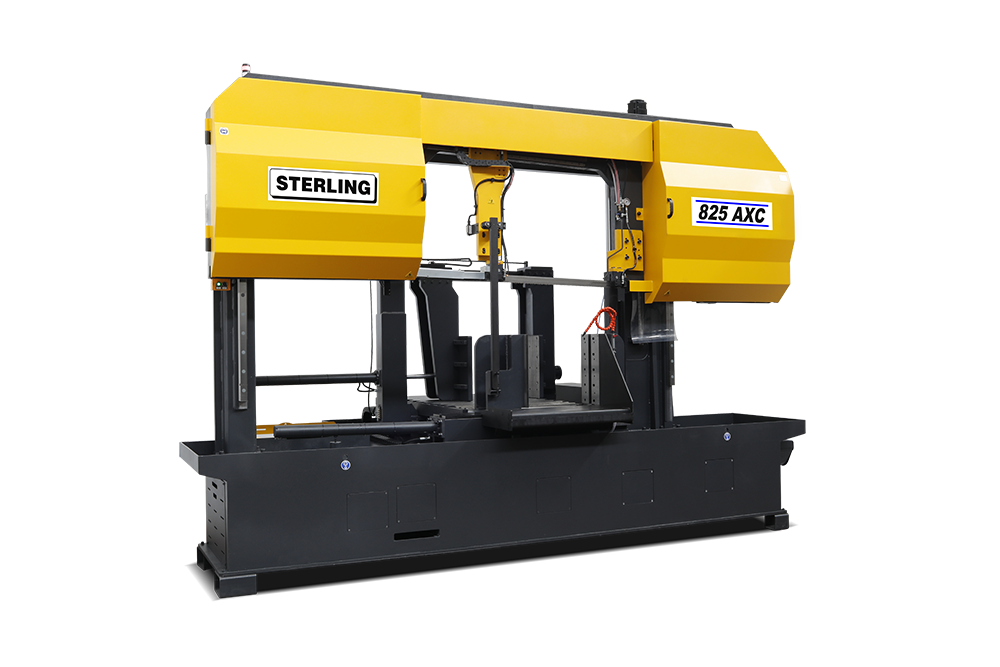

Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The STC AX CNC range is designed to maximise our customer’s production of heavy metal beams, profiles, and pipe cuts in high-volume quantities, with a fully automatic servo feeding and cutting system. Automatic controls and sensors maximises the performance to cost ratio, and extends the lifetime of a blade up 50% longer.

For further improved safety – the machine can be supplied fully enclosed.

The Omron Touchscreen CNC controller on this saw enables the user to set-up to 100 programmes with 50 steps each for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw imageSterling STC AX CNC Servo Twin-Column Automatic Bandsaw image
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 2
As an option the STC 420 AX can be fully enclosed for improved operator safety
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 2
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 3
Rear View of the Sterling STC 420 AX CNC
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 3
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 4
Omron Touch Screen
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 4
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 5
Hydraulic Split Vice
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 5
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 6
Bow Servo Shaft
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 6
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 7
Hydraulic Blade Tensioning
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 7
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 8
Motorised Swarf Wheel
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 8
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 9

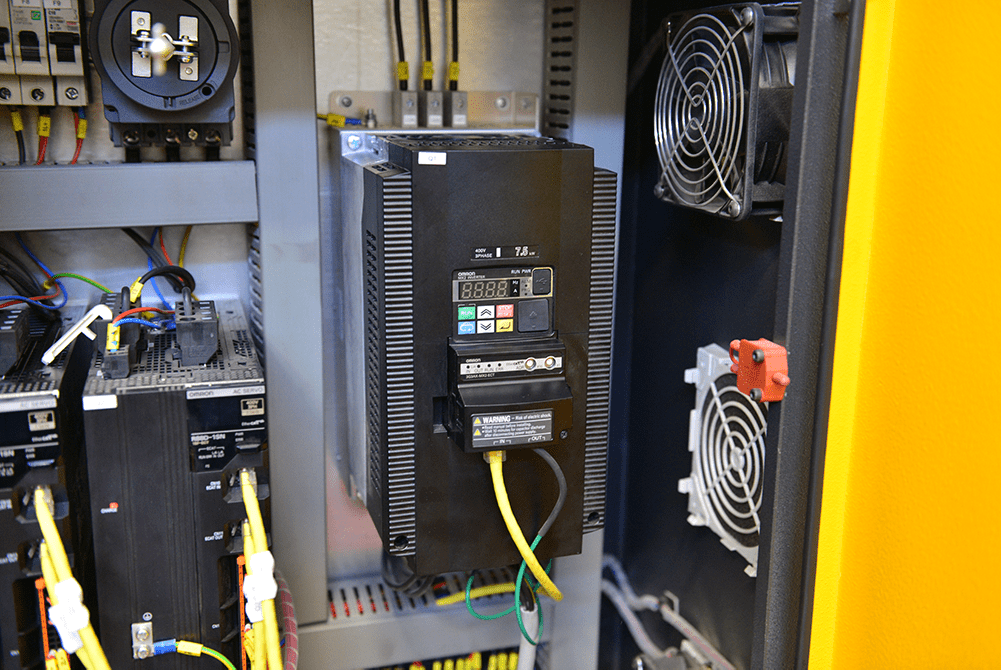

Inverter
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 9
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 10
Deflection Control
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 10
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 11
Heavy Duty Gearbox
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 11
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 12

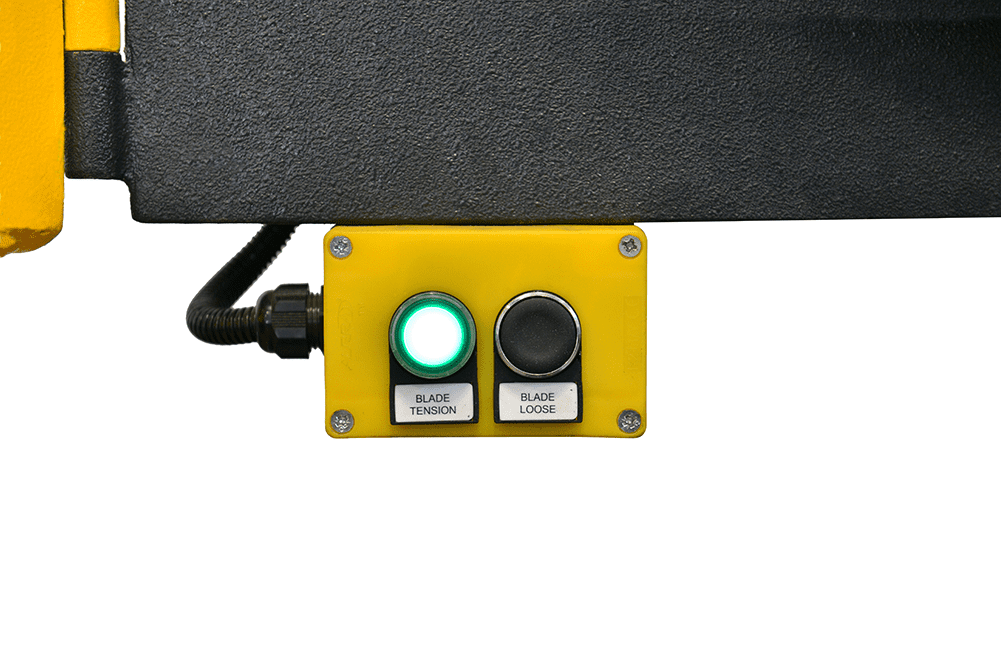

Hydraulic Tension-Opening Button
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 12
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 13
Hydraulic Blade Guides
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 13
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 14
Hydraulic Vice Cylinder
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 14
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 15
LED Working Light
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 15
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 16
Linear Way
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 16
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 17

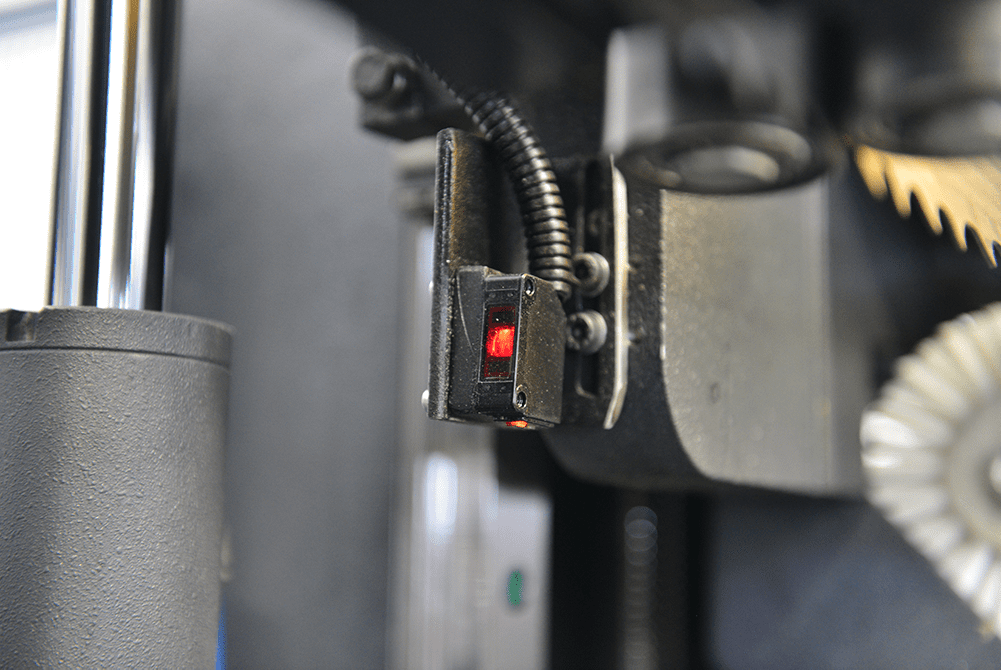

Optical Rapid Approach
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 17
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 18
Proximity Switch for Sensing Blade Slipping
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 18
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 19

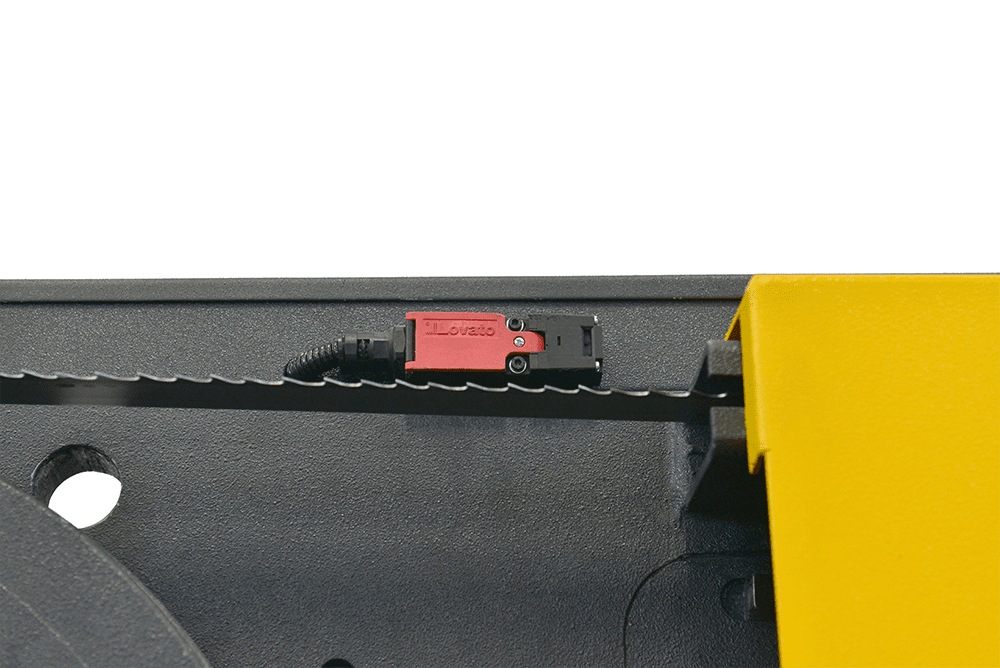

Security Switch
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 19
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 20

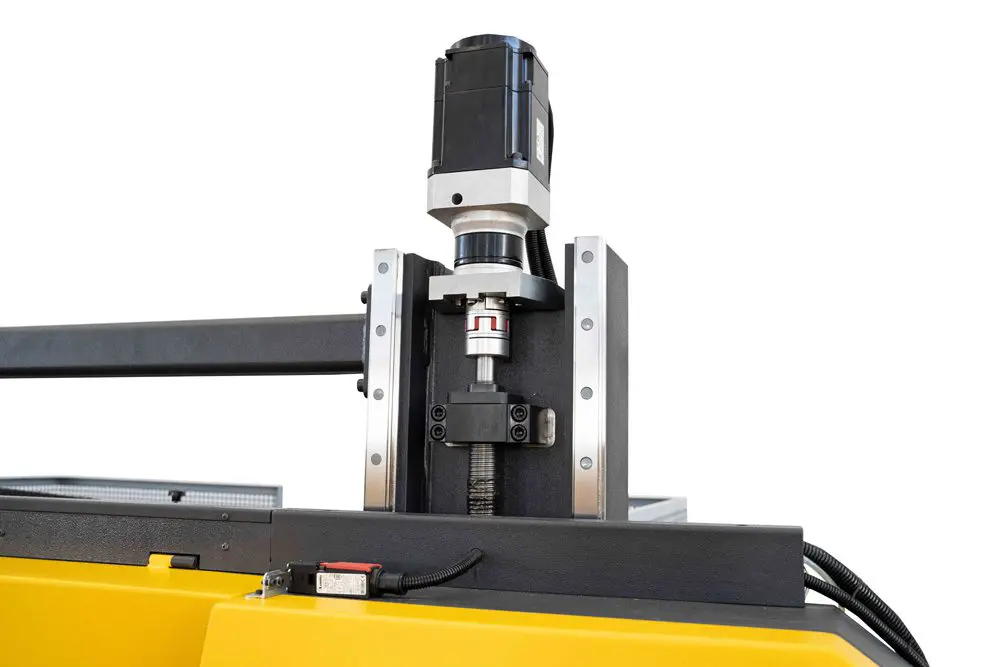

Servo Motor
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 20
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 21
Warning Lamps
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 21
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 22
Arm Tightening Piston
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 22
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 23

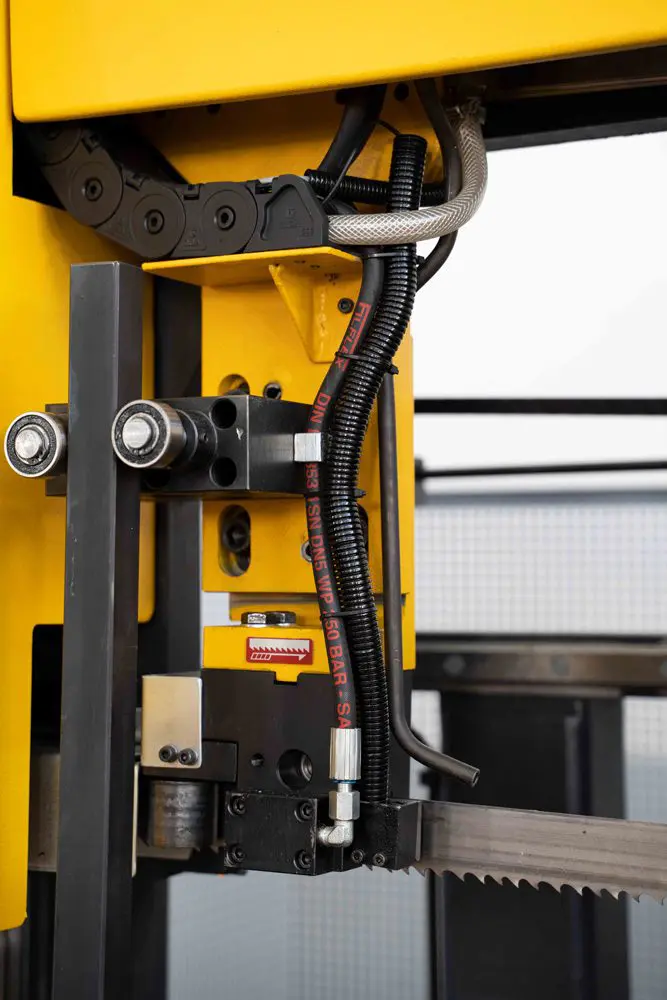

Arm Pull Lamas
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 23
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 24
Hexagon Vice (Optional)
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 24
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 25
Hydraulic Top Clamping (Optional)
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 25
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 26
Spray Mist Coolant (Optional)
Sterling STC AX CNC Servo Twin-Column Automatic Bandsaw image 26
MODEL STC 335 AX CNC STC 420 AX CNC STC 570 AX CNC STC 660 AX CNC STC 825 AX CNC
Capacity
◯ Round mm 335 420 570 660 825
□ Square mm 335 420 570 660 825
▭ Widest Cut mm 335 x 500 420 x 420  600 x 570 660 x 660 825 x 850
Bed Height 1,000 805 805 805 859
Main Motor kW 3 7.5 7.5 7.5 15
Hydraulic Motor kW 1.1 1.1 2.2 2.2 1.5
Coolant Pump kW 0.2 0.2  0.2 0.2 0.12
Servo Feeding Motor kW 1.5 1.5 2 2 2
Bow Lifting Motor kW 1.5 1.5 2 2 2
Chip Conveyor Motor kW 0.25 0.25  0.25 0.25 0.25
Cutting Speeds m/min.  15 – 150 15 – 150 15 – 150 15 – 120  15 – 150
Blade Dimensions mm 5,260 x 41 x 1.3 5,750 x 41 x 1.3 7,400 x 54 x 1.6 7,925 x 54 x 1.6 9,500 x 67 x 1.6
Tolerances mm 0.1 0.1 0.1  0.1 0.1
CNC Controller  Omron Touchscreen Omron Touchscreen Omron Touchscreen Omron Touchscreen  Omron Touchscreen
Program 100 Programmes – 50 Steps 100 Programmes – 50 Steps 100 Programmes – 50 Steps 100 Programmes – 50 Steps 100 Programmes – 50 Steps
Stroke Length mm 1,000 700 700 700 700
Max. Feed mm 9,999 9,999 9,999 9,999 9,999
Length mm 2,900 1,980 3,500 3,900 4,500
Width mm 2,560 2,860 2,000 2,090 2,650
Height mm 2,150 2,100 2,700 2,770 3,100
Weight kg 3,250 3,300 5,900 7,200 10,000
Operation Automatic Automatic Automatic Automatic Automatic
Vice Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Vice Feed Servo (1.5kW) Servo (1.5kW) Servo (1.5kW) Servo (1.5kW) Servo (1.5kW)

Features

  • Twin-Column rigidity
  • Fully automatic CNC
  • Hydraulic Blade Tensioning
  • Inverter drive providing infinitely variable blade speed
  • Automatic bow return
  • Hydraulic split vice
  • Servo feeding with 700mm stroke (1,000mm on 335 AX)
  • User-friendly Omron touch screen
  • Highly efficient gearbox
  • CNC control panel (100 Programs – 50 steps)
  • Sensitive cutting pressure regulation
  • Proximity switch for sensing if the blade is slipping
  • Motorised Swarf brush
  • Chip Conveyor
  • Carbide blade guides with hydraulic bearings
  • Flood Coolant system

Options

  • Hydraulic top clamps
  • Spray mist lubrication
  • Hexagonal Vice for bundle cutting
  • 15kW Motor
  • Roller track and measuring systems
  • Full Enclosure (420 / 570 AX only)

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The STC AX CNC range is designed to maximise our customer’s production of heavy metal beams, profiles, and pipe cuts in high-volume quantities, with a fully automatic servo feeding and cutting system. Automatic controls and sensors maximises the performance to cost ratio, and extends the lifetime of a blade up 50% longer.

The Omron Touchscreen CNC controller on this saw enables the user to set-up to 100 programmes with 50 steps each for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC X CNC are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
