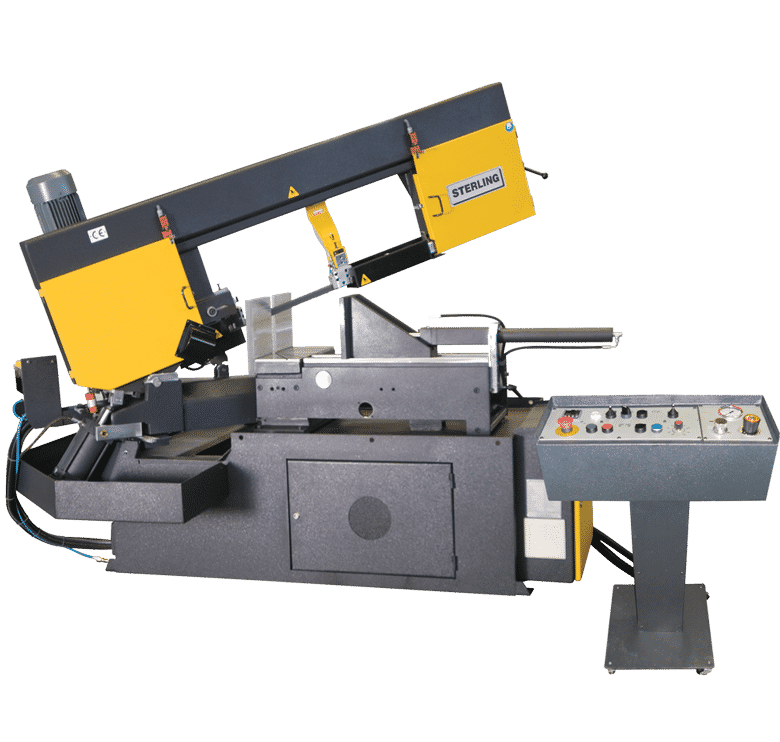

Sterling SRA DGSA Semi Automatic Bandsaw 415V
The STERLING SRA DGSA range of heavy duty bandsaws are well known and suited in the structural fabrication markets. They are renowned for their strength and durability built to process high tonnage. Some of the biggest structural fabrication companies in the country use these saws with great success. The Sterling brand is one of the most leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws.

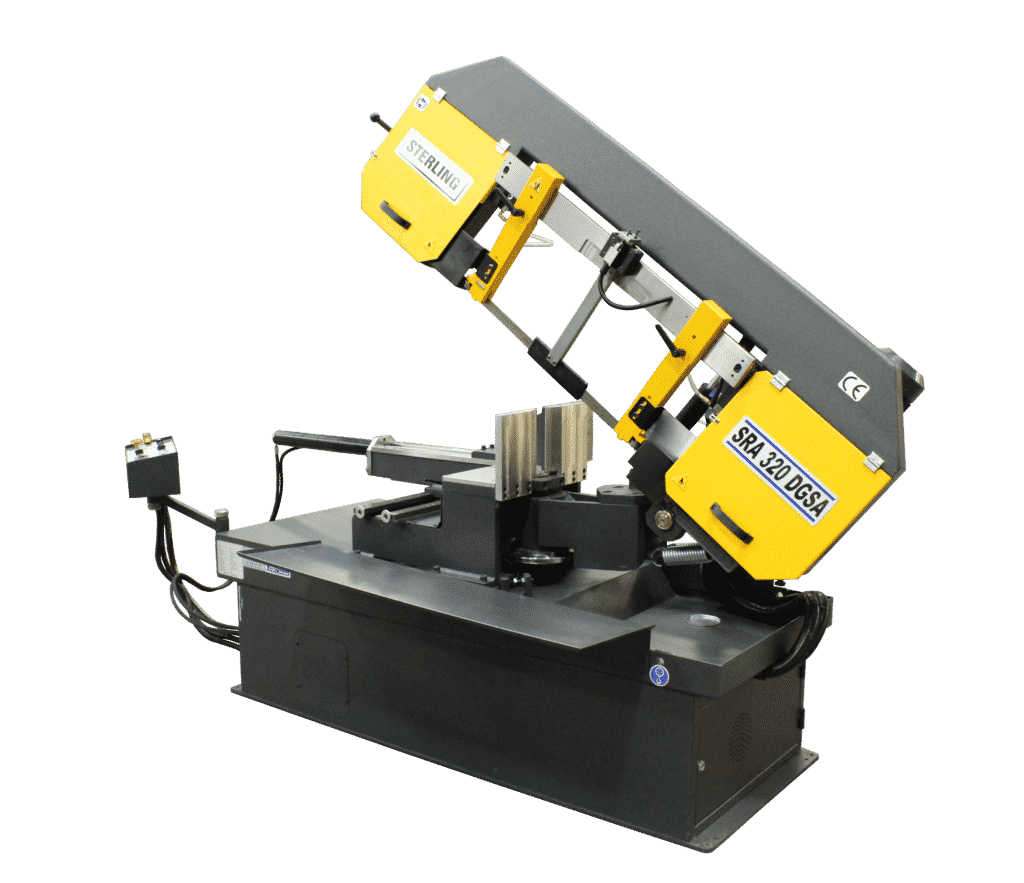

SRA320 DGSA

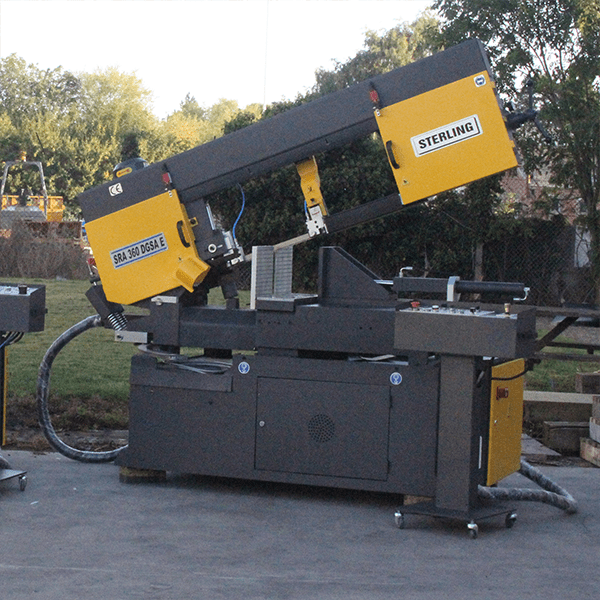

| MODEL | SRA360 ECO DGSAE | SRA360 DGSA | SRA440 DGSA | |||||||||
| STOCKCODE | 15145 | 15146 | ||||||||||
| Capacity | 90° | 45° L & R | 60° L & R | 90° | 45° L & R | 60° L & R | 90° | 45° L & R | 60° L & R | |||
| ◯ Tube | mm | 360 | 360 | 200 | 360 | 360 | 260 | 440 | 410 | 330 | ||
| ▢ Box Section | mm | 360 | 360 | 200 | 360 | 360 | 260 | 440 | 410 | 310 | ||
| ▭ Widest Cut | mm | 510 x 360 | 390 x 360 | 200 x 360 | 610 x 360 | 490 x 360 | 260 x 160 | 610 x 440 | 460 x 270 | 330 x 170 | ||
| Bed Height | 860 | 860 | 860 | |||||||||
| Blade Size | mm | 4800 x 34 x 1.1 | 5000 x 34 x 1.1 | 5200 x 34 x 1.1 | ||||||||
| Cutting Speed | m/min | 20/100 | 20 – 100 | 20 – 100 | ||||||||

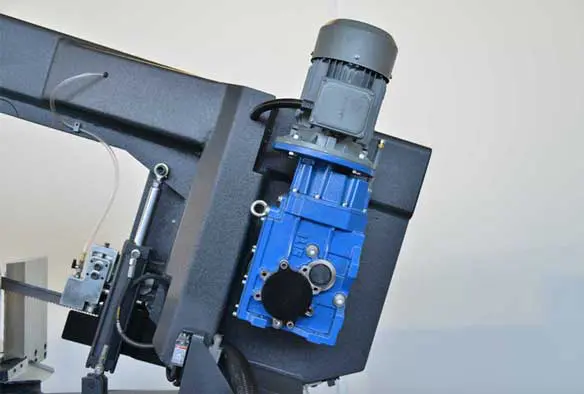

| Motor | Kw | 3 | 3 | 3 | ||||||||
| Length | mm | 2800 | 2750 | 2800 | ||||||||
| Width | mm | 1210 | 1210 | 1860 | ||||||||
| Height | mm | 1870 | 1870 | 1870 | ||||||||
| Weight | Kg | 1450 | 1470 | 1540 | ||||||||
| Operation | Semi-automatic | Semi-automatic | Semi-automatic | |||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | |||||||||
| Twin Ram | No | Yes | Yes |
Features

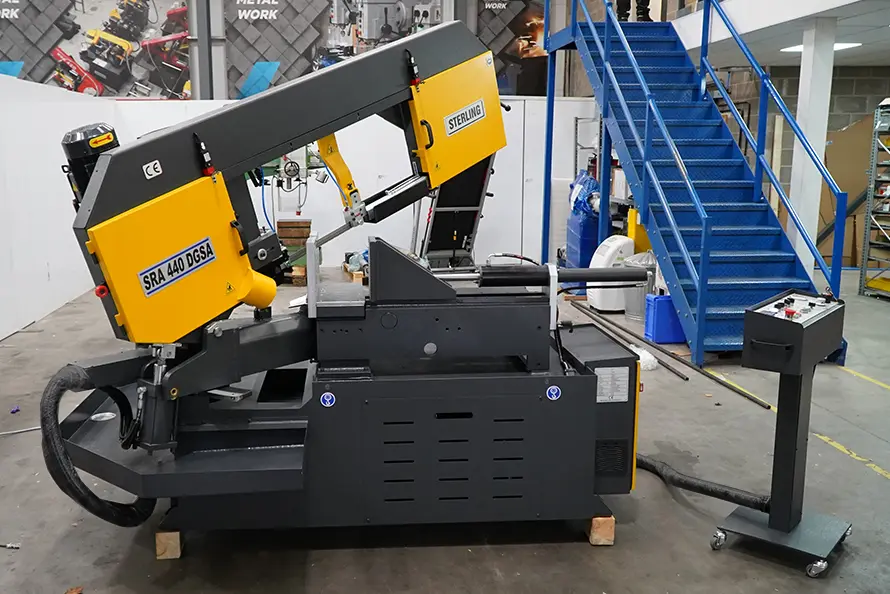

- Double mitring swivel head 60¡ left and right
- Sliding vice from left to right

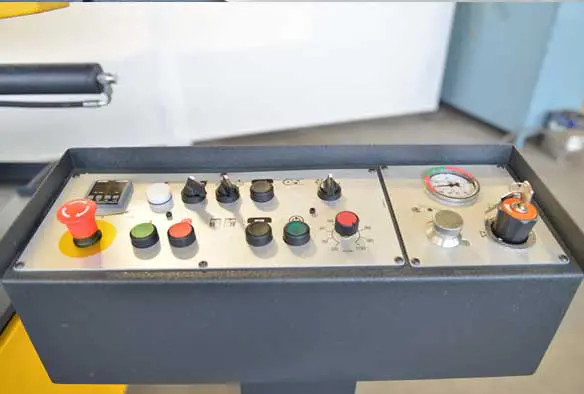

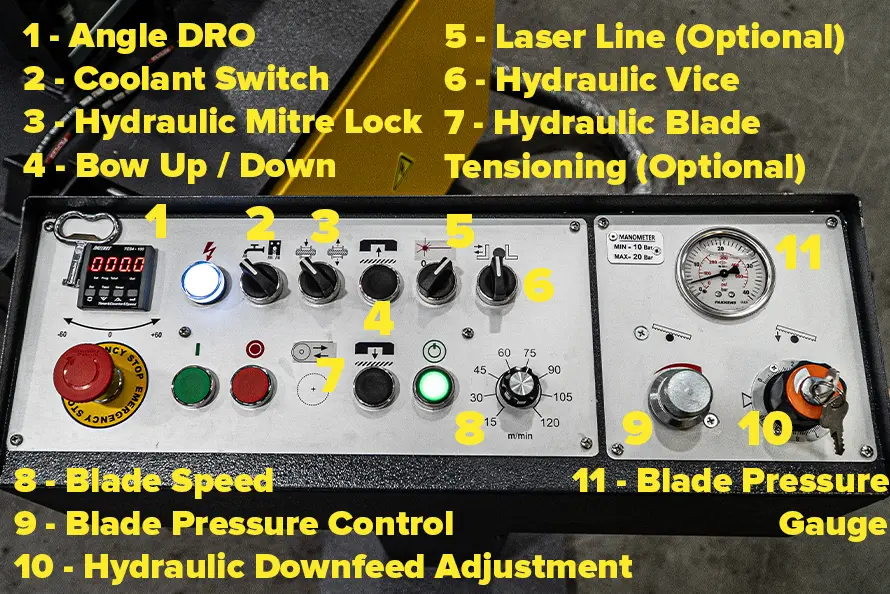

- Ergonomic mobile control panel to control all machine functions
- Hydraulic cutting with variable pressure and variable down feed speed
- Variable speed

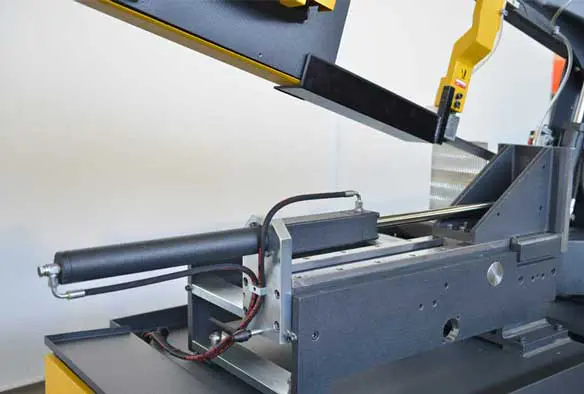

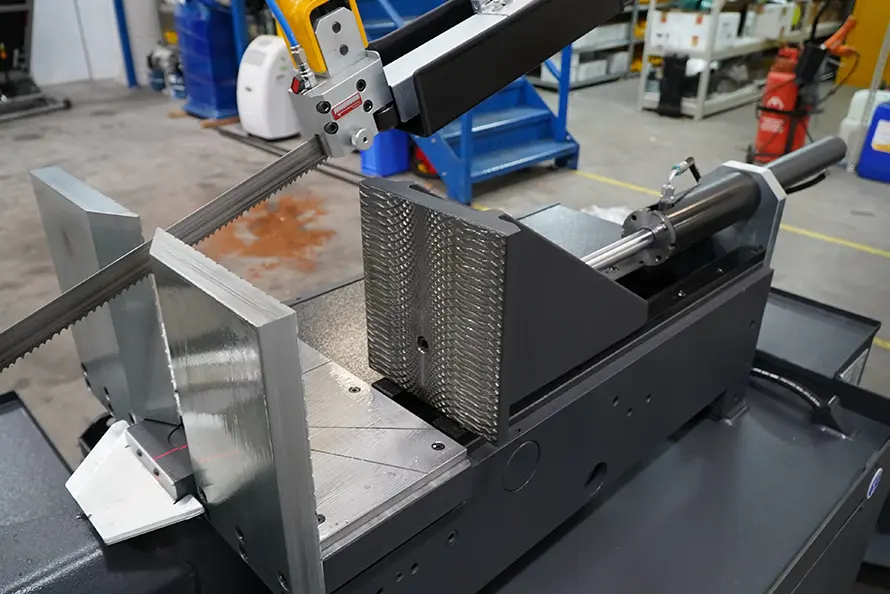

- Hydraulic Vice

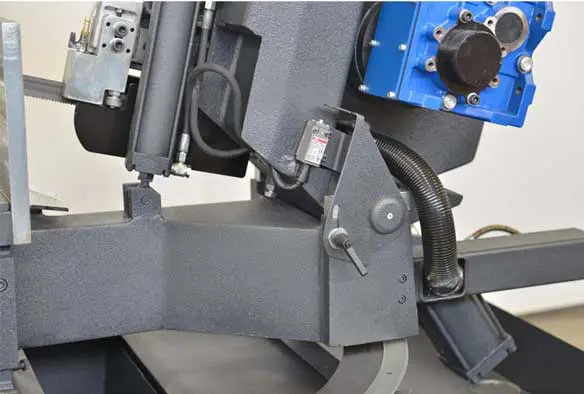

- Hydraulic bow lock at any angle
- Hydraulically controlled counter balance to prevent bow descent speed increasing during the cutting cycle
- Auto bow height return adjustment
- Carbide blade guides for high accuracy
- Blade tension indicator
Options
- Automatic swivelling head operated by DC motor
- Hydraulic sliding vice
- Variable vice pressure
- Chip conveyor

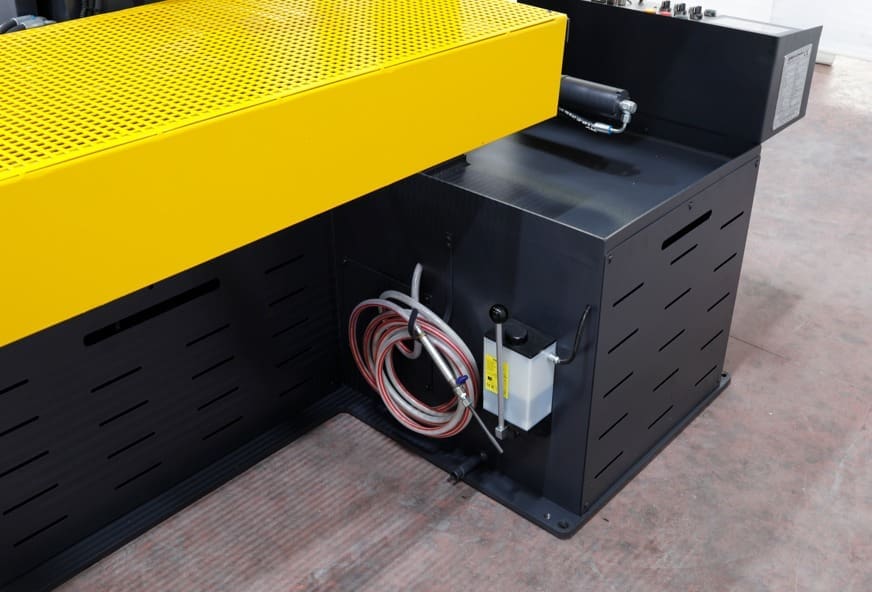

- Spray mist cooling system
