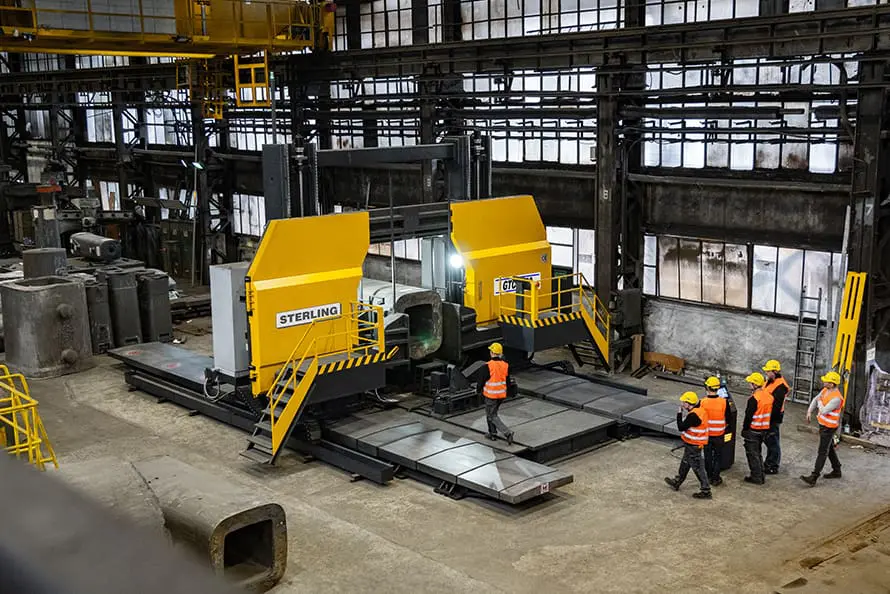

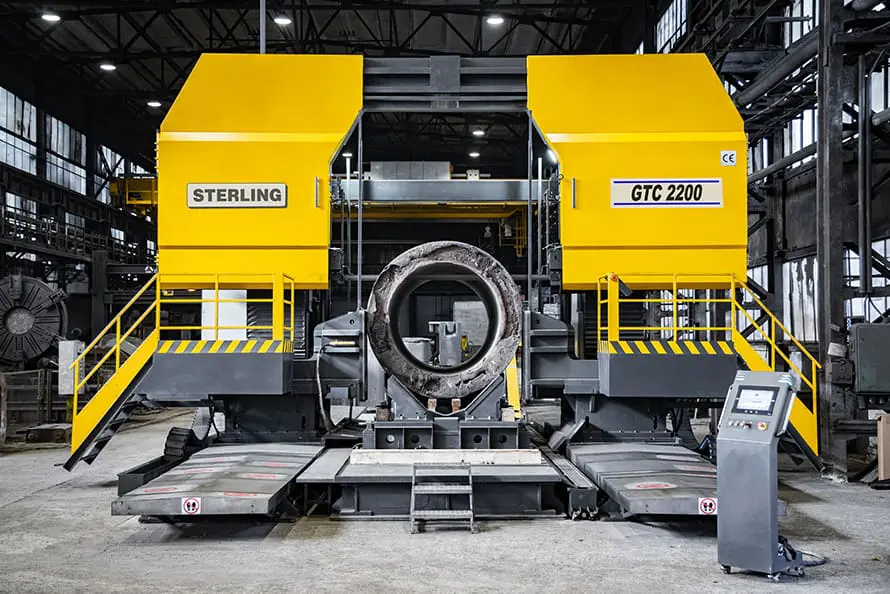

Sterling GTC 2200 Gantry Type Bandsaw

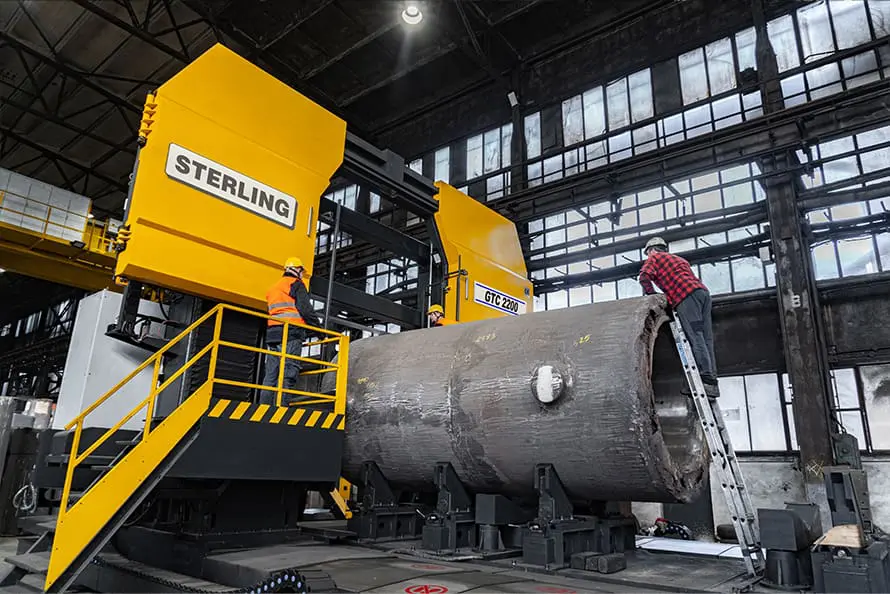

The Sterling Gantry Type Saw is the ultimate high-capacity horizontal bandsaw, boasting an impressive 2200mm cutting capacity. Designed for precision and efficiency, this automatic gantry-type saw can handle materials ranging from 500mm to 2200mm in diameter, with lengths of up to 7 metres and a weight capacity of up to 50,000kg.
Equipped with advanced MES (Manufacturing Execution System) software, the saw automatically optimises cutting speeds using sensor feedback from the cutting tool. The system also enables real-time monitoring and reporting of machine performance. Additionally, it is designed for safe material handling, ensuring that cut pieces are securely removed from the vices without the risk of tipping over.
| MODEL | GTC 2200 | |
| Capacity | 90° | |
| ◯ Round | mm | 2,200 |
| □ Flat | mm | 2,200 |
| ▭ Square | mm | 2,200 x 2,400 |
| Bed Height | mm | 935 |
| Blade Size | mm | 17,940 x 80 x 1.6 |
| Cutting Speed | m/min | 20 – 70 |
| Main Motor | Kw | 30 |
| Hydraulic Motor | Kw | 11 |
| Hydraulic Coolant Pump | Kw | 1.5 |
| Hydraulic Chip Brush Pump | Kw | 1.5 |
| Coolant Fan | Kw | 0.55 |
| Coolant Motor | Kw | 1.1 |
| Chip Conveyor Motor | Kw | 0.55 |
| Spiral Type Chip Conveyor | Kw | 0.25 |
| Hydrometer, Chip Brush | CC | 50 |
| Feeding Servo | Kw | 4 (2 + 2) |
| The Bow Servo | Kw | 6 ( 3 + 3) |
| Feeding Stroke | mm | 8,400 |
| Length | mm | 15,000 |
| Width | mm | 9,400 |
| Height | mm | 6,215 |
| Weight | kg | 92,1400 |
Features
Options
The Sterling GTC 2200 Gantry Type Horizontal Bandsaw stands as a pinnacle of industrial cutting technology, designed to meet the rigorous demands of modern manufacturing and fabrication industries. With its robust construction, advanced features, and exceptional performance capabilities, this bandsaw is engineered to handle the most challenging cutting tasks with precision and efficiency.
Unmatched Cutting Capacity
At the core of the Sterling GTC 2200 is its impressive cutting capacity. Capable of accommodating materials ranging from 500mm to 2200mm in diameter and up to 7 meters in length, this bandsaw is ideal for processing large workpieces commonly found in heavy industries such as aerospace, shipbuilding, and structural steel fabrication. Its ability to handle workpieces weighing up to 50,000 kg ensures versatility across a wide range of applications.
Advanced Structural Design

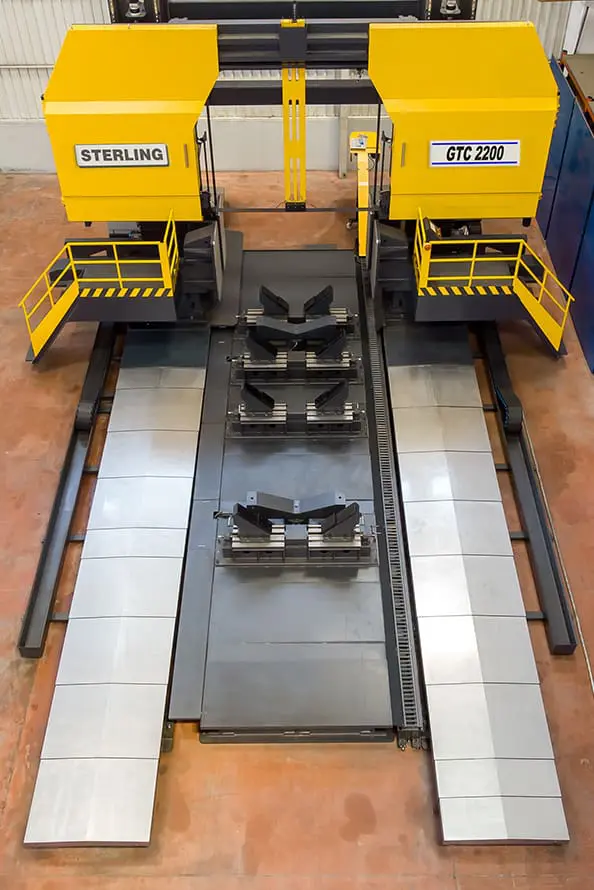

The gantry-type structure of the Sterling GTC 2200 provides exceptional rigidity and stability during operation. This design minimizes vibrations and ensures consistent cutting accuracy, even when dealing with high-tensile materials. The dual-column configuration, featuring oversized precision-ground columns and cross-links, enhances structural stability, allowing for smooth and precise saw frame downfeeds and cutting.
Precision Through Automation
Equipped with a sophisticated Manufacturing Execution System (MES) software, the Sterling GTC 2200 automates and optimizes cutting processes. By utilizing sensor feedback from the cutting tool, the system adjusts cutting speeds in real-time to maintain optimal performance and extend blade life. This automation not only enhances precision but also contributes to overall operational efficiency.
User-Friendly Interface
The bandsaw features an intuitive Human-Machine Interface (HMI) touch screen, allowing operators to program up to 100 cutting jobs, monitor machine performance, and receive error code displays. This user-friendly interface simplifies operation, reduces the learning curve for new users, and facilitates quick adjustments to cutting parameters as needed.
Enhanced Safety Features
Safety is a paramount consideration in the design of the Sterling GTC 2200. The machine is equipped with a robust material handling system that ensures cut pieces are securely removed from the vices without the risk of tipping over. Hydraulic clamping mechanisms provide firm and reliable securing of workpieces, further enhancing operational safety.
Energy Efficiency and Cost Savings
The Sterling GTC 2200 is designed with energy efficiency in mind. Its advanced cutting technology minimises material waste, reduces energy consumption, and lowers operational costs.
We offer a vast range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
When Does a CNC Saw and Drill Line Make Sense?
30th September 2026
CNC Automation: Match the Machine to Batch Size and Flow
30th September 2026
Bandsaw & Circular Saw Technology Fully Explained
10th April 2025
Setting Up Your Bandsaw for the First Time: A Step-by-Step Guide
12th November 2024
How to use the gravity down feed on a Bianco saw
30th September 2021
Benefits of the Bianco Bandsaw 420MS
21st July 2017
How to fold, coil, unfold and flip a bandsaw blade FAQ
10th March 2017
How to use the Sterling SRA 440 DGSA Control Panel
21st October 2016
How to Recalibrate the SRA440 DGSA Bandsaw Bow Mitre Digital Readout
21st October 2016
Achieve the best results with the Goldcut Bandsaw Blades
21st October 2016
Related Case Studies
Coleg Gwent – Machinery for the next generation
14th November 2023
Coleg Gwent is Wales' largest further education and one of the best-performing colleges, delivering a wide range of part-time and full-time academic and vocational courses to over 16,000 students annually... More
Holme Lacy College forges ahead with new machinery
3rd June 2023
The National School of Blacksmithing, based in the Rural Crafts Centre at the Holme Lacy Campus of HLNSC (Herefordshire, Ludlow and North Shropshire College), is a provider of a wide.. More
Pembrokeshire College adds to their collection
26th April 2023
Pembrokeshire College is a provider of a wide range of Post-16 study options in South-West Wales, including an impressive set-up for Engineering based courses with their new Welding and Fabrication.. More
6IX Process Design Ltd uprate their machinery with Selmach
14th September 2022
6IX Process Design Ltd, based in Somerset, are manufactures of stainless steel tanks, vessels and processing systems for the brewing and dairy industries. We spoke to Sam Cabell, Managing Director.. More
MR Industrial Services continued success with the help of Selmach Machinery
6th September 2022
MR Industrial Services, based in Corby, Northamptonshire supply a range of architectural and industrial steelwork to the construction industry. We spoke to Carl Peters, Martyn Nimmo and William Adams to.. More
Ridgesteel brings profiling in house to boost their capacity and productivity
23rd November 2021
We spoke to Ryan Ridgewell, General Manager of Ridgesteel and the Black Country Engineering Group about the High Definition Ajan 260amp CNC Plasma Cutting Machine and Sterling 360 DGSAE Bandsaw.. More
“You can never have enough bandsaws” says Channa Engineering Ltd
13th June 2021
Channa Engineering is a family run business based in Essex. They specialise in all metal works, designing and create custom gates, grills, railings, balustrades & much more. We spoke to.. More
Warwick Steel Structures share their thoughts on our service
7th August 2017
Warwick Steel Structures have purchased several machines from Selmach in the past including bandsaws and guillotines, so when they wanted to replace their cutting machine, they got in touch. We.. More
Frequently Asked Questions
What applications is the Sterling GTC 2200 gantry bandsaw designed for?
The Sterling GTC 2200 is a large-capacity horizontal gantry bandsaw for very substantial sections and heavy industrial workpieces. Its gantry arrangement and material-handling system are intended for demanding applications where a conventional workshop bandsaw would not offer sufficient cutting capacity.
What is the maximum cutting capacity of the Sterling GTC 2200?
The published 90° capacity is 2,200mm round and up to 2,200 × 2,400mm for rectangular sections. Selmach also describes handling workpieces up to 7m long and up to 50,000kg. Confirm the exact stock geometry, handling arrangement and machine layout for your project.
Can the Sterling GTC 2200 cut mitres?
The published bandsaw listing specifies straight cutting rather than a mitre range. If your production requires angled cuts, discuss the section dimensions and required angles with Selmach before selecting this machine.
How does the GTC 2200 control cutting performance?
Selmach describes Manufacturing Execution System (MES) software that uses feedback from the cutting process to help optimise cutting parameters and provide performance monitoring. The product description also refers to an HMI for job programming and machine status; confirm the exact controls and software configuration in the quotation.
What blade and cutting-speed specifications are published for the GTC 2200?
The published blade dimension is 17,940 × 80 × 1.6mm, with a cutting-speed range of 20–70m/min. Because blade choice depends on section size and material grade, Selmach should confirm the suitable blade specification and operating parameters for the intended workload.
What should be planned before installing a Sterling GTC 2200?
Plan the complete machine footprint, foundations, safe lifting and material movement, power and services, and access for maintenance. Selmach lists overall dimensions of approximately 15,000mm long, 9,400mm wide and 6,215mm high; a site-specific layout and handling assessment should be agreed before installation.
What routine maintenance is important for a GTC 2200 gantry bandsaw?
Maintenance should include blade condition and guidance, hydraulic clamping, coolant delivery, chip removal, gantry movement and the machine’s monitoring systems. Establish inspection and cleaning routines that match the duty cycle, and use the manufacturer’s service schedule for all safety-critical components.
Does Selmach offer service support for the Sterling GTC 2200?
Selmach provides machinery service support and can discuss planned maintenance through its Service Plan. For a gantry machine of this size, ask Selmach to confirm commissioning, operator training, service access, spare-parts arrangements and the precise scope of any maintenance agreement.
