Morgan Rushworth CNC Electric Press Brakes
The Morgan Rushworth range of XPE servo electric press brakes are designed with a belt and pulley system, and the XPS range utilises a ball & screw system – providing low energy usage, high bending cycle times and high accuracy. The range spans from 1530mm x 40T machines up to 3100mm x 100T, with all models equipped with the ESA VIS-875W 2D CNC touch screen controller.
The combination of consistent pressure across the beam from the pulley system, high positioning accuracy of 0.01mm and the O frame design with virtually no flex results in a level of accuracy far higher than in conventional hydraulic machines. The side frames are fitted at each end of the machine meaning that the backgauge can be used for the full width of the machine to the maximum depth. The XPE and XPS Servo electric press brakes are far more reliable than hydraulic machines with no rams, seals, pumps, pipes etc resulting in less down time.
| MODEL | STOCK CODE | MECHANISM | BENDING POWER | BENDING LENGTH | DIST BETWEEN COLUMNS | Y APPROACH SPEED | Y WORKING SPEED | Y RETURN SPEED | TRAVEL IN X AXIS | TRAVEL IN R AXIS | NO OF BACK GAUGE FINGERS | NO OF SHEET SUPPORT ARMS | MOTOR POWER | STROKE | DAYLIGHT | LENGTH | WIDTH | HEIGHT | WEIGHT |
| Tonne | A mm | B mm | mm/sec | mm/sec | mm/sec | mm | mm | kw | C mm | D mm | L mm | W mm | H mm | kg | |||||
| XPE 1550.40 | M5230 | Belt & Pulley | 40 | 1530 | N/A | 170 | 10 | 170 | 500 | 150 | 2 | 2 | 11 | 300 | 660 | 2660 | 1960 | 2900 | 4600 |
| XPE 2050.50 | M5231 | Belt & Pulley | 50 | 2040 | N/A | 150 | 10 | 150 | 500 | 150 | 2 | 2 | 11 | 300 | 660 | 3170 | 1960 | 2900 | 4850 |
| XPE 2550.80 | M5232 | Belt & Pulley | 80 | 2550 | N/A | 90 | 10 | 90 | 750 | 250 | 2 | 2 | 11 | 300 | 660 | 3680 | 1960 | 2900 | 6100 |
| XPE 3100.100 | M5233 | Belt & Pulley | 100 | 3050 | N/A | 75 | 10 | 75 | 750 | 250 | 2 | 2 | 11 | 300 | 660 | 4220 | 1960 | 2900 | 6500 |
| XPS 900.20 | M5238 | Ball Screw | 20 | 900 | 1020 | 150 | 10 | 150 | 750 | 160 | 2 | 2 | 3.8 | 150 | 430 | 1650 | 1700 | 2350 | 3000 |
| XPS 1300.36 | M5239 | Ball Screw | 36 | 960 | 1300 | 150 | 10 | 150 | 750 | 160 | 2 | 2 | 10 | 150 | 430 | 2050 | 1700 | 2350 | 4350 |
Features
- Approximately 50% less energy use compared with hydraulic machines
- Approximately 30% faster cycle times
- Approximately 75% less servicing costs than hydraulic machines
- Green technology – no oil or hazardous waste affecting the environment
- Even pressure across the bending beam negates requirement for crowning systems
- frame design results in minimum distortion
- Almost noiseless operation
- X and R axis back gauge
- ESA VIS-875W 2D CNC touch screen controller
- Offline programming functionality on office PC
Options
- Multi axis back gauges
- Hydraulic tool clamping
- Laser angle measuring system

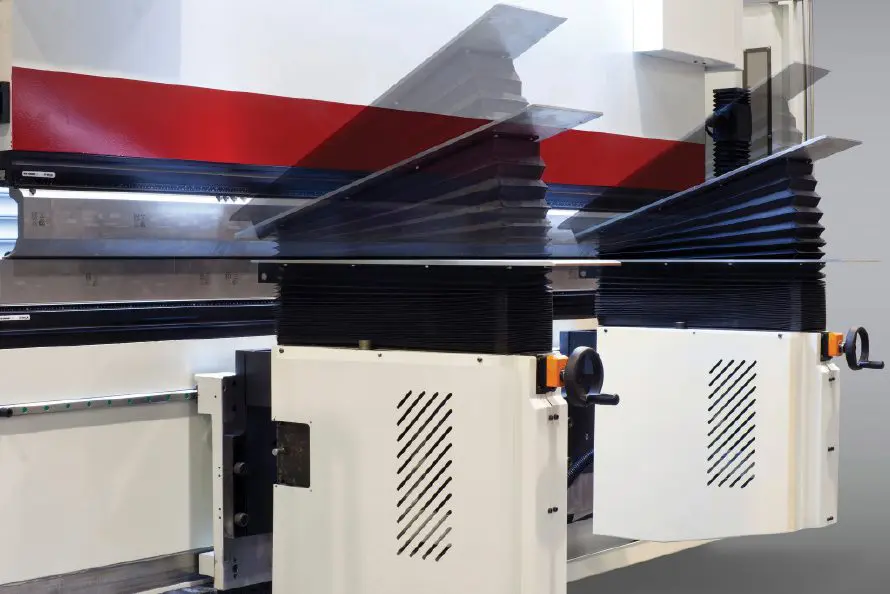

- Sheet follower support arms
- Optional off line ESA Bend 3D Software with Control Viewer
