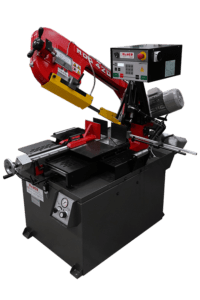

Bianco SA R Semi Automatic Double Mitre Bandsaw 415v

The Bianco SA R Semi Automatic Double Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

Bianco SA R Semi Automatic Double Mitre Bandsaw 415v imageBianco SA R Semi Automatic Double Mitre Bandsaw 415v image
Video thumbnail showing the Bianco SA R Semi Automatic Double Mitre Bandsaw 415v
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 3
Turntable Vice
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 3
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 4
Siemens Motor
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 4
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 5
Low Controller Position
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 5
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 6

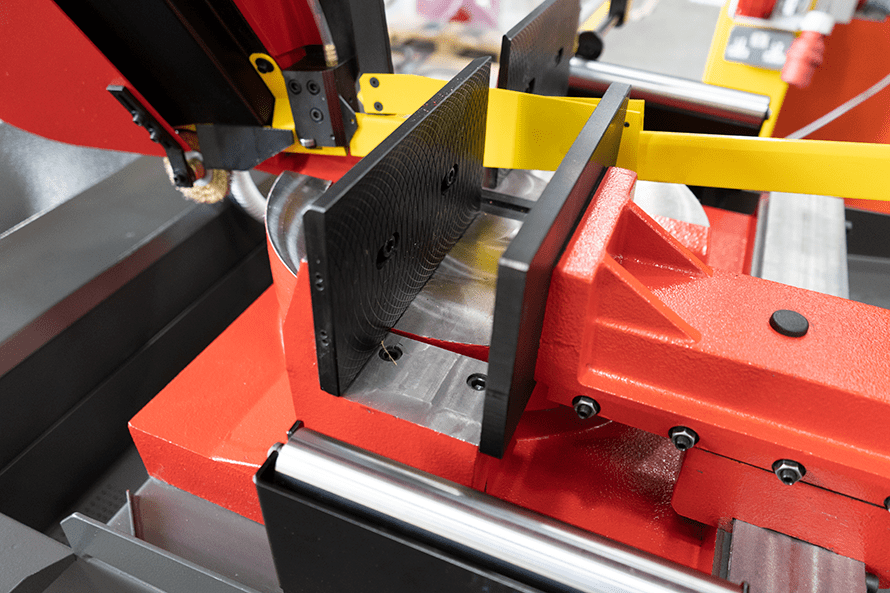

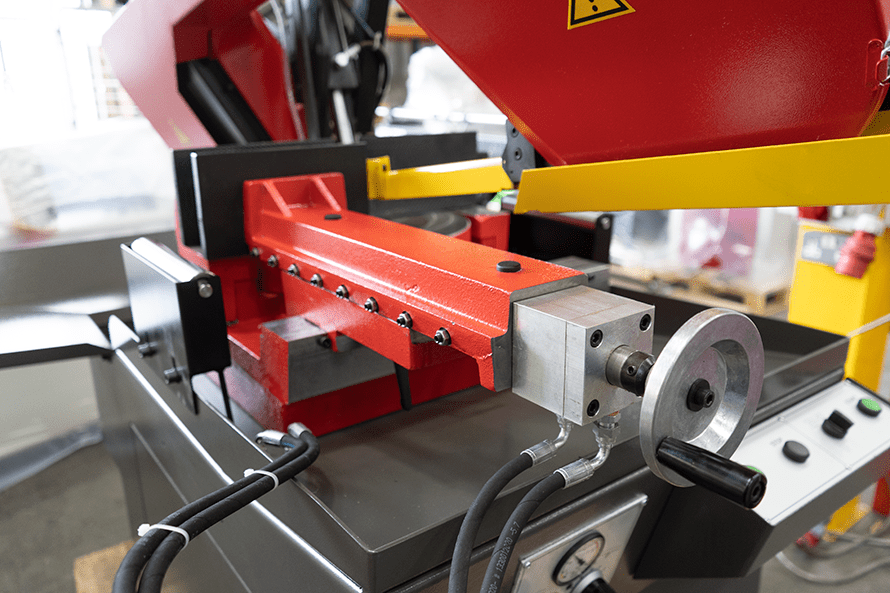

Hydraulic Touch On Touch Off Vice
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 6
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 7
Hydraulic Touch On Touch Off Vice
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 7
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 8
High Controller Position
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 8
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 9
Easily Adjustable Blade Tension
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 9
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 10Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 10
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 11
Mechanical Bundling (Optional)
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 11
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 12
Hydraulic Bundling (Optional)
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 12
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 13
Adjustable Vice Pressure (Optional)
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 13
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 14
Frequency Inverter (Optional)
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 14
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 15
Dry Cooling (Optional)
Bianco SA R Semi Automatic Double Mitre Bandsaw 415v image 15
MODEL         330SA R       370SA R           420SA R
Capacity 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R
Tube mm 250 140 180 110 280 180 200 130 300 220 250 150
Box Section mm 240 130 170 110 260 150 190 130 270 190 230 140
Widest Cut mm 270 x 200 140 x 110 170 x 200 110 x 170 310 x 240 160 x 140 190 x 200 130 x 180 310 x 270 140 x 230 140 x 250 140 x 150
Bed Height mm 830 830 830
Blade Size mm 3010 x 27 x 0.9 3120 x 27 x 0.9 3270 x 27 x 0.9
Cutting Speed m/min 35 / 70 35 / 70 35 / 70
Motor Kw 0.9 / 1.5 0.9 / 1.5 0.9 / 1.5
Length mm 1400 1450 1500
Width mm 1650 1650 1700
Height mm 1700 1750 1800
Weight Kg 548 561 570
Operation Semi-Automatic Semi-Automatic Semi-Automatic
Vice Hydraulic Hydraulic Hydraulic

Features

  • Turntable double mitring system
  • Hydraulic cutting with variable pressure and variable speed (Semi-Automatic)
  • Sliding Hydraulic vice
  • Fast approach with auto bow height return setting
  • Quick mitring swivel head up to 60°
  • Cast bow construction
  • Swarf brush
  • Carbide blade guides for high accuracy
  • 2 speed motor
  • Heavy duty & fast cutting
  • Coolant System
  • Blade tension indicator
  • Safety interlock switch fitted to band wheel cover
  • Material length stop
  • High controller position

Options

  • Low controller position
  • Blade speed variation
  • Spray mist cooling system
  • Powered swarf brush
  • Roller track and measuring systems

The Bianco SA R Semi Automatic Double Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, square or rectangular section, bandsaws like this Bianco SA R Semi Automatic Double Mitre Bandsaw are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
