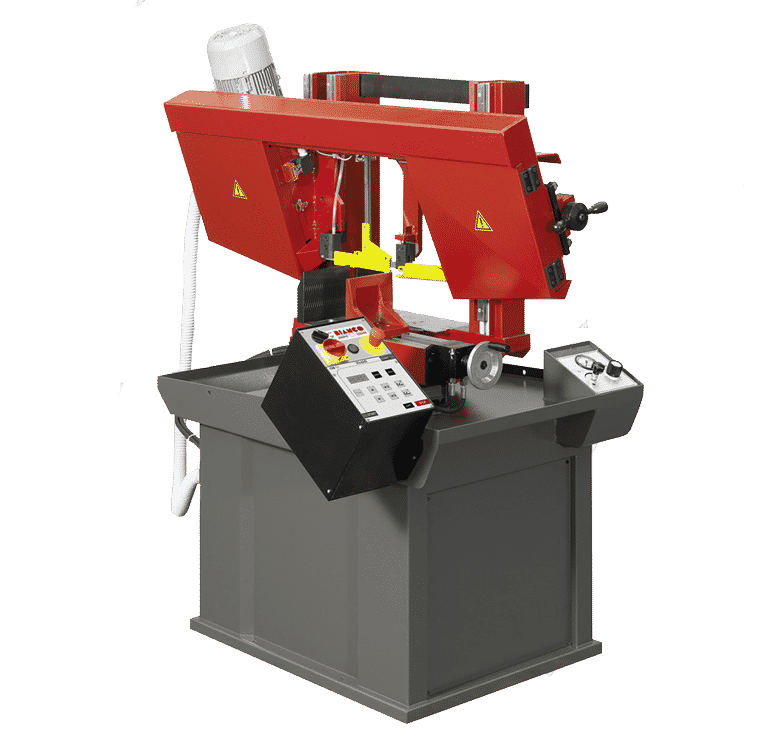

Bianco 370 SA 60° DV Twin Column Bandsaw 415v

The Bianco 370 SA 60° DV Twin Column Bandsaw is ideal for cutting solid sections and bundle cutting of medium-size structural material. With a mitre rotation up to 60° on the right, the bow slides on ball bearing guides. The machine’s durable design combined with the high grade components and technical features,  guarantee a high precision cut quality.

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

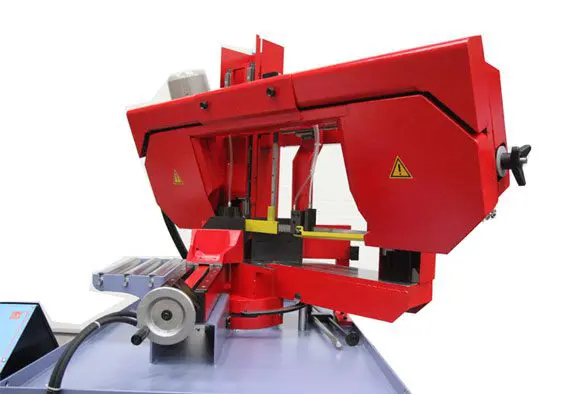

Bianco-360-Sa-DV-Twin-ColumnBianco-360-Sa-DV-Twin-Column
Video thumbnail showing the Bianco 370 SA 60° DV Twin Column Bandsaw 415v

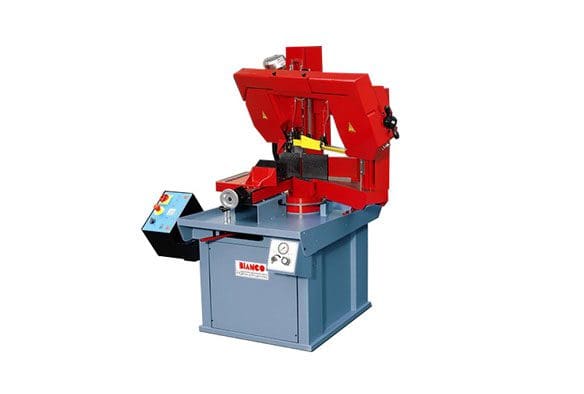

Bianco-360-Sa-DV-Twin-ColumnBianco-360-Sa-DV-Twin-Column

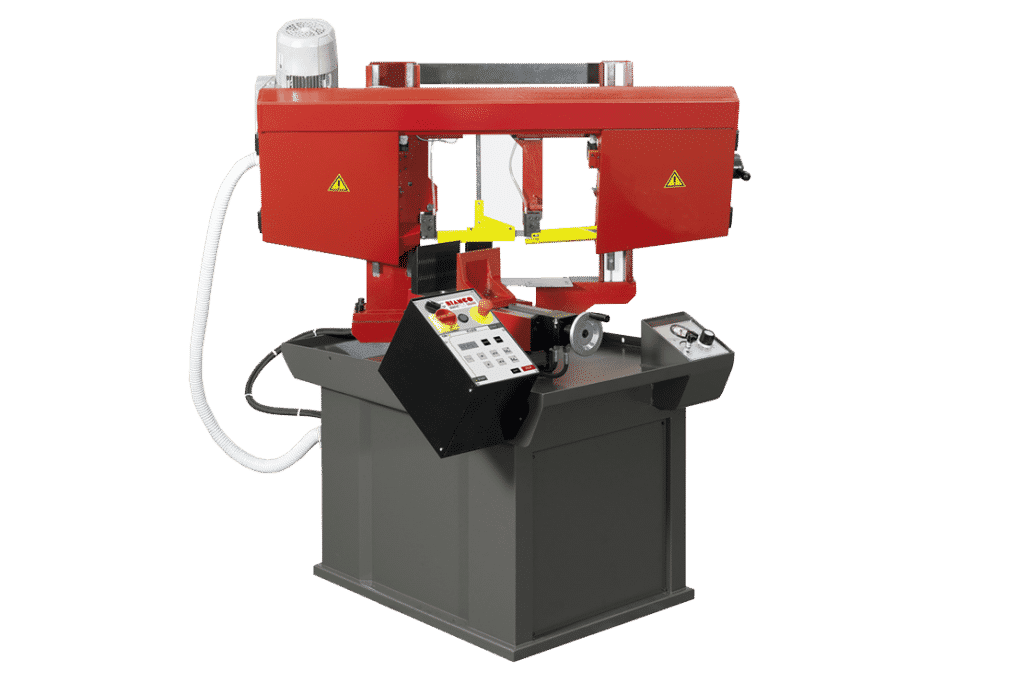

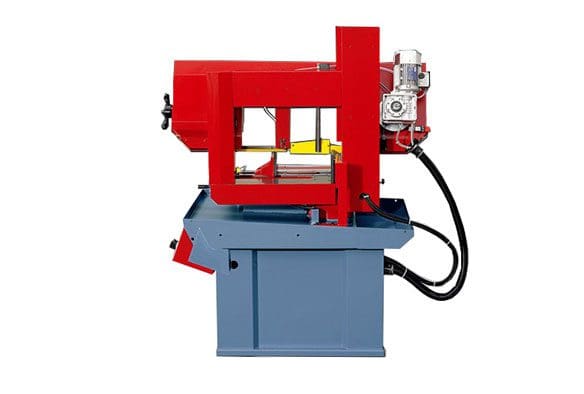

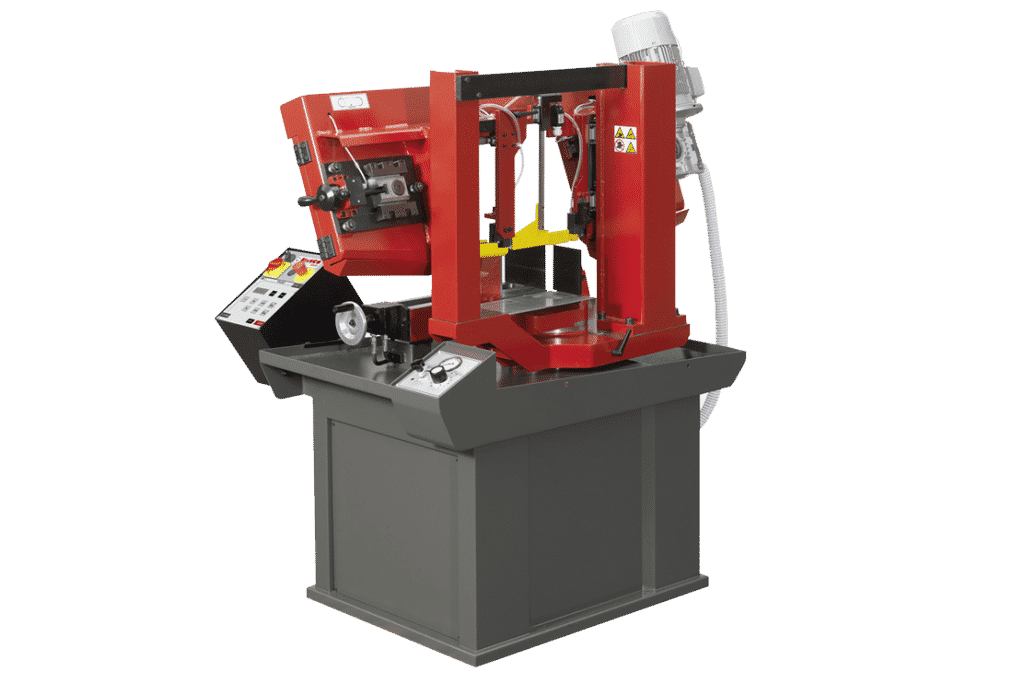

Bianco-360-Sa-DV-Twin-Column Side ViewBianco-360-Sa-DV-Twin-Column Side View

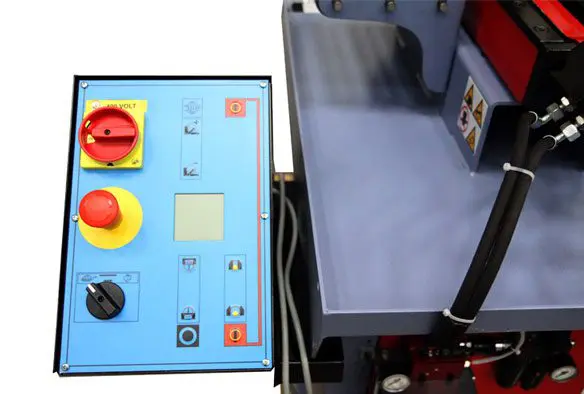

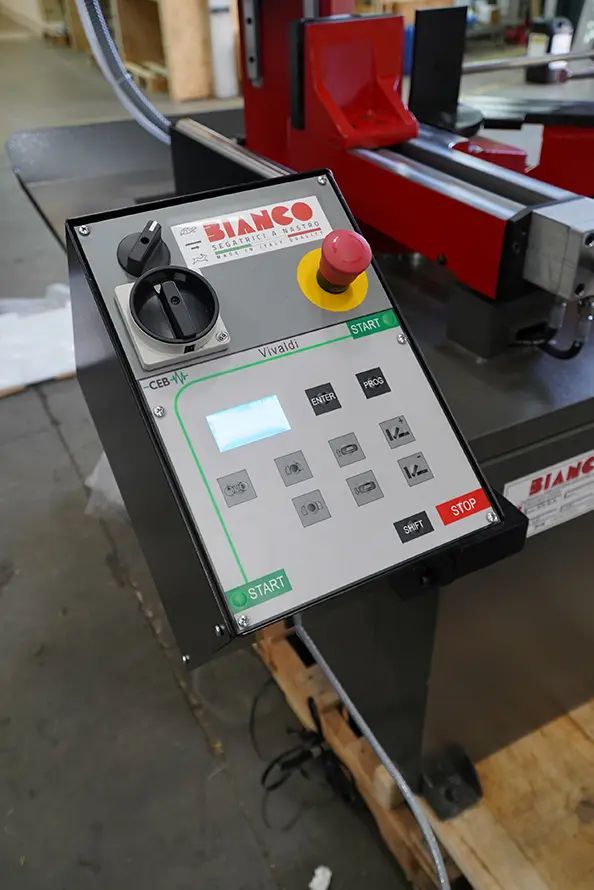

Bianco-360-Sa-DV-Twin-Column ControllerBianco-360-Sa-DV-Twin-Column Controller

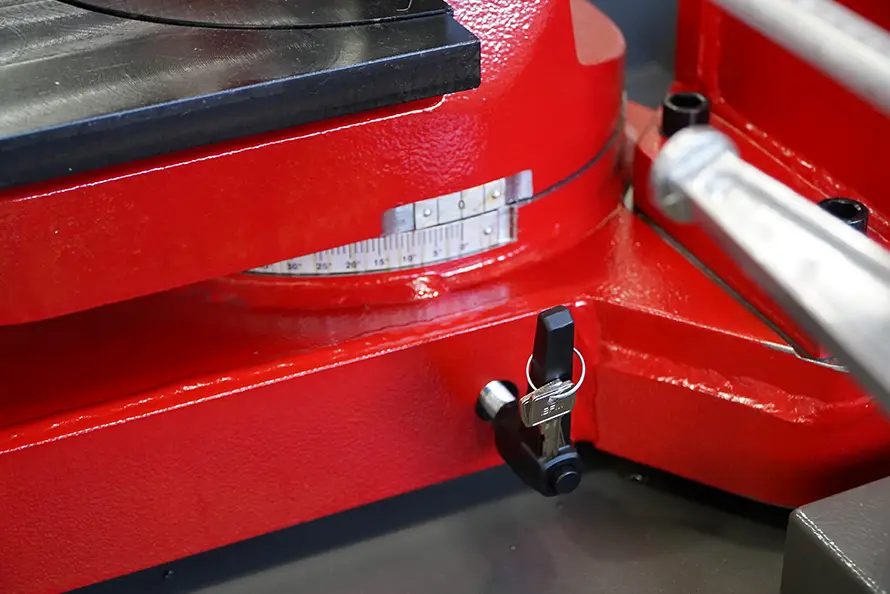

Bianco-360-Sa-DV-Twin-Column Mitre CutBianco-360-Sa-DV-Twin-Column Mitre Cut
Model370 SA 60° DV
Stockcode
Round Cut: 90 Degrees300mm
Round Cut: 45 Degrees260mm
Round Cut: 60 Degrees125mm
Rectangle Cut: 90 Degrees400 x 300mm
Rectangle Cut: 45 Degrees300 x 260mm
Rectangle Cut: 60 Degrees125 x 125mm
Square Cut: 90 Degrees300mm
Square Cut: 45 Degrees260mm
Square Cut: 60 Degrees125mm
Band dim. (L x W x H)3230 x 27 x 0.9 mm
Cutting Speed (Standard)35 – 70 m/min
Cutting Speed (On request)20 – 100 m/min
Fast Descent350 mm/min
Working Descent0 – 200 mm/min
Working Surface Height870 mm
Blade Motor Standard0.9 kw
Blade Motor On Request1.1 kw
Hydraulic Pump Motor0.18 kw
Cooling Pump Motor0.03 kw
Length1900 mm
Width:1400 mm
Height:1600 mm
Weight:600 Kg
Operation:Semi-Automatic
Vice:Hydraulic
  • Base and bow in welded structure

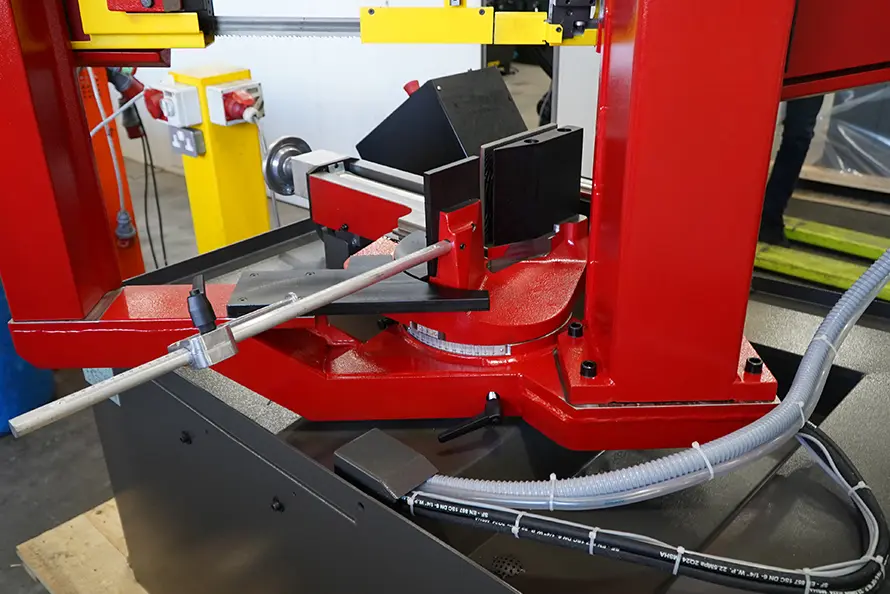

  • Vice unit made from spheroidal cast iron

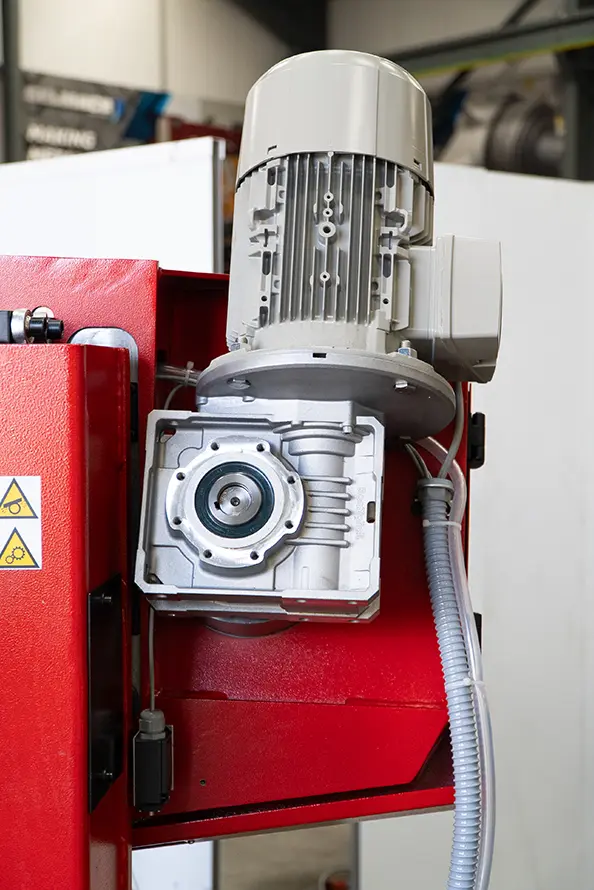

  • Worm gear reducer unit

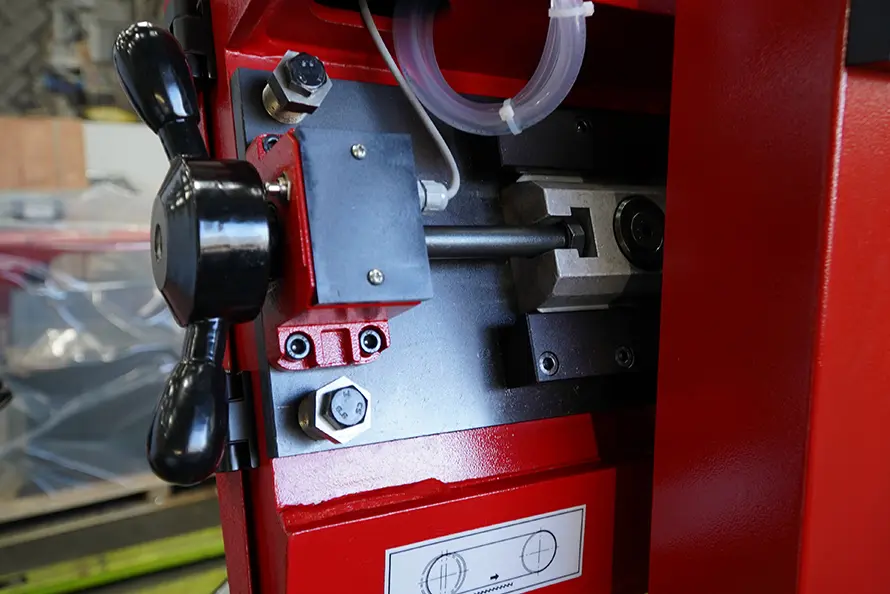

  • Electrical mechanical blade tensioning
  • Adjustable blade-guide bearings with carbide plates

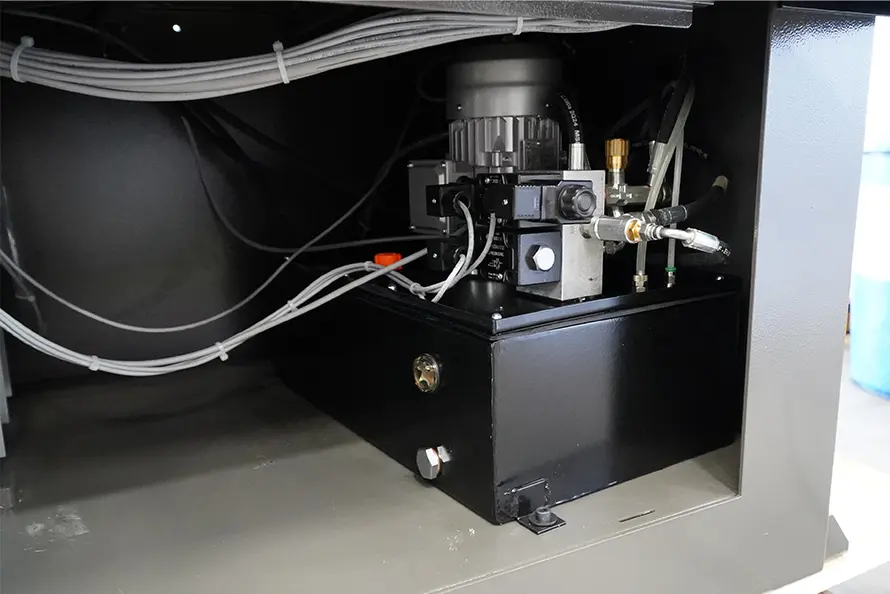

  • Hydraulic power unit
  • Automatic fast approach bow with auto height return
  • Hydraulic adjustable cutting pressure
  • Double safety button for cycle start-up
  • Automatic vice cycle
  • Low voltage Electrical system according to CE norms
  • 0 – 500 graduated length stop
  • In-feed rollers
  • Manual swarf cleaning brush
  • Material in-feed/out-feed roller track available in various sizes with millimeter rule and mechanical length stop
  • Mechanical blade speed variator 20/100 m/1′
  • Frequency converter for blade speed variation (inverter) 20/100 m/1′

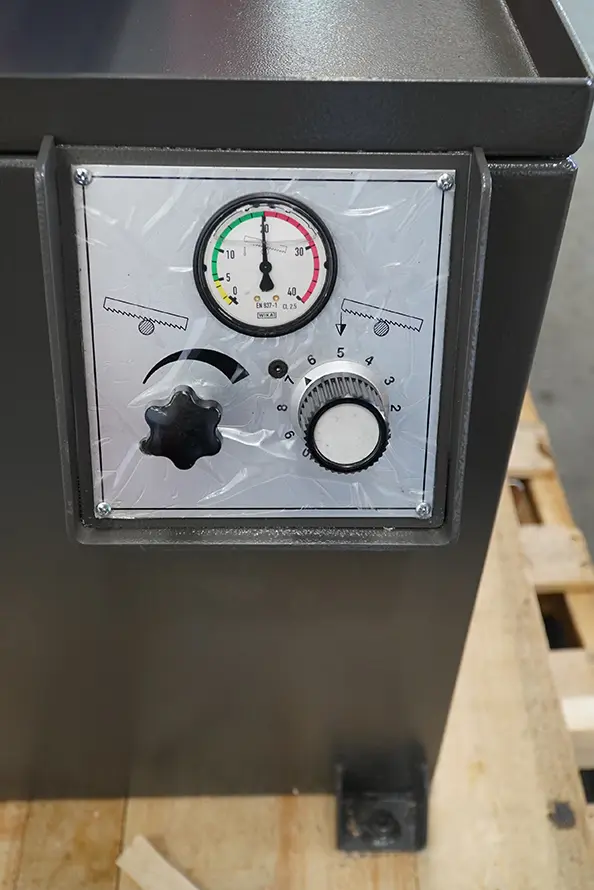

  • Vice pressure regulation
  • Dry cooling device
  • Mechanical Bundle clamping
