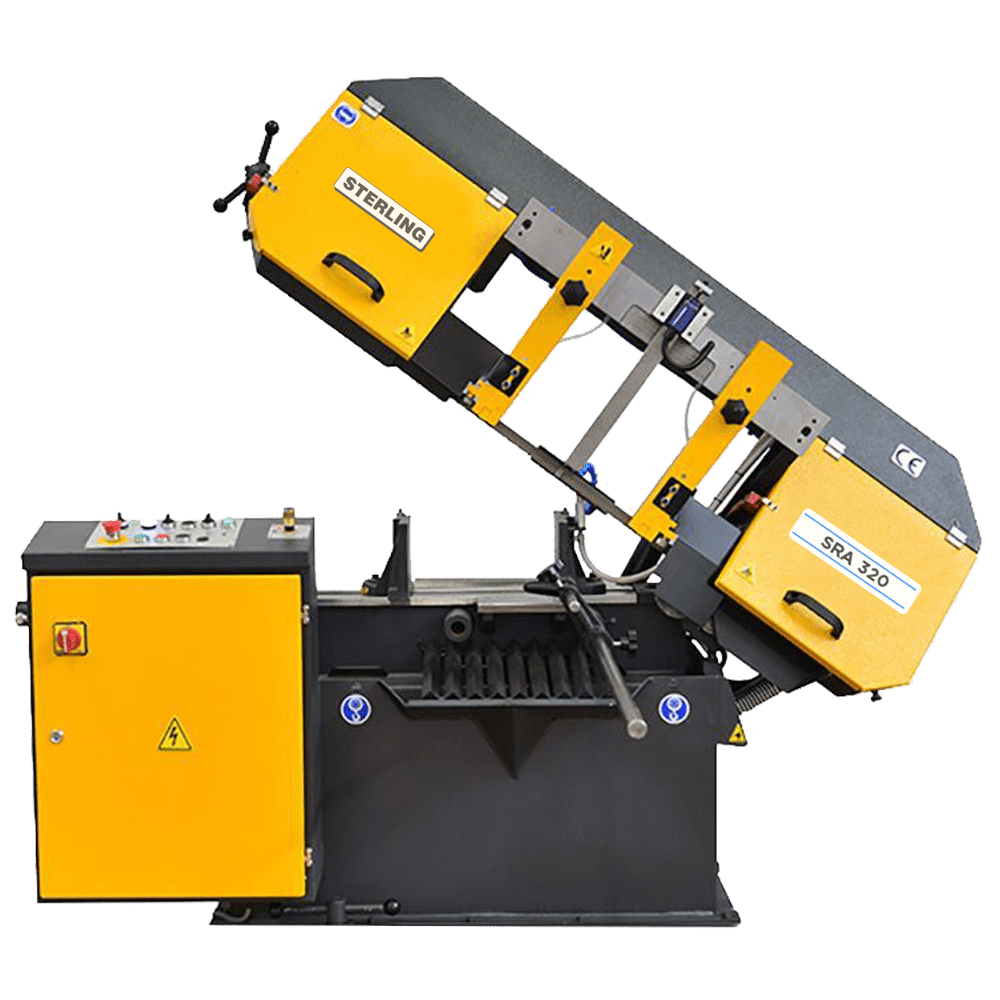

Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V
The Sterling SRA320 features an auto downfeed operation which is ideal for cutting a wide range of profiles, although being especially suited to cutting tubes and solid bar stock. A blade speed inverter is standard giving these machines the capacity to cut a wide range of material types including more exotic materials.
The Sterling brand is one of the leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws.
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image](https://selmach.com/wp-content/uploads/2023/07/Sterling-SRA320-Straight-Cutting.png)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image](https://selmach.com/wp-content/uploads/2023/07/Sterling-SRA320-Straight-Cutting-150x150.png)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 2](https://selmach.com/wp-content/uploads/2023/07/Sterling-SRA320-Straight-Cutting.png)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 2](https://selmach.com/wp-content/uploads/2023/07/Sterling-SRA320-Straight-Cutting-150x150.png)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 3](https://selmach.com/wp-content/uploads/2023/07/de5f0eca552145c4a1095c5f179e9327-1024x683.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 3](https://selmach.com/wp-content/uploads/2023/07/de5f0eca552145c4a1095c5f179e9327-150x150.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 4](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Carbide-Blade-Guides.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 4](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Carbide-Blade-Guides-150x150.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 5](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Hydraulic-Vice.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 5](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Hydraulic-Vice-150x150.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 6](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Height-Adjustment-Switch.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 6](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Height-Adjustment-Switch-150x150.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 7](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Swarf-Brush.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 7](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Swarf-Brush-150x150.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 8](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Blade-Tension-Indicator.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 8](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Blade-Tension-Indicator-150x150.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 9](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Heavy-Duty-Motor-Gearbox.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 9](https://selmach.com/wp-content/uploads/2022/01/SRA320-DGSA-Heavy-Duty-Motor-Gearbox-150x150.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 10](https://selmach.com/wp-content/uploads/2023/07/e29d85f3a21014f884996bbc7b21e248-1024x683.jpg)
![Sterling SRA320 Straight-Cut Semi Automatic Bandsaw 415V image 10](https://selmach.com/wp-content/uploads/2023/07/e29d85f3a21014f884996bbc7b21e248-150x150.jpg)
MODEL | SRA320 Straight-Cutting | ||
STOCKCODE | 15143 | ||
Capacity | 0° | 45° Vice Mitre | |
◯ Tube | mm | 320 | 260 |
▢ Box Section | mm | 320 | 260 |
▭ Widest Cut | mm | 440 x 220 | 330 x 320 |
Bed Height | 640 | ||
Blade Size | mm | 3660 x 27 x 0.9 | |
Cutting Speed | m/min | 20 – 100 | |
Motor | Kw | 1.5 | |
Length | mm | 1900 | |
Width | mm | 850 | |
Height | mm | 1300 | |
Weight | Kg | 670 | |
Operation | Semi-automatic | ||
Vice | Hydraulic | ||
Twin Ram | No |
Features
- Roller Table
- Hydraulic Vice
- Material Limit Shaft
- Swarf Brush
- Height Adjustment Switch
- Heavy Duty Gearbox
- Coolant Pump
- Hydromechanical Blade Tension
- Inverter

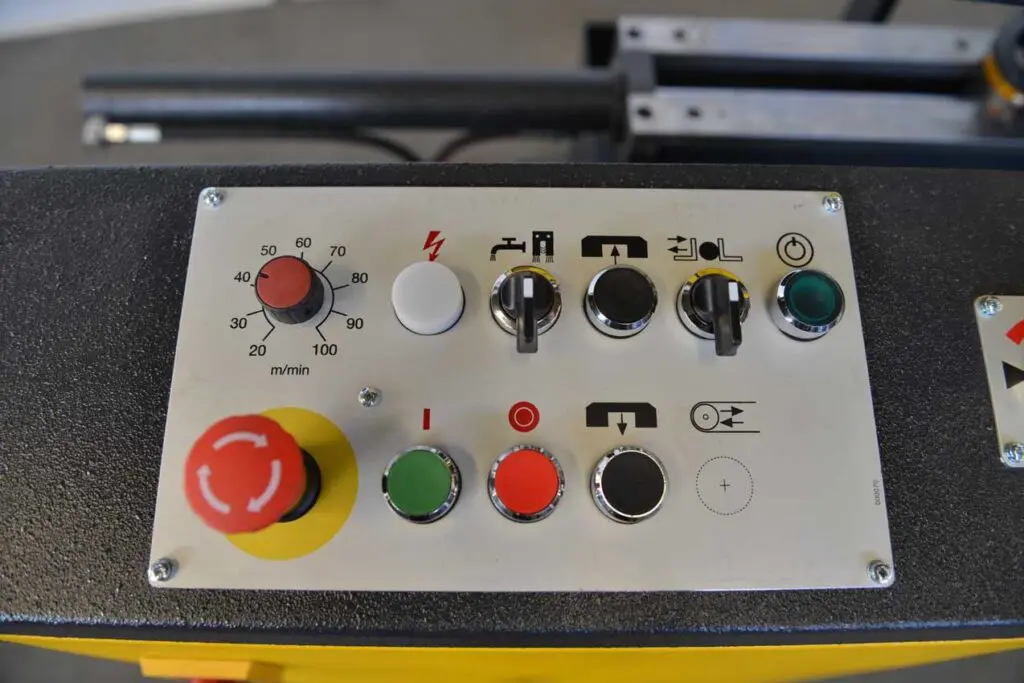

- Control Panel
Options
- Hydraulic Top Clamping
- Spray mist coolant
- Chip Conveyor
- Turn Table
- Roller Track & Measuring Systems
The Sterling SRA320 features an auto downfeed operation which is ideal for cutting a wide range of profiles, although being especially suited to cutting tubes and solid bar stock. A blade speed inverter is standard giving these machines the capacity to cut a wide range of material types including more exotic materials.
The Sterling brand is one of the leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws.
We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
