SRA320E (Encoder) PLC Automatic Bandsaw

The Sterling SRA320E and SRA350E (Encoder) PLC are straight cutting, fully-automatic models that can cut automatically without a length stop thanks to its PLC controlled encoder. The perfect machine for cutting down billets of material ready for further processing.

This a fully automatic machine in a pivot-action design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting.

The Siemens PLC controller on this saw enables the user to set-up a programme with 10 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

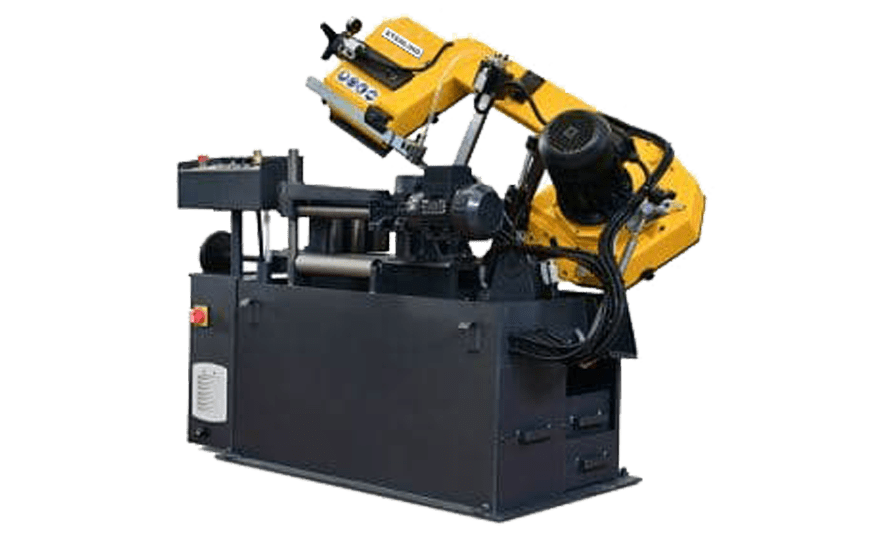

SRA320E (Encoder) PLC Automatic Bandsaw imageSRA320E (Encoder) PLC Automatic Bandsaw image
Video thumbnail showing the SRA320E (Encoder) PLC Automatic Bandsaw

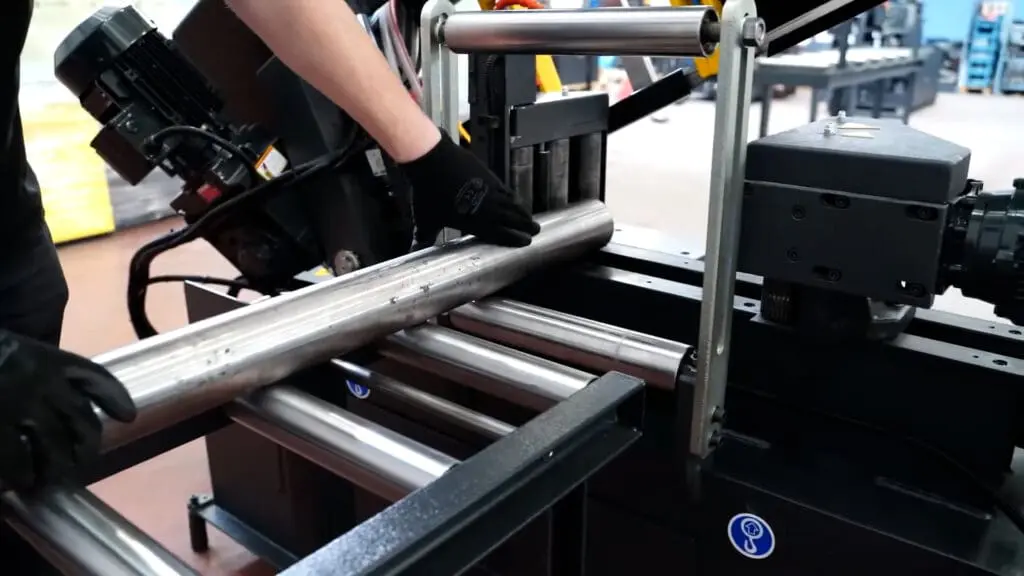

SRA320E (Encoder) PLC Automatic Bandsaw image 3SRA320E (Encoder) PLC Automatic Bandsaw image 3

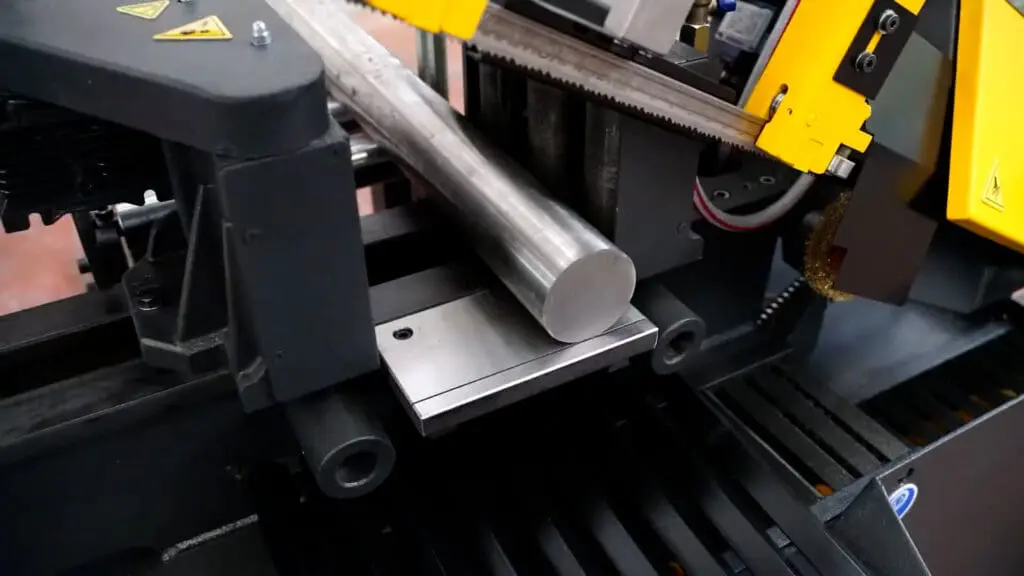

SRA320E (Encoder) PLC Automatic Bandsaw image 4SRA320E (Encoder) PLC Automatic Bandsaw image 4

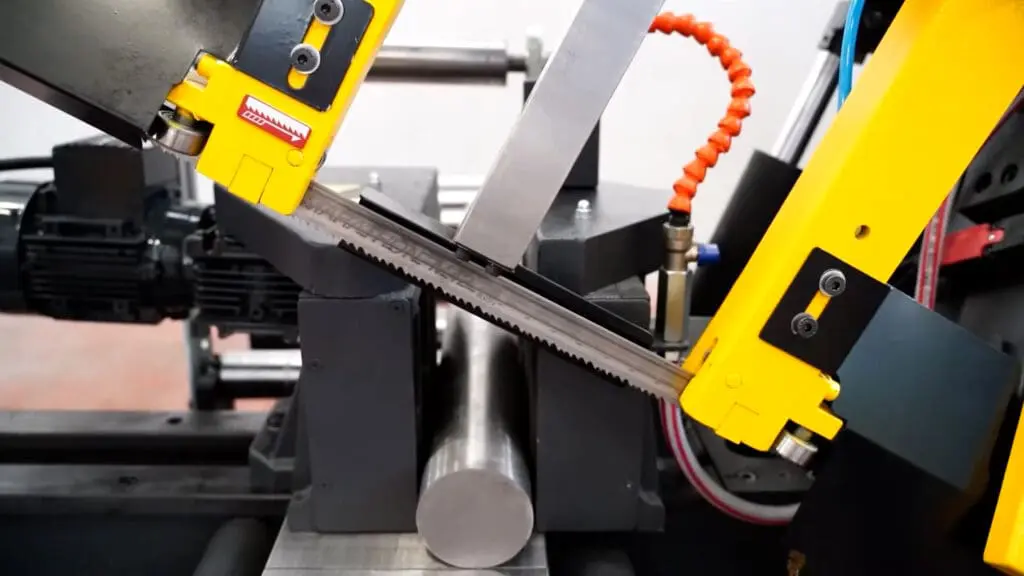

SRA320E (Encoder) PLC Automatic Bandsaw image 5SRA320E (Encoder) PLC Automatic Bandsaw image 5

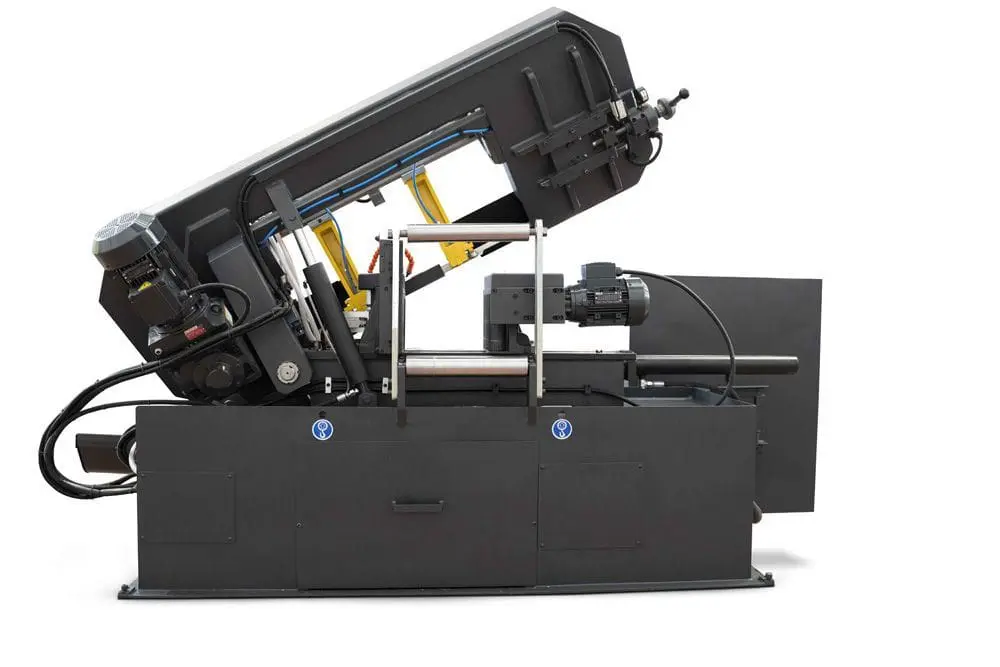

SRA320E (Encoder) PLC Automatic Bandsaw image 6SRA320E (Encoder) PLC Automatic Bandsaw image 6

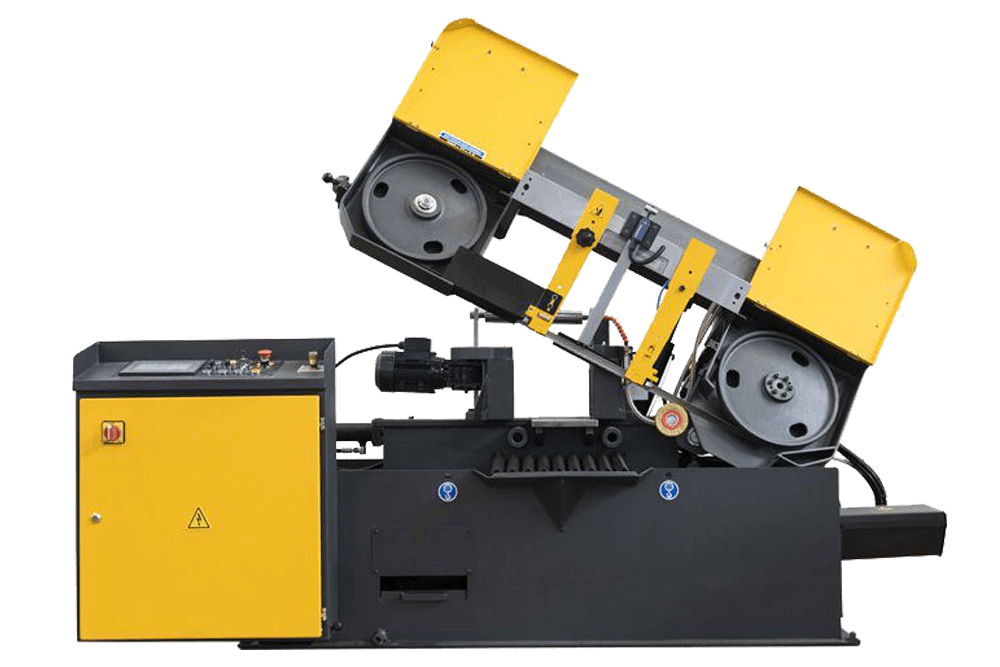

SRA320E (Encoder) PLC Automatic Bandsaw image 7SRA320E (Encoder) PLC Automatic Bandsaw image 7
SRA320E (Encoder) PLC Automatic Bandsaw image 8SRA320E (Encoder) PLC Automatic Bandsaw image 8
SRA320E (Encoder) PLC Automatic Bandsaw image 9SRA320E (Encoder) PLC Automatic Bandsaw image 9
SRA320E (Encoder) PLC Automatic Bandsaw image 10SRA320E (Encoder) PLC Automatic Bandsaw image 10
SRA320E (Encoder) PLC Automatic Bandsaw image 11SRA320E (Encoder) PLC Automatic Bandsaw image 11
SRA320E (Encoder) PLC Automatic Bandsaw image 12SRA320E (Encoder) PLC Automatic Bandsaw image 12
MODEL SRA320E (Encoder) PLC SRA350E (Encoder) PLC
Stock Code 15279-27 15279-34 15279-350E
Capacity 90°
◯ Round mm 320 350
□ Flat mm 300 350
▭ Square mm 320 x 300 350 x 450
Bed Height 740 660
Main Drive Motor kW 2.2 3
Cutting Speeds m/min. 20 – 100 15 – 120
Blade Dimensions mm 3660 x 27 x 0.9 3660 x 34 x 0.9 4800 x 34 x 1
Tolerances mm 0.3
CNC Controller Siemens
Program 1 Program – 10 Steps
Stroke Length mm N/A – Continuous
Remnant Piece mm 220 (Automatic) / 90 (Manual) 330 (Automatic) / 85 (Manual)
Max. Feed mm N/A – Continuous
Length mm 1,900 2,800
Width mm 850 900
Height mm 1,300 1,400
Weight kg 770 1,200
Operation Automatic
Vice Hydraulic
Vice Feed Roller Feed

Features

  • Pivot-Action
  • Fully automatic PLC Controller
  • Hydromechanical Blade Tension
  • Inverter drive providing infinitely variable blade speed
  • Automatic bow return
  • Hydraulic vice
  • Siemens PLC control panel (1 Programme – 10 Steps)
  • Swarf brush
  • Carbide blade guides
  • Flood Coolant system
  • 27mm or 34mm Blade Sizes

Options

  • Polyurethane Coated Feed Rollers
  • Sensitive cutting pressure regulation
  • Hydraulic blade tension
  • Spray mist lubrication
  • Chip Conveyor
  • Roller track and measuring systems

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The Sterling SRA320E and SRA350 E (Encoder) PLC series are designed to maximize our customers’ processing of large billets and heavy materials.

This a fully automatic machine in a pivot-action design, ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting.

The Siemens PLC controller on this saw enables the user to set-up a programme with 10 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you.

Ideal for cutting round, square or rectangular section, bandsaws like these Sterling PLC saws are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
