Meyer MG Radial Arm Drill 415v

The Meyer MG Radial Arm Drill 415v range of powerful geared head radial arm drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.

Meyer MG Radial Arm Drill 415v imageMeyer MG Radial Arm Drill 415v image
Meyer MG Radial Arm Drill 415v image 2Meyer MG Radial Arm Drill 415v image 2
Meyer MG Radial Arm Drill 415v image 3
Main Control Panel (MG850)
Meyer MG Radial Arm Drill 415v image 3
Meyer MG Radial Arm Drill 415v image 4
Power Control Panel
Meyer MG Radial Arm Drill 415v image 4
Meyer MG Radial Arm Drill 415v image 5
Variable (Stepped) Gears
Meyer MG Radial Arm Drill 415v image 5
Meyer MG Radial Arm Drill 415v image 6
DC Injection Brake (MG850)
Meyer MG Radial Arm Drill 415v image 6
Meyer MG Radial Arm Drill 415v image 7

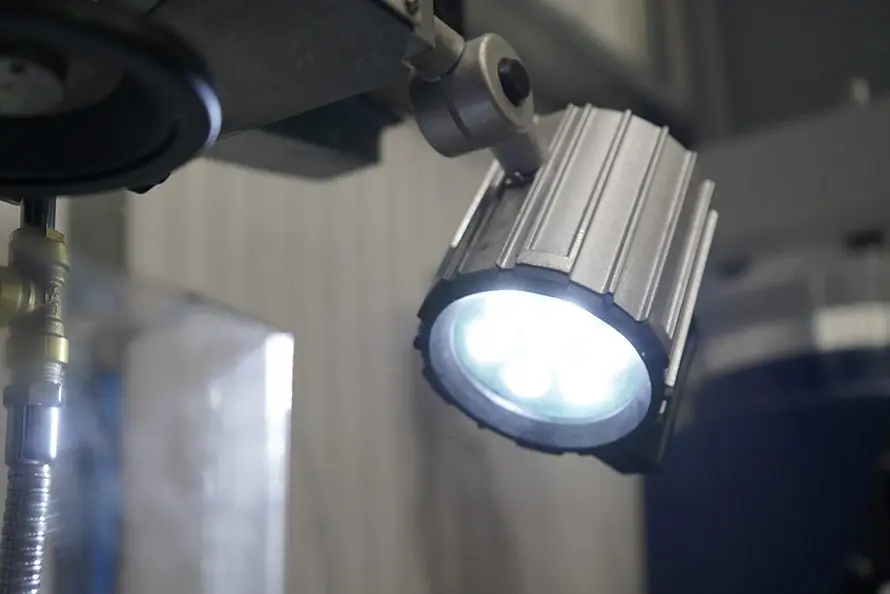

LED Lamp
Meyer MG Radial Arm Drill 415v image 7
Meyer MG Radial Arm Drill 415v image 8
Coolant System and CE Mark Guarding
Meyer MG Radial Arm Drill 415v image 8
Meyer MG 1675 Radial Arm Drill Spindle Feed Chart DetailMeyer MG 1675 Radial Arm Drill Spindle Feed Chart Detail



MODEL MG850 MG1050 MG1675 MG2090
STOCK CODE 18029 18030 18031 18032
Capacity C.I. mm 50 50 75 90
Spindle Taper MT no 4 4 5 6
Motor Kw 1.5 2.2 4 7.5
Speeds rpm 75 – 1220 32 – 2500 25 – 2000 16 – 1250
Spindle Stroke mm 240 280 315 400
Box Table mm 400 x 400 x 350 600 x 450 x 450 630 x 500 x 500 800 x 550 x 550
Base Plate Size mm 1370 x 700 1700 x 800 2400 x 1000 3000 x 1200
Throat mm 820 1000 1600 2000
Length mm 1400 1760 2500 3100
Width mm 720 800 1060 1250
Height mm 1885 2050 2650 3440
Weight Kg 1200 1600 3750 8000

Features

  • Geared head.
  • Powered feed.
  • DC injection brake providing instant stop in emergency.
  • Exceptional heavy construction.
  • Large box table with T Slots.
  • Low voltage lamp.
  • Forward and reverse.
  • Coolant system

Options

  • MEGA machine vice – Jaw width 250mm / Jaw opening 280mm STOCK CODE 18033
  • MEGA machine vice – Jaw width 320mm / Jaw opening 360mm STOCK CODE 18034
