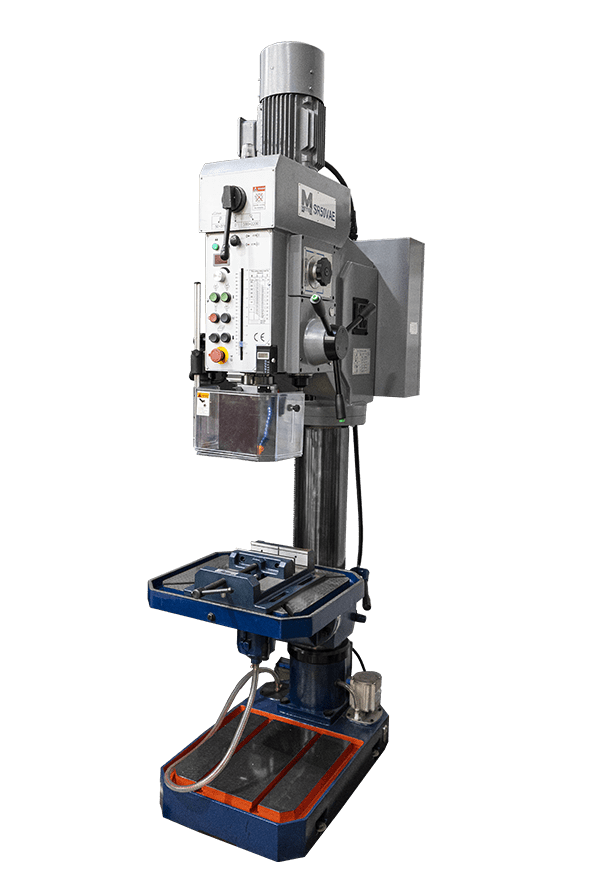

Meyer SR50VAE Geared Head Drilling Machine 415v

The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.

The Meyer SR50VAE is our largest Pillar Drill; with Auto feed drilling and tapping and variable drill speed.



Meyer SR50VAE Geared Head Drilling Machine 415v image
Meyer SR50VAE
Meyer SR50VAE Geared Head Drilling Machine 415v image
Video thumbnail showing the Meyer SR50VAE Geared Head Drilling Machine 415v
Video thumbnail showing the Meyer SR50VAE Geared Head Drilling Machine 415v
Video thumbnail showing the Meyer SR50VAE Geared Head Drilling Machine 415v
Meyer SR50VAE Geared Head Drilling Machine 415v image 5
The Meyer SR Geared Head Pillar Drill Range
Meyer SR50VAE Geared Head Drilling Machine 415v image 5
Meyer SR50VAE Geared Head Drilling Machine 415v image 6
Solid, Heavy-Duty build quality
Meyer SR50VAE Geared Head Drilling Machine 415v image 6
Meyer SR50VAE Geared Head Drilling Machine 415v image 7
Hydraulic Rise and Fall Table (SR50VAE)
Meyer SR50VAE Geared Head Drilling Machine 415v image 7
Meyer SR50VAE Geared Head Drilling Machine 415v image 8
Protective Guarding
Meyer SR50VAE Geared Head Drilling Machine 415v image 8
Meyer SR50VAE Geared Head Drilling Machine 415v image 9
Flood Coolant
Meyer SR50VAE Geared Head Drilling Machine 415v image 9
Meyer SR50VAE Geared Head Drilling Machine 415v image 10
Large Adjustable Work Table
Meyer SR50VAE Geared Head Drilling Machine 415v image 10
Meyer SR50VAE Geared Head Drilling Machine 415v image 11Meyer SR50VAE Geared Head Drilling Machine 415v image 11
Meyer SR50VAE Geared Head Drilling Machine 415v image 12
Variable Speeds (SR50VAE)
Meyer SR50VAE Geared Head Drilling Machine 415v image 12
Meyer SR50VAE Geared Head Drilling Machine 415v image 13
Autofeed Drilling & tapping
Meyer SR50VAE Geared Head Drilling Machine 415v image 13
Meyer SR50VAE Geared Head Drilling Machine 415v image 14
Digital Read Out
Meyer SR50VAE Geared Head Drilling Machine 415v image 14
A front shot of the SR50VAE showing the depth limited and auto-tapping handle
SR50VAE Pillar Drill with auto-tapping and the depth limiter.
A front shot of the SR50VAE showing the depth limited and auto-tapping handle
Meyer SR50VAE Geared Head Drilling Machine 415v image 16
Descent Speed Controls (SR50VAE)
Meyer SR50VAE Geared Head Drilling Machine 415v image 16
Meyer SR50VAE Geared Head Drilling Machine 415v image 17
Drilling or Tapping Mode
Meyer SR50VAE Geared Head Drilling Machine 415v image 17
Meyer SR50VAE Geared Head Drilling Machine 415v image 18
Drill Press Vice (Optional)
Meyer SR50VAE Geared Head Drilling Machine 415v image 18
Meyer SR50VAE Geared Head Drilling Machine 415v image 19
Universal Cross Table (Optional)
Meyer SR50VAE Geared Head Drilling Machine 415v image 19
MODEL   SR25 SR32 SR32AE SR50VAE
STOCKCODE 18046 18041 18042 18066
Drilling Capacity mm 25 32 32 50
Tapping Capacity M18 M22 M22 M30
Column dia mm 95 120 120 180
Spindle Taper MT no 3 4 4 4
Motor Kw 0.75 1/1.2 1/1.2 3
Speeds rpm 125 – 2825 (stepped) 125 – 3030 (stepped) 125 – 3030 (stepped) 50 – 2200 (variable)
Spindle Stroke mm 110 160 160 240
Work Table mm 350 x 400 500 x 420 500 x 420 580 x 460
Base Plate mm 340 x 340 330 x 330 320 x 320 440 x 450
Throat mm 240 320 320 360
Coolant No Standard Standard Standard
Auto Feed No No Yes Yes
Tapping Facility No No Yes Yes
RPM Digital Read Out No No Yes Yes
Length mm 700 830 830 980
Width mm 450 510 510 650
Height mm 1900 2180 2180 2370
Weight Kg 400 470 510 655

*Capacities are given for 250 N/mm plate yielding strength

Features

  • Geared head
  • Exceptional heavy construction
  • Large work tables
  • Auto tool release
  • Eye shield with interlock switch
  • Low voltage lamp
  • Rise and fall table
  • Rise and fall head
  • Forward and reverse
  • Coolant
  • Auto feed
  • Tapping Facility
  • Digital Read Out of live RPM count
  • Variable Drill Speed

Options

  • Drill Press Vice: 18009
  • Universal Cross Table: 18047

The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.
A mainstay of virtually every fabrication shop in the country, a pillar drill allows for quick and efficient hole drilling and tapping. With morse taper drill bits, you can quickly hot swap drill bits for different requirements.

Large work tables, guarding and rise and fall tables and heads, the Meyer range is extremely versatile for whatever material you are working with.

All bar the SR25 features a coolant system. The SR32AE and SR50VAE feature auto feed and tapping facility. The SR50VAE also features a variable drill speed, ideal for getting that perfect drill pierce quality.

The Meyer SR Geared Head Drilling Machine range will not disappoint.
