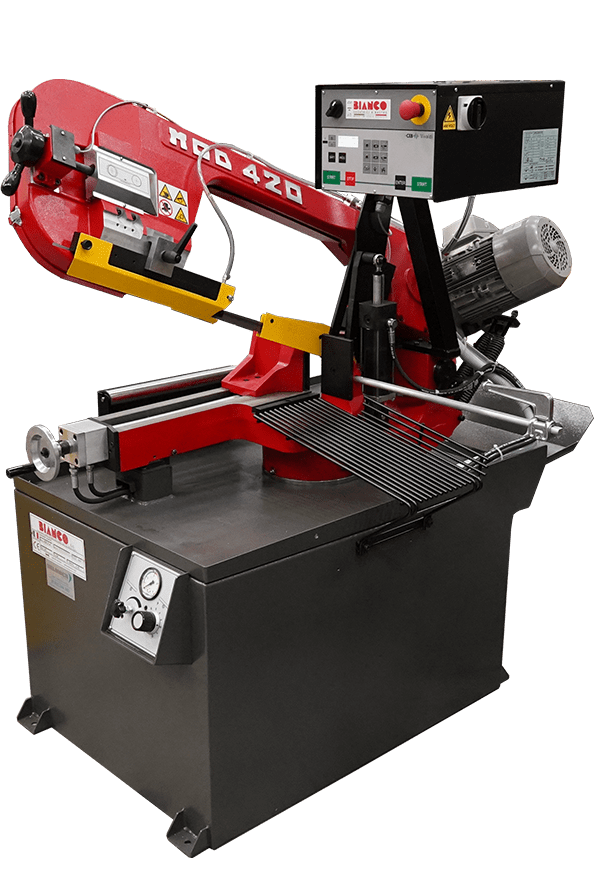

Bianco SAE Semi Automatic Single Mitre Bandsaw 415v

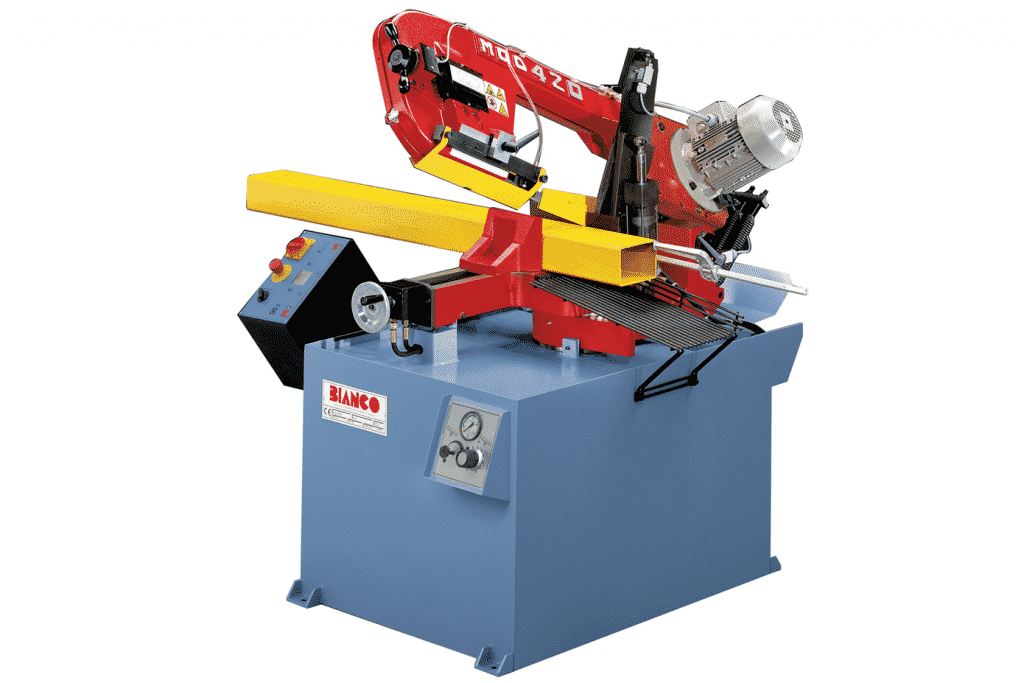

Main view - Bianco-SAE-Single-Mitre-Bandsaw

The Bianco SAE Semi Automatic Single Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

Main view - Bianco-SAE-Single-Mitre-Bandsaw
Main view - Bianco-SAE-Single-Mitre-BandsawMain view - Bianco-SAE-Single-Mitre-Bandsaw
Video thumbnail showing the Bianco SAE Semi Automatic Single Mitre Bandsaw 415v
Bianco SAE Semi Automatic Single Mitre Bandsaw 415v image 3
Bandsaw fully guarded up
Bianco SAE Semi Automatic Single Mitre Bandsaw 415v image 3

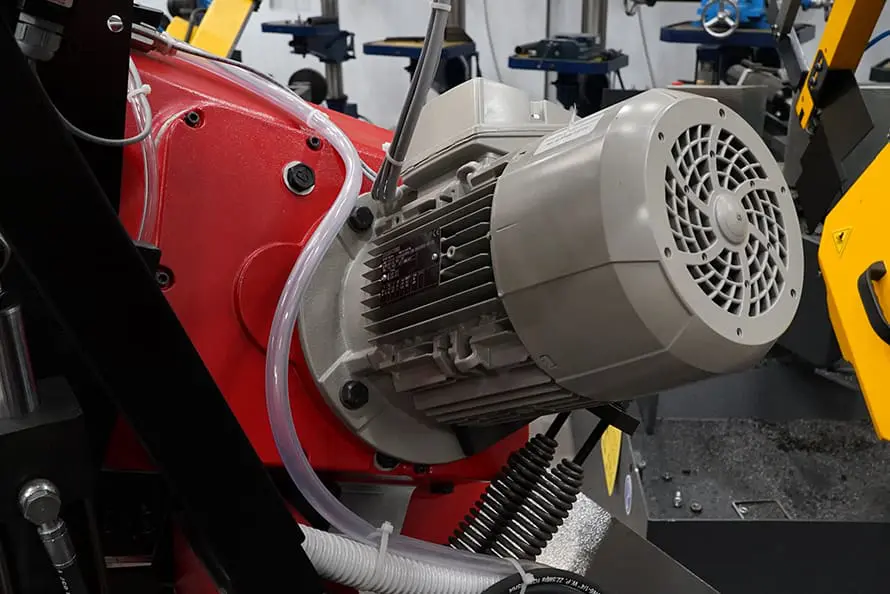

Close up detail of the Siemens Direct Drive MotorClose up detail of the Siemens Direct Drive Motor
Close up detail of the Fast Approach Bow with Auto Height Return SettingClose up detail of the Fast Approach Bow with Auto Height Return Setting
Close up detail of the Mitring ScaleClose up detail of the Mitring Scale
Optional - Cutting Angle Display
Optional - Cutting Angle Display
Optional - Cutting Angle Display

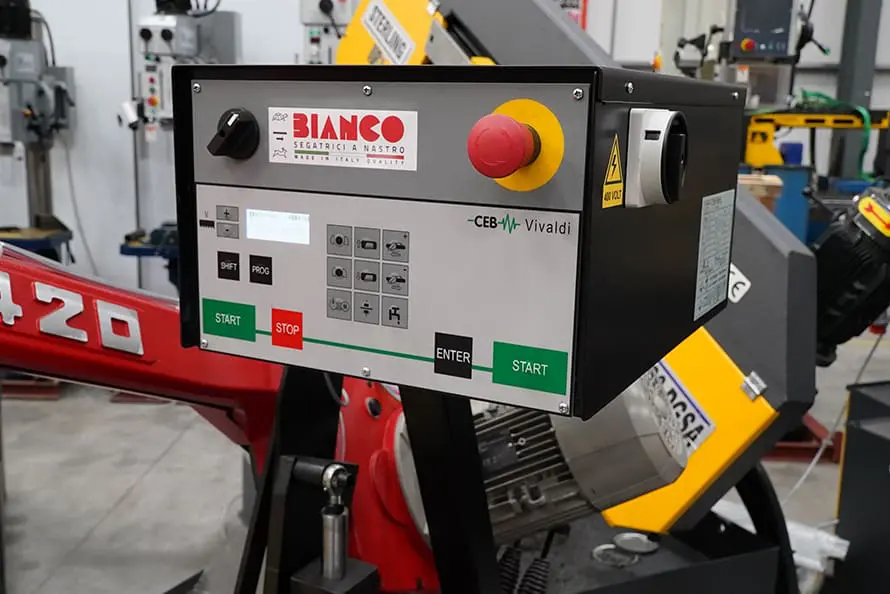

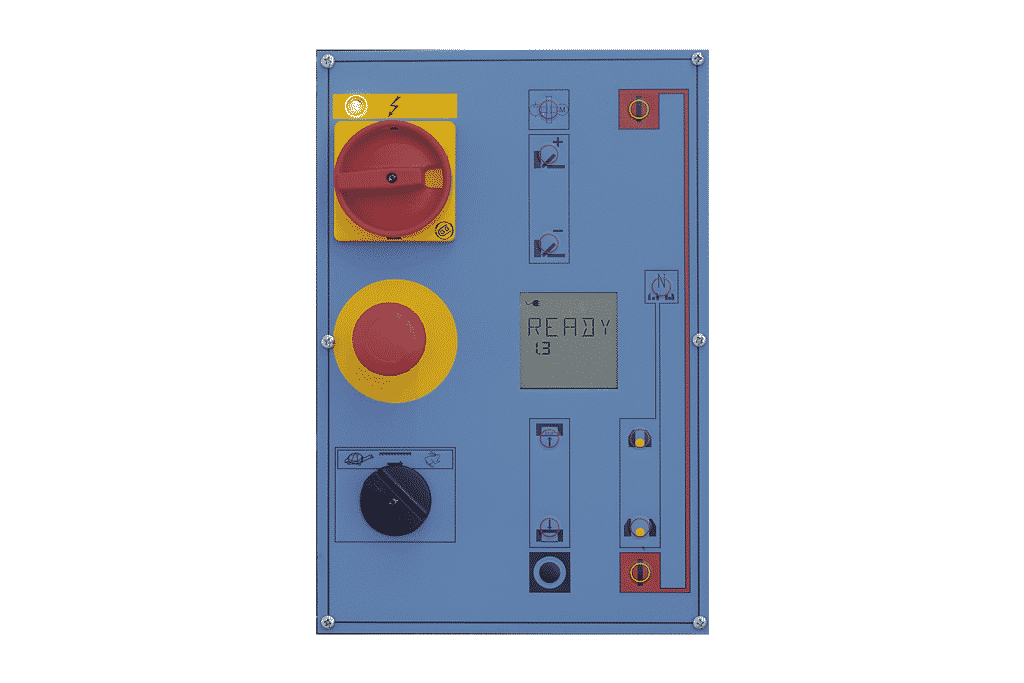

Low Control Panel
Standard - Low Control Panel
Low Control Panel
Optional - High Control Panel
Optional - High Control Panel
Optional - High Control Panel
Mechanical Bundle Clamping
Optional - Mechanical Bundle Clamping
Mechanical Bundle Clamping

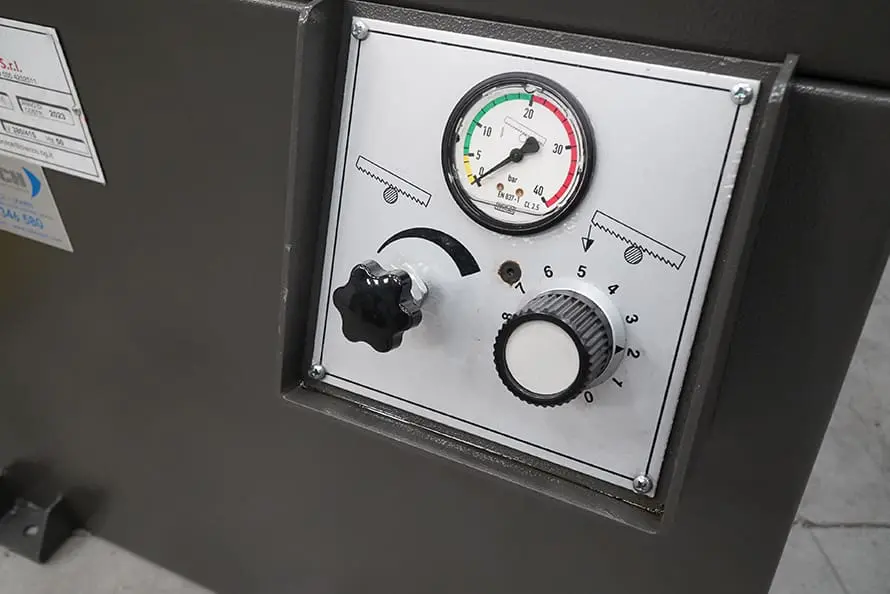

Variable Vice Pressure
Optional - Variable Vice Pressure
Variable Vice Pressure
Inverter
Optional - Inverter
Inverter
Hydraulic Bundle Clamping
Optional - Hydraulic Bundle Clamping
Hydraulic Bundle Clamping
Dry Cooling Device
Optional - Dry Cooling Device
Dry Cooling Device
Variable Blade Speed
Optional - Variable Blade Speed
Variable Blade Speed
Blade Deflection Device
Optional - Blade Deflection Device
Blade Deflection Device
MODEL   280 SAE 330SAE   370 SAE 420SAE
STOCKCODE 15062 15084
Capacity 90° 45° 60° 90° 45° 60° 90° 45° 60° 90° 45° 60°
◯ Tube mm 220 160 90 260 200 120 280 225 140 300 240 170
□ Box Section mm 200 140 90 240 190 115 240 215 140 240 230 170
▭ Widest Cut mm 250 x 150 140 x 140 90 x 90 330 x 120 200 x 130 120 x 100 370 x 140 230 x 140 140 x 130 420 x 200 270 x 140 170 x 170
Bed Height mm 830 830 830 830
Blade Size mm 2450 x 27 x 0.9 3010 x 27 x 0.9 3120 x 27 x 0.9 3270 x 27 x 0.9
Cutting Speed m/min 35 / 70 35 / 70 35 / 70 35 / 70
Motor Kw 0.5 – 0.7 0.9 – 1.5 0.9 – 1.5 0.9 – 1.5
Length mm 800 1200 1200 1200
Width mm 1030 1600 1650 1650
Height mm 1860 1800 1850 1900
Weight Kg 290 394 400 410
Operation Semi-Automatic Semi-automatic Semi-automatic Semi-automatic
Vice Hydraulic Hydraulic Hydraulic Hydraulic

Features

  • Quick mitring swivel head up to 60°

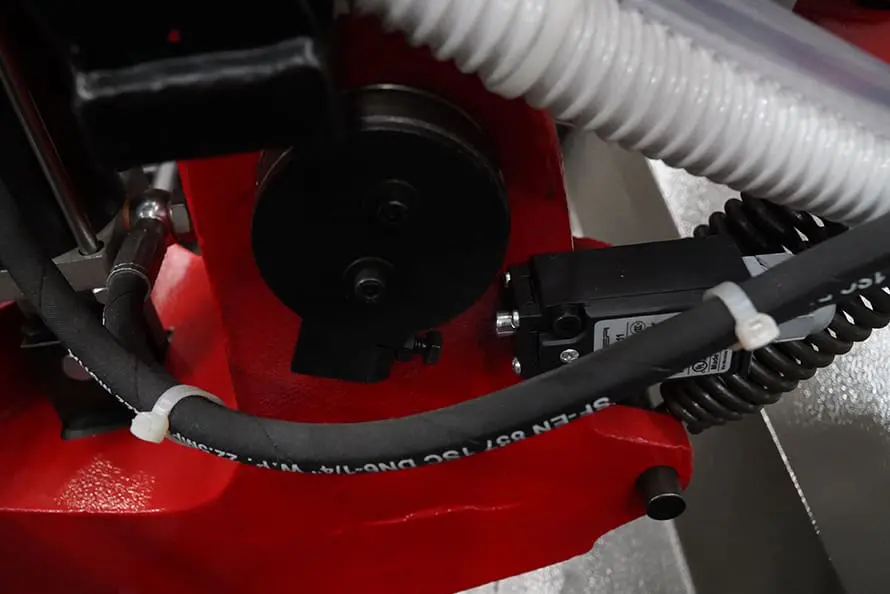

  • Fast approach with auto bow height return setting (Semi-Automatic)
  • Hydraulic cutting with variable pressure and variable speed

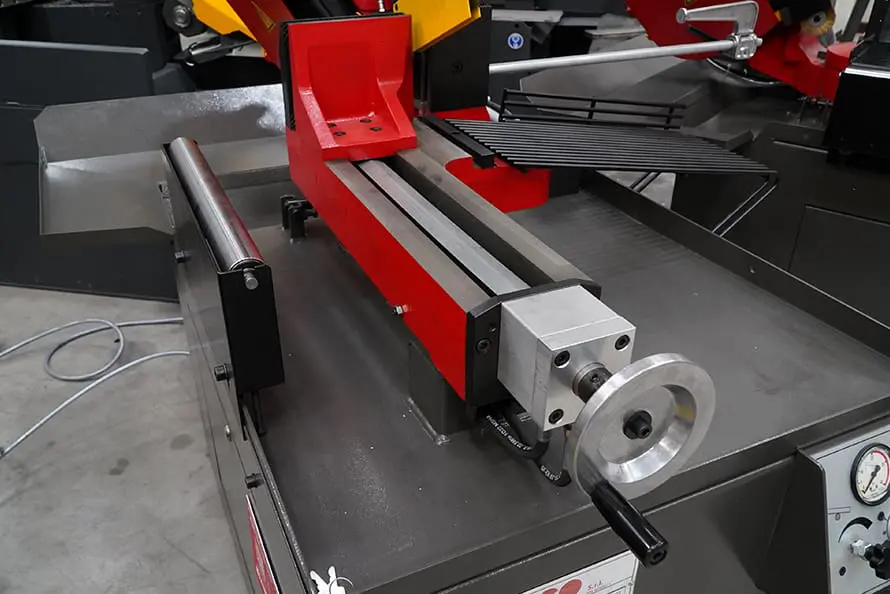

  • Hydraulic vice

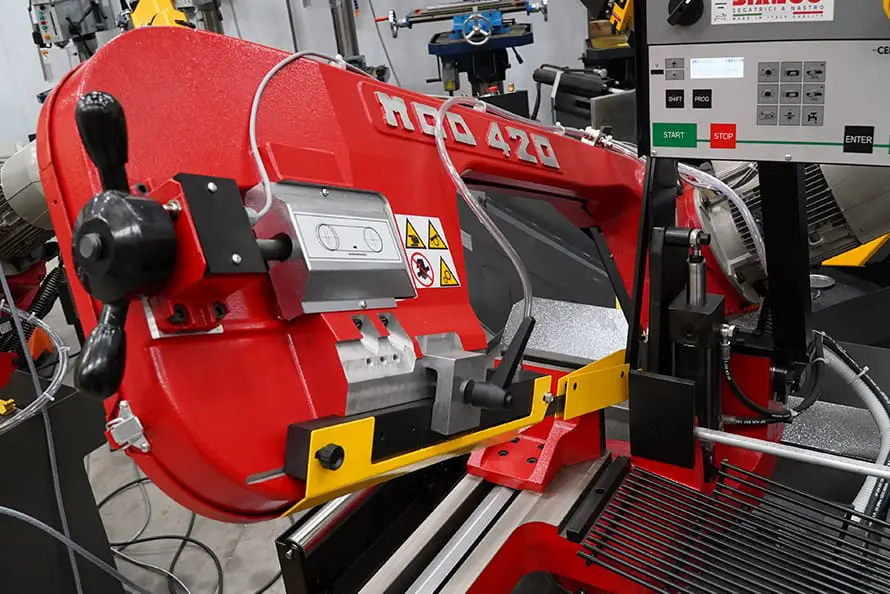

  • Cast bow construction

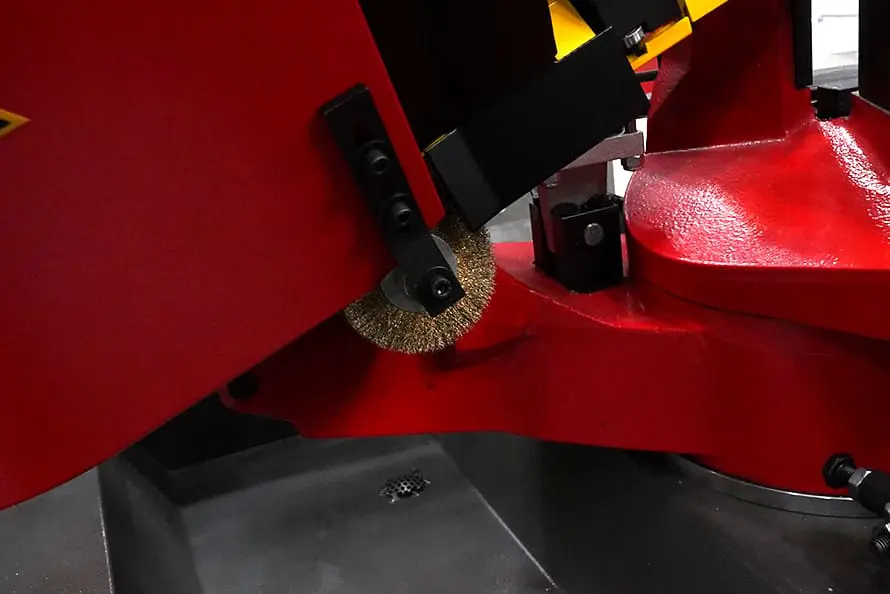

  • Swarf brush
  • Carbide blade guides for high accuracy
  • 2 speed motor
  • Heavy duty
  • Coolant system
  • Blade tension indicator
  • Safety interlock switch fitted to bandwheel cover

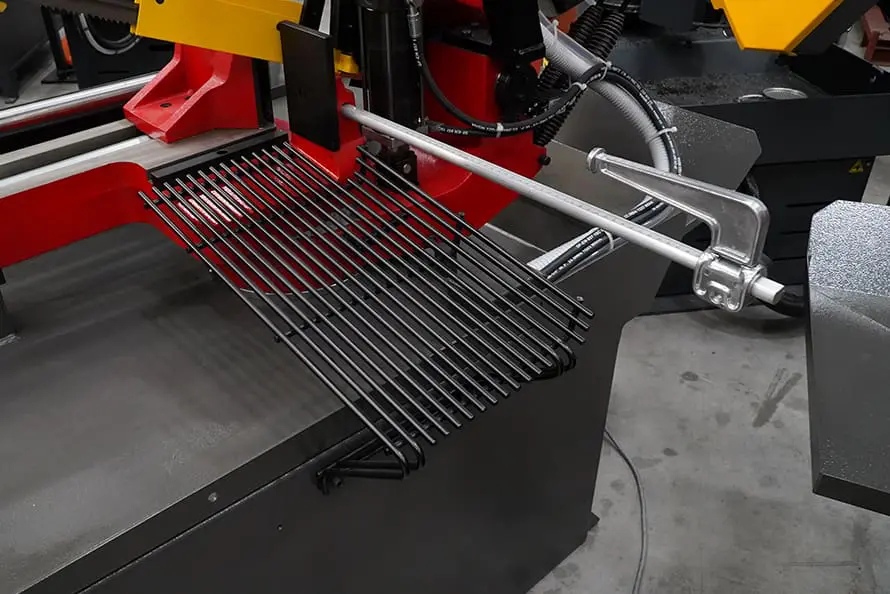

  • Material length stop
  • Low controller position

Options

  • High controller position
  • Blade speed variation
  • Spray mist cooling system
  • Powered swarf brush
  • Roller track and measuring systems

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

All SAE models feature automatic bow return and hydraulic vices. Two speed motors allow for both the cutting of mild steel and stainless steel.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, plate and profiles, bandsaws like this are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
