Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v

Bianco 420MS

The Bianco 280 and 420 MS Pull/Auto Down Single Mitre Bandsaws are renown for their quality cutting and precision. Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

Bianco 420MS
Bianco 420MSBianco 420MS
Video thumbnail showing the Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v

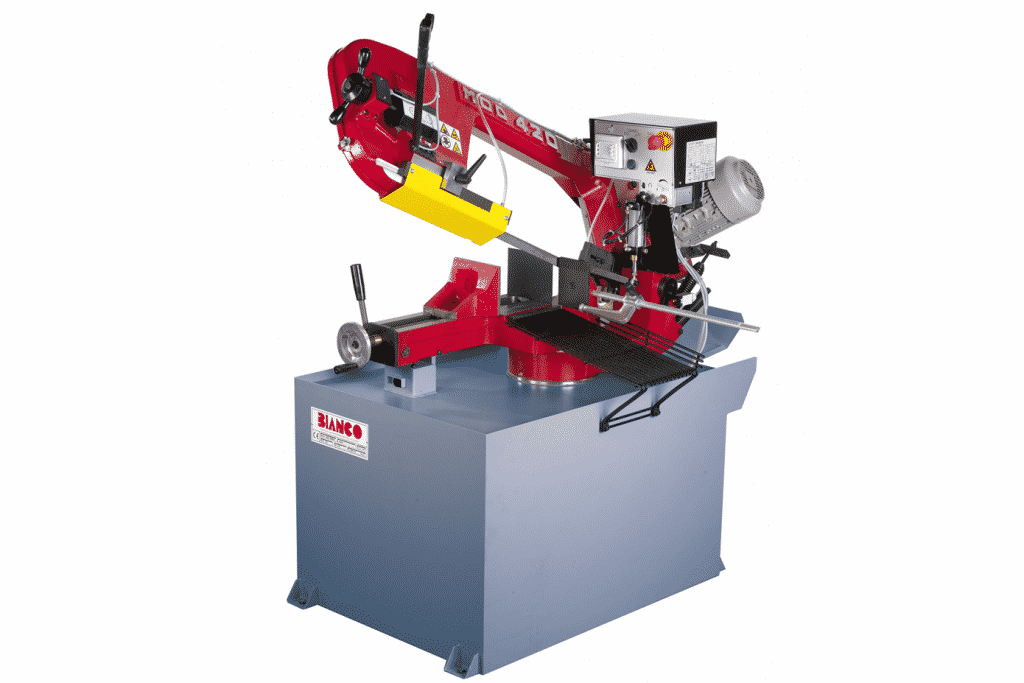

Front view - Bianco-MS-Single-Mitre-Manual-BandsawFront view - Bianco-MS-Single-Mitre-Manual-Bandsaw
Close up detail of the Siemens Direct Drive MotorClose up detail of the Siemens Direct Drive Motor
Close up detail of the Mitring ScaleClose up detail of the Mitring Scale

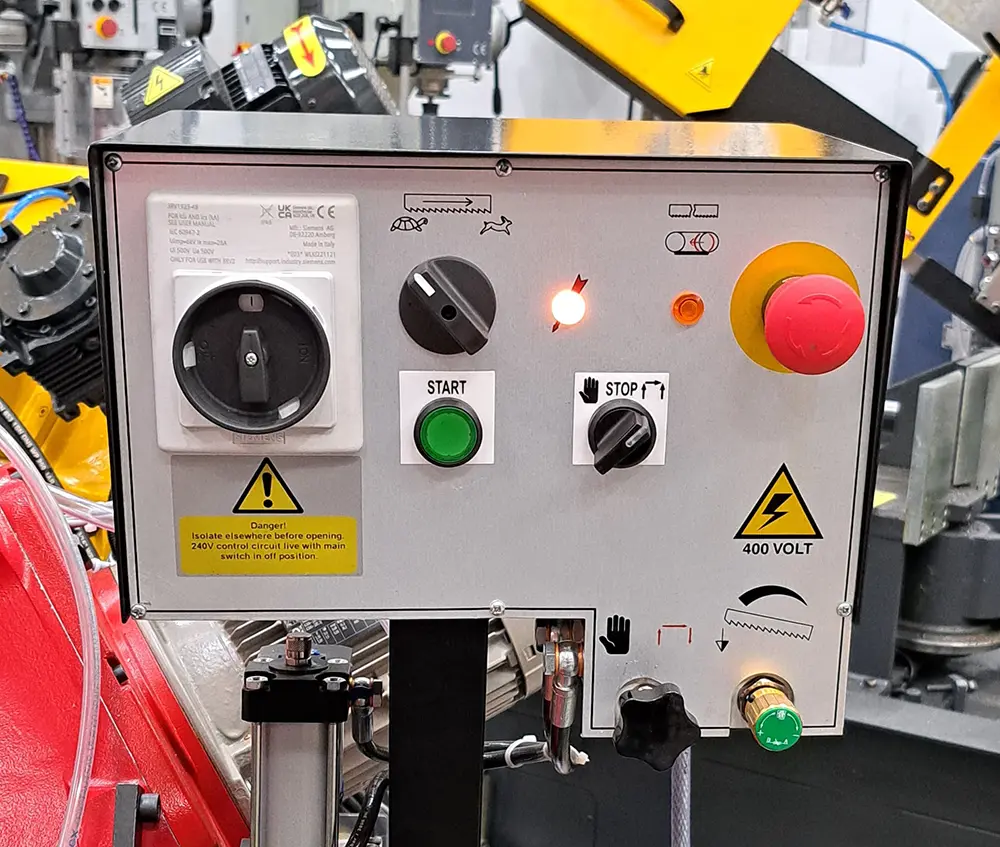

Detail of the Hydraulic Downfeed Controls on a Auto Down Feed Single Mitre BandsawDetail of the Hydraulic Downfeed Controls on a Auto Down Feed Single Mitre Bandsaw
Close up detail of the Pull Down Auto Down Feed Bandsaw Control PanelClose up detail of the Pull Down Auto Down Feed Bandsaw Control Panel

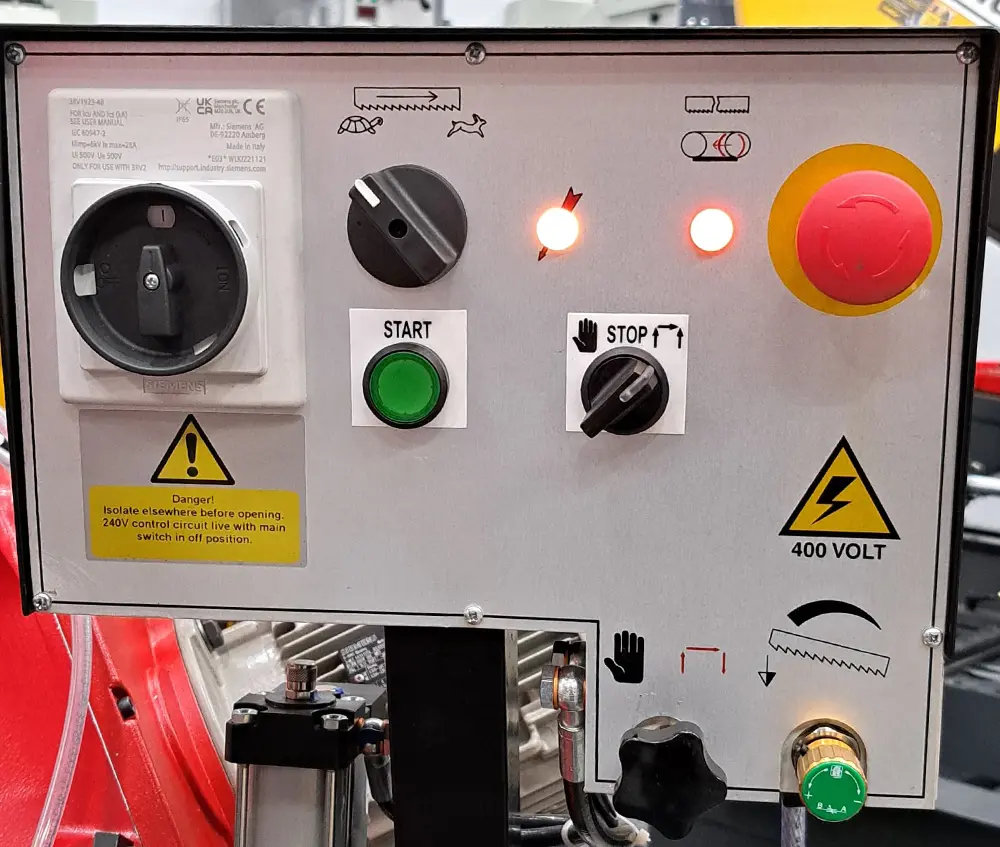

Close up detail of the blade tension with limit switchClose up detail of the blade tension with limit switch
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 9
Variable Speed Motor
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 9
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 10
Pneumatic Vice (Optional)
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 10
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 11
Dry Cooling (Optional)
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 11
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 12
Frequency Inverter (Optional)
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 12



MODEL280M280MS330MS420MS
STOCKCODE15066150691507315083
Capacity90°45°60°90°45°60°90°45°60°90°45°60°
◯ Tubemm2201609522016095260200120300240170
▢ Box Sectionmm2201559522015595220190115260230170
▭ Widest Cutmm260 x 140160 x 14095 x 95260 x 140160 x 14095 x 95330 x 140200 x 130120 x 100420 x 180250 x 180170 x 170
Bed Heightmm970970830830
Blade Sizemm2450 x 27 x 0.92450 x 27 x 0.93010 x 27 x 0.93270 x 27 x 0.9
Cutting Speedm/min35/7035/7035/7035/70
MotorKw0.5 – 1.10.5 – 1.10.7 – 1.40.7 – 1.4
Lengthmm1200120014001600
Widthmm8008009001000
Heightmm1700170019001900
WeightKg300320390480
OperationPull DownPull Down/Auto Down FeedPull Down/Auto Down FeedPull Down/Auto Down Feed
ViceManualManualManualManual

Features

  • Special feature where you can choose between Instant pull down or switch to Automatic gravity down feed with variable control
  • Quick mitring swivel head up to 60°
  • Fast cutting
  • Cast bow construction
  • Carbide blade guides for high accuracy
  • 2 speed motor
  • Heavy Duty
  • Coolant System
  • Blade tension indicator
  • Safety interlock switch fitted to bandwheel cover
  • Material length stop

Options

  • Blade speed variation
  • Spray mist cooling system
  • Pneumatic Vice
  • Roller track and measuring systems

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

All M and MS models have quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees. Two speed motors allow for both the cutting of mild steel and stainless steel.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, plate and profiles, bandsaws like this are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We also supply blades and coolant too, these can be purchased directly off our tooling website.
