Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

All DS MS models have double quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees right and 45 degrees left. Two speed motors allow for both the cutting of mild steel and stainless steel.

Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v imageBianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image
Video thumbnail showing the Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 3

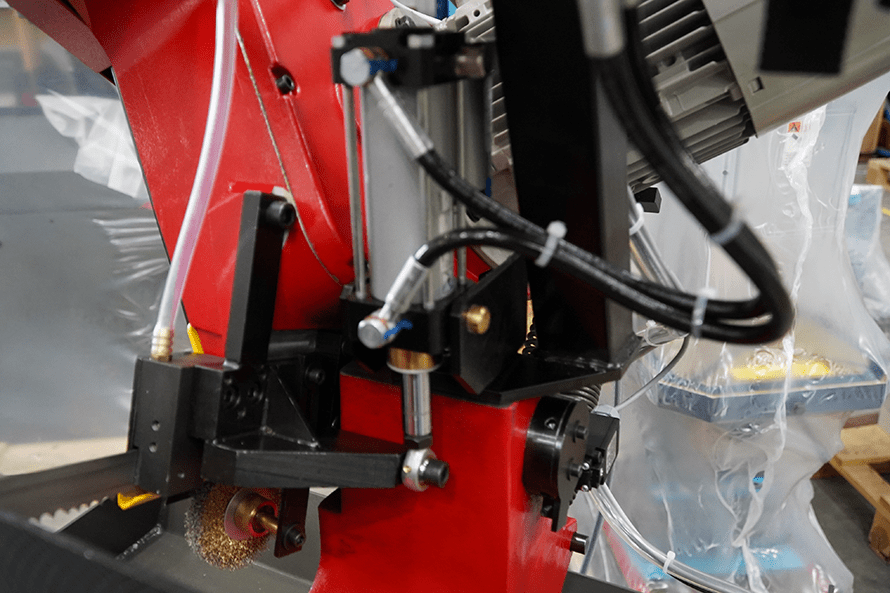

Automatic Bow Return
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 3
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 4

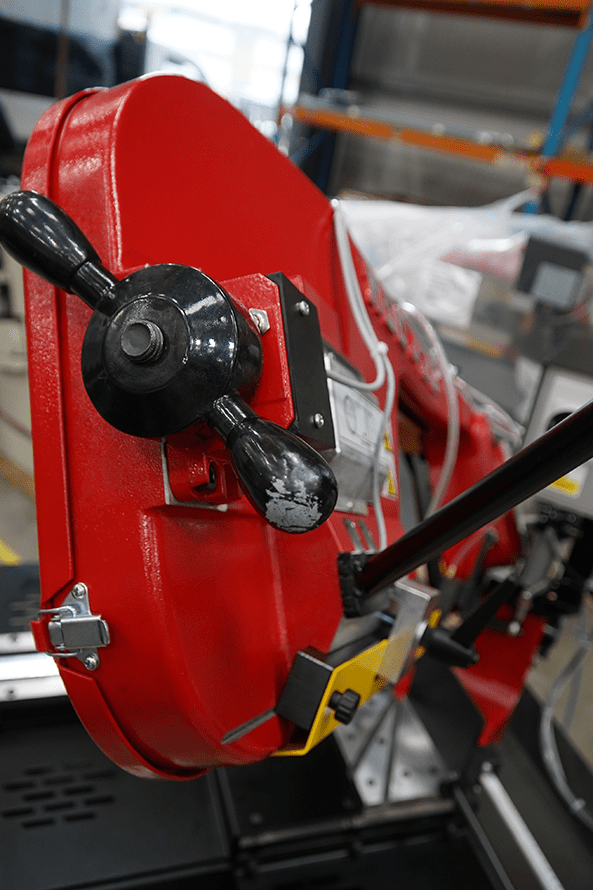

Blade Tension Adjustment
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 4
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 5

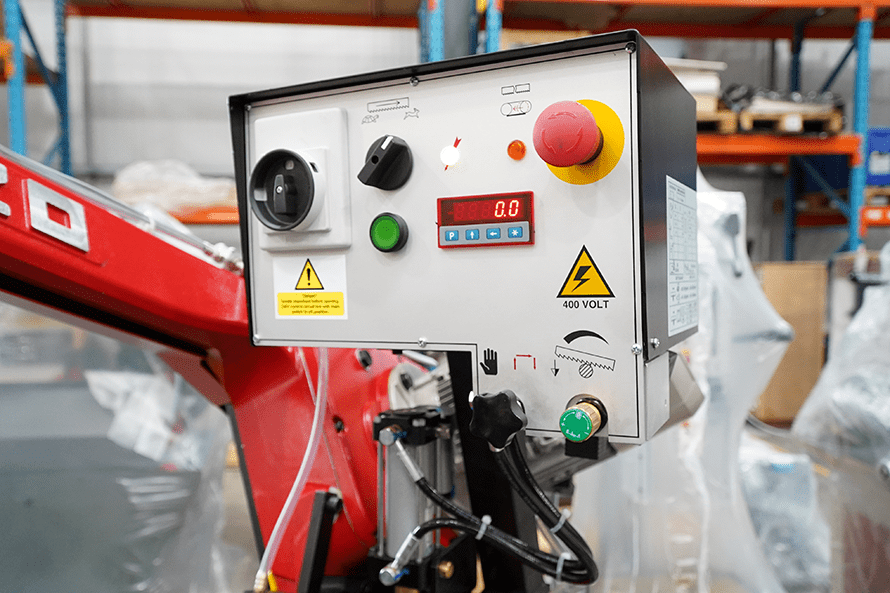

Control Panel
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 5
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 6

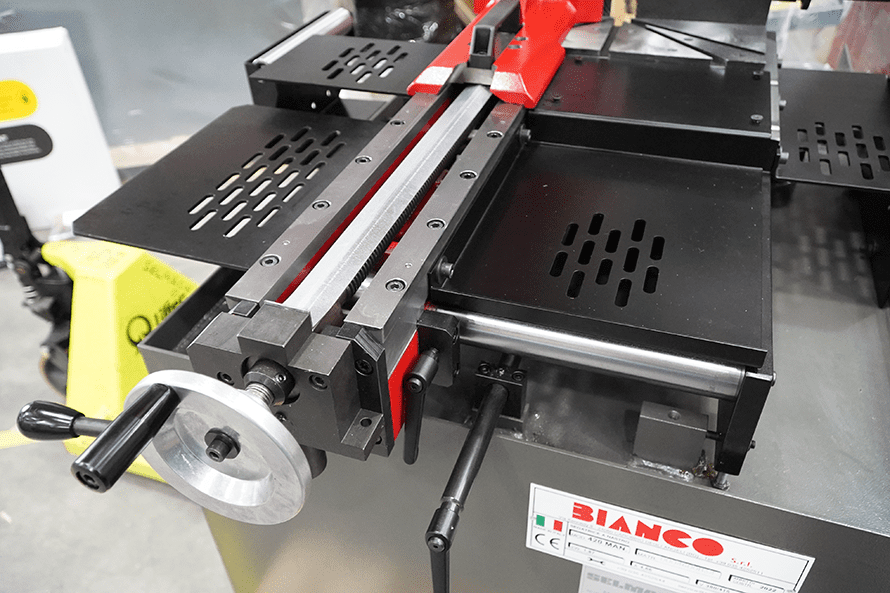

Manual Vice
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 6
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 7

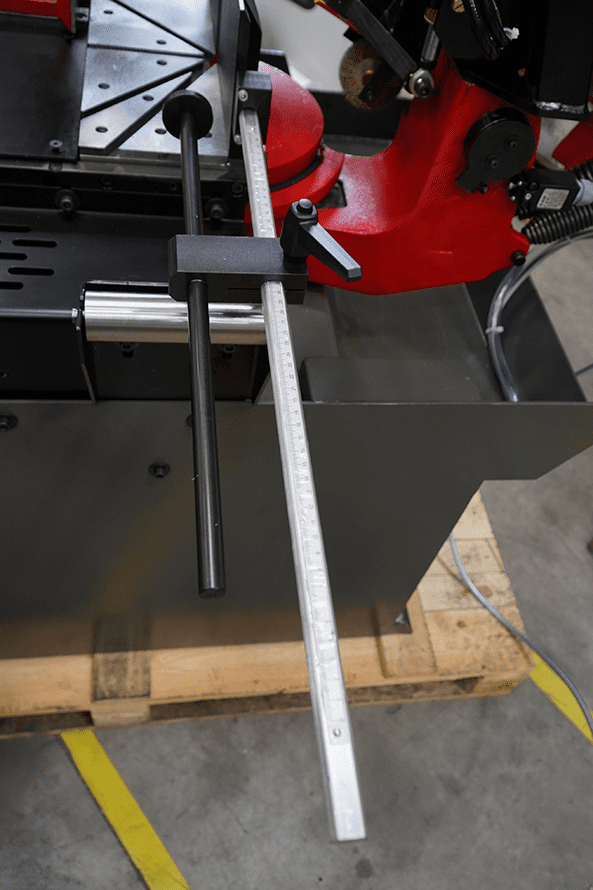

Material Length Stop
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 7
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 8

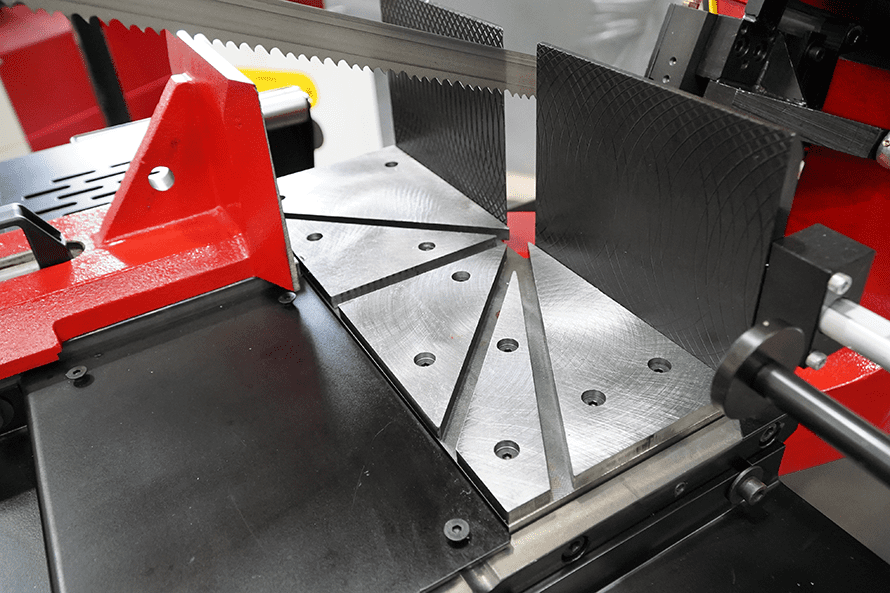

Sacrificial Plate
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 8
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 9

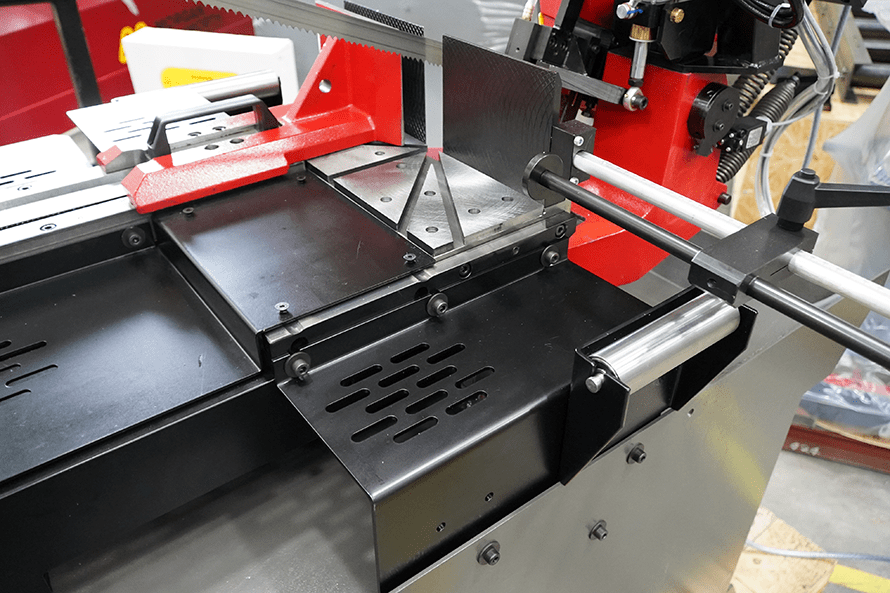

Vice Assembly
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 9
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 10

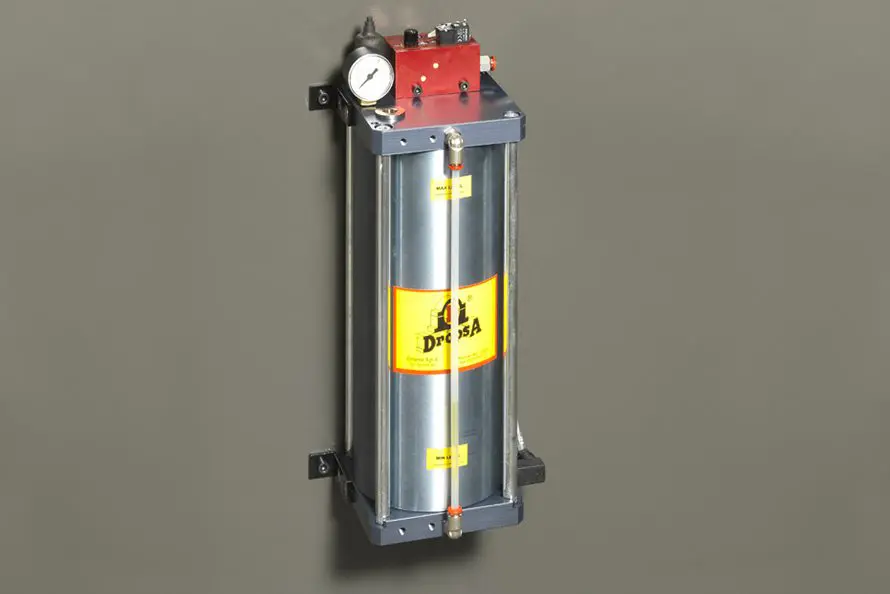

Dry Cooling (Optional)
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 10
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 11

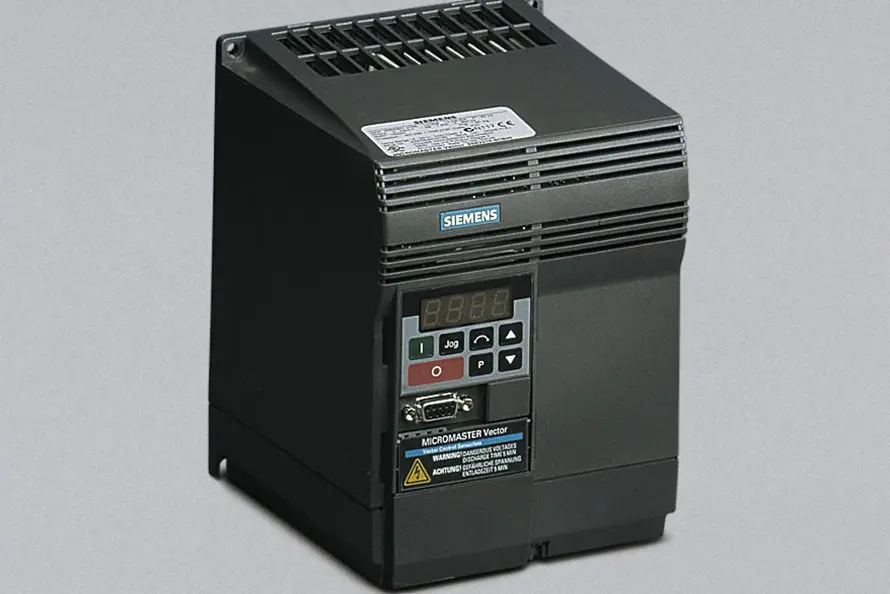

Frequency Inverter (Optional)
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 11
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 12

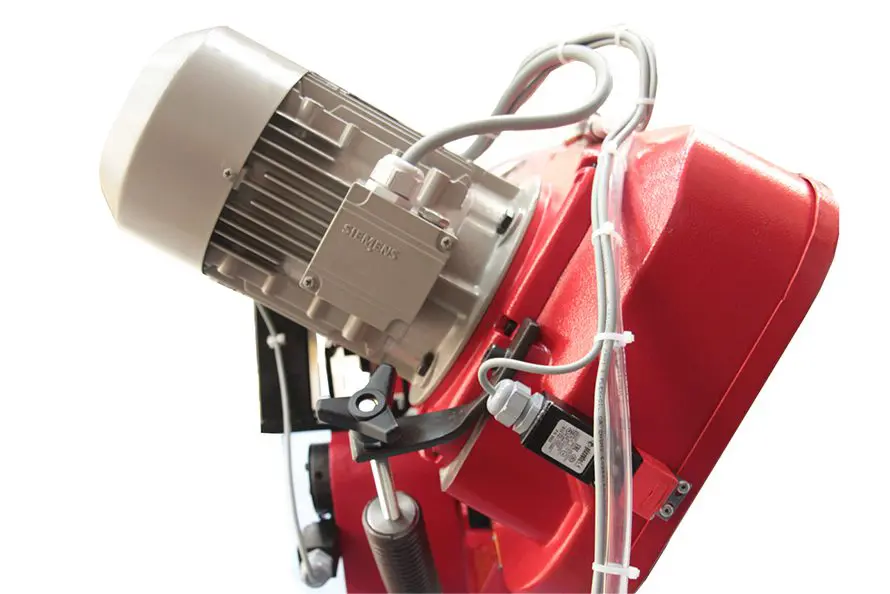

Siemens Motor
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 12
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 13

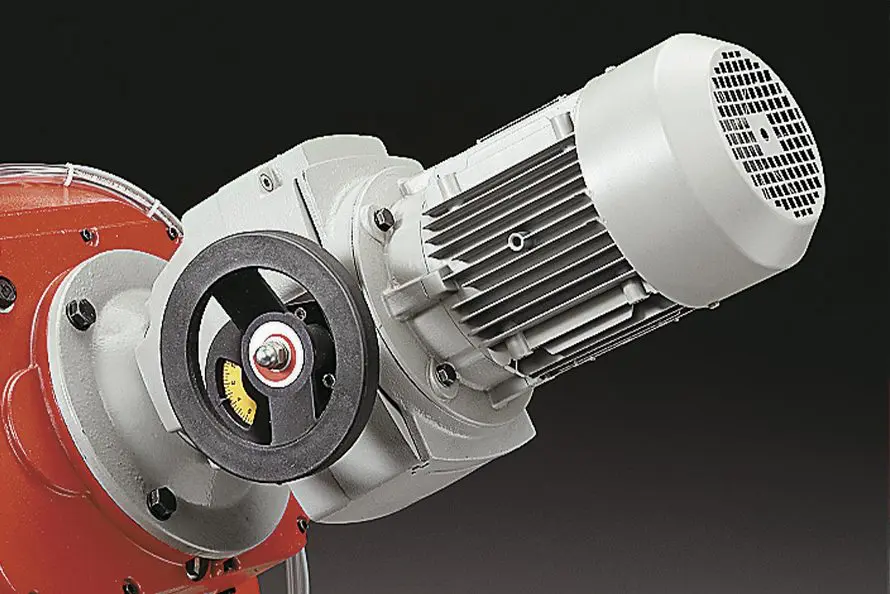

Variable Speed Motor
Bianco DS MS Auto Down-Feed Double Mitre Bandsaw 415v image 13
MODEL   330 DS MS     370 DS MS           420 DS MS
Capacity 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R
Round mm 260 130  150 120 280 200 230 150 280 200 260 170
Square mm 220 110 150 110 250 170 200 130 240 180 240 160
Rectangle mm 330 x 120 190 x 110 190 x 150 120 x 120 220 x 200 220 x 110 230 x 120 130 x 130 420 x 200 250 x 100 260 x 200 160 x 160
Blade Size mm 3010 x 27 x 0.9 3120 x 27 x 0.9 3270 x 27 x 0.9
Cutting Speed m/min 35 / 70 35 / 70 35 / 70
Motor Kw 0.9 – 1.5 0.9 – 1.5 0.9 – 1.5
Length mm 1400 1400 1400
Width mm 1500 1550 1600
Height mm 1700 1750 1800
Weight Kg 400 420 438
Operation Pull Down / Auto Down Feed Pull Down / Auto Down Feed Pull Down / Auto Down Feed
Vice Manual Manual Manual

Features

  • Special feature where you can choose between Instant pull down or switch to Automatic gravity down feed with variable control
  • Quick mitring swivel head up to 60° R and 45° L
  • Fast cutting
  • Cast bow construction
  • Carbide blade guides for high accuracy
  • 2 speed motor
  • Heavy duty
  • Digital cutting angle display
  • Coolant system
  • Blade tension indicator
  • Safety interlock switch fitted to bandwheel cover
  • Material length stop

Options

  • Blade speed variation
  • Spray mist cooling system
  • Pneumatic Vice
  • Roller track and measuring systems

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

All DS MS models have double quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees right and 45 degrees left. Two speed motors allow for both the cutting of mild steel and stainless steel. Suitable for medium size round, plate and profile cutting. The bow, realized in aluminium die-casting guarantees flexibility and resistance. With a sliding vice, the DS MS range allows for easy and quick placement of material for cutting. Up to 60 degree cutting right, and 45 degree cutting left. Complete with a millimetre rule 0-500 mm with mechanical length stop, an infeed and outfeed roller and encoder + cutting angle digital display.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
