Bianco DS CNC 3R Bandsaw

The Bianco DS CNC range offers automatic bow swing in addition to the automatic material feeding system. The 3R features a 3 metre carriage stroke. Both of these functions are controlled through the NC control panel or by optional offline programming. The bow rotation and feeding carriage are controlled by brush-less motors. The controller can be upgraded to a 7″ or 10″ touch screen controller, for easier use.

All Bianco machines are manufactured in Italy to high quality standards with accuracy and longevity as prime considerations.

Bianco DS CNC 3R Bandsaw imageBianco DS CNC 3R Bandsaw image
Video thumbnail showing the Bianco DS CNC 3R Bandsaw
Bianco DS CNC 3R Bandsaw image 3

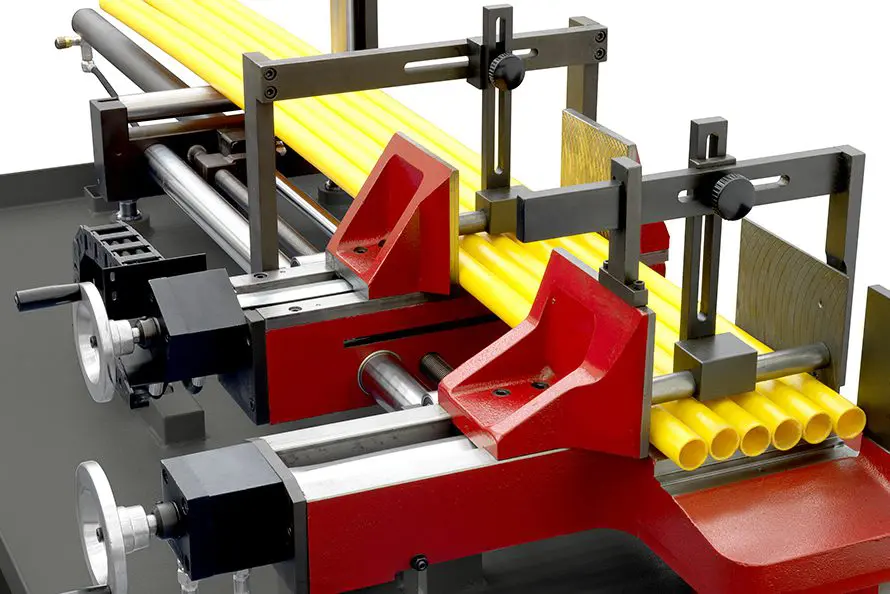

Mechanical Bundling (Optional)
Bianco DS CNC 3R Bandsaw image 3
Bianco DS CNC 3R Bandsaw image 4

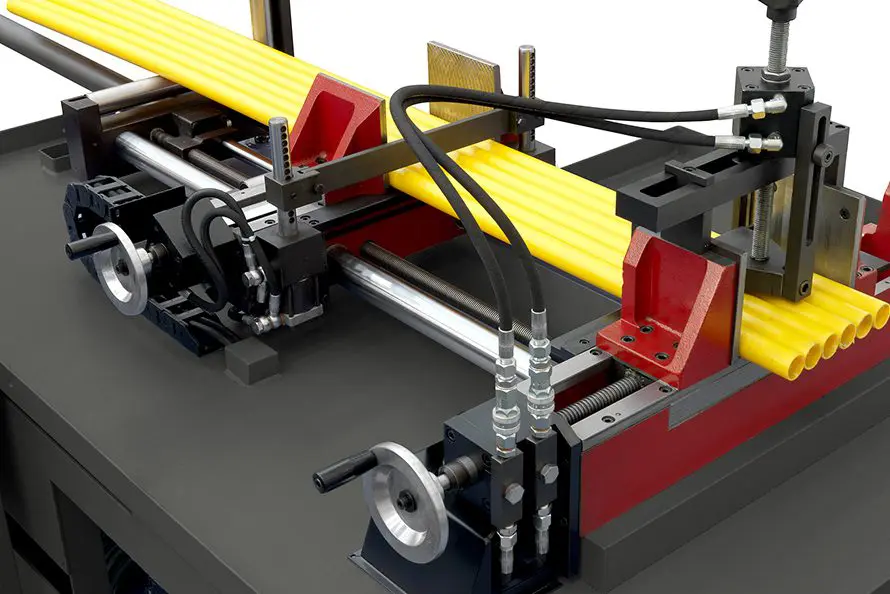

Hydraulic Bundling (Optional)
Bianco DS CNC 3R Bandsaw image 4
Bianco DS CNC 3R Bandsaw image 5

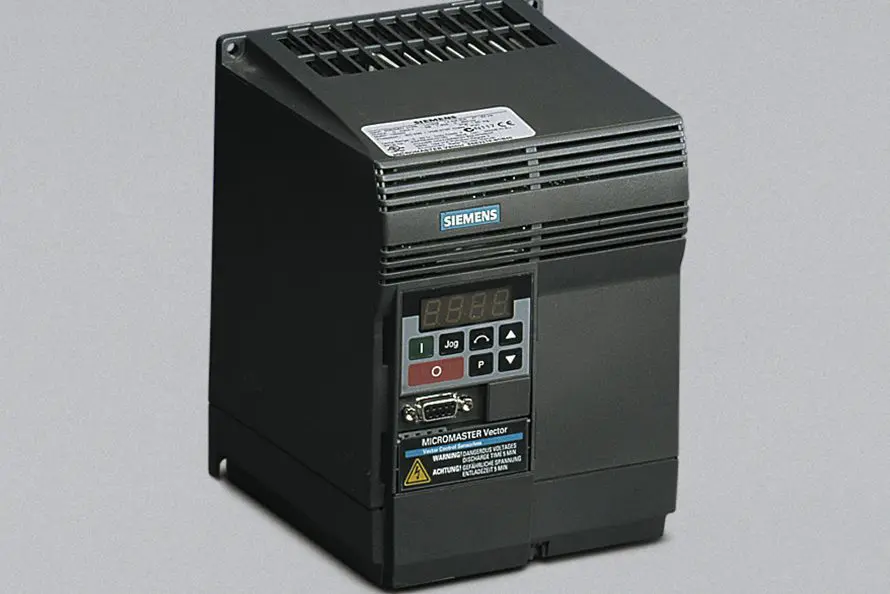

Frequency Inverter (Optional)
Bianco DS CNC 3R Bandsaw image 5
Bianco DS CNC 3R Bandsaw image 6

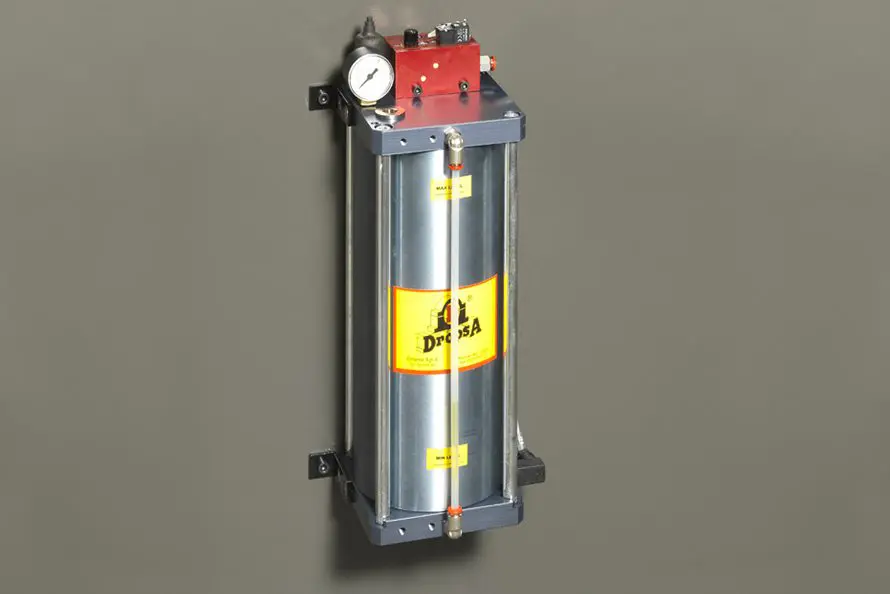

Dry Cooling (Optional)
Bianco DS CNC 3R Bandsaw image 6
Bianco DS CNC 3R Bandsaw image 7
Adjustable Vice Pressure (Optional)
Bianco DS CNC 3R Bandsaw image 7
MODEL     370A DS CNC 3R
STOCKCODE 15085
Capacity 90° 45° 60° -45°
◯ Tube mm 280 230 140 200
▢ Box Section mm 240 230 140 170
▭ Widest Cut mm 310 x 240 230 x 230 140 x 140 220 x 100
Bed Height mm 835
Blade Size mm 3120 x 27 x 0.9
Cutting Speed m/min 20 – 100
Motor Kw 1.5
Length mm 2800
Width mm 2000
Height mm 1820
Weight Kg 1200
Operation CNC Automatic
Vice Hydraulic
Remnant Piece (Scrap Length) mm 240
Carriage Stroke mm 3000

*When cutting solid bar, a maximum of 150mm is recommended in Auto mode, beyond should be cut in manual mode.

Features

  • Carriage stroke – 3000mm
  • NC controller
  • Hydraulic cutting with variable pressure and variable speed
  • Hydraulic vice
  • Fast approach with auto bow height return setting
  • Cast bow construction
  • Carbide blade guides for high accuracy
  • Quick mitring swivel head up to 60°
  • Fully automatic cutting cycle with hydraulic vice feed system
  • Shuttle vice facility for long cutting lengths
  • Brush less motor left and right bow swing
  • Chip conveyor
  • Swarf brush
  • Scrap length 240mm

Options

  • Touch screen controller
  • Spray mist cooling system
  • Mechanical bundle cutting
  • Hydraulic bundle cutting
  • Variable clamping pressure
  • Cutting Software to set-up cutting schedules via USB Drive
  • Cutting Software to set-up or modify cutting schedules via Remote Connection (LAN Ethernet)
  • Teleservice – Remote service direct from Bianco throughout the warranty period of the machine
  • Roller track and measuring systems

The Bianco DS CNC range offers automatic bow swing in addition to the automatic material feeding system. Both of these functions are controlled through the NC control panel or by optional offline programming. The bow rotation and feeding carriage are controlled by brush-less motors. The controller can be upgraded to a 7″ or 10″ touch screen controller, for easier use.

This fully automatic saw is capable of 60° mitring to the right, and 45° to the left, with NC control of all machine functions. The carriage stroke is 3,000mm, and can be fitted with an automatic loading solution.

Bianco advises that this machine should be taken out of automatic mode for material larger than 150 mm Ø. For solutions for larger material, take a look at our Sterling CNC ranges.

All Bianco machines are manufactured in Italy to high quality standards with accuracy and longevity as prime considerations.
