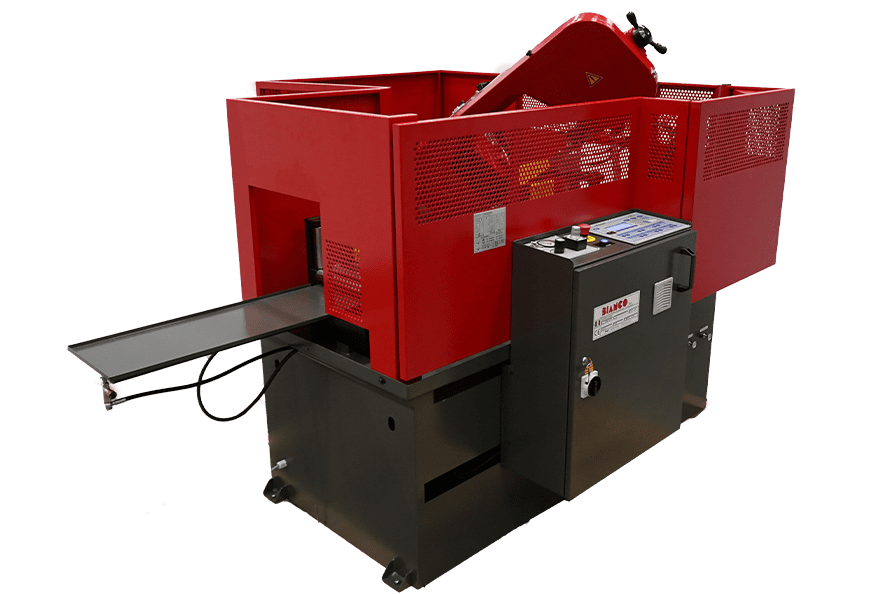

Bianco AF CNC Fully Automatic Right Hand Vice Bandsaw

The Bianco AF CNC Fully Automatic Right Hand Vice Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

Bianco AF CNC Fully Automatic Right Hand Vice Bandsaw imageBianco AF CNC Fully Automatic Right Hand Vice Bandsaw image
Bianco AE PLC Fully Automatic Single Mitre BandsawBianco AE PLC Fully Automatic Single Mitre Bandsaw
Bianco AF CNC Fully Automatic Right Hand Vice Bandsaw image 3

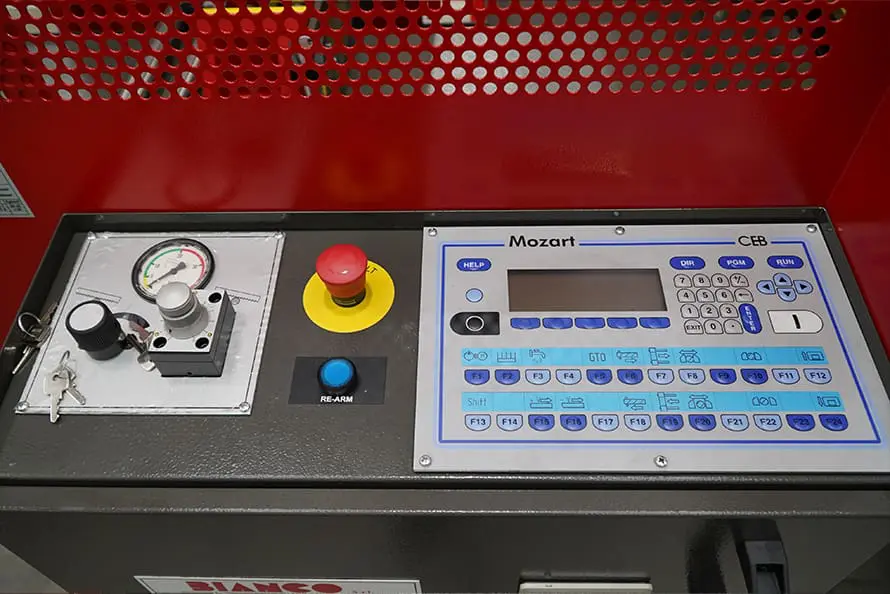

CNC Control Panel
Bianco AF CNC Fully Automatic Right Hand Vice Bandsaw image 3
Bianco AF CNC Fully Automatic Right Hand Vice Bandsaw image 4
CNC Touchscreen Control Panel (Optional & Highly Recommended)
Bianco AF CNC Fully Automatic Right Hand Vice Bandsaw image 4
Blade Deflection Device
Optional - Blade Deflection Device
Blade Deflection Device
Digital Read-Out Angle Finder
Optional - Digital Read-Out Angle Finder
Digital Read-Out Angle Finder
Dry Cooling Device
Optional - Dry Cooling Device
Dry Cooling Device
Variable Vice Pressure
Optional - Variable Vice Pressure
Variable Vice Pressure
Mechanical Bundle Clamping
Optional - Mechanical Bundle Clamping
Mechanical Bundle Clamping

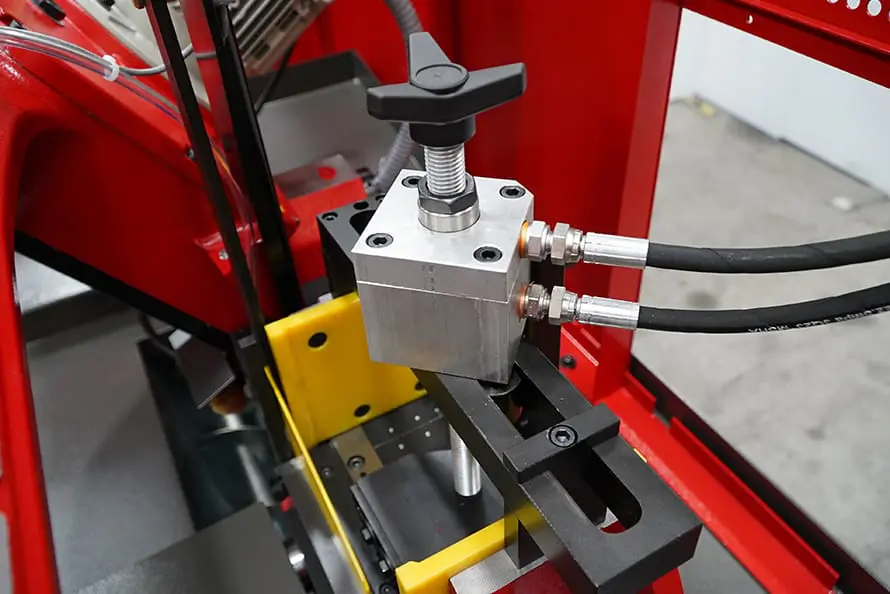

Hydraulic Bundle Clamping
Optional - Hydraulic Bundle Clamping
Hydraulic Bundle Clamping
MODEL 330AF PLC 370AF PLC 420AF PLC
STOCKCODE 15527 15112 15532
Capacity 90° 90° 90°
◯ Tube mm 260 280 300
□ Box Section mm 240 240 240
▭ Widest Cut mm 330 x 120 330 x 240 420 x 200
Bed Height mm 835 835 835
Blade Size mm 3010 x 27 x 0.9 3120 x 27 x 0.9 3270 x 27 x 0.9
Cutting Speed m/min 20 – 100 20 – 100 20 – 100
Motor Kw 0.9 – 1.5 0.9 – 1.5 0.9 – 1.5
Length mm 2800 2800 2800
Width mm 2100 2100 2100
Height mm 1900 1900 1900
Weight Kg 1090 1090 1090
Operation Automatic Automatic Automatic
Vice Hydraulic Hydraulic Hydraulic
Remnant Piece mm 25 25 25
Carriage Stroke mm 800 800 800

*When cutting solid bar, a maximum of 150mm is recommended in Auto mode, beyond should be cut in manual mode.

Features

  • CNC control programmer for varying cutting lengths and quantities
  • Front hydraulic ram for increased bow support
  • Hydraulic cutting with variable pressure and variable speed
  • Hydraulic vice
  • Right hand vice – for reduced scrap length & improved control of material when auto-feeding
  • Fast approach with auto bow height return setting
  • Cast bow construction
  • Carbide blade guides for high accuracy
  • Quick mitring swivel head up to 60°
  • Fully automatic cutting cycle with hydraulic vice feed system

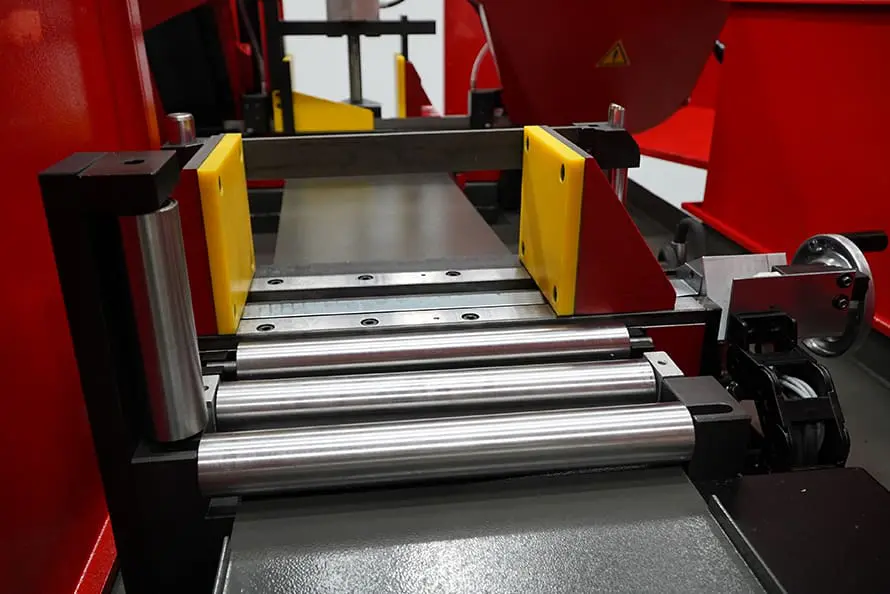

  • Shuttle vice facility for long cutting lengths
  • Scrap length 25mm

Options

  • Touch Screen Controller (Highly recommended)
  • Blade speed variation
  • Spray mist cooling system

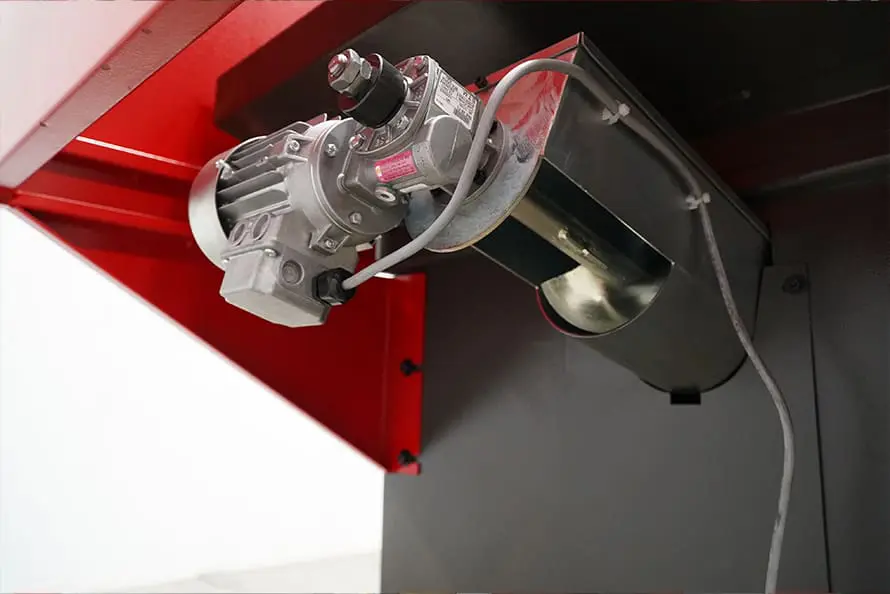

  • Chip conveyor

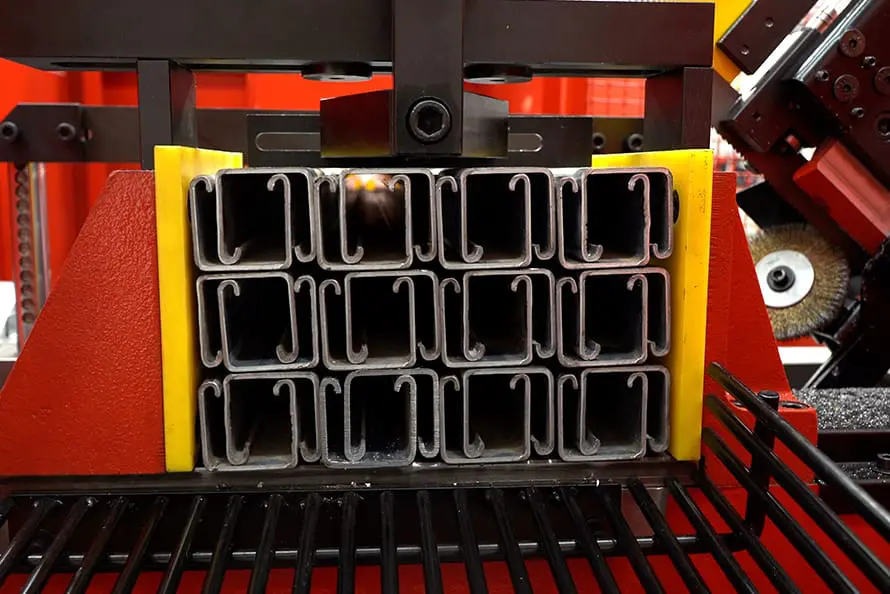

  • Hydraulic bundle cutting
  • Variable clamping pressure
  • Roller track and measuring systems
