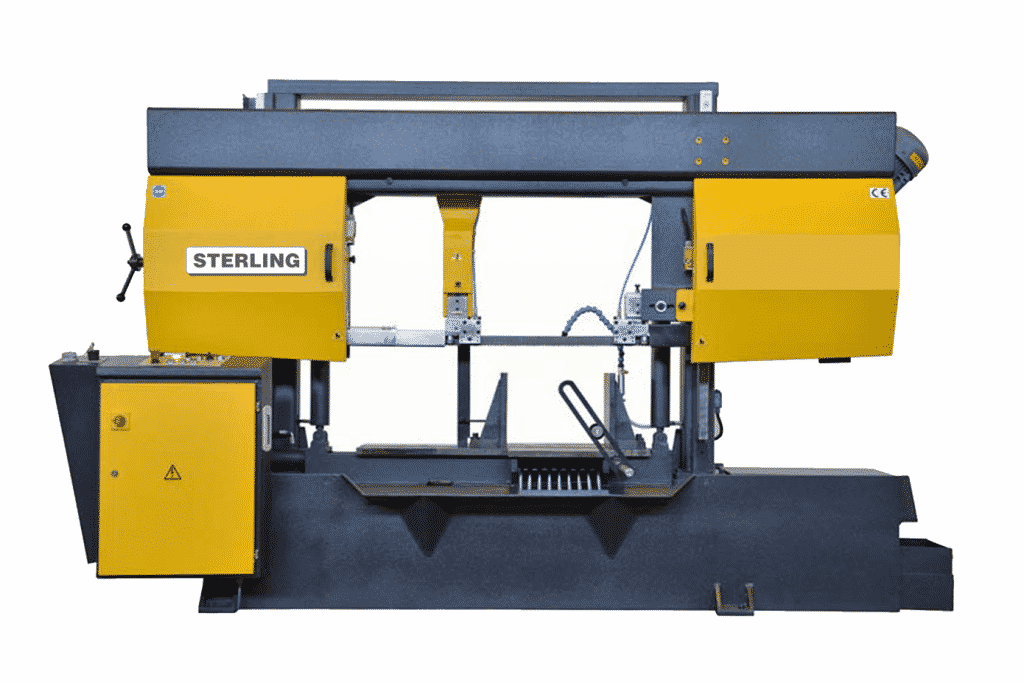

Front view Sterling-STC-SA-Twin-Column-Semi-Automatic-Bandsaw

Request a Quote







    Your Name *

    Email *

    Postcode *

    Company Name *

    Telephone No. *

    Your Message

    Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



    Your information will be held according to our privacy policy.

    UK Flag
    Alternatively call +44 (0)1432 346 580 for sales and support

    The Sterling range of heavy duty bandsaws follow the traditional pattern of manual, semi-automatic and fully automatic models. The STC models are of highly rigid design and include options of both straight cutting and mitring models with capacities ranging from 320mm round up to a huge 1100mm round. Automatic material feed is offered in both the traditional roller feed design and the modern shuttle vice feed with CNC control.

    The STC A is a fully-automatic model offering multi-piece cutting solutions with piece-counter. The twin column rigid design is particularly suited to cutting large solid materials. Other models in the range include features such as powered mitring capability. All variations are finished to an exceptional standard and are constructed for a long working life.

    Front view Sterling-STC-SA-Twin-Column-Semi-Automatic-Bandsaw

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Front view Sterling-STC-SA-Twin-Column-Semi-Automatic-BandsawFront view Sterling-STC-SA-Twin-Column-Semi-Automatic-Bandsaw
      Rear ViewRear View
      Optional Split Jaw ClampOptional Split Jaw Clamp
      Precision Pressure GaugePrecision Pressure Gauge
      Optional Pluggable ExtraOptional Pluggable Extra
      Laser PointerLaser Pointer
      ILC Microspray MistILC Microspray Mist
      Hydraulic ViceHydraulic Vice
      Control PanelControl Panel
      Optional Chip ConveyorOptional Chip Conveyor
      MODEL STC325 A CNCSTC360 A CNCSTC460 A CNCSTC560 A CNC
      STOCKCODE15194151951517815196
      Capacity90°90°90°90°
      Roundmm325360460560
      Squaremm325360460560
      Rectanglemm350 x 325455 x 360610 x 460670 x 560
      Bed Heightmm650650645645
      Blade Sizemm4380 x 34 x 1.14800 x 34 1.15200 x 41 x 1.36000 x 41 x 1.3
      Cutting Speedm/min20 – 10020 – 10020 – 10020 – 100
      MotorKw2.2344
      Lengthmm2300285031003500
      Widthmm2200220022002200
      Heightmm1550174019502050
      WeightKg1600195027003500
      OperationAutomaticAutomaticAutomaticAutomatic
      ViceHydraulicHydraulicHydraulicHydraulic

      Features

      • 1.2 Mt Roller Track
      • Control Panel
      • Hydraulic Vice
      • Hydromecanic Blade Tension
      • Inverter
      • Lineer Way
      • Mechanic Top Clamping
      • Material Limit Shaft
      • Optical Height Adjustment
      • Pressure Adjustment
      • SAP Coolant Pump
      • Saw Blade
      • Saw Blade Brush
      • Security Switch
      • Heavy Duty Gearbox
      • Movable Arm/Vice

      Options

      • 3 Mt Material Roller Track
      • Chip Conveyor
      • Hydraulic Blade Tension
      • ILC Microspray Mist
