Sterling SR Manual Pull Down Circular Saw 415V

Sterling SR Manual Pull Down Circular Saw SRE 350R

Our range of Sterling manual pull-down circular saws come with the option of three vice types, depending on your requirements. The heavy-duty construction, and quality finish of the Sterling SRC and SRE range of circular sawing machines is outstanding. Models with 275, 315 and 350mm diameter blades are offered. Not only as the standard pull down version – with or without a pneumatic vice system – but also in a fast cutting, semi-automatic design for production cutting too. Double clamping and self-centring vices on the SRC ensure material is always securely clamped in the optimum cutting position. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.

We also supply blades and coolant too, these can be purchased directly off our tooling & consumables website.

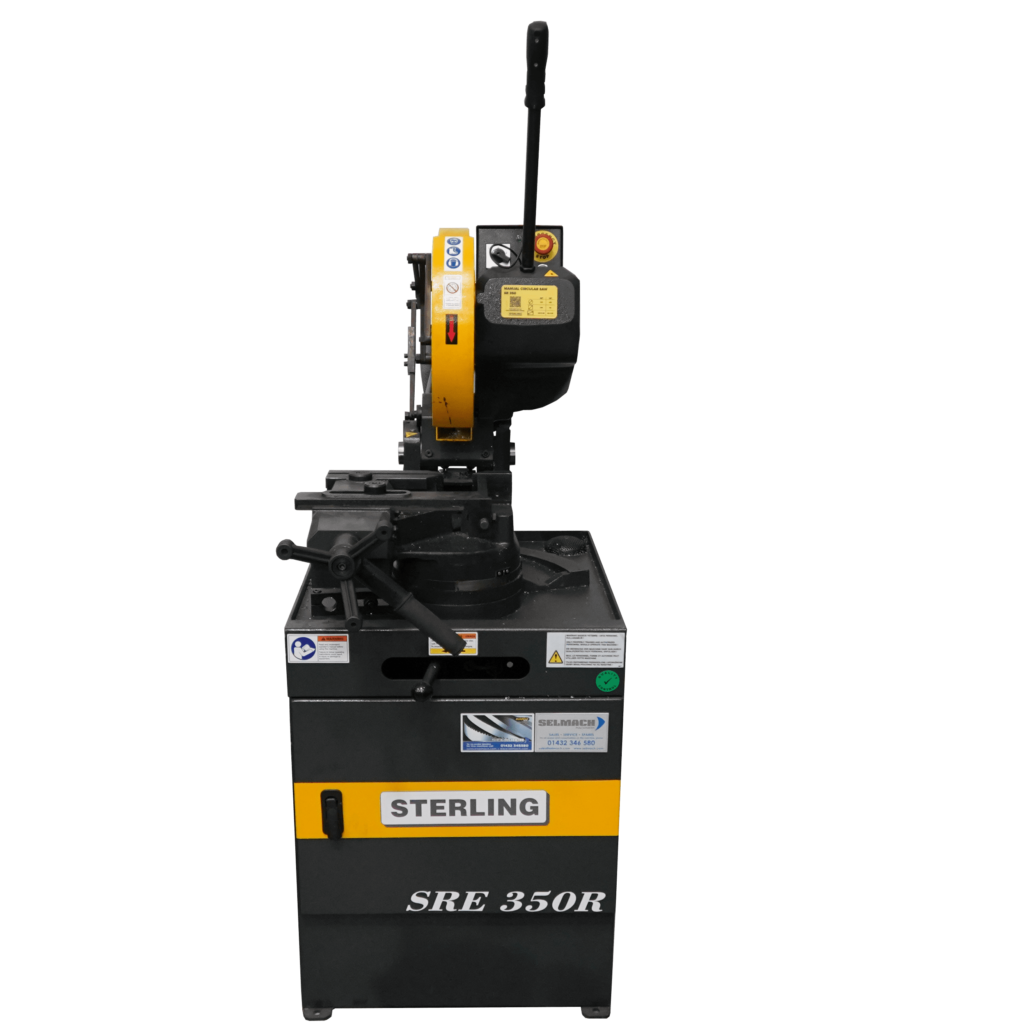

Sterling SR Manual Pull Down Circular Saw SRE 350R
Sterling SR Manual Pull Down Circular Saw SRE 350RSterling SR Manual Pull Down Circular Saw SRE 350R
Video thumbnail showing the Sterling SR Manual Pull Down Circular Saw 415V

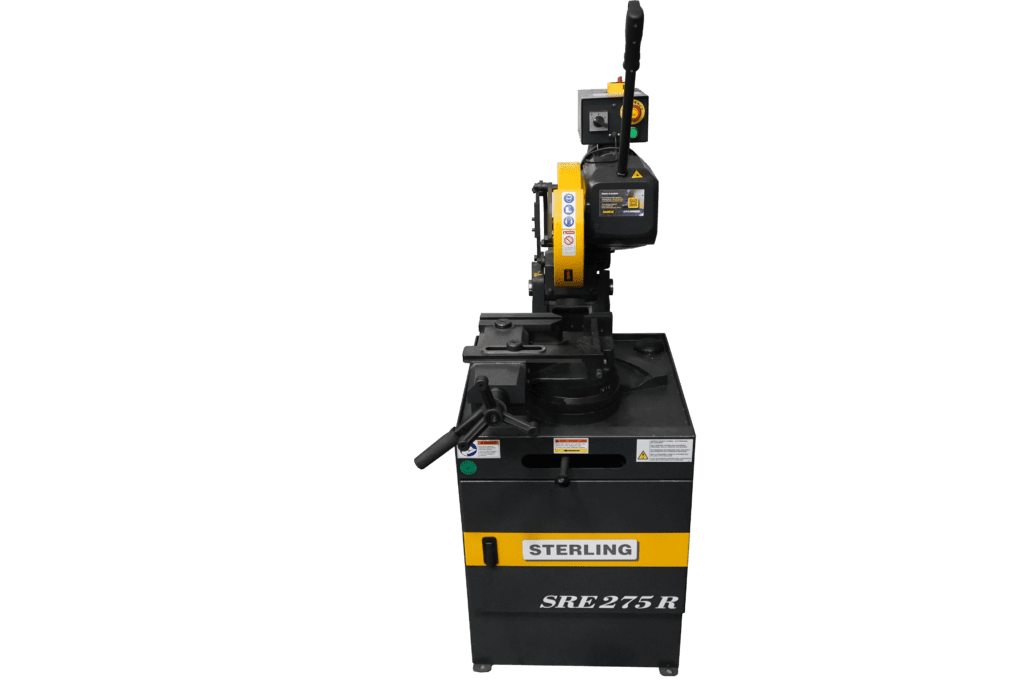

Sterling SR Manual Pull Down Circular Saw SRE 275RSterling SR Manual Pull Down Circular Saw SRE 275R

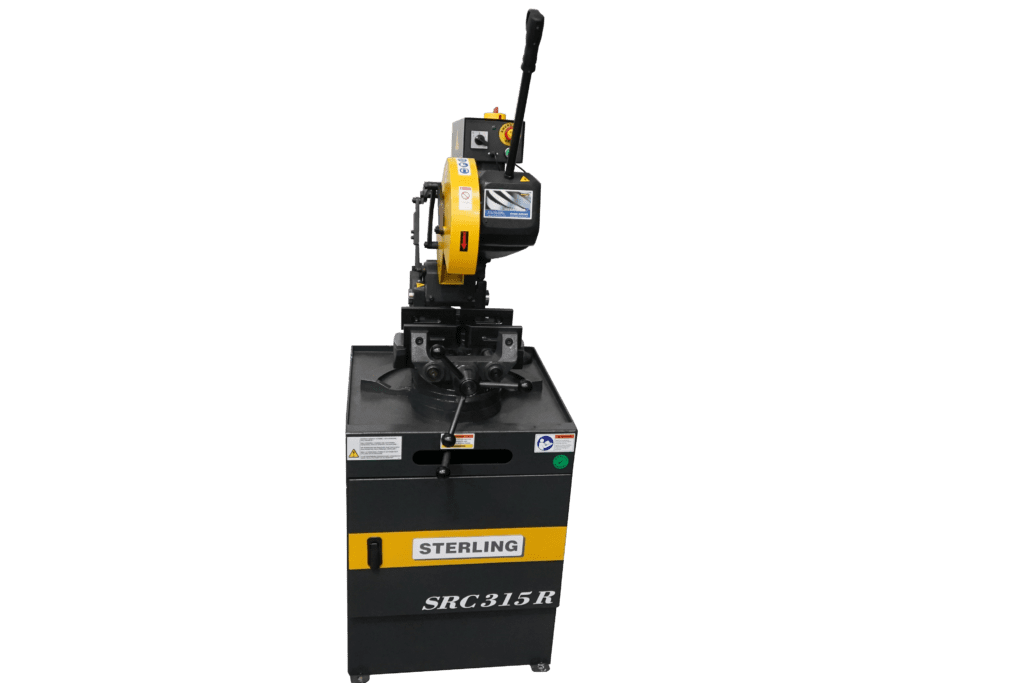

Sterling SR Manual Pull Down Circular Saw SRC 315RSterling SR Manual Pull Down Circular Saw SRC 315R

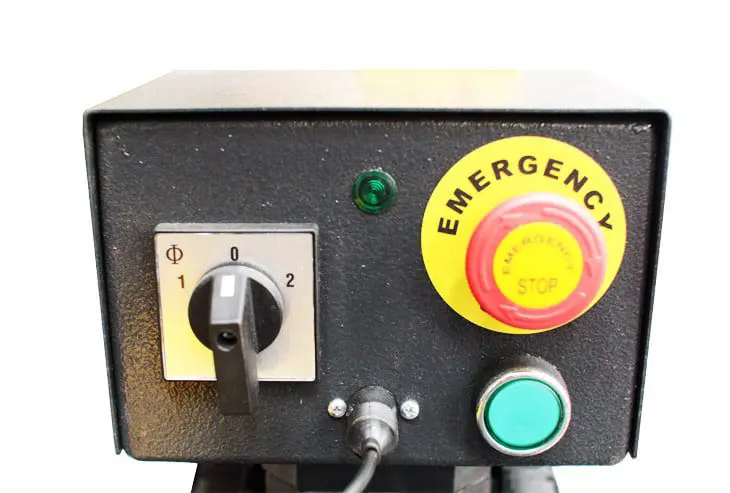

Control PanelControl Panel
Material Slitting Feature
Material Slitting Feature
Material Slitting Feature
Material Slitting Feature
90-Degree Slitting Feature
Material Slitting Feature
Double Action Self Centering Vice
Double Action Self Centring Vice
Double Action Self Centering Vice
Eccentric Vice - Option
Eccentric Vice - Option
Eccentric Vice - Option
Pneumatic Vice
Pneumatic Vice
Pneumatic Vice
MODEL (Blade Width)     275    315   350
STOCKCODE 15340 (SRC R)
15341 (SRC X)
15349 (SRE R)
15350 SRE X)
15343 (SRC R)
15344 (SRC X)
15352 (SRE R)
15353 (SRE X)
15346 (SRC R)
15347 (SRC X)
15355 (SRE R)
15356 (SRE X)
Capacities  90° 45°  90° 45°  90° 45°
◯ Tube mm  85 70  105 90  115 110
□ Box Section mm 70 60 85 80 100 90
▭ Widest Cut mm 95 x 60 70 x 55 120 x 70 90 x 60 120 x 80 90 x 90
Blade Diameter mm 275 315 350
Blade Bore mm 32 32 32
Blade Speeds rpm 45 / 90 45 / 90  40 / 80
Motor kW  1.0 / 1.3 1.3 / 1.8 1.3 / 1.8
Length mm 1100 1100 1100
Width mm 600 600 600
Height mm 1400 1400 1400
Weight Kg 185 210 240
Operation Pull Down Pull Down Pull Down
Vice Manual (Rs)/ Pneumatic (Xs) Manual (Rs)/ Pneumatic (Xs) Manual (Rs)/ Pneumatic (Xs)

Features

  • Heavy duty construction
  • High quality gearbox in oil bath
  • Pull down operation
  • Double head return springs
  • Double clamping anti-burr vice
  • Self centring vice to ensure cutting is in optimum position
  • 2 speed motor
  • Electrical coolant pump
  • Coolant reservoir in base with return filter
  • Adjustable length stop bar

Options

  • Pneumatic double clamping anti burr device
  • Eccentric vice (SRE range)
  • Roller track and measuring systems

Our range of Sterling manual pull-down circular saws come with the option of three vice types, depending on your requirements. The heavy-duty construction, and quality finish of the Sterling SRC and SRE range of circular sawing machines is outstanding. Models with 275, 315 and 350mm diameter blades are offered. Not only as the standard pull down version – with or without a pneumatic vice system – but also in a fast cutting, semi-automatic design for production cutting too. Double clamping and self-centring vices on the SRC ensure material is always securely clamped in the optimum cutting position. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.

We can also supply circular saw blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!

Frequently Asked Questions

What is the Sterling SR manual pull-down circular saw designed for?

The Sterling SR manual pull-down circular saw is designed for cutting metal tube, box section and smaller solid or flat profiles in fabrication and engineering workshops. Its manually operated cutting head suits businesses that need a robust, flexible saw without an automatic cutting cycle.

What cutting capacities are available on the Sterling SR 275, 315 and 350 models?

At 90°, the published maximum round-tube capacities are 85mm on the 275, 105mm on the 315 and 115mm on the 350. Maximum box-section capacities at 90° are 70mm, 85mm and 100mm respectively. Check the specific profile and mitre angle against the capacity table before ordering.

Can the Sterling SR manual circular saw make mitre cuts?

Yes. Selmach publishes cutting capacities at both 90° and 45° for the Sterling SR range. The available capacity reduces for some profiles at an angle, so the material shape, section size and required mitre should all be considered when selecting a model.

What is the difference between the Sterling SRC and SRE vice arrangements?

The SRC uses a double-clamping, self-centring vice to position and hold the workpiece during cutting. The SRE eccentric vice arrangement is intended for applications that are difficult to accommodate in a centred vice. Manual and pneumatic vice versions are available across the range; Selmach can advise which suits your work.

Which circular saw blades does the Sterling SR range use?

The manual Sterling SR range is offered with 275mm, 315mm or 350mm diameter blades, each with a published 32mm bore. Blade material, tooth pitch and cutting speed should be matched to the metal and section being cut. Selmach can supply suitable circular saw blades and coolant.

Is a manual Sterling SR circular saw suitable for a busy production workshop?

It can be a good fit for mixed jobs, small batches and frequent changes of cut length or angle. For repetitive high-volume cutting, compare the manual pull-down operation with the Sterling SR SA semi-automatic range, which reduces the amount of manual intervention during the cutting cycle.

What routine maintenance does a Sterling SR manual circular saw need?

Follow the machine manual and site safety procedures. Routine checks should cover blade condition, vice clamping, coolant level and flow, swarf removal, guards and the gearbox service schedule. Isolate the machine before cleaning or maintenance, and arrange servicing at the intervals recommended for its workload.

Can I arrange a Selmach Service Plan for a Sterling SR manual circular saw?

Yes, you can ask Selmach to assess the saw for a Service Plan. Plans can include scheduled servicing and support, with different levels of call-out cover. Eligibility and pricing depend on the machine condition, service history and operating pattern; Selmach can recommend the appropriate option.
