Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V

The Sterling SRA320 DGSA is one of most popular, heavy-duty, single-ram bandsaws – well known and suited to the structural fabrication markets. They are renowned for their strength and durability built to process high tonnage. Some of the biggest structural fabrication companies in the country use these saws with great success. The Sterling brand is one of the leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws.

Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V imageSterling SRA320 DGSA Semi-Automatic Bandsaw 415V image
Video thumbnail showing the Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 3Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 3
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 4

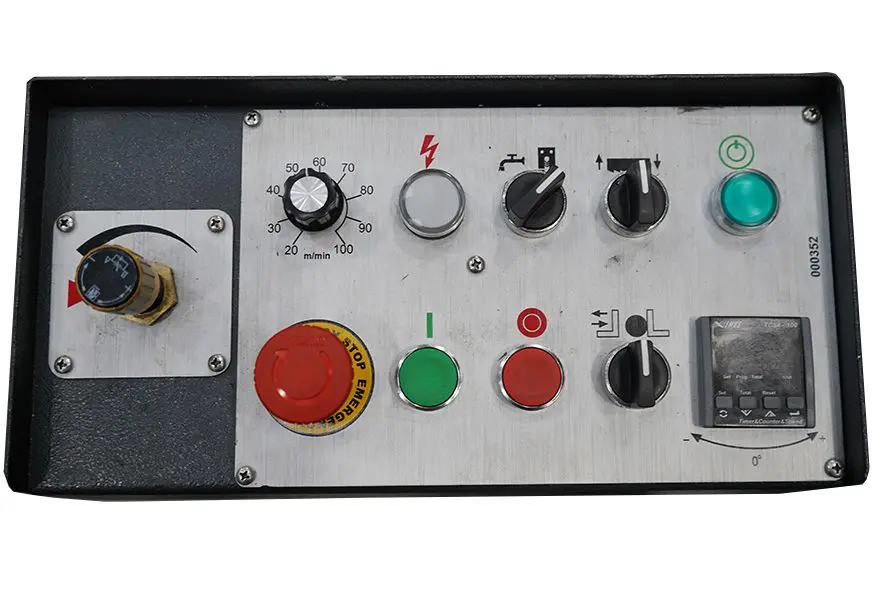

Controller
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 4
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 5
Carbide Blade Guides
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 5
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 6
Hydraulic Vice
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 6
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 7
Blade Height Adjustment
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 7
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 8
Swarf Brush
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 8
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 9
Blade Tension Indicator
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 9
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 10

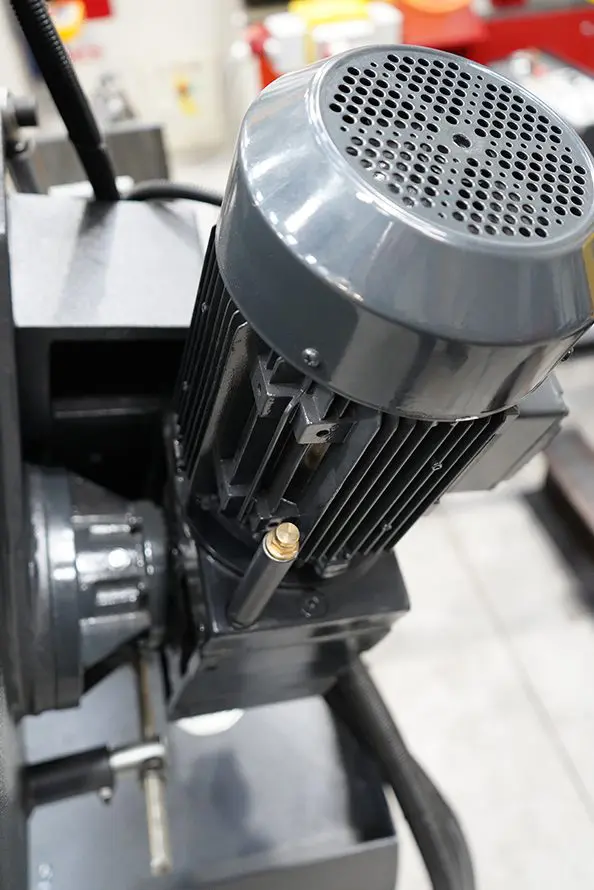

Heavy Duty Motor & Gearbox
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 10
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 11

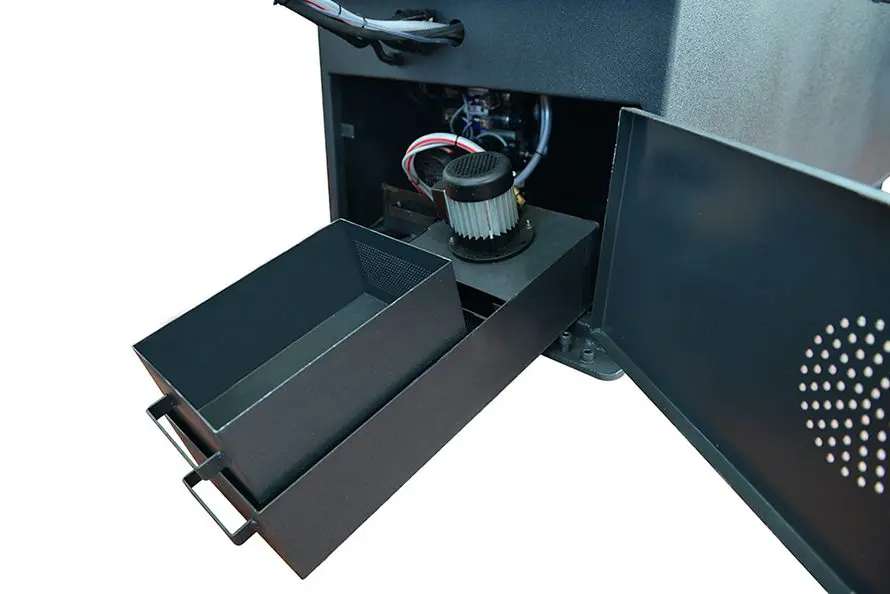

Coolant Pump & Reservoir
Sterling SRA320 DGSA Semi-Automatic Bandsaw 415V image 11
MODEL SRA320 DGSA
STOCKCODE 15261
Capacity 30° L & R 45° L & R 60° L
◯ Tube mm 320 320 320 240
▢ Box Section mm 320 320 320 220
▭ Widest Cut mm 450 x 320 410 x 320 330 x 320 230 x 220
Bed Height 860
Blade Size mm 4160 x 34 x 1.1
Cutting Speed m/min 20 – 100
Motor Kw 2.2
Length mm 2230
Width mm 1150
Height mm 1870
Weight Kg 1030
Operation Semi-automatic
Vice Hydraulic
Twin Ram No



Features

  • Double mitring swivel head 60° left
  • Sliding vice from left to right
  • Simple to use control panel to control all machine functions on swivel arm
  • Hydraulic cutting with variable pressure and variable down feed speed
  • Variable speed
  • Full-stroke Hydraulic Vice
  • Auto bow height return adjustment
  • Carbide blade guides for high accuracy
  • Flood coolant system
  • Blade tension indicator

Options

  • Variable vice pressure
  • Spray mist cooling system

Sterling SRA320 DGSA Semi-Automatic Bandsaw: Power and Precision for Heavy-Duty Applications

The Sterling SRA320 DGSA Semi-Automatic Bandsaw stands out as one of the most robust and reliable solutions for structural fabrication markets. Designed for strength, durability, and high performance, this single-ram bandsaw is a favourite among top fabrication companies in the UK. Built to handle demanding workloads with ease, the SRA320 DGSA is a testament to Sterling’s reputation as a leading brand in the metal cutting industry, known for producing dependable, accurate, and versatile machines.

Built for Heavy-Duty Structural Fabrication

The Sterling SRA320 DGSA is engineered to meet the needs of high-tonnage structural fabrication, making it an essential tool for workshops handling large-scale projects. Its heavy-duty construction provides the strength required to process tough materials, while its advanced design ensures consistent performance over time. This robust build quality makes the SRA320 DGSA a trusted choice for businesses aiming to maintain efficiency and accuracy in their cutting processes.

Flood Coolant System for Cleaner Cuts

One of the key features of the Sterling SRA320 DGSA is its integrated flood coolant system. This system is specifically designed to enhance cutting quality while extending blade life. By reducing heat during operation, the coolant prevents blade warping and ensures a clean, burr-free finish. This feature is particularly valuable when cutting tougher materials or working on projects where precision is critical. The result is improved efficiency, reduced blade wear, and lower overall maintenance costs.

Hydraulic Gravity Down Feed for Controlled Cutting

The hydraulic gravity down feed system provides operators with full control over the cutting speed, allowing the blade’s descent to be tailored to the material being processed. This precision ensures smooth, accurate cuts while reducing strain on the blade. The automatic stop feature adds another layer of safety and convenience, halting the blade’s rotation as soon as the cut is complete. This not only improves operator safety but also minimises unnecessary wear on the blade, contributing to the saw’s overall durability.

Versatility for a Range of Profiles

The Sterling SRA320 DGSA is designed to handle a wide variety of cutting tasks, making it suitable for use with:

  • Round sections
  • Square sections
  • Rectangular sections

This versatility ensures the bandsaw can meet the diverse needs of fabrication shops and structural engineering facilities. Whether cutting components for large-scale construction projects or precision parts for specialised applications, the SRA320 DGSA delivers consistent, high-quality results.

Semi-Automatic Operation for Enhanced Efficiency

The semi-automatic functionality of the SRA320 DGSA streamlines the cutting process, reducing operator workload and increasing productivity. This feature allows the saw to handle repetitive tasks with ease, making it an excellent choice for high-volume production environments. The semi-automatic design ensures consistent performance while maintaining the flexibility required for custom projects.

Trusted by Leading Fabrication Companies

The Sterling SRA320 DGSA Bandsaw is a go-to choice for some of the largest structural fabrication companies in the UK. Its reliability, strength, and precision make it a cornerstone of workshops that demand top-tier performance from their equipment. The widespread use of Sterling bandsaws in the industry is a testament to their quality and the trust professionals place in their capabilities.

Ready to Cut with Starter Blades and Coolant

At Selmach Machinery, we ensure that every Sterling SRA320 DGSA is delivered ready to use. Each saw comes with:

  • A starter set of Goldcut blades: Selected to match the materials you’ll be cutting, ensuring optimal performance right out of the box.
  • A free container of coolant: Allowing you to begin cutting immediately upon installation.
  • Expert consultation: Our team will discuss your specific cutting requirements to ensure your new saw is perfectly configured to meet your needs.

Comprehensive Support and Additional Supplies

In addition to the saw itself, Selmach Machinery offers a full range of replacement blades and coolants through our tooling website. This makes it easy to maintain your SRA320 DGSA and keep it running at peak performance. With our commitment to customer support, you can trust us to provide the expertise and resources needed to maximise the value of your investment.

Why Choose Sterling Bandsaws from Selmach Machinery?

Selmach Machinery is proud to be a trusted supplier of Sterling bandsaws, offering:

  • Industry-leading quality: Machines built for strength, precision, and durability.
  • Comprehensive support: From expert advice to aftersales service and tooling supplies.
  • Proven reliability: Trusted by leading fabrication companies across the UK.

When you choose the Sterling SRA320 DGSA, you’re not just purchasing a bandsaw—you’re investing in a solution that will elevate your workshop’s capabilities and ensure consistent, reliable performance for years to come.

Summary: Precision, Power, and Performance

The Sterling SRA320 DGSA Semi-Automatic Bandsaw is a powerful and versatile tool designed to meet the demands of modern fabrication and engineering markets. With features such as a hydraulic gravity down feed, flood coolant system, and semi-automatic functionality, it delivers exceptional performance across a wide range of cutting applications.

For businesses seeking a durable, reliable, and high-performing bandsaw, the SRA320 DGSA is an excellent choice. Backed by Selmach Machinery’s expertise and support, this bandsaw provides the precision and efficiency needed to tackle even the most demanding projects. From structural fabrication to custom engineering tasks, the Sterling SRA320 DGSA ensures you’re equipped to cut with confidence.
