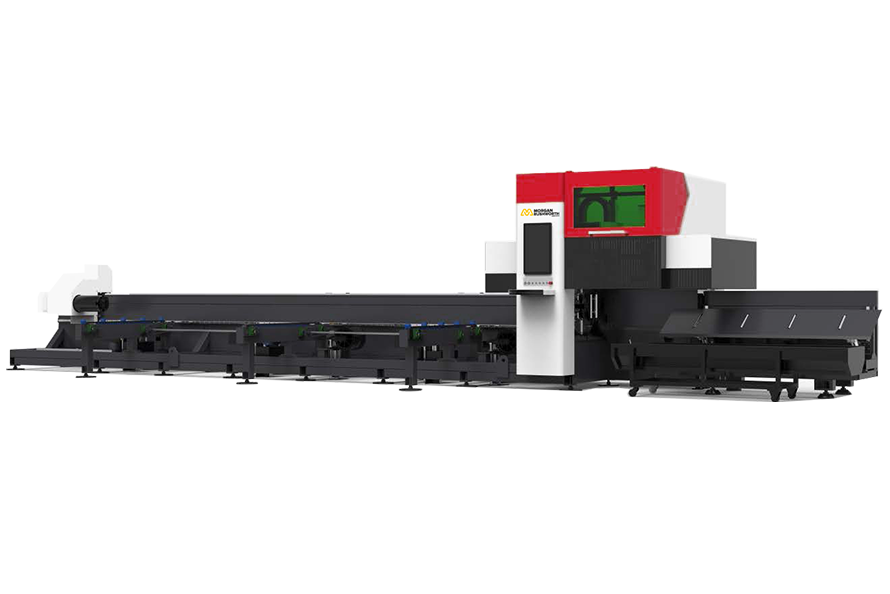

Morgan Rushworth XTS (2 Chuck) Compact Tube Fibre Laser
The Morgan Rushworth XTS Compact (2 Chuck) Tube Laser features a semi-automatic loading mode, efficiently handling Automatic loading and cutting tasks. For tubes with diameters ranging from 20 to 360mm. It adopts a side-mounted machine tool structure, with a front chuck equipped with a clearance function, and is fitted with a fully Servo-controlled floating support.
Supporting automatic loading of various tube profiles including; round tubes, rectangular tubes, square tubes, channel steel, i-beams, and custom shaped tubes – reducing labour requirements.

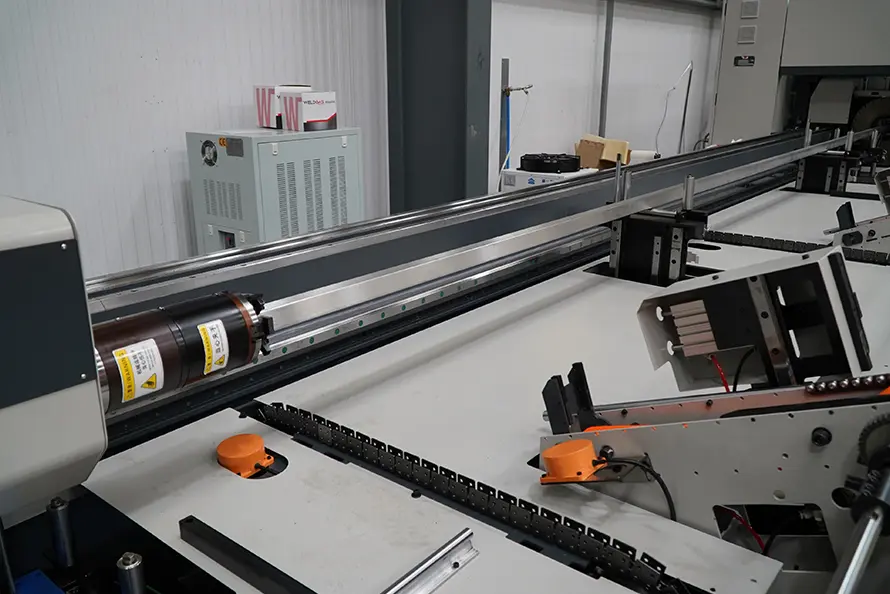

The XTS features chuck-clearance cutting capability, allowing the cutting head to automatically move between the front and rear chucks for cutting, achieving the shortest possible tail-off and maximising material utilisation.
| MODEL NUMBER | XTS 6023.3000 | XTS 6023.6000 | XTS 7523.3000 | XTS 7523.6000 | XTS 6028.3000 | XTS 6028.6000 | XTS 6028.12000 | XTS 7528.3000 | XTS 7528.6000 | XTS 7528.12000 | XTS 6036.3000 | XTS 6036.6000 | XTS 6036.12000 | XTS 7536.3000 | XTS 7536.6000 | XTS 7536.12000 | |
| STOCK CODE | M7840 | M7841 | M7842 | M7843 | M7844 | M7845 | M7846 | M7847 | M7848 | M7849 | M7850 | M7851 | M7852 | M7853 | M7854 | M7855 | |
| Laser Source | kW | 3 | 6 | 3 | 6 | 3 | 6 | 12 | 3 | 6 | 12 | 3 | 6 | 12 | 3 | 6 | 12 |
| Max. Tube Length | mm | 6,000 | 7,500 | 6,000 | 7,500 | 6,000 | 7,500 | ||||||||||
| Tube Diameter Range |
Ø mm | 20 – 230 | 20 – 280 | 20 – 360 | |||||||||||||
| Box Section Diameter Range |
mm | 20 x 20 – 230 x 230 | 20 x 20 – 280 x 280 | 20 x 20 – 360 x 360 | |||||||||||||
| Axis Acceleration | G | 1.0 | |||||||||||||||
| Max. Single Tube Weight | kg | 225 | 400 | 530 | |||||||||||||
| Max. Bundle / Semi-Auto Loading Weight | kg | 900 | 1,500 | 2,000 | |||||||||||||

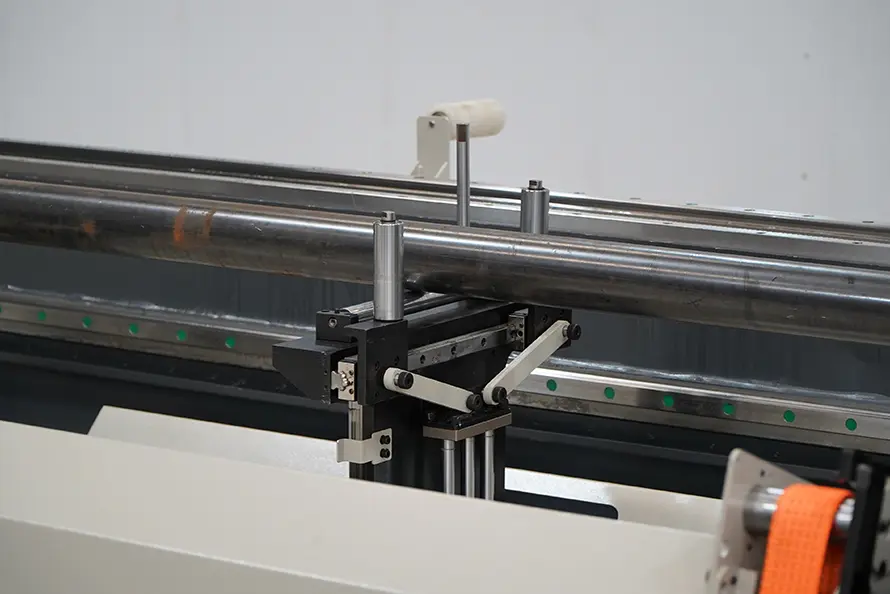

| Type of Infeed Supports | Servo Controlled | ||||||||||||||||
| Type of Outfeed Supports | Servo Controlled | ||||||||||||||||
| Chuck Speed | rpm | 80 | 60 | ||||||||||||||
| Feed Speed | m/min | 60 | |||||||||||||||
| Absolute Positioning Accuracy | mm | ± 0.05 | |||||||||||||||
| Repeatability (X & Y Axis) | mm | ± 0.03 | |||||||||||||||
| Cycle Time | s | 18 | |||||||||||||||
| LASER SOURCE | ||||
| Material | Gas | Capacity | 3kW | 6kW |
| Carbon Steel | O2 | mm | 16 | 20 |
| Stainless Steel | N2 | mm | 10 | 15 |
| Aluminium | Air | mm | 6 | 15 |
| Brass | N2 | mm | 5 | 10 |
| Copper | O2 | mm | 3 | 8 |
Features
- Fibre optic beam delivery system
- Ospri Autofocus Laser Cutting Head
- Applicable tube types : Round tube, square tube, rectangular tube, oval tube, D-shaped steel, T-shaped steel, H-shaped steel, channel steel, angle steel, i-beams etc.
- Material Receiving and Collecting System
- CE compliant complete machine enclosure and light barrier system

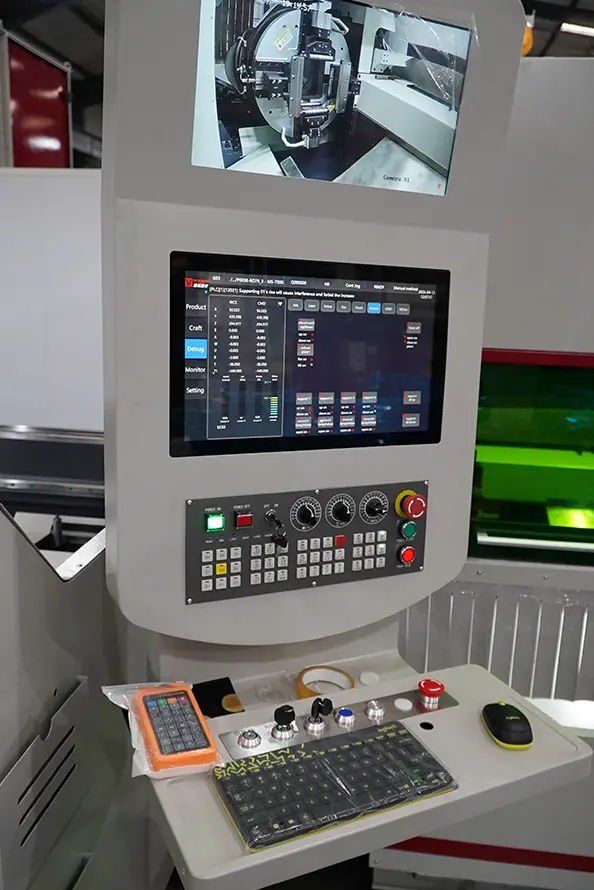

- PA Control System

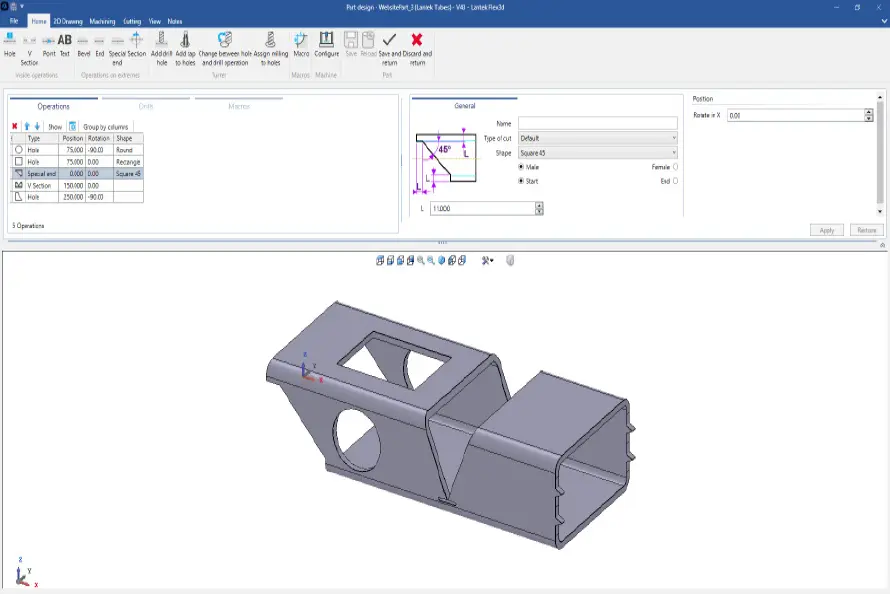

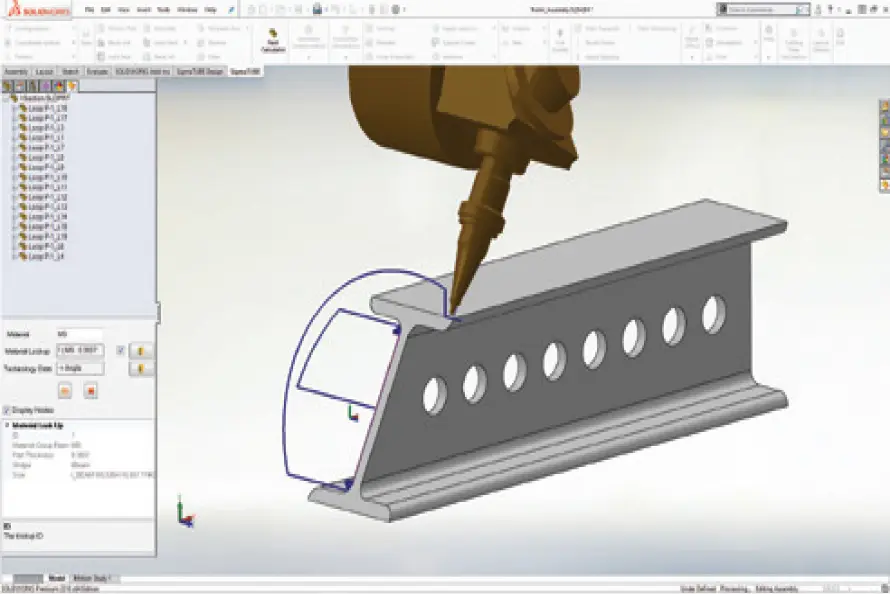

- Lantek / Sigmanest Software

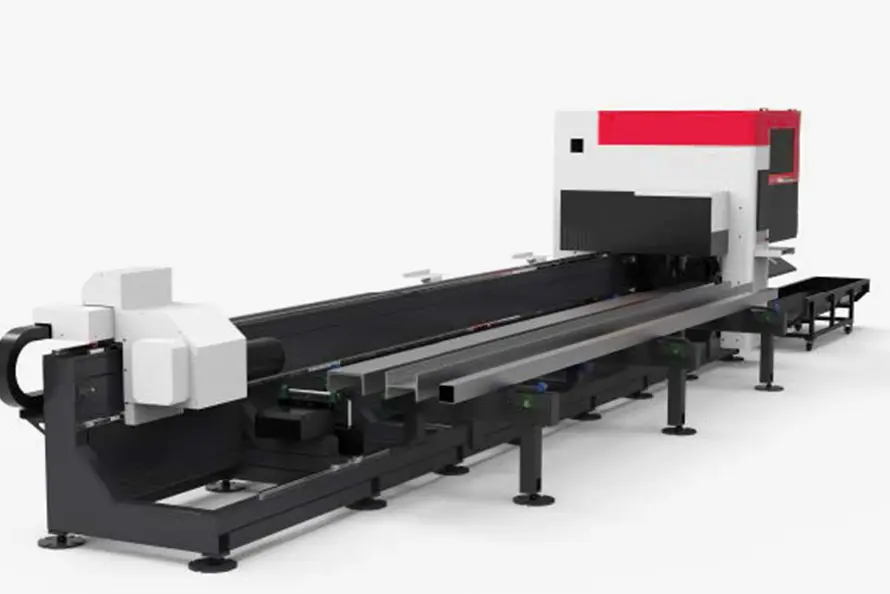

- Chain Loader Semi-Automatic Loading System

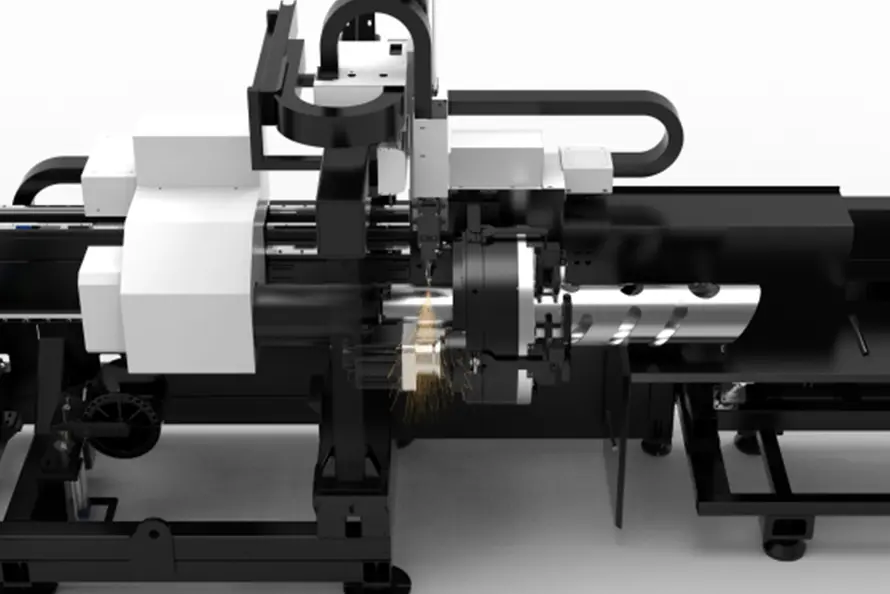

- Zero scrap cutting with pneumatic clamping system to avoid final parts being stuck in the chuck.
- 2 Chuck Machine
- Scrap collection draw
- 3m Outfeed
Options
- Bevel Head – LT Ultra
- Weld Seam Detection
- 4m / 6m Outfeed
- Head Scanning
- IPG Laser Source
- Filtration & Extraction
