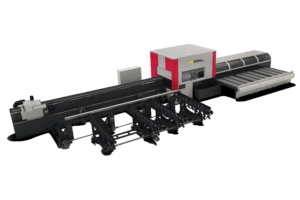

Morgan Rushworth XT Tube Fibre Laser
Introducing a new way to process Laser Cutting on tubes with the Morgan Rushworth XT Tube Fibre Laser. We re-imagined the whole conventional tube cutting process and developed the XT, providing a complete solution for complex industrial needs.
This dedicated Laser Tube Cutting System is to provide extreme precision, productivity, and quality. With a dedicated Laser Tube Cutting system, this machine is able to achieve superior results for the tube processing industry.
XT6015 | XT6020 | XT6030 | |||
Max. Pipe Cutting Length | mm | 6100 | 6100 | 6100 | |
Cutting Diameter | Round | Ø | Ø25 – Ø180 | Ø20 – Ø200 | Ø20 – Ø300 |
Rectangle / Square | mm | 150 x 150 | 150 x 150 | 200 x 200 | |
X-Axis Travel | mm | 450 | 450 | 450 | |
Y-Axis Travel | mm | 6050 | 6500 | 6500 | |
Z-Axis Travel | mm | 180 | 180 | 200 | |
Max. Job Weight | kg | 140 | 160 | 160 | |
Master Chuck (B1-Axis) | mm | Dia. Size 200 | Dia. Size 200 | Dia. Size 300 | |
Operation Manual / Auto | |||||
Slave Chuck (B2-Axis) | Operation Manual / Auto | ||||
X, Y Positioning Accuracy | mm/m | ±0.05 | |||
X, Y Positioning Repeatability | mm/m | ±0.03 | |||
Acceleration | m/s2 | 10 | |||
X Axis Max. Running Speed | m/min | 45 | |||
Y Axis Max. Running Speed | m/min | 70 | |||
Max. Turning Speed (W-Axis) | rpm | 60 | 80 | 50 | |
Laser Power | kW | 1, 2, 3, 4 | |||
Controller | Tube Pro |
Features
- Enhanced 3D cutting with 360° flexibility
- CNC controlled intelligent self-centring
- Floating tube support and horizontal tube clamping
- Compact system with excellent throughput
- Enclosed workstation for work safety
- Ergonomic and proficient system
- Global standard components for easy service and maintenance
- Dynamic fume extractor for environmentally friendly operation
Options
- Bevel Cutting Head
- Auto Loader Automation
- Dust Collector
Introducing a new way to process Laser Cutting on tubes with the Morgan Rushworth XT Tube Fibre Laser. We re-imagined the whole conventional tube cutting process and developed the XT, providing a complete solution for complex industrial needs.
This dedicated Laser Tube Cutting System is to provide extreme precision, productivity, and quality. With a dedicated Laser Tube Cutting system, this machine is able to achieve superior results for the tube processing industry.
Designed for Precision:
The system is capable of delivering excellent edge quality, efficient cutting and cost effective processing.
Advanced Software:
The software provides flexibility for users to add, change or delete programs on the go.
Robust Chuck With Integrated Rotary Axis:
The chuck system is perfectly calibrated to attain high machining accuracy by avoiding any torsional stress in the tube.
More Shapes and Materials:
The XT 6020 and XT 6030 can process special sections and even open shapes. It could work smoothly on materials like SS, MS, Al, Cu, Br, Gi and more.
