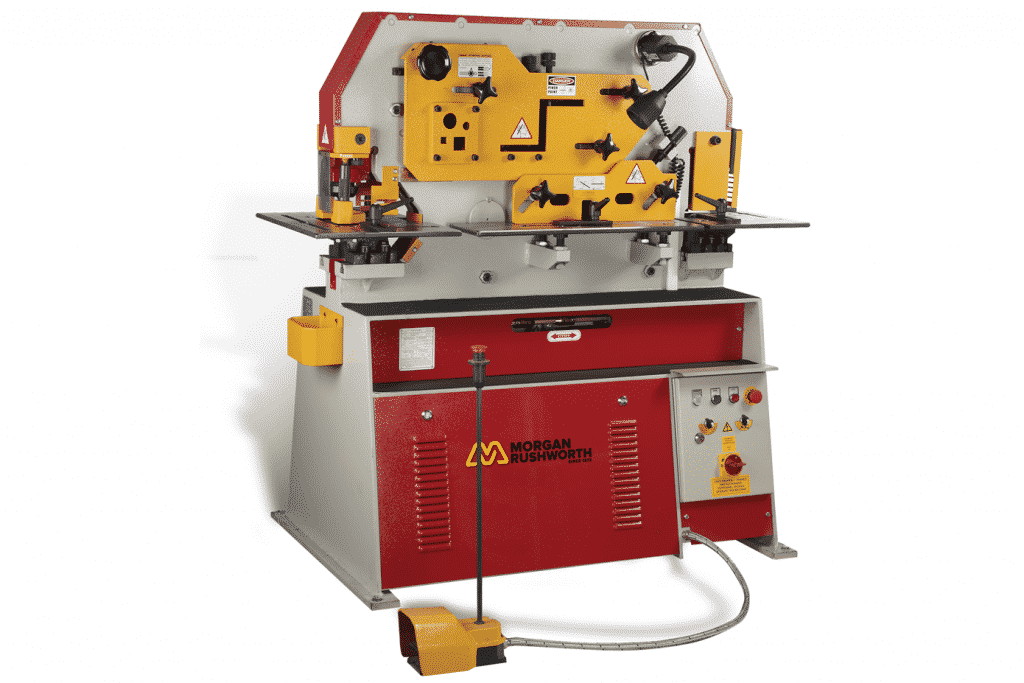

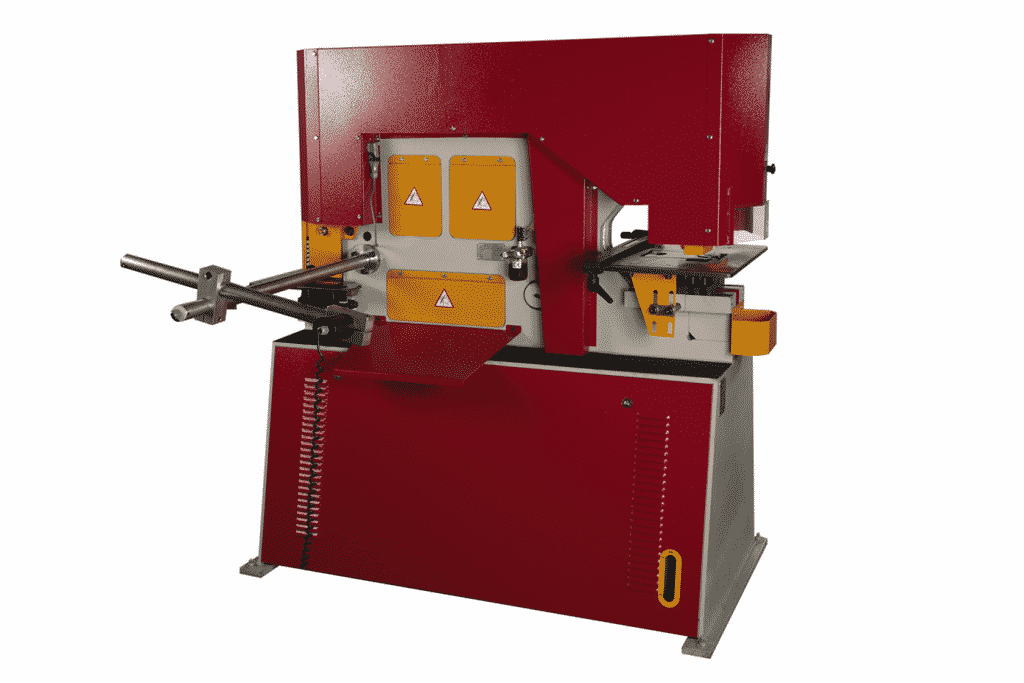

The Morgan Rushworth HSW 45 and HSW 60 are compact universal hydraulic steelworkers with 5 work stations and have been designed for volume production with maximum efficiency. Punching, shearing, cropping, notching can be instantly carried out by pressing the movable foot pedal. The low power inch mode on each work station enables correct workpiece positioning and tool alignment. The machines are supplied with a centralised lubrication system ensuring a easy, simple maintenance programme. Adjustable hold downs are situated on all work stations to ensure safe accurate processing of material. A 1m ruled length stop is supplied as standard equipment. Selmach Machinery has two models of steelworkers which range from 60 to 175 tonnes. Our HST machines are twin operated machines providing power and accuracy whilst our HSW provide single food pedal operation and are designed with volume, production and efficiency in mind.
| MODEL | HSW 45 | HSW 60 | |
| STOCK CODE | M9001 | M9002 | |
| PUNCHING | |||
| Diameter x Maximum Thickness | mm | 22 x 15 | 28 x 15 |
| Maximum Diameter x Thickness | mm | 38 x 8 | 38 x 11 |
| Stroke Length | mm | 50 | 55 |
| Throat Depth | mm | 175 | 220 |
| Largest Hole Diameter – Standard | mm | 38 | 38 |
| Largest Hole Diameter – Optional | mm | 110 | 110 |
| SHEARING | |||
| Flat Bar – Width x Maximum Thickness | mm | 200 x 15 | 200 x 20 |
| Flat Bar – Maximum Width x Thickness | mm | 300 x 12 | 300 x 15 |
| Angle Flange Trim – max 45° | mm | 80 x 10 | 80 x 10 |
| ANGLE CUTTING | |||
| 90° Cut | mm | 100 x 10 | 127 x 12 |
| 45° Mitre (true int./ext.) | mm | 70 x 6 | 80 x 8 |
| SECTION CUTTING | |||
| Round/Square | mm | 30/25 | 40/35 |
| Channel/Beam – (Optional) | mm | 80 x 45 | 80 x 45 |
| Tee – (Optional) | mm | 40 x 5 | 40 x 5 |
| NOTCHING | |||
| Material Thickness | mm | 8 | 10 |
| Width – Rectangle | mm | 35 | 42 |
| Depth – Rectangle | mm | 75 | 100 |
| Depth – Vee | mm | 60 | 60 |
| TUBE NOTCH (OPTIONAL) | |||
| Maximum Outside Diameter | mm | 60 | 60 |
| BENDING (OPTIONAL) | |||
| Bar Bending – Maximum Capacities | mm | 100 x 12 | 150 x 12 |
| Sheet Bending – Maximum Capacities | mm | – | – |
| PUNCHING AT NOTCH STATION (OPTIONAL) | |||
| Throat Depth | mm | 85 | 110 |
| Maximum Capacity – Diameter x Thickness | mm | 18 x 12 | 20 x 12 |
| TECHNICAL DATA | |||
| Motor Power | kW | 4 | 4 |
| Weight | kg | 1180 | 1440 |
| Length | mm | 1450 | 1520 |
| Width | mm | 590 | 590 |
| Height | mm | 1620 | 1700 |
| based on material strength of 450 N/mm2 |
Features
Hydraulic steelworkers provide a range of stations with allow for:
- PUNCH STATIONThe standard punch station enables punching holes with a diameter of up to 38mm. The stroke is fully adjustable.
- ANGLE STATIONAngle iron can be cut at 90¡ and 45¡ with either internal or external mitres.3
- SECTION CUTTING STATIONCropping of round and square bar is easily performed with the standard blades. Optional blades and hold downs are available to crop special profiles.5

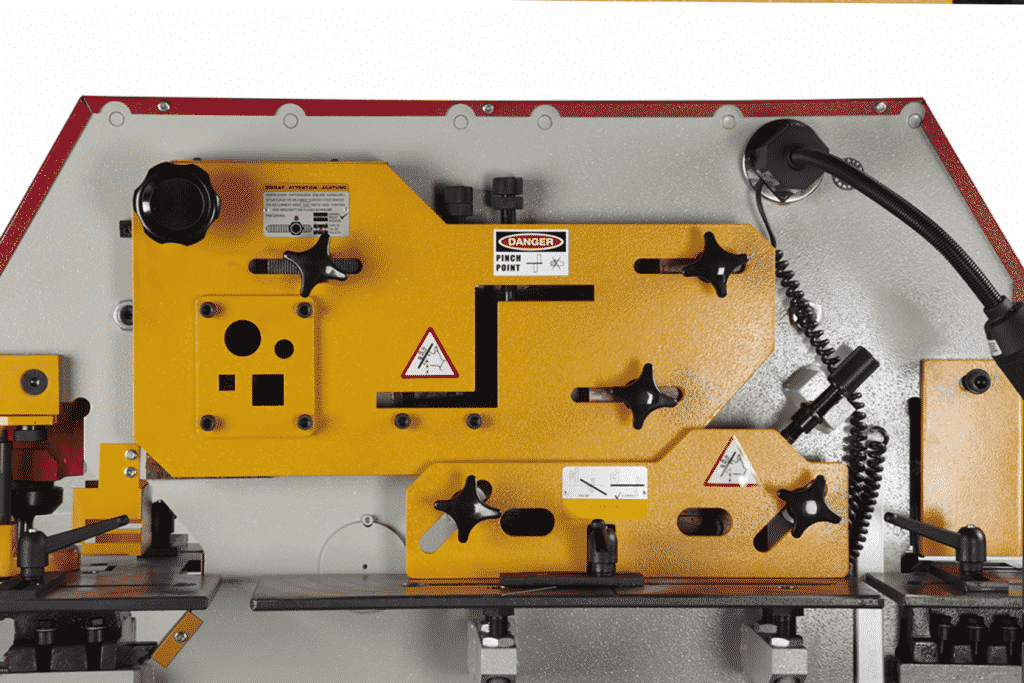

- SHEARING STATIONThick and thin material can be sheared without the need for blade gap or cutting-angle adjustments. This station also allows flange cutting of angle profiles.
- Full stroke adjustment
- Punch table guides
- Lower power inching
- Punch table with multipurpose bolster – removable table block for over hang channel/joist flange punching
- CE conformity including safety guarding
- Low maintenance
- Halogen light on magnetic base
- 5 punches and dies up to 38mm
- foot pedal control
- Overload relief on hydraulic and electrical system
- Swing away punch stripper unit
- Easy change punch holder
- Work station guard
- Compact
Options
