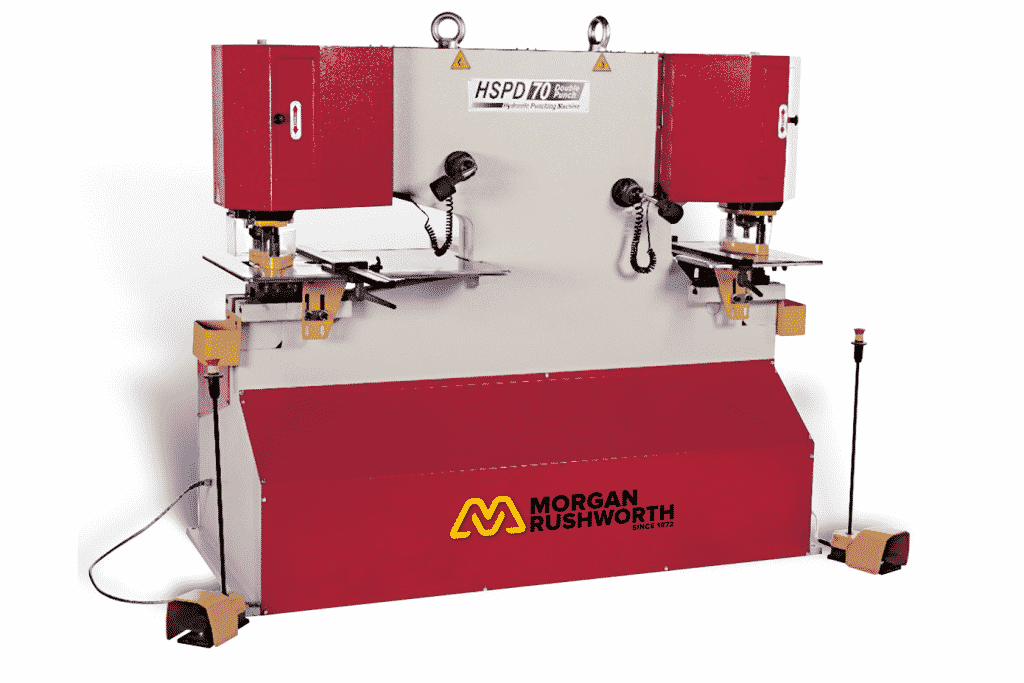

The Morgan Rushworth hydraulic punching machines range from 70 to 175 tonnes in capacity, offering versatility and robust performance. Double punch models feature a 625mm deep throat on one end and 305mm on the other as standard. Included are a heavy-duty support table with an adjustable backstop and a universal die holder, enabling the punching of plate, flat bar, angle iron, and channel or beam flanges.

Single-ended configurations are also available, and the standard machine punches up to 57mm diameter holes without extra equipment. Optional features include bar bending, sheet bending, and corner notching for enhanced functionality.

Main view Morgan-Rushworth-HSPD-Double-Ended-Punch
Main view Morgan-Rushworth-HSPD-Double-Ended-PunchMain view Morgan-Rushworth-HSPD-Double-Ended-Punch
Making machinery since 1872
Making machinery since 1872
Making machinery since 1872
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 3
Stripper Assembly
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 3
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 4
Slug Collector
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 4
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 5
Measuring Guides
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 5
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 6
Punch
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 6
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 7
Foot Pedal Controller
Morgan Rushworth HSPD Hydraulic Double Punching Machine  415V image 7
MODEL     HSPD 70   HSPD 95   HSPD 125   HSPD 175
STOCK CODE M9011 M9012 M9013 M9014
Punching
Diameter X Maximum Thickness mm 26 x 20 33 x 20 34 x 26 40 x 32
Maximum Diameter X Thickness mm 57 x 10 57 x 12 57 x 16 57 x 22
Stroke Length mm 55 80 80 80
Throat Depth mm 625 625 625 625
Largest Hole Diameter – Standard mm 57 57 57 57
Largest Hole Diameter (Optional) mm 110 110 110 110
Tube Notch (Optional)
Maximum Outside Diameter mm 83 108 108 165
Bending (Optional)
Bar Bending – Maximum Capacities mm 200 x 15 250 x 20 250 x 22 250 x 25
Sheet Bending – Maximum Capacities mm 500 x 3 500 x 3 700 x 3 700 x 4
Corner Notching (Optional)
Maximum Capacity mm 250 x 6 250 x 6 250 x 6 250 x 6
Technical Data
Motor Power kW 5.5 7.5 11 11
Length mm 1900 2250 2350 2800
Width mm 950 950 950 1100
Height mm 1800 1920 1970 2160
Weight kg 2900 3700 4600 6750

Features

  • Double punching stations
  • Deep throat one end – 625mm
  • Standard throat one end – 305mm
  • Full stroke adjustment
  • Low power inching
  • Punch table with multipurpose bolster – Removable table block for overhang channel/joist flange punching
  • Low maintenance
  • Overload relief on hydraulic system
  • Swing away punch stripper unit
  • Easy change punch holder
  • Punch table with guides
  • Work station guard

Options

  • Large hole attachments
  • Bending units
  • Special tooling & accessories

Morgan Rushworth HSPD Hydraulic Double Punching Machine 415V

The Morgan Rushworth HSPD Hydraulic Double Punching Machine 415V is a versatile and powerful solution for heavy-duty punching applications. Engineered to handle a wide range of industrial tasks, this machine is ideal for workshops and fabrication businesses looking for precision, efficiency, and robust performance. With its double punching capability and advanced features, the HSPD offers exceptional versatility, making it a standout choice for metalworking professionals.

Designed with the needs of modern industries in mind, the HSPD combines high capacity with advanced engineering. Its reliable performance ensures consistent results, whether you’re handling structural steel, flat bar, or intricate angle iron projects.

Double Punching Capability for Increased Versatility

The HSPD Hydraulic Double Punching Machine is equipped with dual throat depths—625mm on one side and 305mm on the other—providing flexibility for tackling a variety of tasks. This double punching capability allows operators to perform two distinct punching operations without the need to switch machines or tools, saving time and improving workflow efficiency.

Its ability to accommodate different throat depths means the machine can handle large, complex workpieces with ease. From heavy steel plates to smaller, more intricate materials, the HSPD delivers reliable and precise results, ensuring it meets the diverse requirements of fabrication shops and industrial plants.

Standard Features for High Performance

The Morgan Rushworth HSPD comes with a range of standard features designed to enhance productivity and usability. A heavy-duty support table with an adjustable backstop ensures stability during operation, while allowing for quick and easy positioning of workpieces. This robust design is particularly beneficial for repetitive tasks, maintaining consistent accuracy over extended periods.

A universal die holder is included as standard, enabling the machine to handle a wide range of materials and shapes. This includes plate, flat bar, angle iron, and the flanges of channels and beams, making the HSPD a highly adaptable tool for various punching tasks.

Punching Precision and Capacity

The HSPD punching machine is capable of punching holes up to 57mm in diameter with its standard setup, offering significant flexibility for workshops handling diverse projects. For larger or more specialised applications, optional upgrades are available, allowing the machine to tackle even bigger jobs with ease.

The removable front section of the support table adds another layer of functionality, enabling angle iron to be punched with the leg facing down. This design consideration highlights Morgan Rushworth’s commitment to creating user-friendly machinery that addresses real-world challenges faced by metalworking professionals.

Optional Features for Customisation

Morgan Rushworth understands that no two workshops are the same, which is why the HSPD punching machine offers a variety of optional features to extend its capabilities. These include bar bending, sheet bending, and corner notching attachments, allowing the machine to perform additional tasks without the need for separate equipment.

The bar bending option is perfect for creating precise bends in structural components, while sheet bending enables the shaping of flat metal sheets into desired forms. The corner notching capability is particularly useful for tasks that require clean, accurate notches in materials, providing a seamless solution for complex fabrication projects.

Durability and Reliability

As with all Morgan Rushworth machines, the HSPD Hydraulic Double Punching Machine is built to last. Its rugged construction ensures long-term durability, even under the most demanding operating conditions. This reliability translates to reduced maintenance costs and consistent performance, making it a cost-effective investment for any workshop.

The machine’s hydraulic system is designed for smooth and efficient operation, delivering powerful performance with minimal operator effort. Comprehensive safety features, including guards and emergency stop functions, ensure that the HSPD meets strict industry standards while providing a secure working environment.

Applications Across Industries

The versatility of the HSPD Hydraulic Double Punching Machine makes it suitable for a wide range of applications across various industries. From structural steelwork and heavy fabrication to custom metalworking projects, the HSPD delivers the precision and power needed to handle complex tasks efficiently.

Whether you’re punching holes in large I-beams or working with smaller, intricate materials, the HSPD provides the adaptability and performance to meet your needs. Its ability to perform double punching, along with its optional features, ensures that it remains a valuable asset in any industrial setting.

Compact Design with Maximum Efficiency

Despite its powerful capabilities, the HSPD maintains a compact footprint, making it an ideal choice for workshops with limited space. Its ergonomic design ensures ease of use, with intuitive controls and quick setup times, enabling operators to focus on productivity rather than complicated operation procedures.

This space-saving design, combined with its powerful features, makes the HSPD a practical and efficient solution for businesses seeking to optimise their operations without compromising on quality.

Conclusion

The Morgan Rushworth HSPD Hydraulic Double Punching Machine 415V is a powerful and versatile tool for any workshop or fabrication facility. With its double punching capability, wide throat depths, and robust design, it offers exceptional flexibility and performance. Standard features such as the heavy-duty support table and universal die holder ensure consistent precision, while optional upgrades like bar bending and corner notching provide added functionality.

Built for durability and reliability, the HSPD is a valuable investment for businesses looking to enhance their punching capabilities while maintaining high standards of quality and efficiency. Contact us today to learn more about the HSPD and how it can transform your workshop operations.
