Meyer SL32 Belt-Driven Pillar Drill

The Meyer SL32 belt driven drilling machines are manufactured to exacting standards. These robustly designed drills are heavy-duty yet economical. Offering large capacities with an impressive range of height beneath the spindle and table depending on your requirements. Equipped with coolant as well, this budget-friendly boasts some premium features.

Meyer SL32 Belt-Driven Pillar Drill imageMeyer SL32 Belt-Driven Pillar Drill image
Meyer SL32 Belt-Driven Pillar Drill image 2Meyer SL32 Belt-Driven Pillar Drill image 2
Meyer SL32 Belt-Driven Pillar Drill image 3Meyer SL32 Belt-Driven Pillar Drill image 3
Meyer SL32 Belt-Driven Pillar Drill image 4

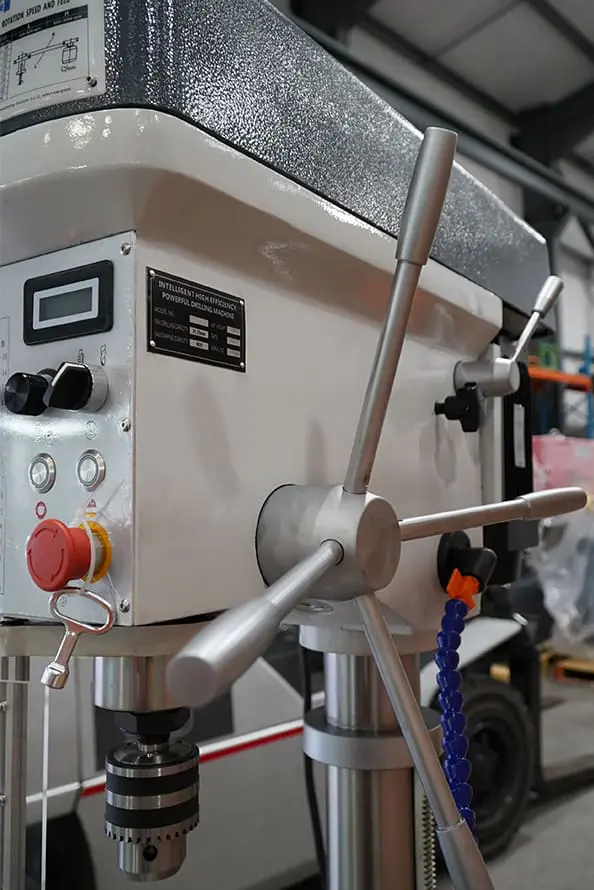

Controls
Meyer SL32 Belt-Driven Pillar Drill image 4
Meyer SL32 Belt-Driven Pillar Drill image 5

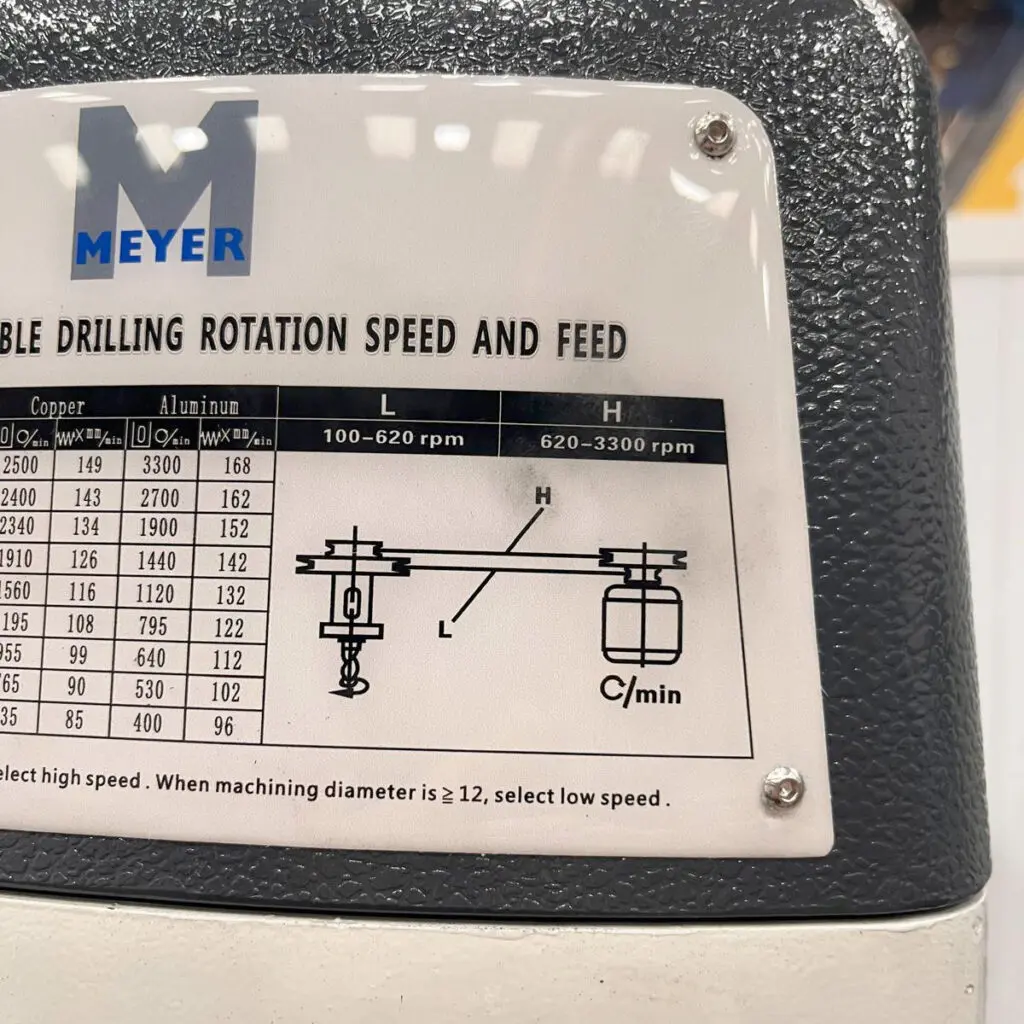

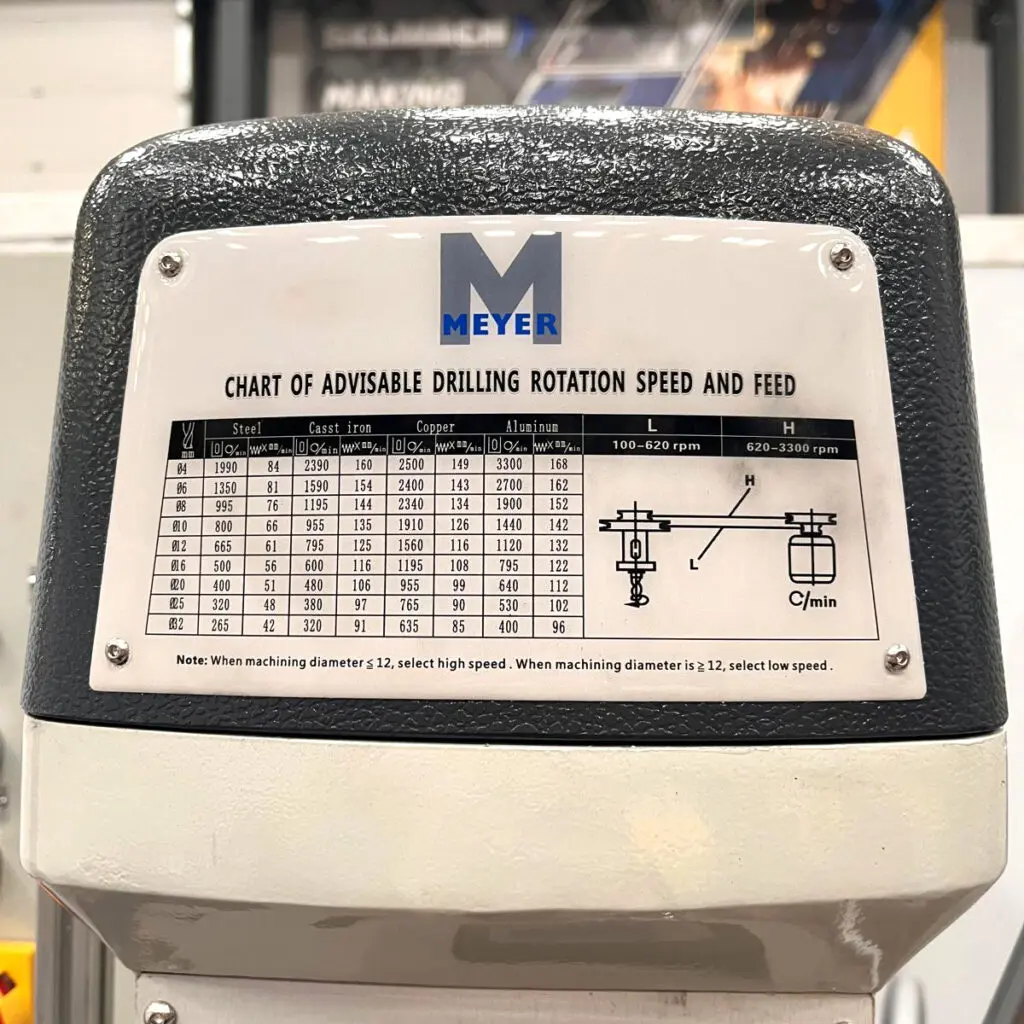

Variable Speeds (100 - 3000 RPM)
Meyer SL32 Belt-Driven Pillar Drill image 5
Meyer SL32 Belt-Driven Pillar Drill image 6
Flood Coolant System
Meyer SL32 Belt-Driven Pillar Drill image 6
Meyer SL32 Belt-Driven Pillar Drill image 7
Comprehensive Guarding
Meyer SL32 Belt-Driven Pillar Drill image 7
Meyer SL32 Belt-Driven Pillar Drill image 8
Rise and Fall Table
Meyer SL32 Belt-Driven Pillar Drill image 8
Meyer SL32 Belt-Driven Pillar Drill image 9
Electrical Panel
Meyer SL32 Belt-Driven Pillar Drill image 9
Meyer SL32 Belt-Driven Pillar Drill image 10
Heavy-Duty Construction
Meyer SL32 Belt-Driven Pillar Drill image 10
MODEL     SL 32
Drilling Capacity mm 32
Spindle Taper MT no 3
Motor Kw 1.5
Speeds rpm 100 – 3000
Spindle Stroke mm 150
Work Table mm 380 x 400
Length mm 1040
Width mm 640
Height mm 1750
Weight Kg 310

Features

  • Belt-Drive head
  • Heavy-Duty
  • Floor Standing
  • Large work tables
  • Auto tool release
  • Eye shield with interlock switch
  • Rise and fall table
  • Forward and reverse
  • Coolant

Options

  • Drill press vice STOCK CODE 18009.
  • Universal crosstable
