Morgan Rushworth XS Fibre Laser Cutting Machines

The Morgan Rushworth XS fibre laser range offers various bed sizes and features an automatic shuttle table with a dual pallet changer, allowing safe loading and unloading during cutting. High-quality components ensure excellent cut precision, reliability, and minimal downtime.

With power options from 6kW to 20kW, the XS range delivers rapid acceleration, positioning, and cutting via a robust gantry, frame, and high-performance rack and pinion X and Y axes. Linear motors and guides are available for even faster acceleration. The user-friendly touch screen CNC control supports on-screen programming and PC imports for flexible operation.

Automation options include compact or full-size tower systems for enhanced productivity.

Morgan Rushworth XS Fibre Laser Cutting Machines imageMorgan Rushworth XS Fibre Laser Cutting Machines image
Video thumbnail showing the Morgan Rushworth XS Fibre Laser Cutting Machines
Morgan Rushworth XS Fibre Laser Cutting Machines image 3Morgan Rushworth XS Fibre Laser Cutting Machines image 3
Morgan Rushworth XS Fibre Laser Cutting Machines image 4
Precitec Cutting Head
Morgan Rushworth XS Fibre Laser Cutting Machines image 4
Morgan-Rushworth-XR-Fibre-Laser-Cutting-Machine-Rear
Morgan Rushworth XR Fibre Laser Cutting Machine Rear
Morgan-Rushworth-XR-Fibre-Laser-Cutting-Machine-Rear
Morgan Rushworth XS Fibre Laser Cutting Machines image 6
Automatic Exchange Pallet Shuttle Table
Morgan Rushworth XS Fibre Laser Cutting Machines image 6
Morgan Rushworth XS Fibre Laser Cutting Machines image 7
Beckhoff CNC Controller
Morgan Rushworth XS Fibre Laser Cutting Machines image 7
Morgan Rushworth XS Fibre Laser Cutting Machines image 8
Full Controller
Morgan Rushworth XS Fibre Laser Cutting Machines image 8
Morgan Rushworth XS Fibre Laser Cutting Machines image 9
Stabilised Gantry
Morgan Rushworth XS Fibre Laser Cutting Machines image 9
Morgan Rushworth XS Fibre Laser Cutting Machines image 10

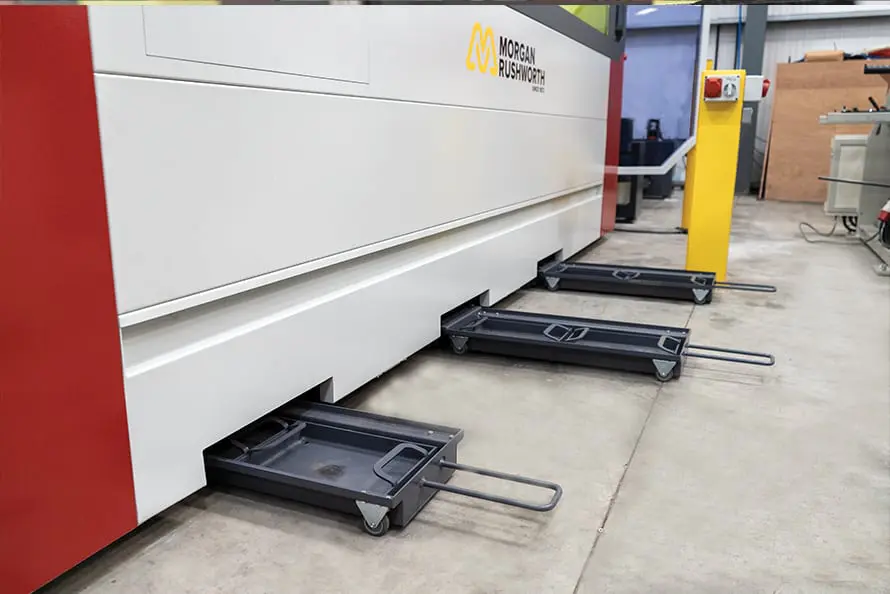

Small Parts and Scrap Collector Trays
Morgan Rushworth XS Fibre Laser Cutting Machines image 10
Morgan Rushworth XS Fibre Laser Cutting Machines image 11
Safety Glass
Morgan Rushworth XS Fibre Laser Cutting Machines image 11
Morgan Rushworth XS Fibre Laser Cutting Machines image 12
Electro-Magnetic Lock
Morgan Rushworth XS Fibre Laser Cutting Machines image 12
Morgan Rushworth XS Fibre Laser Cutting Machines image 13
Precitec Cutting Heads
Morgan Rushworth XS Fibre Laser Cutting Machines image 13
Fibre Laser Source 6kW 8 kW 10 kW 12 kW 15 kW 20 kW
Maximum Mild Steel mm 25 25 30 35 35 40
Cutting Stainless Steel mm 20 25 30 35 35 40
Capacity Aluminium mm 20 25 30 35 35 35
Bed Size 3 metre x 1.5 metre 4 metre x 2 metre 6 metre x 2 metre
X Axis Travel mm 3000 4000 6000
Y Axis Travel mm 1500 2000 2000
Z Axis Travel mm 100 100 100
Maximum Sheet Size mm 3010 x 1510 4020 x 2020 6020 x 2020
Positioning Speed Standard m/min 115 115 115
Linear m/min 150 150 150
Axis acceleration Standard G 2.2 2.2 2.2
Linear G 3.0 3.0 3.0
Shuttle table exchange time sec 38 38 38
Maximum Table Capacity kg 1500 2500 3500
Positioning accuracy mm 0.05 0.05 0.05
Length mm 9600 11750 15250
Width mm 3350 3950 3950
Height mm 2300 2300 2300
Weight kg 12000 14000 16500

Features

  • Class leading nLIGHT or IPG fibre laser source available from 1Kw – 15Kw
  • Precitec ProCutter cutting head with auto focus and anti-collision functionality
  • Beckhoff servo motors and drives
  • Wittenstein rack and pinion system with automatic lubrication
  • SMC automatic gas selection system
  • Beckhoff touch screen controller with part graphic view and extensive cutting parameter data base
  • Automatic sheet edge detection with skew allowance
  • Automatic nozzle cleaning and calibration
  • Class leading Lantek Expert software
  • Fast shuttle table change time
  • Large window viewing area with laser protective material
  • Light guard protection for shuttle table

Options

  • Auto nozzle changer
  • CNC bevel cutting up to 45°
  • Linear motors and drives instead of servo motors and drives
  • CNC parts conveyor
  • Metalix software instead of standard Lantek
  • CCTV view of cutting action
  • Fume extractor with filters
  • Air compressor and dryer
  • Loading and unloading systems

Morgan Rushworth XS Fibre Laser Cutting Machines

The Morgan Rushworth XS Fibre Laser Cutting Machines are built to address the evolving demands of modern manufacturing. These machines offer powerful performance, exceptional precision, and advanced automation capabilities, making them suitable for high-volume and intricate cutting tasks.

Key Features of the XS Fibre Laser Range

  1. Versatile Bed Sizes and Power Options
    The XS range is available in a variety of bed sizes to cater to diverse operational needs. With power outputs ranging from 6kW to 20kW, these machines provide the flexibility to cut both thin and thick materials efficiently. The higher power models enable rapid cutting speeds, ideal for high-volume production.
  2. Automatic Shuttle Table and Dual Pallet Changer
    Automation features like the automatic shuttle table and dual pallet changer ensure safe, uninterrupted loading and unloading during operation. This continuous workflow minimises downtime, enhancing overall productivity.
  3. Advanced Motion System
    Equipped with a robust gantry and rigid frame, the XS machines ensure stability and precision. The rack and pinion X and Y axes guarantee smooth and accurate movement, while optional linear motors and guides provide enhanced acceleration for even faster processing.

Cutting-Edge CNC Control

The XS machines feature a user-friendly CNC touch screen control system designed to simplify operation and improve workflow efficiency. Key functionalities include:

  • On-screen programming: Enables operators to create and modify cutting paths directly on the machine.
  • File import compatibility: Supports seamless integration with external PCs for importing designs.
  • Intuitive interface: Reduces training time and allows operators to work efficiently, even on complex projects.

Optional Automation Upgrades

To further enhance productivity, the XS range offers several automation upgrades, including:

  • Compact Tower Systems: Ideal for workshops with limited space, optimising material handling.
  • Full-Size Tower Systems: Designed for large-scale operations, these systems enable continuous cutting with minimal manual intervention.
  • Integrated Material Handling Solutions: Streamline operations and reduce labour costs by automating material storage and retrieval.

Superior Performance Across Applications

The versatility of the XS Fibre Laser Cutting Machines makes them suitable for a wide range of industries:

  • Automotive: Precision cutting for vehicle components and prototypes.
  • Fabrication: Creating intricate custom parts for construction and manufacturing.
  • Aerospace: Producing high-precision parts for critical applications.
  • Energy Sector: Cutting components for renewable energy systems and industrial equipment.

Exceptional Material Compatibility

The XS range delivers high-quality cuts across multiple materials, including:

  • Mild Steel
  • Stainless Steel
  • Aluminium
  • Copper
  • Brass

These machines ensure precise, burr-free cuts, minimising waste and reducing the need for post-processing.

Cost-Effective and Reliable

Morgan Rushworth XS machines are designed to provide long-term value. Key cost-saving features include:

  • Energy-Efficient Operation: Fibre lasers consume less power than traditional CO2 systems, lowering operational costs.
  • Minimal Maintenance Requirements: Fewer moving parts mean reduced downtime and lower maintenance expenses.
  • Increased Throughput: Faster cutting speeds ensure shorter project timelines, improving overall productivity.

Why Choose the Morgan Rushworth XS Range?

  • Scalable Solutions: Customise the machine to meet the unique needs of your business.
  • Cutting-Edge Technology: Stay ahead with advanced features like optional linear motors and tower systems.
  • Unmatched Reliability: Robust construction and high-quality components ensure consistent performance.

Conclusion

The Morgan Rushworth XS Fibre Laser Cutting Machines are the ultimate solution for businesses seeking to enhance their cutting capabilities. With advanced automation, high-power options, and user-friendly operation, these machines deliver precision, productivity, and efficiency. Whether you operate a small workshop or a large-scale facility, the XS range provides a scalable and reliable solution tailored to your needs.

Invest in the Morgan Rushworth XS range today and experience the benefits of industry-leading fibre laser technology.
